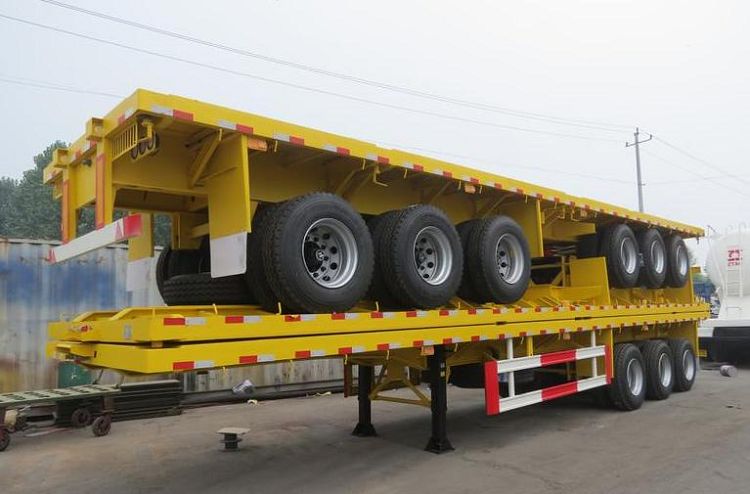

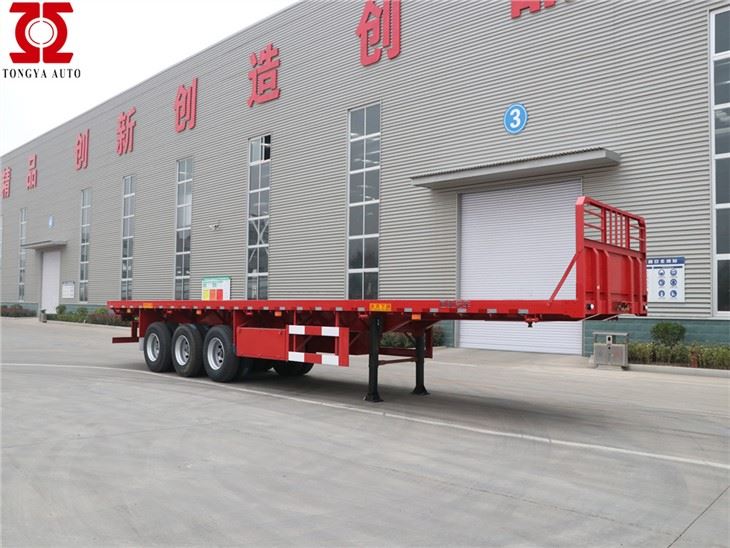

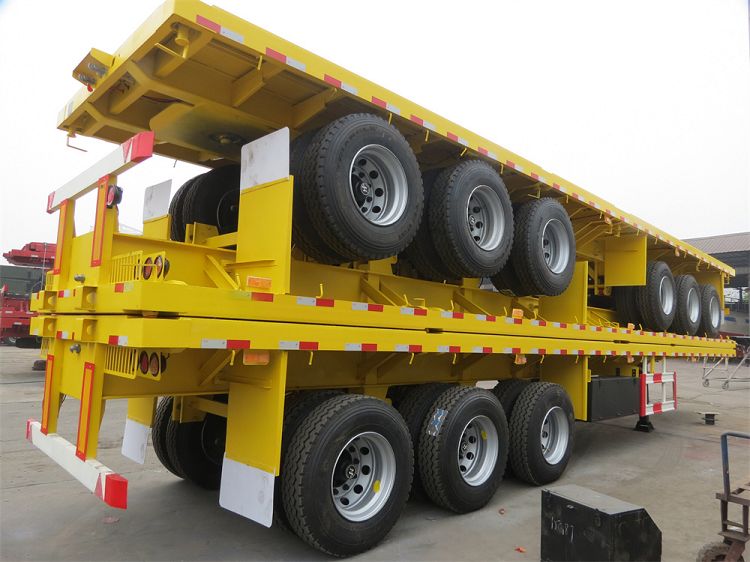

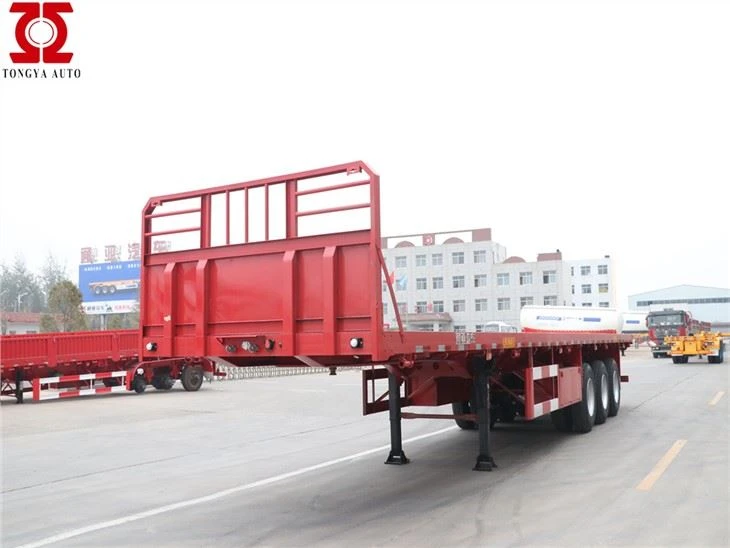

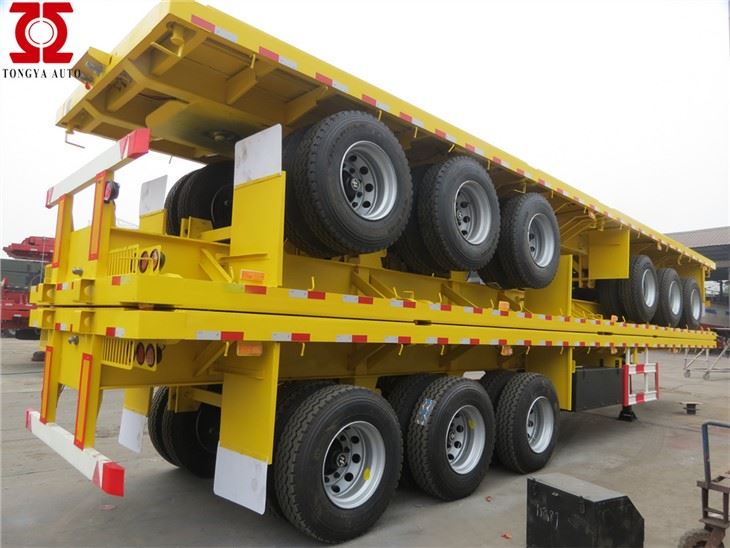

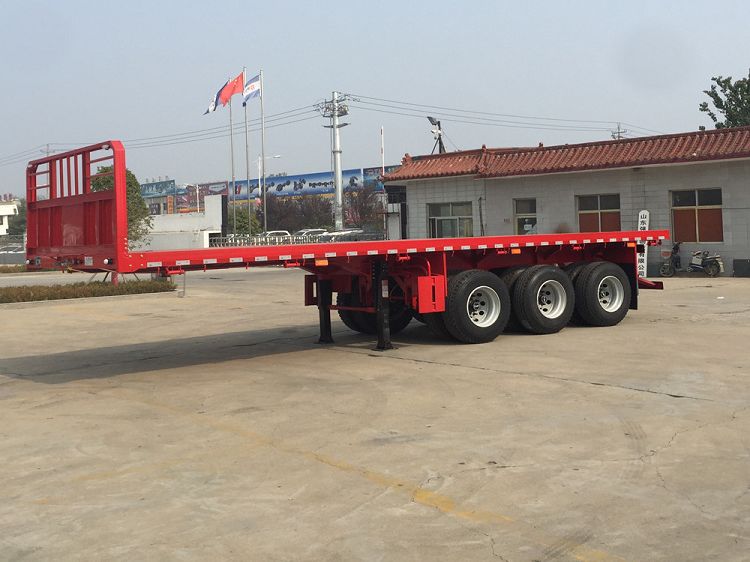

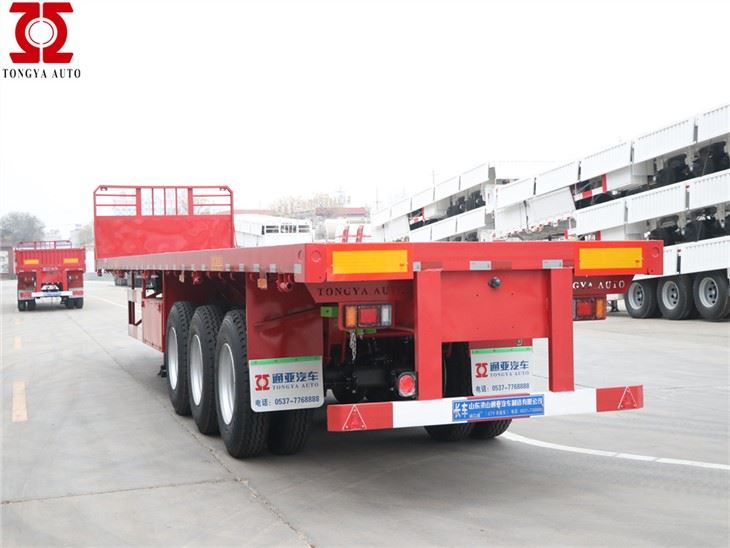

40ft Semi Trailer
40ft semi trailer yog ib qho ntawm feem ntau siv semi-trailers. Nws muaj lub lawj tiaj tiaj uas qhib rau txhua sab, yog li nws yooj yim rau thauj khoom thiab tshem tawm.
Khoom Taw qhia
40ft semi trailer tsum
40ft semi trailer yog ib qho ntawm feem ntau siv semi-trailers. Nws muaj lub lawj tiaj tiaj uas qhib rau txhua sab, yog li nws yooj yim rau thauj khoom thiab tshem tawm.
Flatbed semi-trailers yog tsim rau thauj khoom loj xws li:
Cov ntaub ntawv tsim kho
Cov khoom siv hnyav thiab tshuab
Tsis zoo li cov loads
Ntoo
40ft semi trailer specification
| 40ft 3 axles ca txaj semi trailer | |
Dimension | 12500mm * 2500mm * 1550mm |
Loading peev (T) | 40 T |
Qag | 3 axles, 13 TSI |
Rim | 9.00-22.5 (tshwj xeeb rau kev lag luam xa tawm) |
Lub log | 12R22.5,13 daim (nrog rau 1 lub log tsheb) |
Kev ncua | Mechanical America Hom |
Nplooj nplooj | 90 (W) hli * 13 (Thick) hli * 10 Txheej |
King pin | hom JOST yeem |
Txhawb ceg | JOST hom kev xaiv |
Main beam | Qhov siab: 500mm, phaj siab yog 14mm, nruab nrab phaj yog 8mm, |
Sab beam | Q235 16# channel steel |
Platform | 3mm pob zeb diamond platform |
Nres chamber | WABCO RE 6 relay valve; T30/30 ntxiv rau T30 Caij nplooj ntoos hlav nres chamber; Ib daim ntawm 45L cua tso tsheb hlau luam |
ABS | Tsis muaj (yeem) |
TONGYADA hom 40ft semi trailer, yog tsim los ntawm cov qauv hlau -Q345, thiab Q235. Lub nqaj nqaj yog vuam los ntawm vuam tshuab nrog Laser nrhiav thiab polished los ntawm kev txhaj tshuaj blasting tshuab, yog li qhov zoo yog guaranteed thaum pib. Rau kev xa tawm, peb siv cov khoom lag luam nto moo, xws li JOST hom kinpin thiab tsaws ceg, WBACO braking valve.
Ntau yam ntawm 40ft semi trailer rau koj xaiv, peb tuaj yeem tsim nws raws li koj lub teb chaws txoj kev mob, thiab tseem tuaj yeem ntxiv qhov tshwj xeeb raws li koj thov. ob axles, peb axles, plaub qag thiab lwm yam koj tuaj yeem xaiv.
Tom qab 13 xyoo ntawm kev tshawb fawb thoob ntiaj teb kev ua lag luam, peb cov semi trailer yog paub zoo thiab txais los ntawm peb cov neeg muas zaub los ntawm Afria, Midde sab hnub tuaj, South Asia, thiab South America.
Txoj cai zoo yog muab rau koj los koom nrog peb ua tus neeg muag khoom.
Koj yeej ib txwm txais tos tuaj xyuas peb lub tuam txhab thiab lub Hoobkas rau kev koom tes ua lag luam !!!
Cim npe nrov: 40ft semi trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
