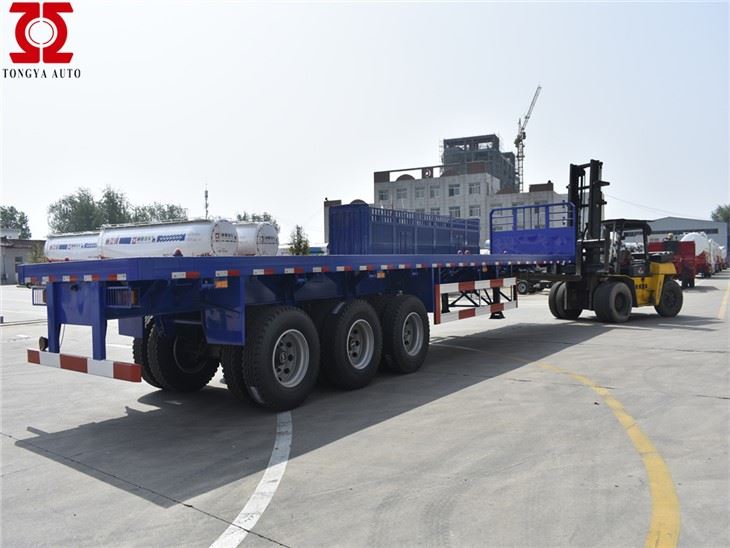

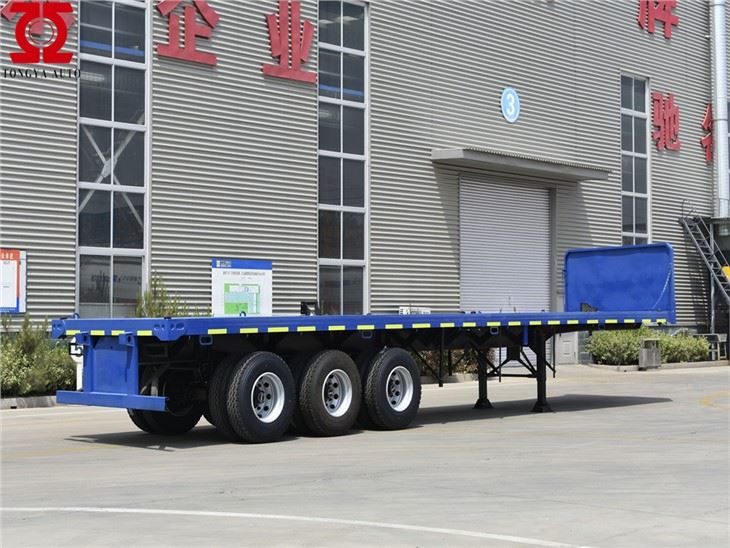

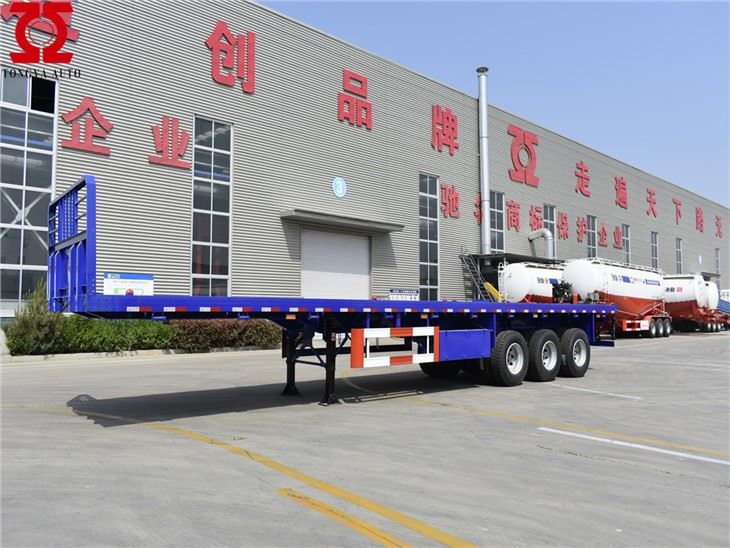

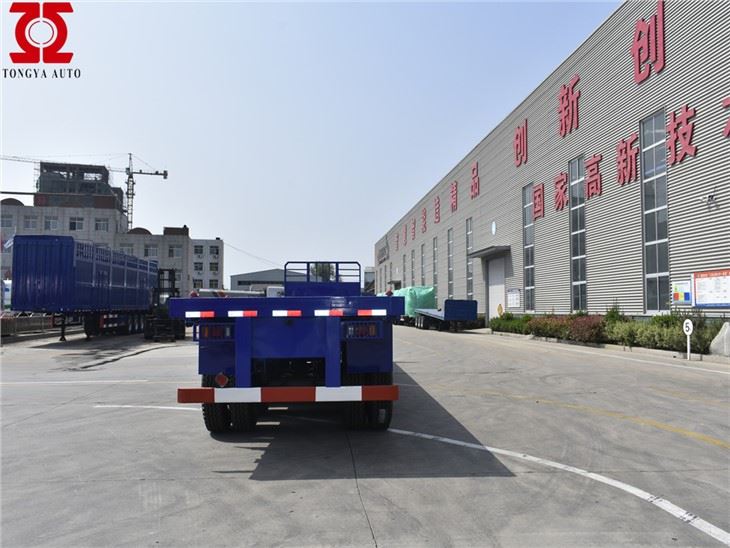

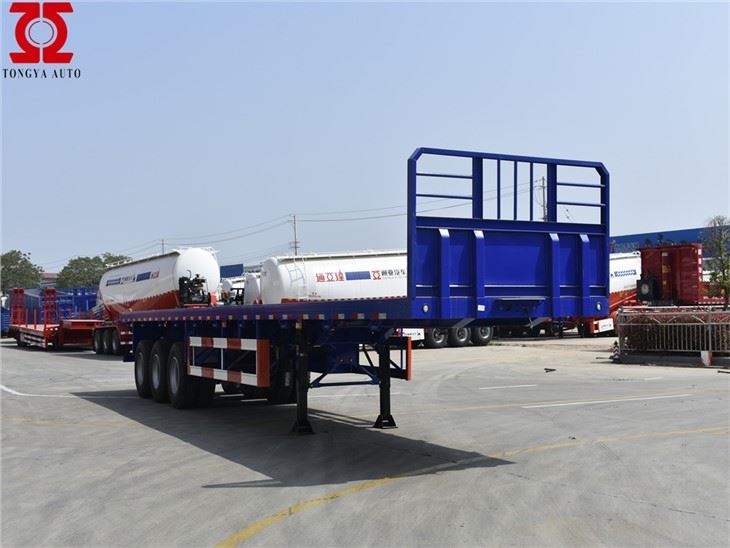

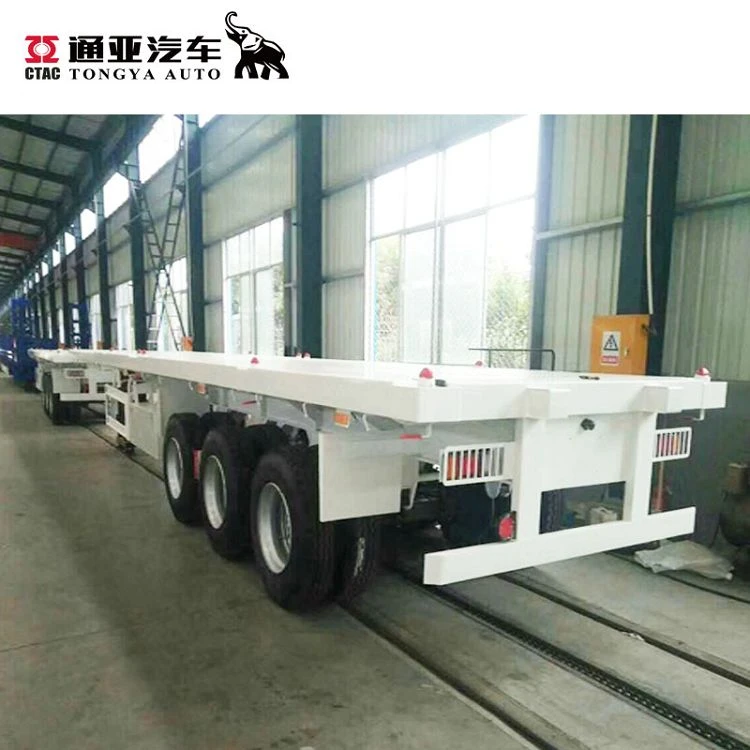

Thawv High Bed Trailer
Tuam Tshoj ua lub tsheb trailer tsim txij li xyoo 1982.
Peb yog thawj qhov chaw tsim khoom thiab muag cov thawv siab txaj trailer hauv Suav teb.
Khoom Taw qhia
Tuam Tshoj thawv siab txaj trailer chaw tsim tshuaj paus
--- Tongya Automobile Co., Ltd
Peb tau ua lub thawv siab txaj trailer rau peb cov neeg siv khoom txawv teb chaws rau ntau tshaj kaum xyoo, thiab muaj cov pab pawg muaj zog thiab kev paub txog kev tsim thiab ntau tshaj 1000 tus neeg ua haujlwm rau kev tsim khoom, peb tuaj yeem tsim thiab ua cov khoom tshwj xeeb raws li koj xav tau!
Koj ib txwm txais tos tuaj xyuas peb lub tuam txhab thiab kev cob qhia!
Chaw tsim tshuaj paus | Tongya Automobile Co., Ltd |
Thawv siab txaj trailer | 40ft thawv chassis |
Qhov hnyav tag nrho | Txog 7 tons |
Sab nraud dimension (mm) | 12500mm * 2490mm * 1575mm |
Loading peev (Ton) | 40 T |
AXLES | 13 T / PER, 3 TXL |
Lub log | 12.00R22{3}}cov |
Rim | 9.00-22 {2}}cov |
Kev ncua | mechanical ncua kev kawm ntawv |
Nplooj nplooj | 10 daim |
King pin | JOST hom 2.0" bolts hom |
Txhawb ceg | JOST hom C200T |
Main beam | Qhov siab: 500 hli, phaj sab sauv yog 14 hli, nruab nrab phaj yog 8 hli, nqes phaj yog 16 hli, ua los ntawm Q345 steel; sab beam 16 # channel steel |
Platform | 3 hli pob zeb diamond Q235 Steel phaj |
Nres chamber | 4 ob chav thiab 2 tib chav |
Twist Locks (Lifting Hom) | 12 qab |
Valve | WABCO valve |
Teeb | LED teeb |
Qhov hluav taws xob | 24V |
Txais | 7 txoj kev (7 hlau hlua) |
Tool lub thawv | Ib thooj, 1m * 0.5m * 0.5m |
Thawv siab txaj trailer: Cias qhia peb yam khoom yuav tsum tau nqa, thiab peb yuav tsim ib lub thawv ntim semi trailer kom haum.
Sau ntawv
1, Peb muaj kev paub zoo hauv kev tshawb nrhiav thiab tsim cov tsheb sib txawv: Thawv trailer, qis txaj trailer, sab phab ntsa semi trailer, ceg txheem ntseeg semi trailer, tank trailer thiab hnyav hnyav trailer thiab lwm yam.
2, Siab tensile zog steel Q345 rau I-beam
3, Qag: German lossis American style los ntawm 12 tons txog 20 tons
4, Suspension: Mechanical suspension, cua ncua
5, Tyre: 10.00R20, 10R22.5, 11.
6, Kingpin: Yeem rau 90 # lossis 50 # Kingpin
7, Kev tsaws iav: "Jost" tsaws iav lossis lwm hom.
Peb sov siab txais tos cov neeg siv khoom hauv tsev thiab txawv teb chaws los koom tes nrog peb rau kev sib nrig sib pab.
