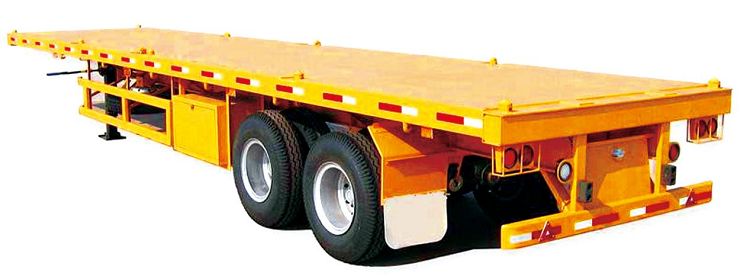

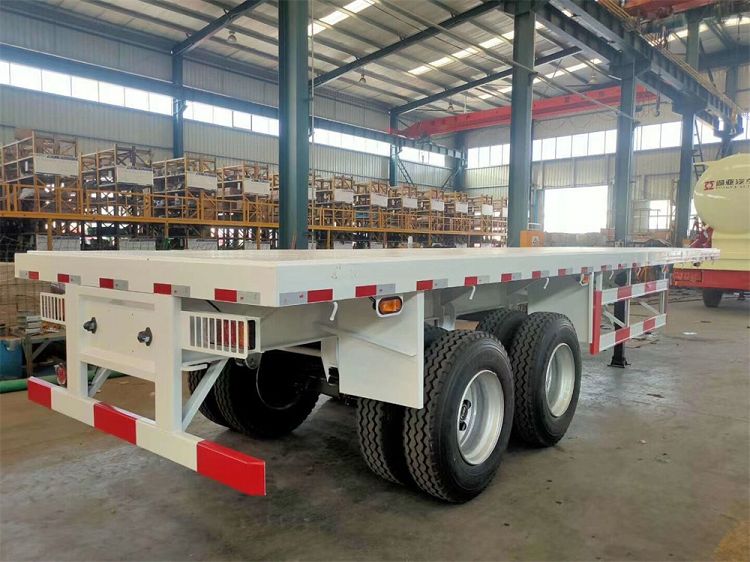

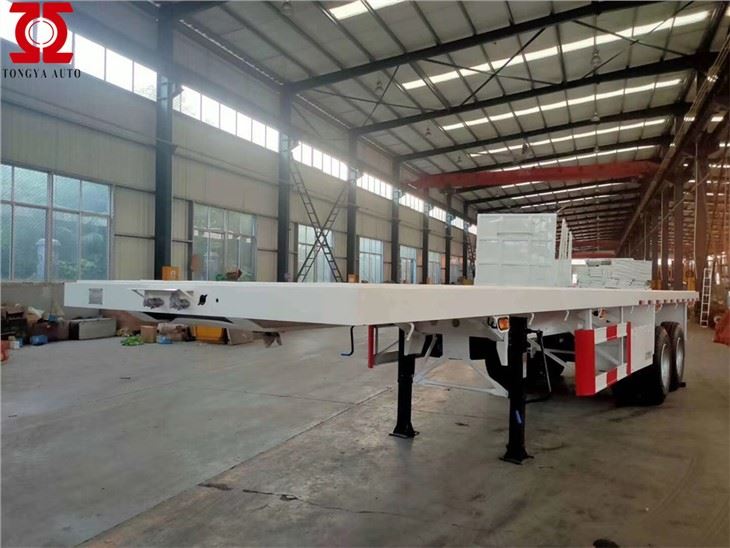

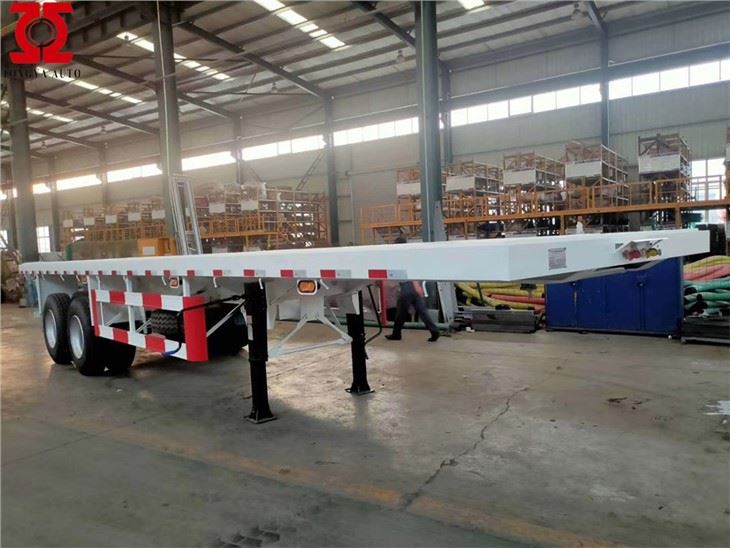

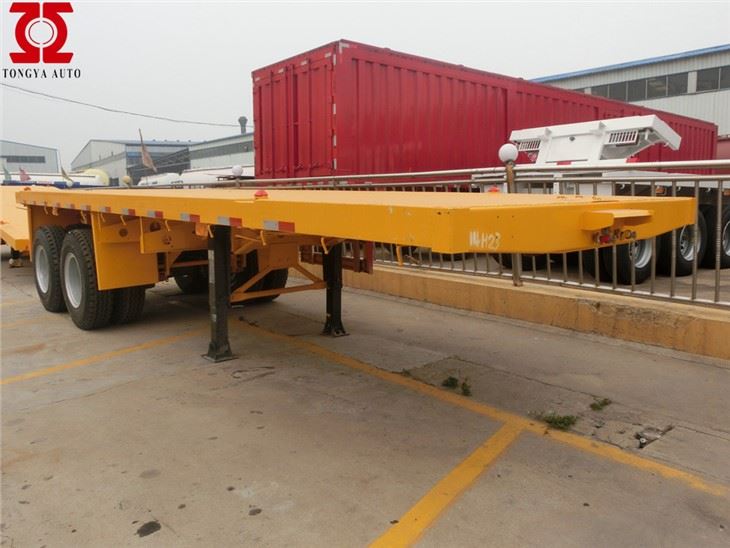

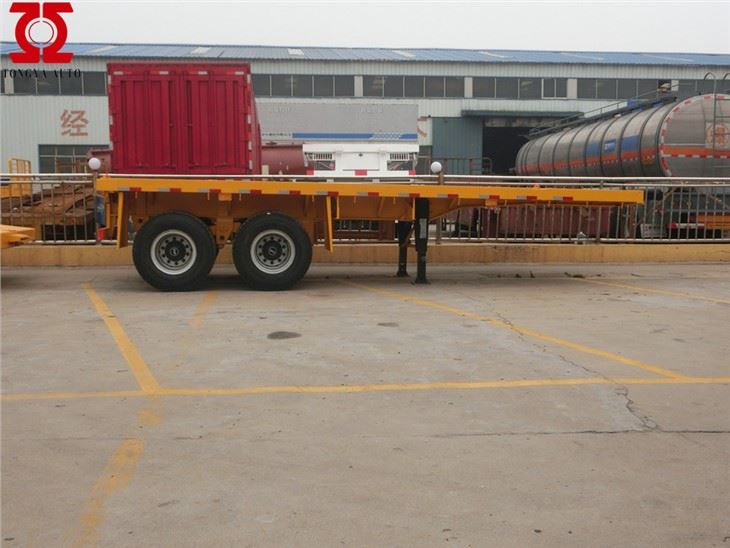

20ft Flat txaj Semi Trailer
TONGYADA hom 20ft tiaj tus txaj semi trailer
1.Four twist locks kho 20ft thawv.
2.Nws tuaj yeem thauj khoom sai thiab tshem tawm, thiab tuaj yeem ncaj qha thiab yooj yim hloov ntawm ib txoj kev thauj mus rau lwm qhov.
Khoom Taw qhia
20ft tiaj txaj semi trailer specification
Technical Parameters | |
Tare luj | Txog 6000kg |
Loj | 7300mm × 2500mm × 1550mm |
Them nyiaj | 25T |
Main beam | Sab saum toj flange 14mm, dav 140mm; Middle Flange 8mm siab 500mm; hauv qab flange16mm, dav 140mm |
Sab beam | 16 # channel steel (Q235) |
Cross tus tswv cuab | 10 # channel steel (Q235) |
Pem teb | 3mm Flat Phaj |
Qag | 2 qag 13T (Original FUWA hom) |
tsaws iav | Ob-ceev, phau ntawv khiav hauj lwm, hnyav tsaws iav 28T |
Kev ncua | Mechanical suspension |
Nplooj caij nplooj ntoos hlav | Nplooj caij nplooj ntoos hlav 6sets, 10pcs, 90 × 13 mm |
Lub log | 12 R22.5, 8 pcs |
Lub log rim | 9.5, 8 pcs |
Kingpin | 3.5 "bolt-hauv huab tais tus pin |
Twist xauv | 4 pcs ib |
Braking system | WABCO RE6 relay valve; T30/30 caij nplooj ntoos hlav nres chamber; 40L cua tso tsheb hlau luam |
Teeb | LED 8 sab teeb thiab 2 rear teeb 2 dav teeb |
Kev pleev xim | Ua kom tiav chassis xuab zeb blasting los ntxuav xeb, 1coat ntawm anticorrosive prime, 2coats ntawm zaum kawg xim |
Cov khoom siv | Ib lub thawv khoom; ib lub log tsheb spare; ib lub crank; ib lub taub hau taub hau; plaub sab teeb; ob lub teeb tom qab |
1.20ft flatbed trailer yog mob siab rau nqa 20 ko taw thawv .Beam siv submerged arc vuam, trailer txhaj tshuaj blasting derusting, qauv phaj hauv qab yog 3 hli tuab, nrog cov qauv tsis-plam, txhua qhov chaw tom qab 20 xyoo ntawm kev siv cov khoom xaiv (tuaj yeem pom nyob rau hauv peb lub vev xaib accessories cov chaw muag khoom, peb tuaj yeem ua raws li cov neeg siv khoom tsim khoom siv khoom siv yuav khoom txawv teb chaws lossis hauv Suav teb.), tuaj yeem siv sijhawm ntev dua, muaj lub zog txaus.
2. Tus nqi zoo tshaj plaws Tuam Tshoj tuam ntxhab 20ft tiaj tus txaj semi trailer tuaj yeem ua raws li cov neeg siv khoom xav tau los nruab nrog cov khoom tshem tawm thiab kem thiab lwm yam.
3.Can ua haujlwm nrawm nrawm thiab tshem tawm, thiab tuaj yeem hloov pauv ncaj qha los ntawm kev thauj mus rau lwm qhov kev thauj mus los.
4.Peb tuaj yeem ua raws li qhov sib txawv ntawm cov neeg siv khoom los tsim lub 20ft ca txaj semi trailer, lossis qhia rau peb t Qhia peb seb koj siv dab tsi. peb yuav muab rau koj tsim cov qauv sib xws, ua tau raws li tus kheej xav tau ntawm cov neeg siv khoom
5.Txoj kev tshwj xeeb ntawm kev thauj mus los hauv hiav txwv.
A. Raws li tus neeg siv khoom lub sijhawm mus sij hawm ntev, thiab cov neeg siv khoom qhov chaw ntawm cov txheej txheem vuam, cov neeg siv khoom tuaj yeem xaiv cov cab kuj (Peb stacked, dai tawm tuaj yeem siv ncaj qha tom qab cov khoom xa mus rau qhov chaw nres nkoj.)
B: Los ntawm 40HQ tuaj yeem txuag koj cov nqi, tab sis cov trailer yuav tsum raug txiav los ntawm tus Tsov tus tw. tom qab ntawd ob chav tuaj yeem muab tso rau hauv ib lub thawv
Cim npe nrov: 20ft tiaj txaj semi trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
