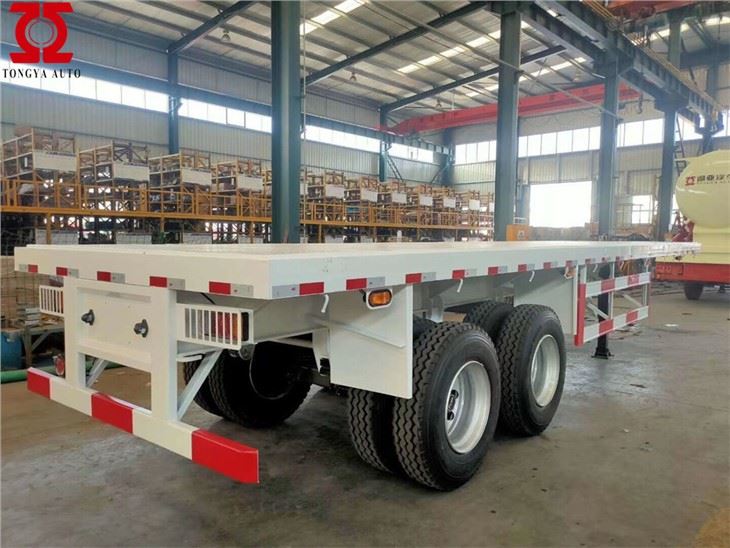

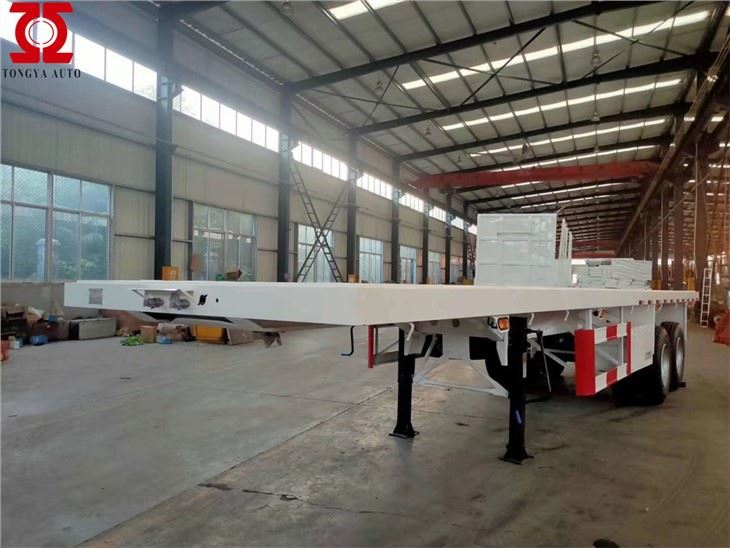

20ft Thawv Semi Trailer

TONGYA tuaj yeem muab rau koj customized 20ft thawv semi trailer tsim kev daws teeb meem kom tau raws li koj qhov kev thov sib txawv.
1. High tensile zog steel Q345 rau I-beam
2. Qag: German lossis American style los ntawm 12 tons txog 20 tons
3. Suspension: Mechanical suspension, cua ncua
4. Tyre: 10.00R20, 10R22.5, 11.
5. Kingpin: Yeem rau 90 # lossis 50 # Kingpin
6. Kev tsaws iav: "Jost" tsaws iav lossis lwm hom .

Xa kev nug

Khoom Taw qhia

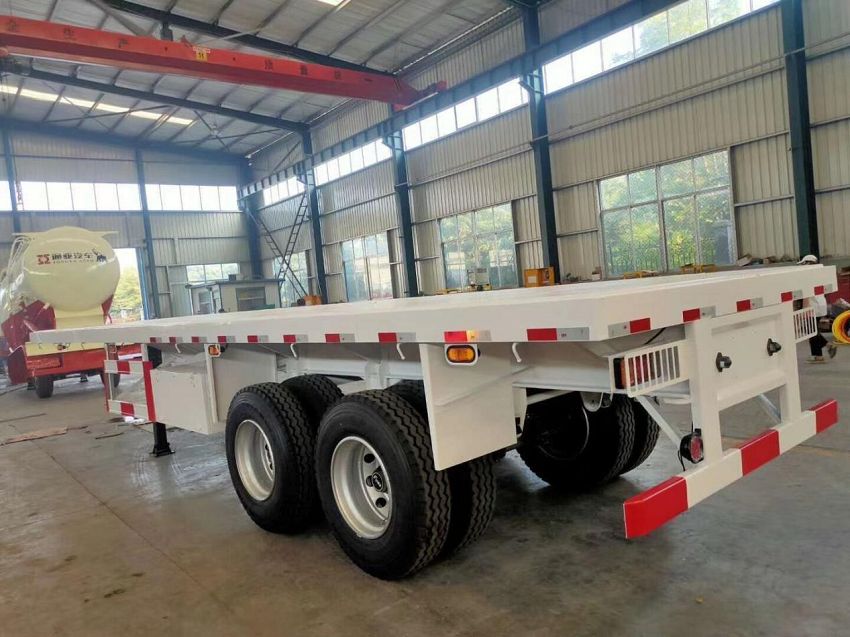

1(001)

Qhov ntev thiab qhov hnyav (tuaj yeem kho raws li qhov xav tau):

Hom		20ft thawv semi trailer nrog ob qag / 20FTcontainer chassis
Qauv		TSI 9410
Parameter	qhov loj (mm)	Ntev × dav × qhov siab: 7200 × 2500 × 1550
	King pin setting (mm)	450
	tsib lub log qhov siab (mm)	1250
	axle qhov chaw (mm)	4600 plus 1300 Nws
	qhov hnyav (kg)	3,500
	Thauj khoom (kg)	30,000

Steel Qauv
Khoom siv: High Strength low alloy steel Q345 (350Mpa yield zog) yog siv rau vuam I-Beam thiab Q235 (235Mpa yield zog)
yog siv rau fabricated qhov chaw.

OEM Parts Configuration
Muaj peev xwm hloov kho raws li cov neeg siv khoom thov.

OEM	tsaws iav	JOST C200
	kingpin	2 "JOST, pauv tau
	nres system	Dual cua nres system, WABCO nres valve,
	ABS	xaiv tau
	kev ncua	Mechanical ncua kev kawm ntawv nrog 8 nplooj caij nplooj ntoos hlav
	qag	13T ×2
	log tsheb	11R22.5, nruab 8 ib chassis
	rim	8.25 * 22.5, nruab 8 ib chassis
	toolbox	ib txheej, 1m toolbox
	lub log tsheb spare	nruab 1 teeb rau chassis

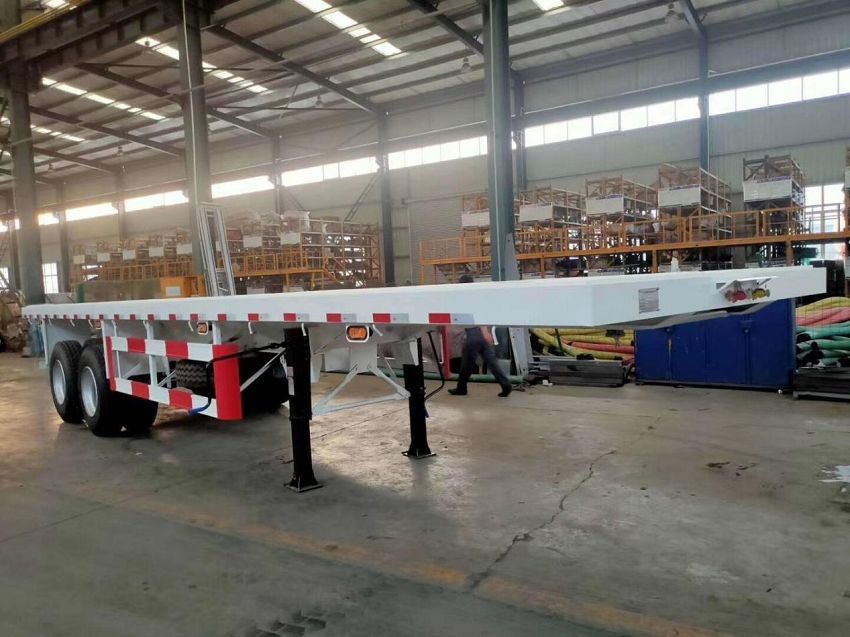

2(001)

20ft thawv semi trailer Khoom Nta

1.Advanced thev naus laus zis: Cov khoom tseem ceeb thiab cov khoom ntawm cov trailer yog ua tiav los ntawm cov khoom siv siab heev. Longitudinal kab teeb yog tiav los ntawm kev tsis siv neeg taug qab submerged arc vuam tshuab; tag nrho cov sub-assemblies raug tua-blasted los txhim kho xim adhesiveness thiab pleev xim rau ua ntej assembling.

2.Chassis: Txhawm rau kom pom cov qauv zoo rau kev thauj khoom thauj thiab thauj khoom loj dua, lub chassis yog tsim los ua qhov chaw thav duab

qauv ntawm high-strength steel, 16Mn steel welded longitudinal beam thiab integrated cross member.

3.Axle: Kev ua haujlwm siab hauv tsev thiab txawv teb chaws nrog ABS qhov kev xaiv muaj tuaj yeem ua rau muaj kev nyab xeeb ntawm kev tsav tsheb.

4.Suspension: Lub zog siab thiab kev cuam tshuam tsis zoo tshiab hom ncua kev kawm yog saws nrog patented pas nrig txuas tsim.

Nws guarantees kev ua tau zoo nyob rau hauv txoj kev ntxhib txoj kev thiab kev pab lub neej ntev.

5.Tool Box: Lub peev xwm loj dej-pov thawj detachable tool box.

6.Kub-dov structural steel welded 16Mn steel longitudinal beam thiab tus ntoo khaub lig cov tswv cuab yog sib sau ua ke thiab welded rau chassis los ua ke. Lub chassis tiav muaj dabtsi yog khoov thiab deforming kuj nrog rigidity thiab lub zog.

7.Tested thiab proven qauv ntawm cargo lub thawv yog tsim nrog profiled steel los ntawm, corrugated phaj thiab pwm pressed steel ceg txheem ntseeg.

8.Reliable dual Circuit Court cua nres nrog ceev tso valve thiab ceev repines ntawm lub tog raj kheej lub log kom muaj kev ruaj ntseg ntawm txoj kev thiab off-txoj kev lag luam.

Vim li cas koj xaiv peb? (TONGYA)

1. Ua tiav cov kab ntau lawm, los ntawm trailer Tsim rau Kev Xa.

2. Cov cuab yeej siv siab tshaj plaws thiab kev tswj xyuas zoo

3. ISO 9001: 2008 thiab CCC daim ntawv pov thawj zoo.

4. Siv 100 feem pua ntau yam khoom seem hauv Suav teb rau peb cov khoom.

5. Peb muaj cov neeg siv khoom thoob plaws ntiaj teb.

6. Peb lees txais 100 feem pua kev tshuaj xyuas, txais tos rau peb lub Hoobkas txhua lub sijhawm.

7. Tus nqi sib tw.

8. Kev xa khoom sai.

9. Kev pabcuam zoo tom qab muag.

10. Guarteed zoo.

Koj zoo siab txais tos tuaj xyuas peb lub Hoobkas lossis xa cov lus nug hauv online!
