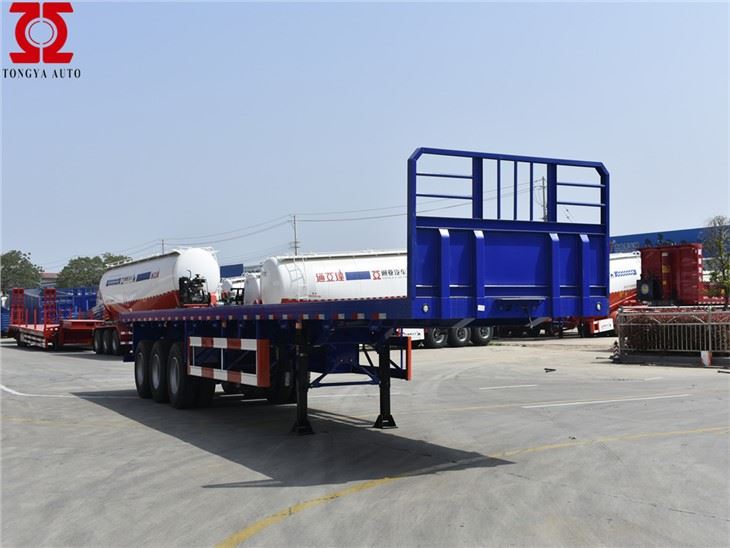

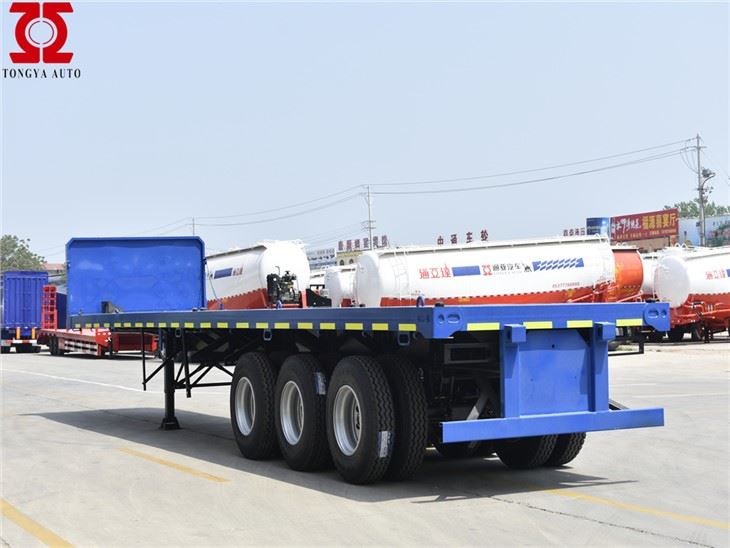

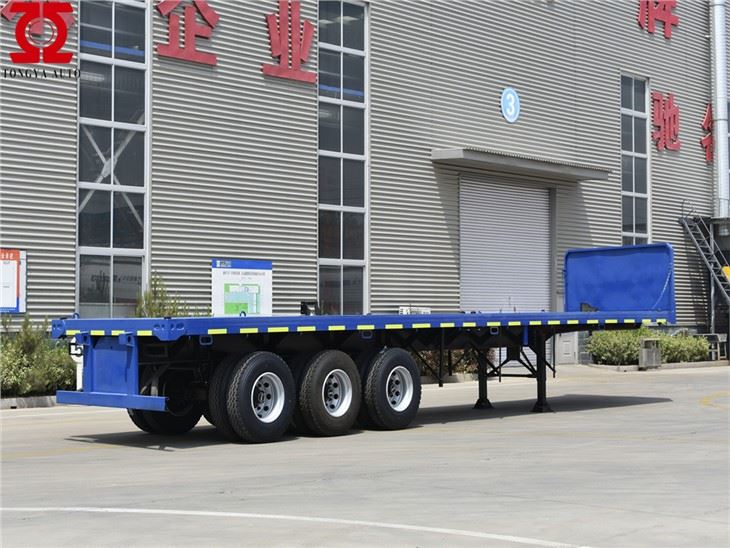

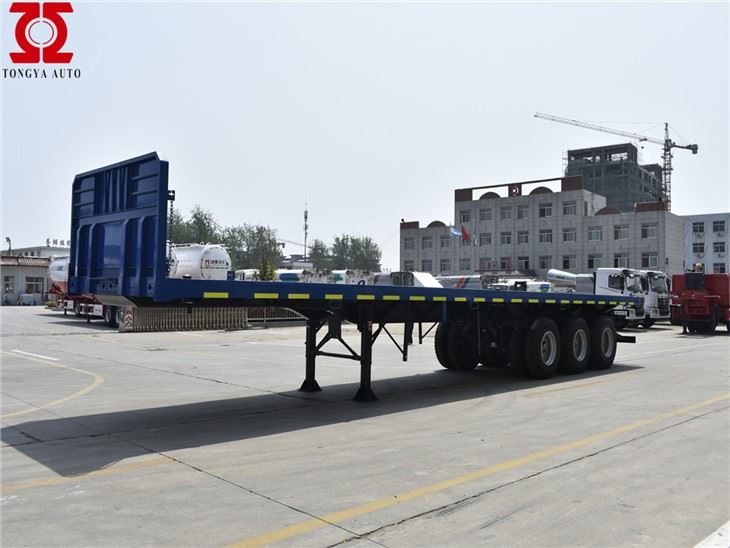

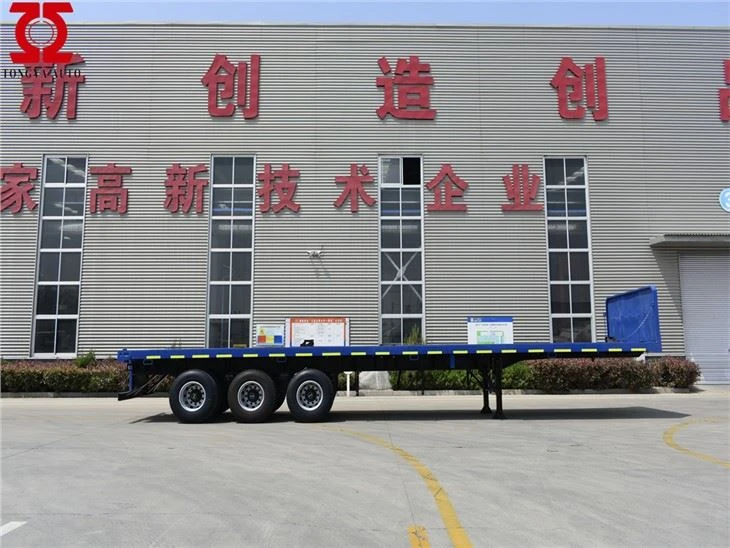

Thawv Semi Trailer

Thawv semi trailer feem ntau yog rau cov thawv thauj khoom, nws tuaj yeem ua raws li:
1-trailers tuaj yeem yog 20FT, 30FT, 40FT, 45FT, 48FT, 50FT, 53FT thawv shipping
2-flatbed lossis skeleton chassis type
3-Lub ntsiab nqaj: 500mm qhov siab
4-cov ntaub ntawv ntawm lub ntsiab nqaj: Q345
5-Ncua tseg: Caij nplooj ntoos hlav ncua, Rigid, ib qho taw tes, bogie lossis cua ncua
6-Axles naj npawb: 2 3 4 axles.
8-Jost tsaws iav, FUWA qag thiab Tri-angle log tsheb
9-extendable los yog zawv zawg hom xaiv yeem

Xa kev nug

Khoom Taw qhia

Lub ntsiab nta

Customized Container Semi Trailer, muab cov thawv ntim khoom kom ua kom cov khoom thauj tau zoo tshaj plaws. TONGYADA hom skeleton thawv trailer txais kev tsim qauv siab heev. Tom qab nkag siab tag nrho thiab txheeb xyuas qhov chaw thauj mus los hauv ntau lub tebchaws. Tsis tas li qhov ntev ntawm cov tsheb thauj khoom tuaj yeem hloov kho, xws li 45ft, 48ft, lossis 53ft thawv tsheb thauj mus los.

TONGYADA Thawv semi trailer yog tsim los rau stevedoring thiab thauj 1x40', 1x 20'los yog 2x20'ISO Cargo Thawv thiab xoob cargos. Txhawm rau kom paub tseeb tias lub neej ua haujlwm ntawm semi trailers, tag nrho cov khoom seem peb txais yuav yog lub ntiaj teb nto moo hom. Peb siv lub npe nrov German WABCO braking valve yuav twv yuav raug hu luv luv Braking Distance, ua kom muaj kev nyab xeeb ntawm cov tsheb thauj khoom thiab cov tsav tsheb. Tsis tas li ntawd cov tsheb thauj khoom hauv pem teb yog checker phaj, qhov no yuav ua rau lwm cov khoom thauj ntau ruaj khov, zoo li lub hnab, lossis cov khoom ntev.

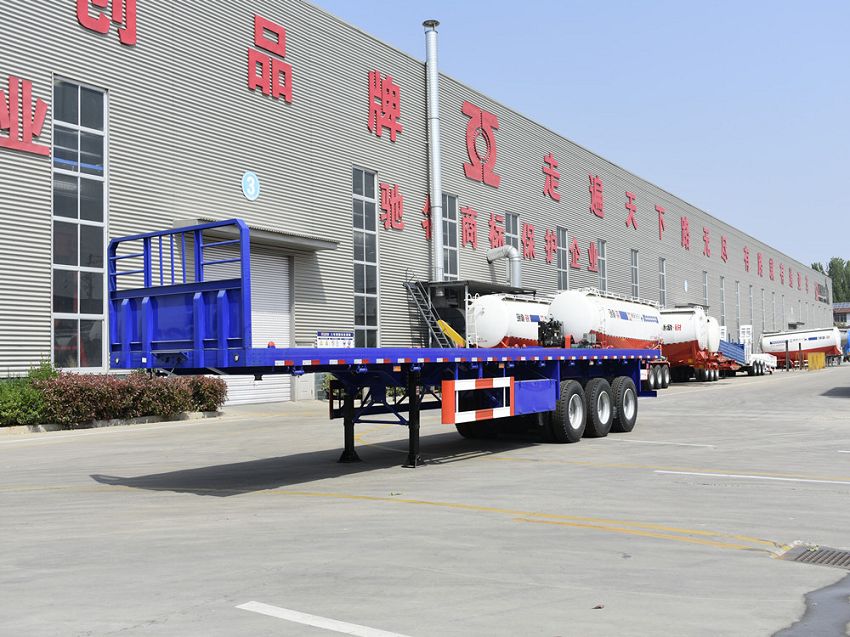

1(001)

Cov ntaub ntawv technical

Cov ntsiab lus	Thawv semi trailer tsum
Chaw thau khoom muaj peev xwm	40 ton
Qag	3 axles, TONGYADA qag
Lub log	12 pcs, 12R22.5
Dimensions (LxWxH)	12500mm x 2500 x 1550mm
Tare luj	7 ton
Axle nrug	13 10mm
Rims	9.0-22.5
Qhov System Suspension	Nplooj caij nplooj ntoos hlav Suspension
Nres System	Dual kab pneumatic nres system nrog WABCO thaum muaj xwm ceev relay valve
Main Beam	Qhov siab 500mm Q345 carbon steel
Chassis	sab sauv 14mm, qis dua 16mm. Mid web 8mm
Kingpin	2 'los yog 3.5' sib hloov, JOST hom
Twist xauv	12 units ISO hom
Kev tsaws iav	28 Tons, Ob txoj haujlwm ceev ceev
Hluav taws xob System	1.Voltage: 24v 2. Receptacle: 7 txoj kev (7 xaim hlua) German txuj
Teeb thiab Reflectors	Tsheb teeb, rear reflector, tig taw qhia lub teeb, sab reflector, pos huab teeb, tooj phaj teeb
Kev pleev xim	Txhaj tshuaj tiv thaiv rau SA 2.5 Standard ua ntej daim ntawv thov ntawm primer, polyurethane sab saum toj txheej. Tag nrho DFT tsis tsawg dua 100μm; Txhua xim yuav muaj
Tool Box	Ib lub thawv cuab yeej nrog cov txheej txheem trailer cov cuab yeej
Spare Tyre Carrier	Ib daim los yog ob daim

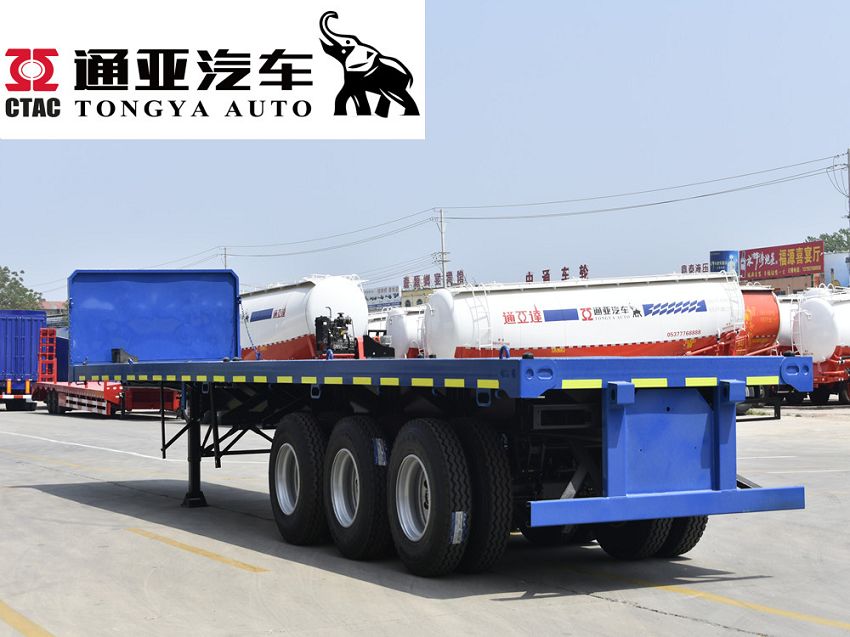

2(001)

TONGYADA 3 qag 40 ko taw thawv semi trailer feem ntau yog siv hauv nkoj, chaw nres nkoj, txoj kev, txoj kev, chaw nres tsheb, txuas hniav, tunnels, sib txuam multimodal logistics system.

Tshwj xeeb rau ntau lub thawv thauj khoom, cov neeg siv khoom tuaj yeem xaiv raws li lawv tus kheej xav tau los hloov ntau npaum li cas cov xauv uas yuav, tag nrho cov khoom siv tau 20 xyoo dhau los ntawm kev siv cov neeg siv khoom xaiv, siv sijhawm ntev dua, muaj zog txaus.

Thawv chassis semi trailer ceev thauj khoom thiab tshem tawm, thiab tuaj yeem ncaj qha thiab yooj yim los ntawm ib lub tsheb mus rau lwm lub tsheb facelift.

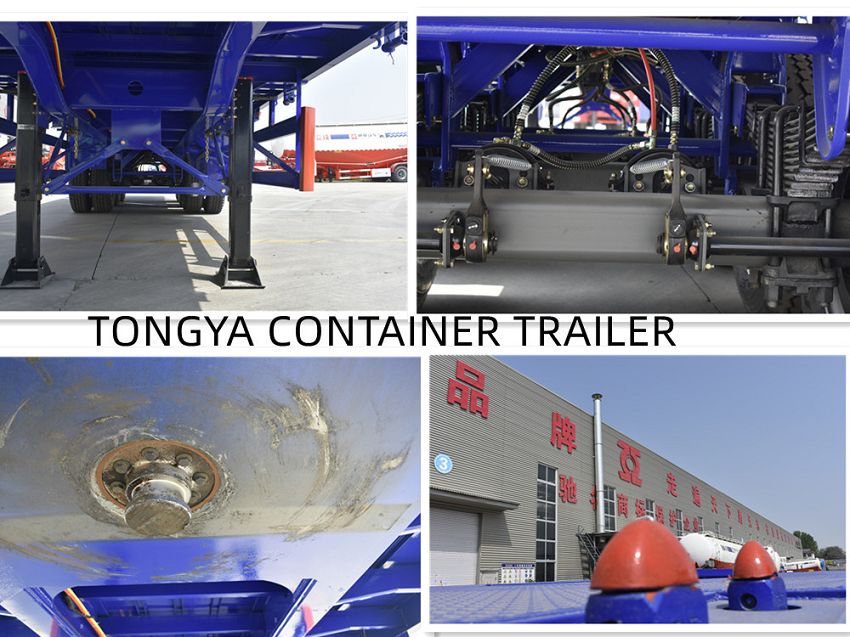

3(001)
