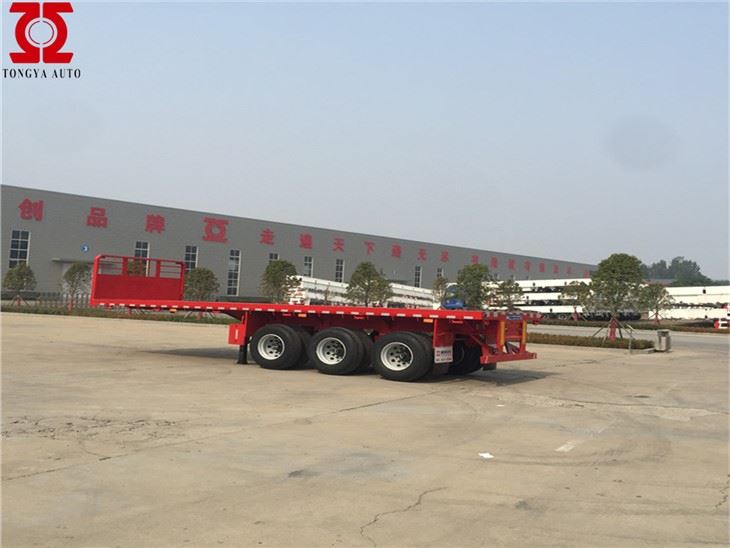

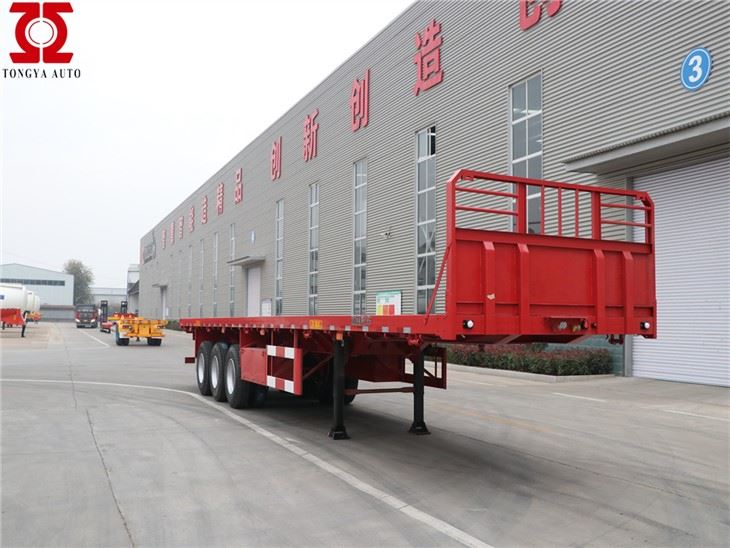

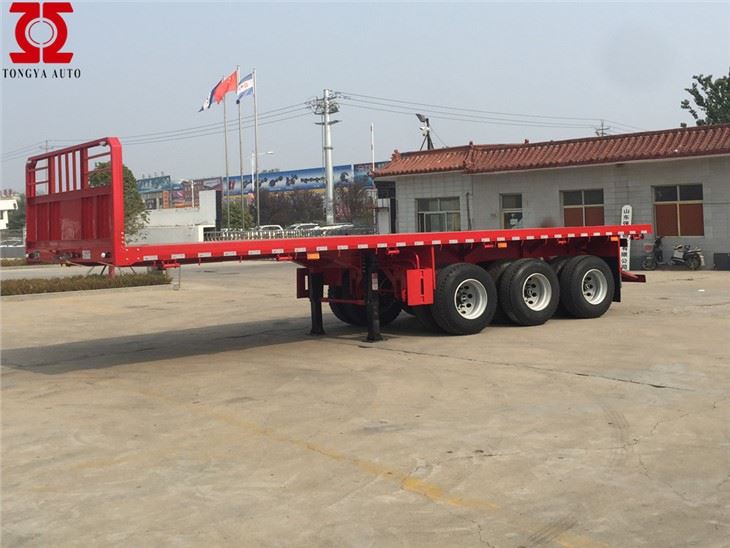

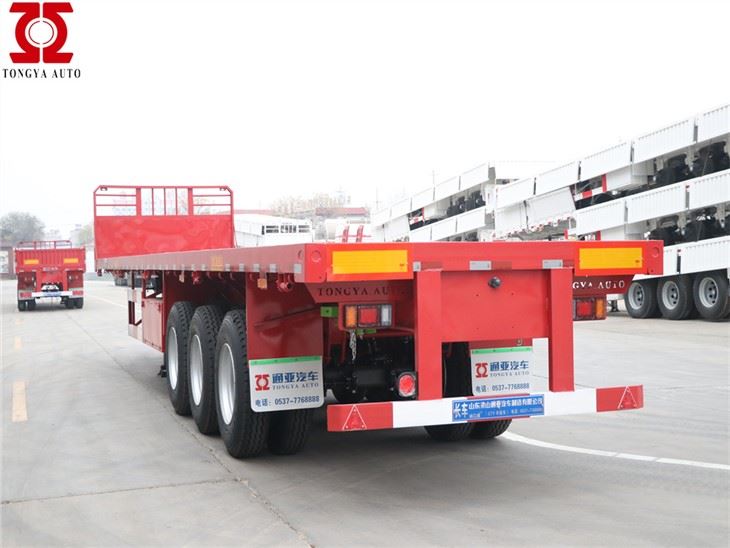

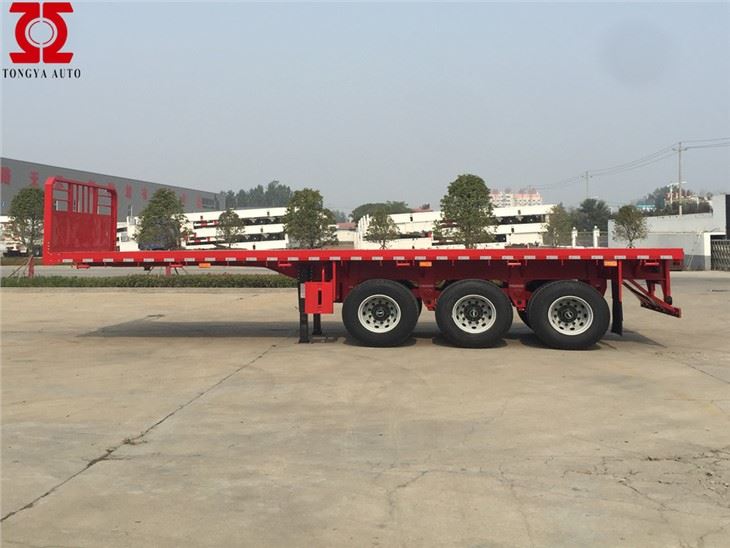

Flatbed Trailer

Tuam Tshoj ua trailer chaw tsim tshuaj paus txij li thaum xyoo 1988, tuaj yeem muab ntau yam trailer rau koj!
1. Flatbed trailer siv rau thauj 40ft lossis 20ft thawv
2.Trailer chaw tsim tshuaj paus muab cov khoom zoo trailer nrog cov nqi sib tw.

Xa kev nug

Khoom Taw qhia

Peb lub tuam txhab tau dhau qhov kev ntsuam xyuas ntawm CCC, SGS thiab ISO9001: 2000 ntawv pov thawj. Peb lub tuam txhab tau yeej lub npe ntawm "Top 100 Powerful Enterprise hauv Kev Muag Khoom Cov Nyiaj Tau Los thiab Cov Nyiaj Tau Los thiab Cov Nyiaj Se them los ntawm Shandong Provincial Machinery Industry Office", "Kev Ua Lag Luam Ua Lag Luam hauv Kev Tsim Kho Tshiab", "Kev Lag Luam nrog AAA Qib Kev Ntsuas hauv Kev Muag Khoom" los ntawm Shandong Industrial thiab Commercial Lub txhab nyiaj thiab Agricultural Bank, Peb zoo siab tos txais cov neeg siv khoom hauv tsev thiab txawv teb chaws los koom tes nrog peb rau kev sib nrig sib

cov txiaj ntsig.

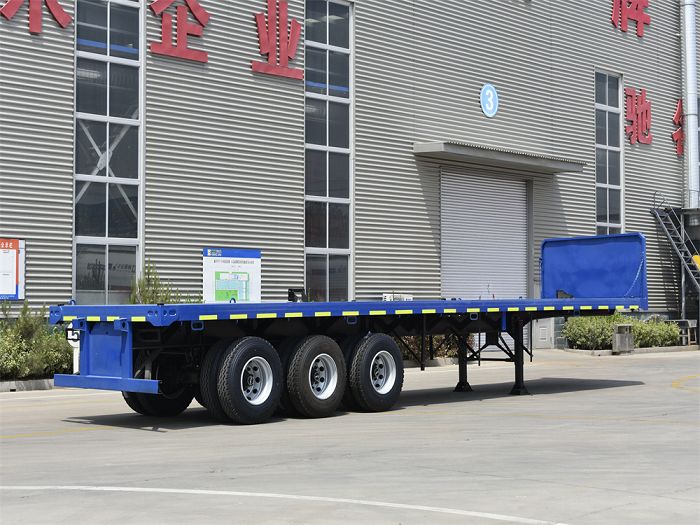

1(001)

2(001)

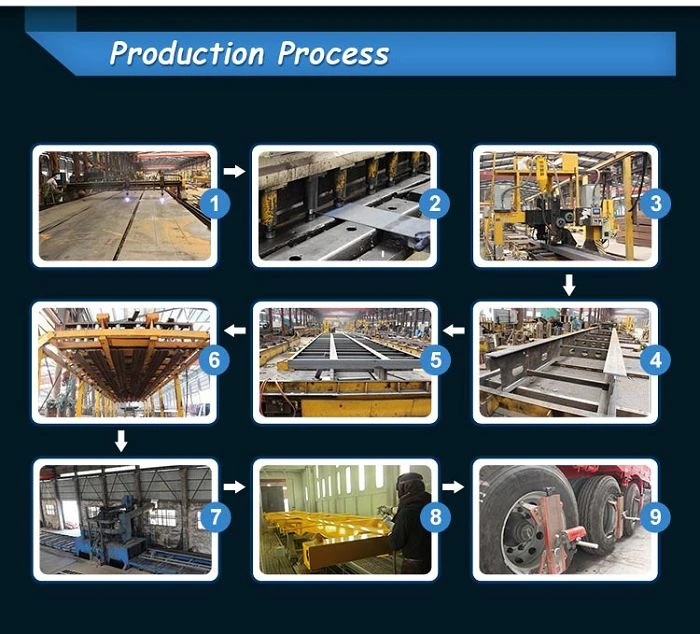

Peb tau ua flatbed trailer rau peb cov neeg siv khoom txawv teb chaws rau ntau tshaj kaum xyoo, thiab muaj ib pab neeg muaj zog thiab muaj kev paub txog kev tsim thiab ntau tshaj 1000 tus neeg ua haujlwm rau kev tsim, Advanced tsim lub tswv yim, lub chassis yog tsim los siv CAD / CAE software; Cov txheej txheem tsim khoom ntse : Laser txiav, Tsis siv neeg vuam neeg hlau, Electrophoretic plua plav ntxiv rau stoving xim thev naus laus zis; zoo siab nrog lub cev muaj zog rau lub peev xwm loj; nws kuj tuaj yeem siv tau zoo hauv txoj kev tsis zoo;

peb tuaj yeem tsim thiab ua flatbed trailer tshwj xeeb raws li koj xav tau!

Flatbed trailer configurations

Tare luj	7-7.5T
Dimension	12500mm × 2500mm × 1550mm (kho tau)
Chaw thau khoom muaj peev xwm	40T
Qag	13T / FUWA Hom Lub Npe
Lub log	12R22.5
Rim	9.00-22.5
Kev ncua	Mechanical suspension (Lub teb chaws Yelemees Hom lossis Asmeskas Hom)
Nplooj nplooj	90 (Width) mm × 13 (Thickness) mm × 10 (Txheej)
Main beam	Qhov siab yog 500 hli, sab phaj thickness yog 14 hli, nruab nrab phaj thickness yog 10 hli, down phaj thickness yog 16 hli; Khoom siv yog Q345 Carbon Steel
Nres chamber	WABCO RE 6 relay valve; T30/30 ntxiv rau T30 Caij nplooj ntoos hlav nres chamber; Ob daim ntawm 45L cua tso tsheb hlau luam
ABS	xaiv tau
Valve	WABCO valve
Teeb	LED teeb
Qhov hluav taws xob	24V
Txais	7 txoj kev (7 hlau hlua)
Tool lub thawv	Ib lossis ob daim (Qhov Loj tuaj yeem xaiv tau dawb) (nrog 1 lub log tsheb spanner, 1 unit gudgeon lub tes tsho thiab 1 unit cranking bar)
Kev pleev xim	Ua kom tiav chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg
Cov ntsiab lus shipping	Los ntawm 40HQ thawv lossis bulk cargo carrier / RORO

Tej yam koj yuav tsum paub txog 40ft thawv trailer

Yog tias koj tab tom nrhiav 40ft flatbed trailer, ces qhov no yog 100 feem pua yog qhov chaw rau koj.

Peb, TONGYADA hom trailer yog txawv 40ft thawv trailer rau muag Hoobkas, 40ft thawv flatbed semi trailer yog ib qho ntawm peb cov khoom. Feem ntau yog xa tawm mus rau thoob ntiaj teb kev lag luam tsheb thauj mus los.

Lub 40ft flatbed trailer feem ntau yog thauj 40ft thawv. Tab sis tib lub sijhawm, nws tuaj yeem thauj ob lub thawv 20ft hauv tib lub sijhawm thiab.

Lub thav duab ntawm 40ft flatbed trailer muab cov qauv nruj & muaj zog uas tuav lub kingpin, log tsheb, tsaws iav, txaj, thiab kev ncua kev sib txawv (xws li nplooj nplooj hlav, airbag booster) system.

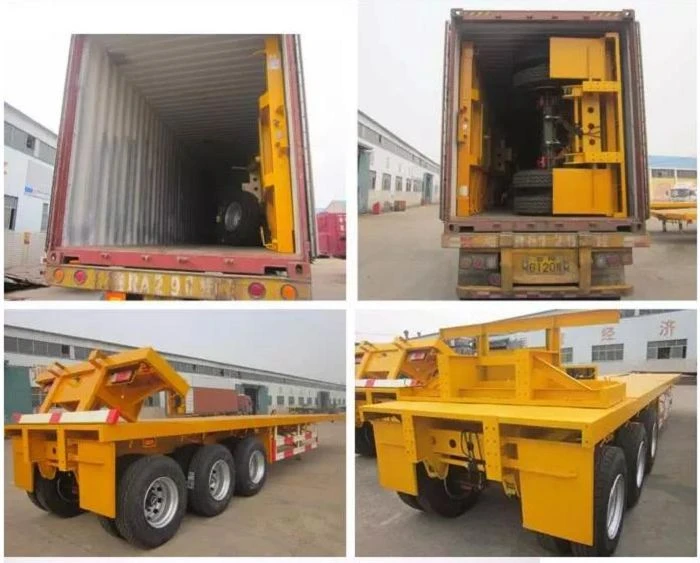

Yuav ua li cas koj shipping lub thawv trailer?

Nquag nws yog siv 40HQ thawv shipping (nrog lub trailer tail txiav tawm), thiab Bulk cargo Shipping 2 txoj kev.

Los ntawm txoj kev, thawv shipping yog pheej yig dua li bulk cargo shipping.

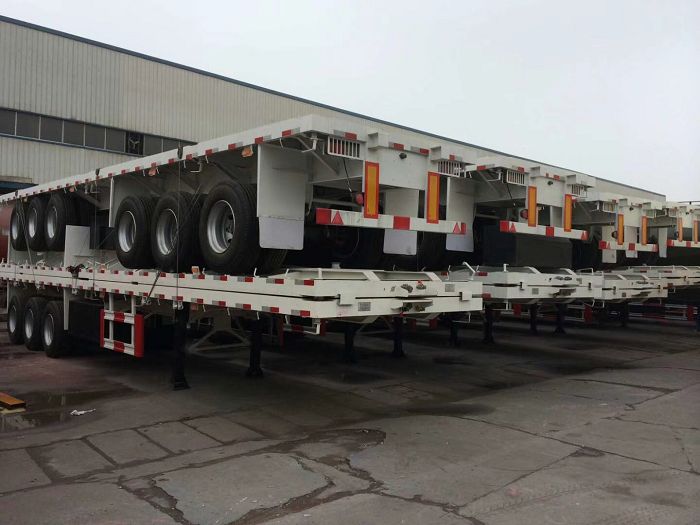

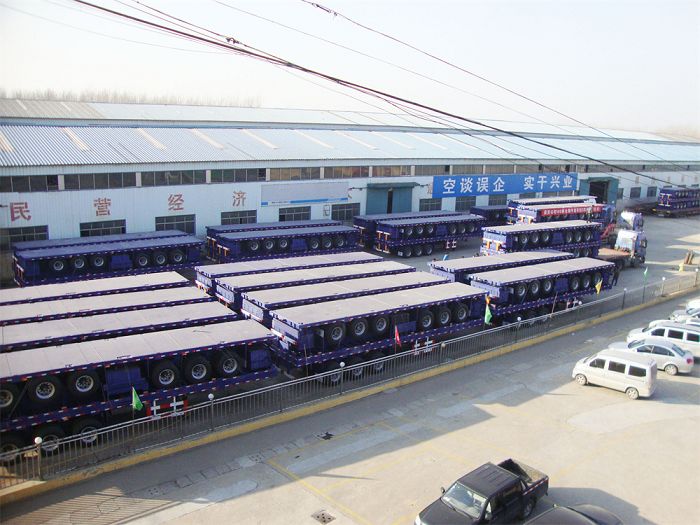

Thawv shipping show
