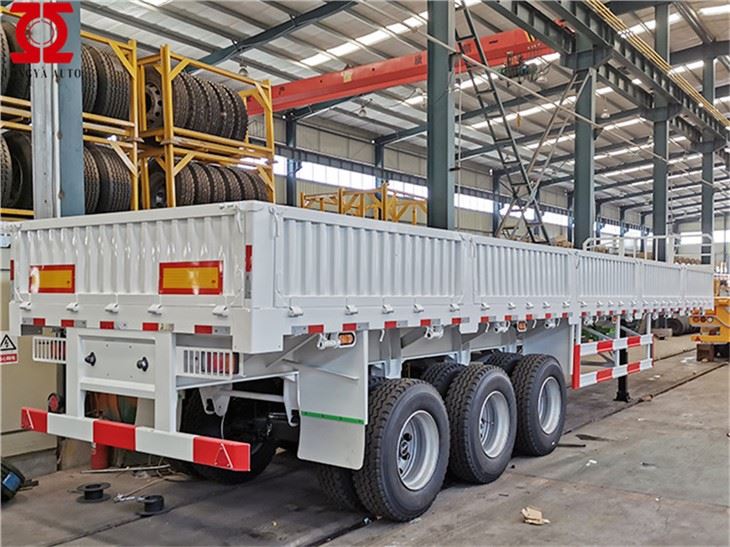

Sab Phab Ntsa Trailer
1, Peb lub Hoobkas muaj ntau tshaj 30 xyoo ntawm keeb kwm thiab kev nplua nuj kev paub.
2, Sab phab ntsa trailer siv qhov tseeb tsim, zoo huv si thiab dav, yooj yim thiab siv tau.
3, Peb sab phab ntsa trailer yog hnyav thiab lub teeb kom nqa ntau cov khoom thauj.
4, Peb muaj 20 xyoo dhau los ntawm kev xa tawm sab phab ntsa trailer thiab muaj kev nkag siab tob txog kev lag luam hauv zos
Khoom Taw qhia
Qhov hnyav tag nrho | Txog 6,8 tons |
Sab nraud dimension (mm) | 13000 × 2500 × 2850mm |
Loading peev (Ton) | 50T |
AXLES | 13T, 3 qag FUWA Hom, |
Lub log | 12.00R22.5, 13pieces Daim duab peb sab lossis ob lub npib hom |
Rim | 9.00-22.5, 13pieces Tuam Tshoj Hom |
Kev ncua | Mechanical suspension (America Hom) |
Nplooj nplooj | 90 (W) hli * 13 (Thickness) hli * 10pcs, hnyav hnyav hom |
King pin | JOST hom 2.0 lossis 3.5 nti bolts hom |
Txhawb ceg | 28T los yog JOST hom |
Main Beam | Qhov siab: 500mm, phaj siab yog 14mm, nruab nrab phaj yog 8mm, |
Platform | 3mm pob zeb diamond phaj steel |
Sab beam | 16 # channel steel |
Nres chamber | WABCO RE 6 relay valve; T30/30 ntxiv rau T30 Caij nplooj ntoos hlav nres chamber; Ib daim ntawm 45L cua tank |
Hooks | Nrog |
Twist Locks | 12 daim (Lifting hom) |
Valve | WABCO valve |
ABS | Nrog |
Teeb | LED teeb |
Qhov hluav taws xob | 24V |
Txais | 7 txoj kev (7 hlau hlua) |
Tool lub thawv | Ib thooj, 1m × 0.5m × 0.5m (Qhov Loj tuaj yeem xaiv tau dawb) (nrog 1 unit Tyre spanner, 1 unit gudgeon tes tsho thiab 1 unit cranking |
Kev pleev xim | Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |
Cov ntsiab lus shipping | Thauj los ntawm RORO lossis 45FT thawv. |

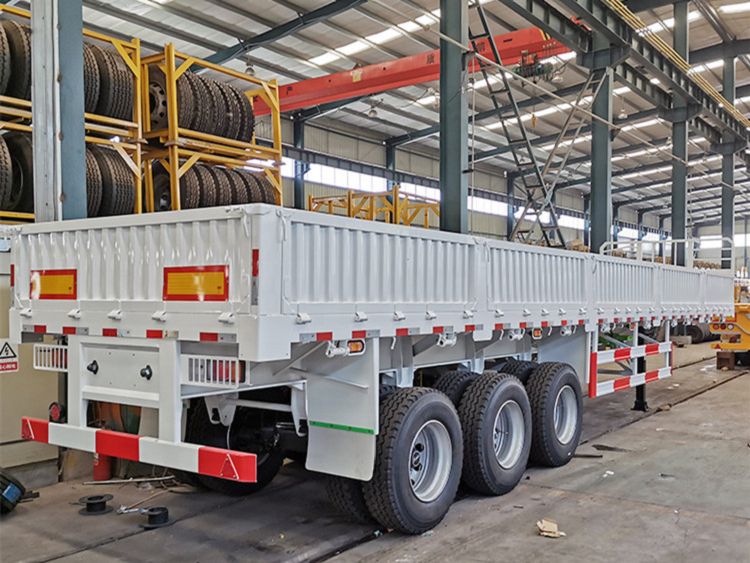

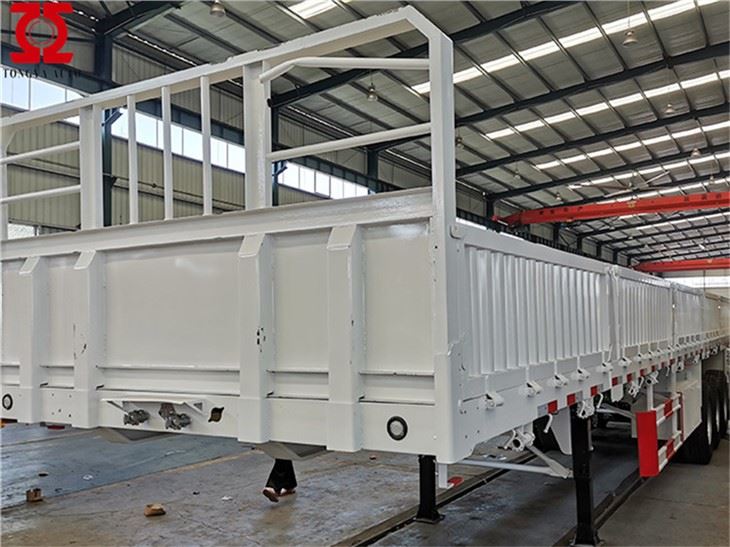

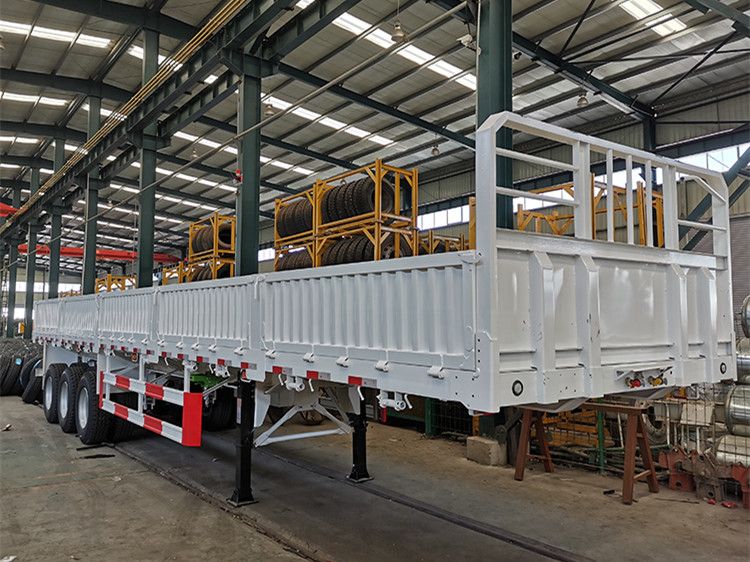

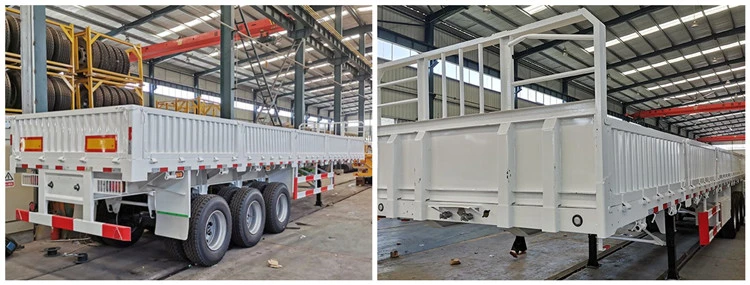

Sab phab ntsa trailer yog ntsia nrog laj kab ntawm lub platform ua haujlwm. Nrog kev siv dav, nws yog siv rau kev thauj mus los nruab nrab thiab ntev ntawm cov khoom nruab nrab thiab hnyav nrog rau cov khoom thauj ntau. Peb lub tuam txhab tseem tuaj yeem txhim kho cov thawv ntim khoom ntxiv lossis cov kab uas tuaj yeem tshem tau raws li cov neeg siv khoom tshwj xeeb, yog li nws tuaj yeem siv rau kev thauj mus los hauv lub thawv lossis cov ntoo. Nrog rau kev siv zog, nws yog thawj qhov kev xaiv rau kev thauj mus los hauv nruab nrab thiab ntev.

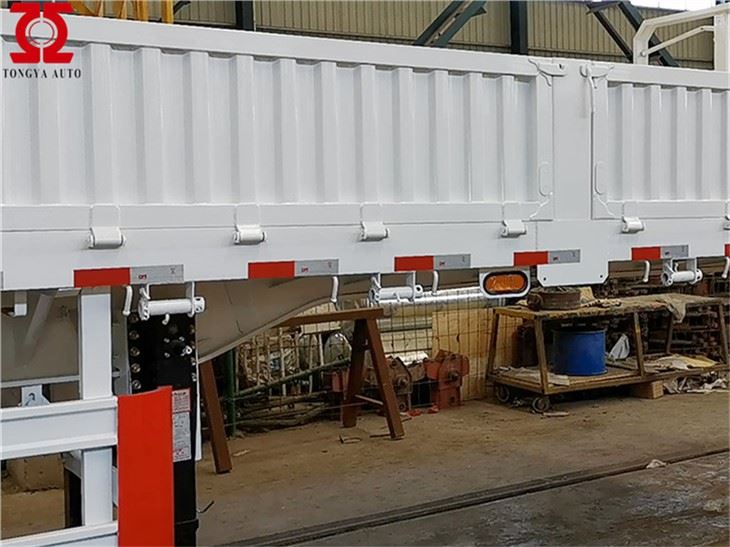

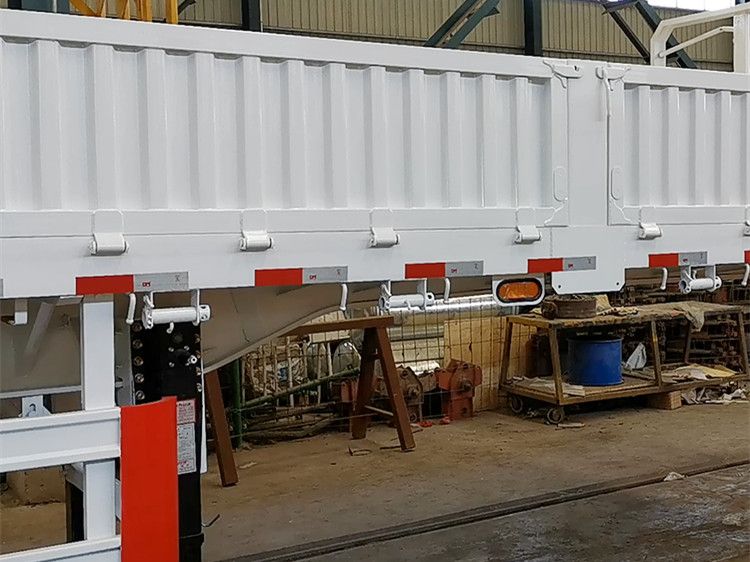

Qhov siab ntawm sab phab ntsa trailer yog 400-1200mm rau koj xaiv. Weld los ntawm tsis siv neeg corrugated phaj vuam neeg hlau, qhov zoo yog zoo, cov welded seam zoo nkauj, sab phab ntsa muaj zog thiab ruaj khov.
Qhov no sab phab ntsa trailer yog tsim los nrog tus ntoo khaub lig-beam qauv nyob rau hauv lub ntsiab ncej, thiab rau lub longitudinal beam, nws yog tsim raws li ib tug ca txaj los yog goose-caj dab. Qhov siab ntawm nruab nrab phaj (manganese phaj) yog los ntawm 400mm mus rau 550mm. Lub longitudinal beam yog welded los ntawm tsis siv neeg submerged vuam. Cov ncej yog txhaj blasted. Lub beam nkag mus rau longitudinal beam thiab welded tag nrho.
