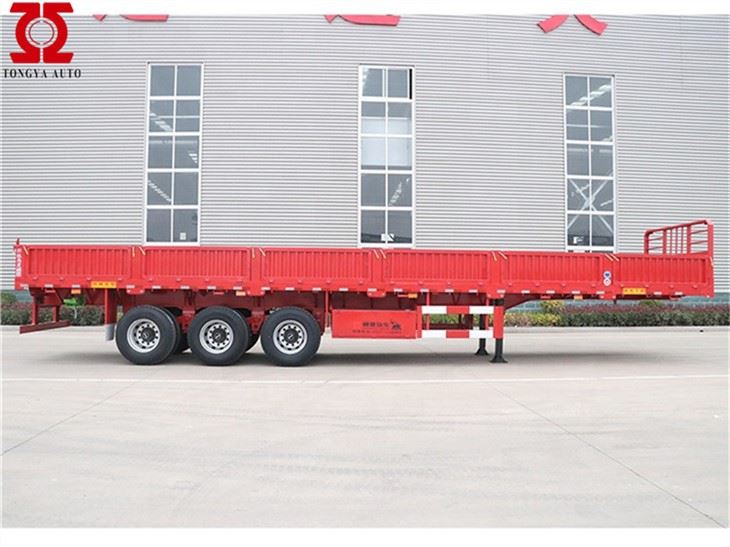

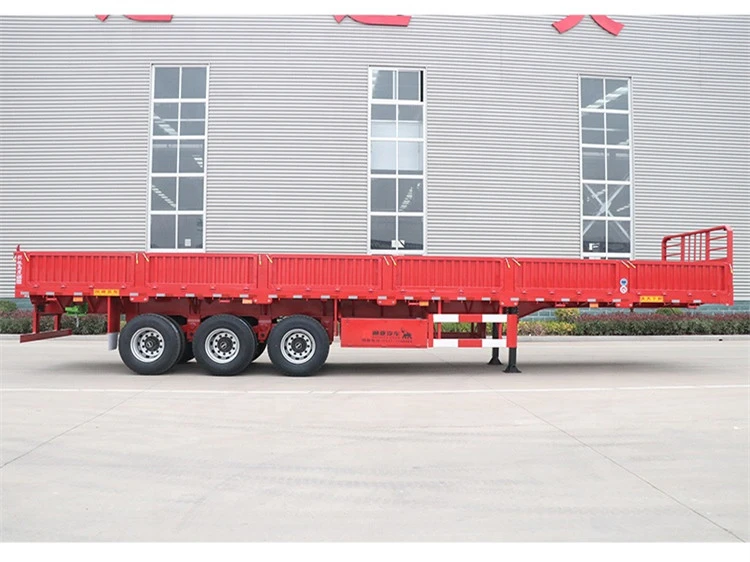

50tons Sab Phab Ntsa Semi Trailer
1. Peb 50tons sab phab ntsa semi trailer yog lub teeb yuag thiab tuaj yeem nqa ntau cov khoom thauj.
2. Lub laj kab tsheb yog ua los ntawm Q345 steel, uas muaj lub zog siab thiab ruaj khov thauj khoom.
3. Cov axles siv FUWA hom, thiab cov outriggers siv JOST thiab lwm yam khoom siv thoob ntiaj teb loj.
4. 50tons sab phab ntsa semi trailer yog tsim nyog nyob rau hauv tsim, zoo nkauj nyob rau hauv tsos thiab zoo meej nyob rau hauv cov xim tiav
Khoom Taw qhia
Sab nraud dimension (mm) | 13000 × 2500 × 2850 |
Loading peev (Ton) | Tsawg dua lossis sib npaug li 50T |

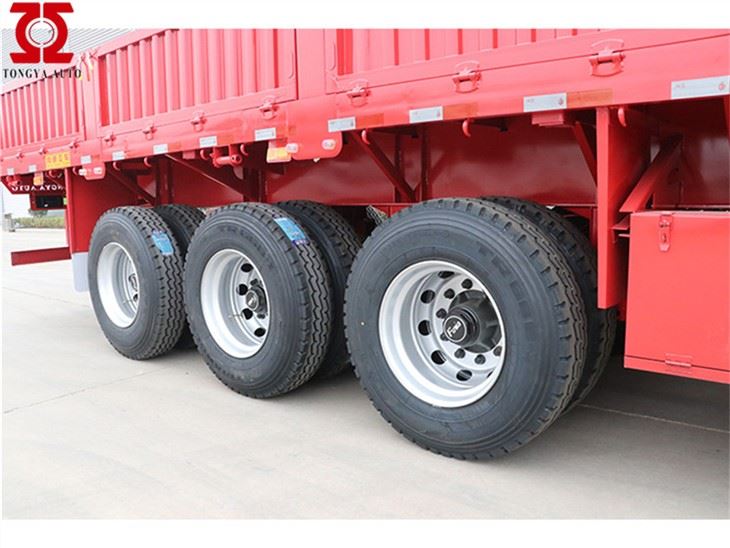

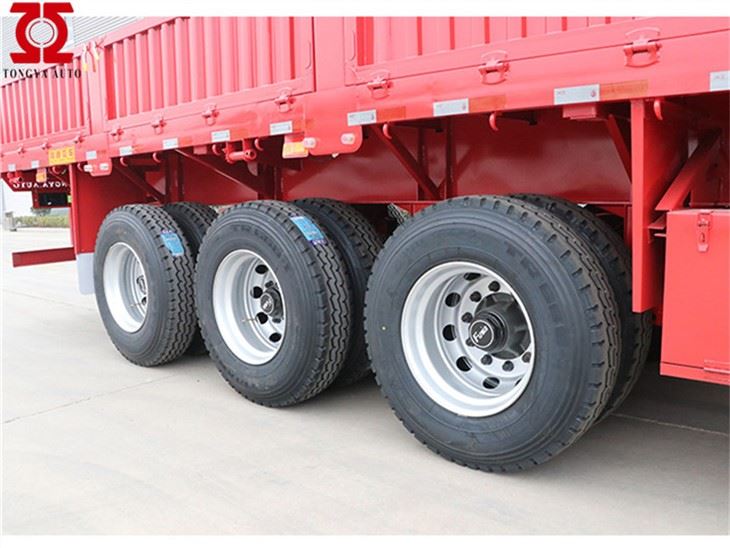

AXLES | 13 T 3axles FUWA Hom, |
Lub log | 12.00R22.5, 13pieces Daim duab peb sab |
Rim | 9.00-22.5, 13pieces Tuam Tshoj Hom |
Kev ncua | Mechanical suspension (America Hom) |
Nplooj nplooj | 90 (W) hli * 13 (Thickness) hli * 10pcs, |

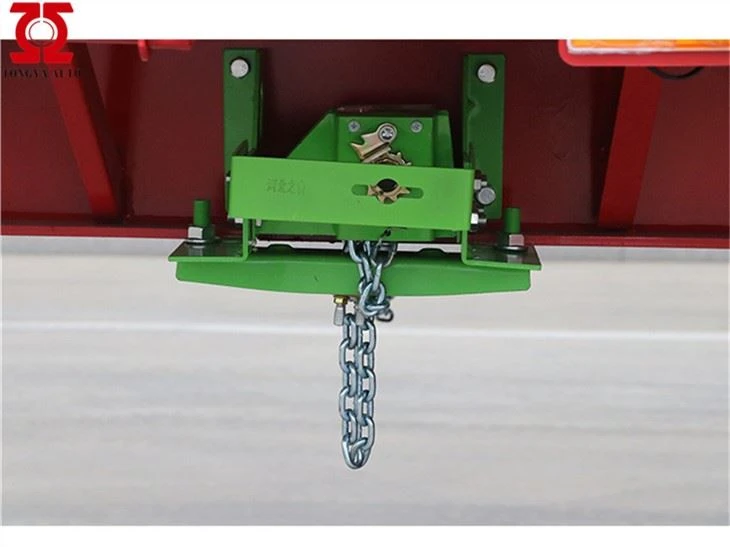

King pin | JOST hom 2.0 lossis 3.5 nti bolts hom |
Txhawb ceg | JOST hom |
Main Beam | Qhov siab: 500mm, phaj siab yog 14mm, nruab nrab phaj yog 8mm, |
Platform | 3mm pob zeb diamond phaj steel |
Sab beam | 16 # channel steel |
Nres chamber | WABCO RE 6 relay valve; T30/30 ntxiv rau T30 Caij nplooj ntoos hlav nres chamber; Ib daim ntawm 45L cua tank |
Valve | WABCO valve |
ABS | Tsis muaj |
Teeb | LED teeb |
Qhov hluav taws xob | 24V |
Txais | 7 txoj kev (7 hlau hlua) |
Tool lub thawv | Ib thooj |
Kev pleev xim | Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm Anticorrosion prime, 2 lub tsho tiv no ntawm cov xim kawg |

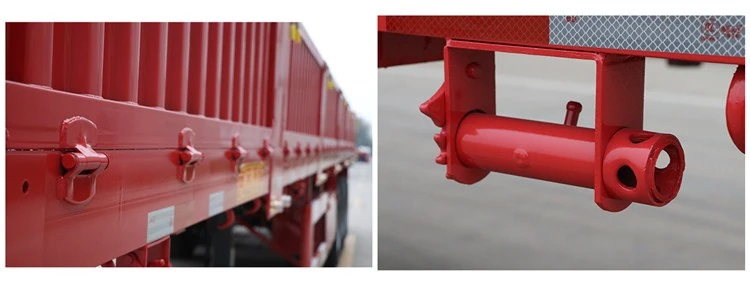

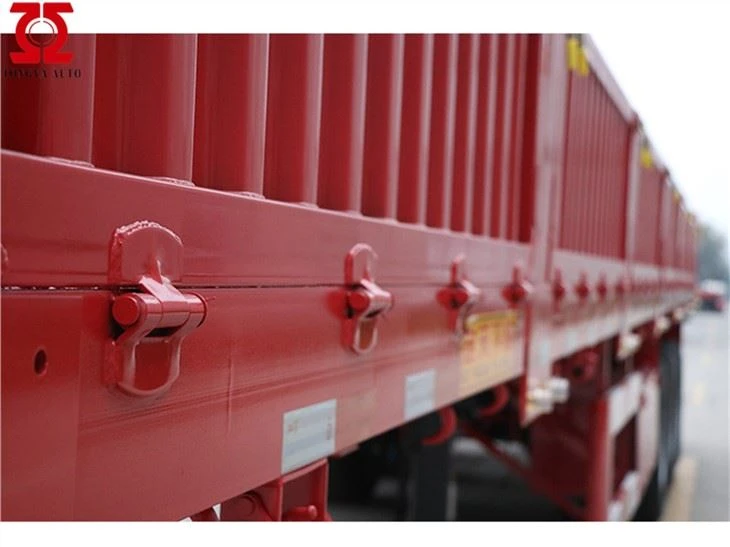

50tons Sab phab ntsa semi trailer tuaj yeem siv los thauj ntau yam khoom, los ntawm lub thawv rau cov khoom thauj ntau. Nws sab vaj huam sib luag tuaj yeem qhib tau, thiab nws yooj yim dua rau unload cargo.50tons Sab phab ntsa semi trailer yog dav siv los ntawm cov tuam txhab tsheb thauj mus los hauv kev lag luam logistics.
50tons Sab phab ntsa semi trailer Ib txoj hlua tensioner tuaj yeem siv rau kev ruaj ntseg cov khoom thauj, Sab phab ntsa laj kab trailer yog siv los thauj khoom ntau thiab cov khoom siv, xws li xuab zeb, hnab, nqaij qaib thiab lwm yam. Tsis tas li ntawd qee cov khoom thauj khoom, dav siv hauv ntau yam. kev lag luam tsheb thauj mus los.

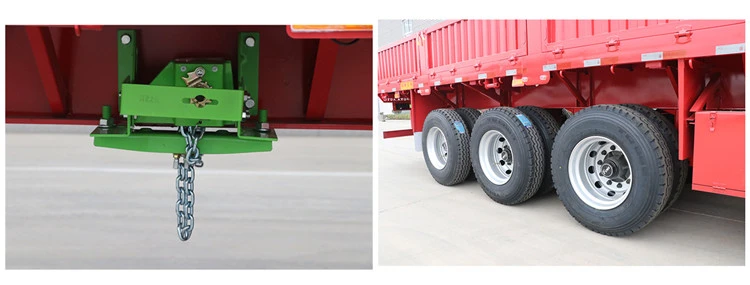

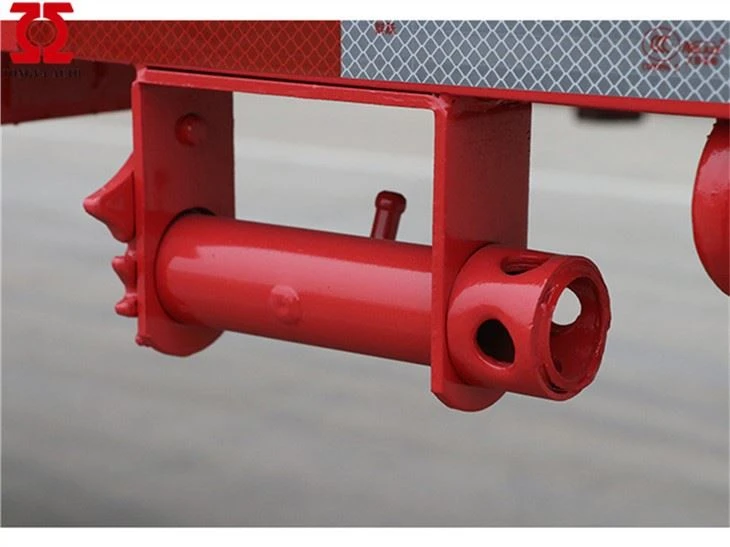

50tons Sab phab ntsa semi trailer lub cev yog ua los ntawm cov hlau zoo, cov thev naus laus zis siab, thiab kev tsim khoom nruj heev.Lub tes crank spare log khib yog yooj yim rau kev txhim kho thiab tshem tawm cov log tsheb spare.
Cov qauv ntawm lub tsheb yog tsim nyog, kev ua tau zoo yog txhim khu kev qha, kev ua haujlwm yog yooj yim, thiab cov tsos zoo nkauj.peb tuaj yeem muab cov kev teeb tsa sib txawv ntawm peb qhov kev poob sab trailer kom tau raws li koj txoj kev thauj mus los.
Cim npe nrov: 50 tons sab phab ntsa semi trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
