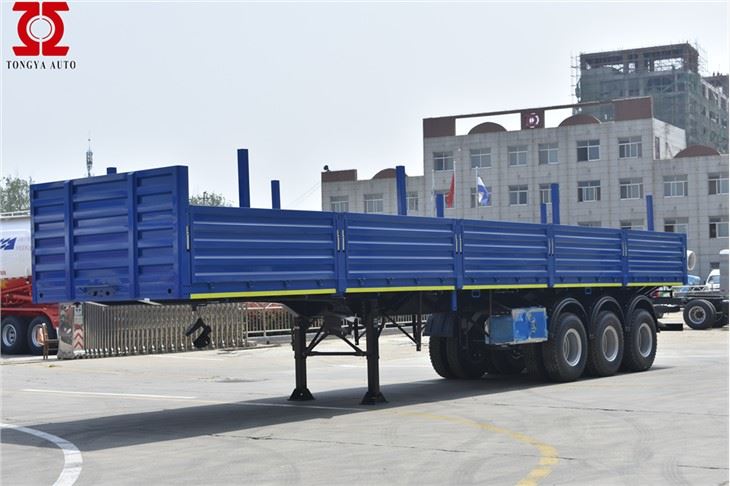

Sab Board Trailer

1. Peb sab board trailer yog tsim los nrog cov laj kab tshiab
2. Lub laj kab tsheb yog ua los ntawm Q345 steel, uas muaj lub zog siab thiab ruaj khov thauj khoom.
3. Sab board trailer ntawm axles siv FUWA hom, thiab cov outriggers siv JOST thiab lwm yam khoom siv thoob ntiaj teb loj.
4. Sab board trailer yog tsim nyog hauv kev tsim, zoo nkauj hauv tsos thiab zoo meej hauv cov xim tiav

Xa kev nug

Khoom Taw qhia

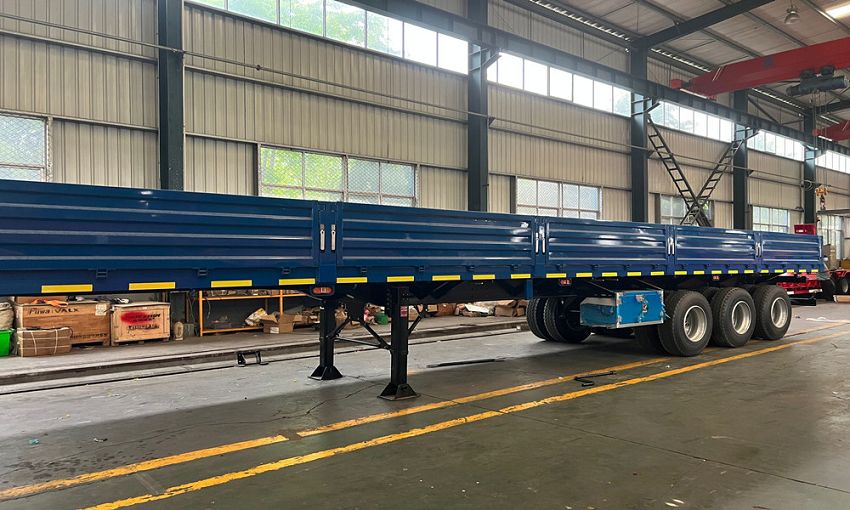

1(001)

Yam khoom	specifications
Khoom siv	Cov pa roj carbon steel
Main beam	Lub luag haujlwm hnyav H beam
Axles	13ton peev
Kev ncua	Mechanical suspension
Nplooj caij nplooj ntoos hlav	Nplooj caij nplooj ntoos hlav
Lub log	12R22.5
Rim	9.00-22.5,
King pin	2 '' / 3.5 '' bolt hom, JOST tus qauv
tsaws iav	28 Tuj ob ceev
Platform	check phaj 3mm
Sab beam	Channel beam 16mm
Sab phab ntsa	600mm -3000 hli
Twist xauv	xaiv tau
Braking system	Dual kab nres system, Ob chav cua chamber, nres valve, 40L cua tso tsheb hlau luam; ABS yeem
Hluav taws xob	LED teeb, 7 txoj kev, 24V
Kev pleev xim	Blasting thiab huv si xeb, 1 lub tsho tiv no ntawm prime painting, 2 lub tsho tiv no ntawm tiav painting
Accessory	Toolbox, roj tank, tshuaj tsuag qhov system xaiv tau
Accessory	Toolbox, roj tank, tshuaj tsuag qhov system xaiv tau
Kev pleev xim	Blasting thiab huv si xeb, 1 lub tsho tiv no ntawm prime painting, 2 lub tsho tiv no ntawm tiav painting
Accessory	Toolbox, roj tank, tshuaj tsuag qhov system xaiv tau

Sab board trailer tuaj yeem siv los thauj ntau yam khoom, los ntawm lub thawv rau cov khoom thauj ntau. Nws sab vaj huam sib luag tuaj yeem qhib tau, thiab nws yooj yim dua rau unload cargo.50tons Sab phab ntsa semi trailer yog dav siv los ntawm cov tuam txhab tsheb thauj mus los hauv kev lag luam logistics.

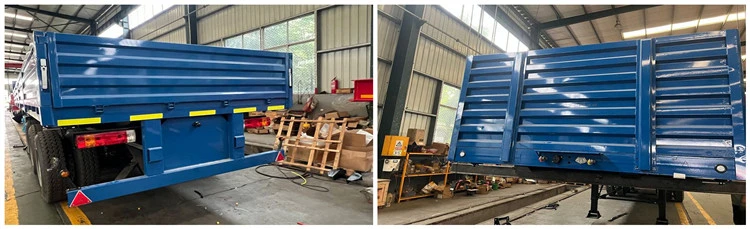

initpintu_1

Sab board trailer Ib txoj hlua tensioner tuaj yeem siv rau kev ruaj ntseg cov khoom thauj, Sab phab ntsa laj kab trailer yog siv los thauj khoom ntau thiab cov ntaub ntawv, xws li xuab zeb, hnab, nqaij qaib thiab lwm yam. Tsis tas li ntawd, qee cov khoom thauj khoom, dav siv hauv kev thauj mus los. kev lag luam.

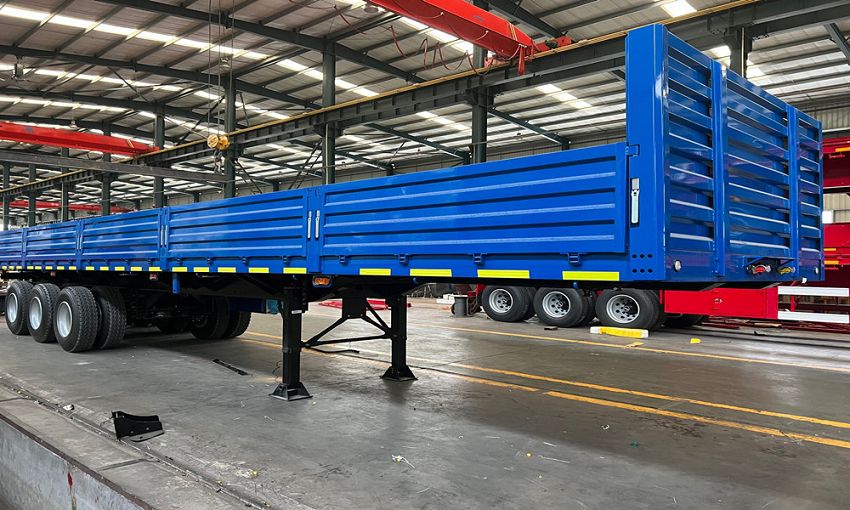

4(001)

Sab board trailer lub cev yog ua los ntawm cov hlau zoo, cov thev naus laus zis siab heev, thiab kev tsim khoom nruj heev.Lub tes crank spare log khib yog yooj yim rau kev txhim kho thiab tshem tawm cov log tsheb spare.

Peb siv peb lub tsheb sib dhos ua ke thaum lub sijhawm thauj mus los kom txo cov khoom thauj hauv hiav txwv

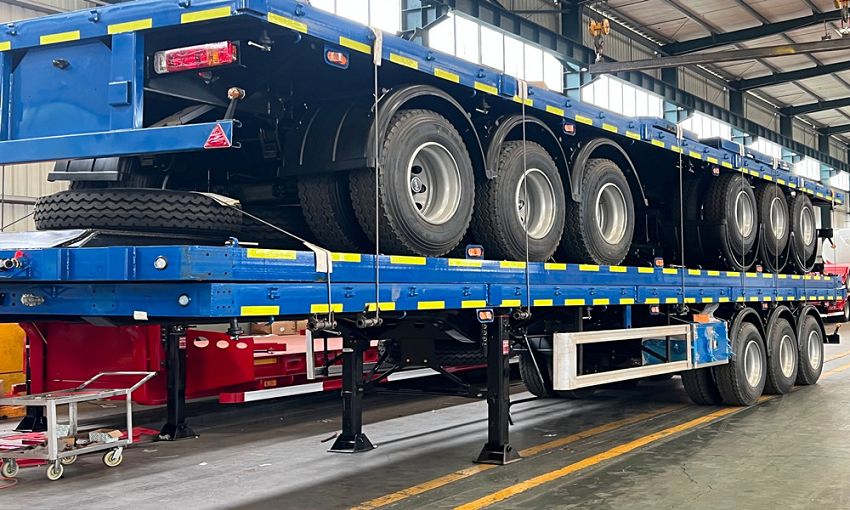

5(001)
