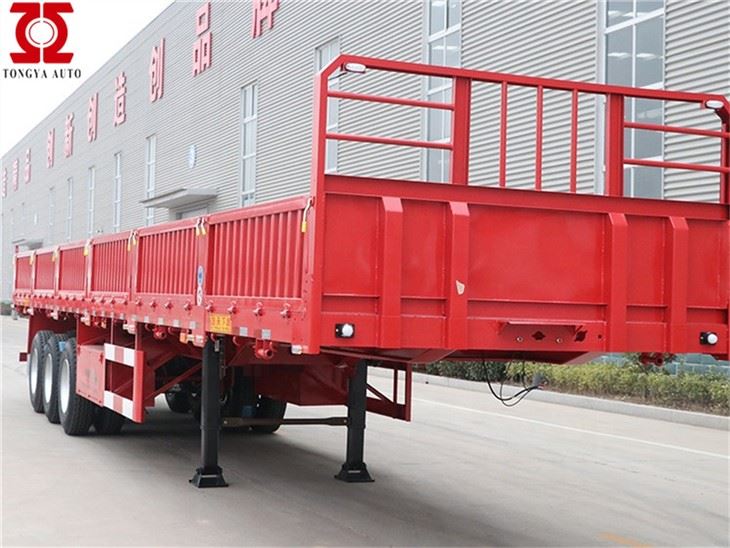

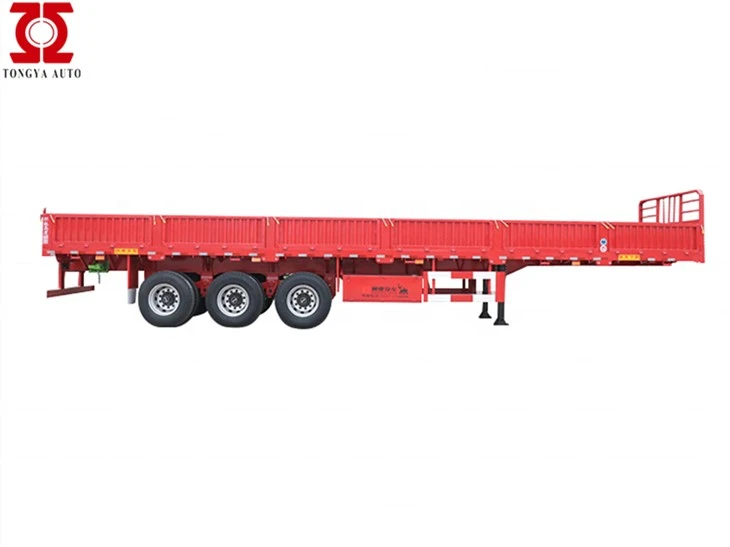

3axles Sab Phab Ntsa Trailer

1, 3 axles sab phab ntsa trailer ntawm steel peb siv los ntawm cov paub zoo hauv tsev steel mills. Lub tsheb tag nrho muaj zog heev thiab tuaj yeem yooj yim tiv nrog txoj kev txawv teb chaws.
2, 3 axles sab phab ntsa trailer ntawm qag accessories siv nyob rau hauv peb semi-trailers yog tag nrho cov thoob ntiaj teb paub zoo manufacturers.
3, Peb 3 axles sab phab ntsa trailer yog neeg hlau vuam, tshwj xeeb tshaj yog cov nqaj, uas zoo nkauj dua tag nrho.
4, Peb muaj ntau tus neeg ua haujlwm paub txog kev ua haujlwm kom ruaj khov ntawm peb 3 axles sab phab ntsa trailer.

Xa kev nug

Khoom Taw qhia

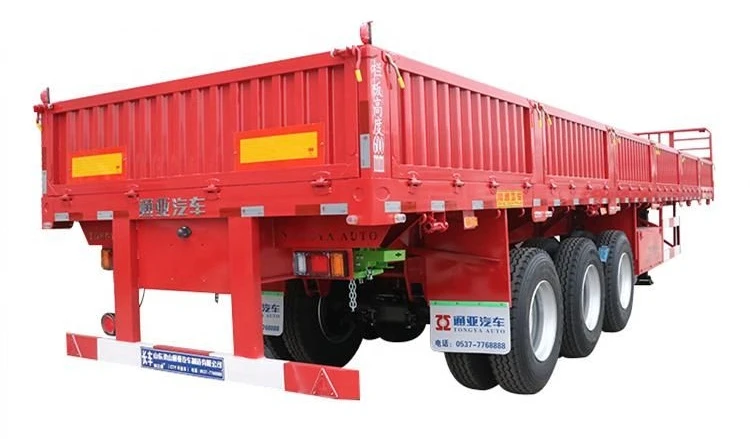

1(001)

Qhov hnyav	7.8 t ib
Qhov Loj (mm)	12500x2500x3200mm
Loading peev (ton)	50T
Axles	13T, FUWA Brand
Lub log	12.00R22.5
Rim	9.00-22.5
Kev ncua	Mechanical suspension
Nplooj nplooj	90 (W)mmx13(Thickness)mmx10 txheej
King Pin	JOST hom 2.0 lossis 3.5 nti (bolted lossis welded)
Kev tsaws iav	JOST hom
Main Beam	Qhov siab: 500mm, Upper phaj: 14mm, Middle phaj: 8mm, hauv qab phaj: 16mm, Khoom siv: Q345B steel
Sab Beam	16mm lossis 18mm steel channel
Platform	3mm-tuab checkered phaj
Nres Chamber	WABCO RE 6 relay valve; T30/30 ntxiv rau T30 caij nplooj ntoos hlav nres chamber (TKL hom), 45L cua tank
Sidewall Siab	600mm, customizable
valve	WABCO valve (tshwj xeeb rau kev lag luam txawv teb chaws)
ABS	xaiv tau
Teeb	LED teeb (tshwj xeeb rau kev lag luam txawv teb chaws)
Qhov hluav taws xob	24V
Qhov (socket)	7-pin Socket (rau 7 hlau hlua)
Tool Box	1m x 0.5m x 0.5m (Lub thawv cuab yeej muaj 1 lub log tsheb, 1 lub tes tsho gudgeon thiab 1 cranking bar. Nws qhov loj me tuaj yeem tsim raws li koj xav tau)
Kev pleev xim	Sandblasted, anti-xeb chassis nto yog muaj nrog 1 txheej ntawm anticorrosive primer thiab 2 txheej ntawm cov tsho loj
Cov ntsiab lus shipping	Thauj los ntawm cov neeg nqa khoom loj hauv RORO lossis 40ft thawv

3axles sab phab ntsa trailer tsim nyob rau hauv lub hauv paus ntawm lub thawv flatbed trailer, qhov poob sab trailer muaj ib sab phab ntsa qauv tsim.

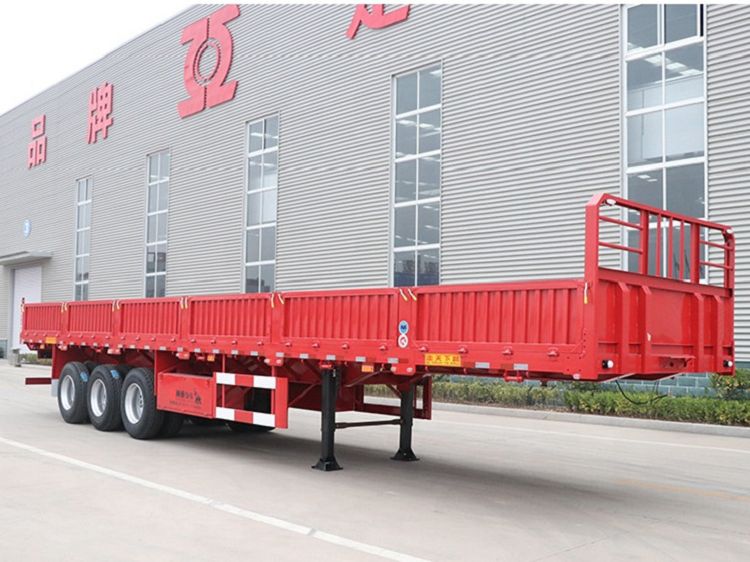

2(001)

Lub 3axles sab phab ntsa trailer tuaj yeem siv los nqa cov hnab ntim khoom, cement, hlau lossis lwm yam khoom loj. Haum rau nruab nrab / ntev kev thauj mus los ntawm nruab nrab / hnyav lub luag haujlwm thiab cov khoom thauj ntau.Our 3 axles sab phab ntsa trailer yog cov neeg hlau vuam, tshwj xeeb tshaj yog cov nqaj, uas zoo nkauj dua tag nrho.

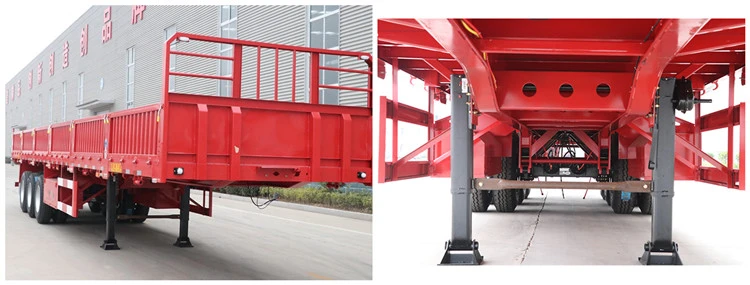

initpintu_1
