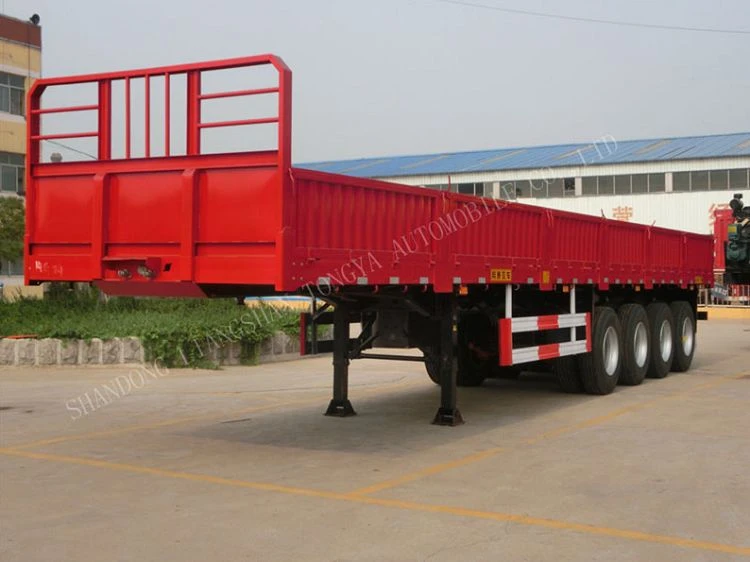

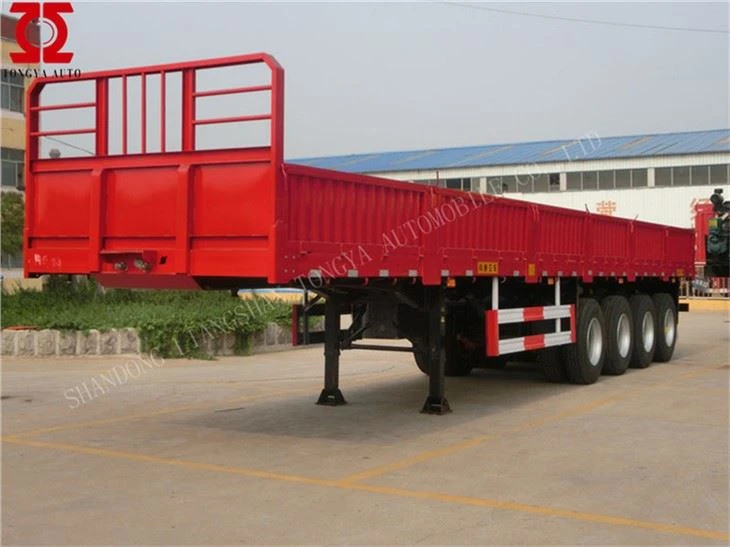

4axles Sab Phab Ntsa Trailer

Hom:

Semi trailer

Yam tsawg kawg nkaus kom muaj nuj nqis:

1 unit

Qhov Loj:

12*2.55*0.6m

Trailer Lub Cev

Beam qhov siab:

500MM

Main Beams

14 * 8 * 16mm

Ntug beam

16 # hlau

Thickness ntawm qab phaj

3MM

OEM qhov chaw:

Qag

4 qag * square qag nrog 13 tons peev.

King Pin

2.00''(50#) bolting huab tais pin, JOST

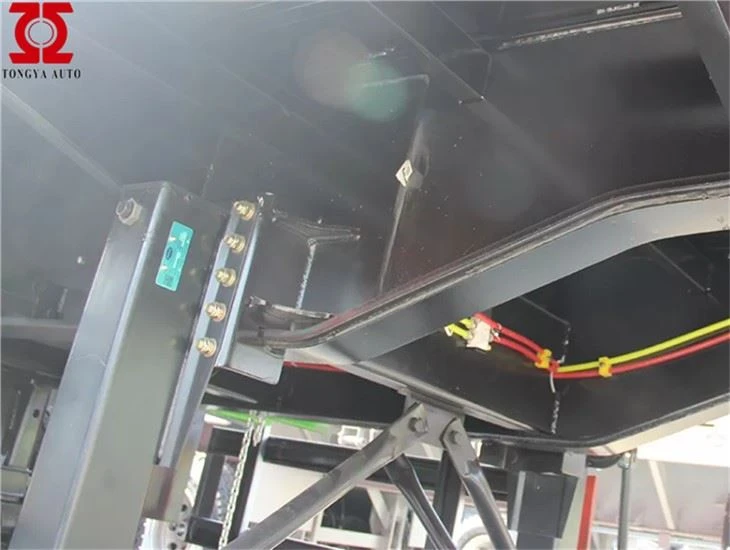

Kev ncua

Hnyav plaub ntug plaub- qag ncua kev kawm nrog cov sib npaug, American tsim (hom muaj zog)

Hlau Caij nplooj ntoos hlav

Rau 10pcs nplooj hlav caij nplooj ntoos hlav

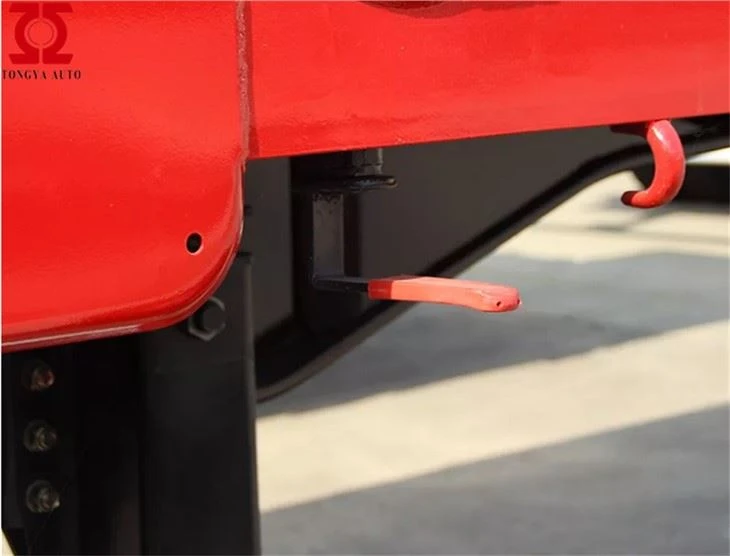

tsaws ob txhais ceg

tsaws ob txhais ceg

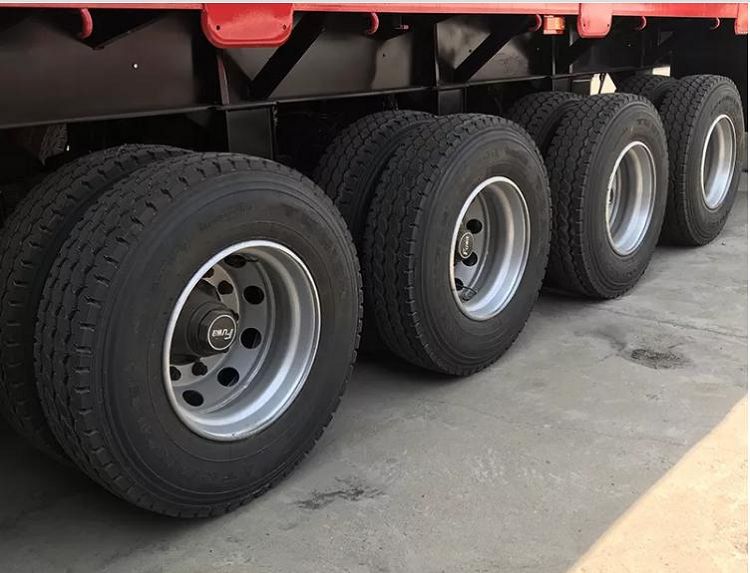

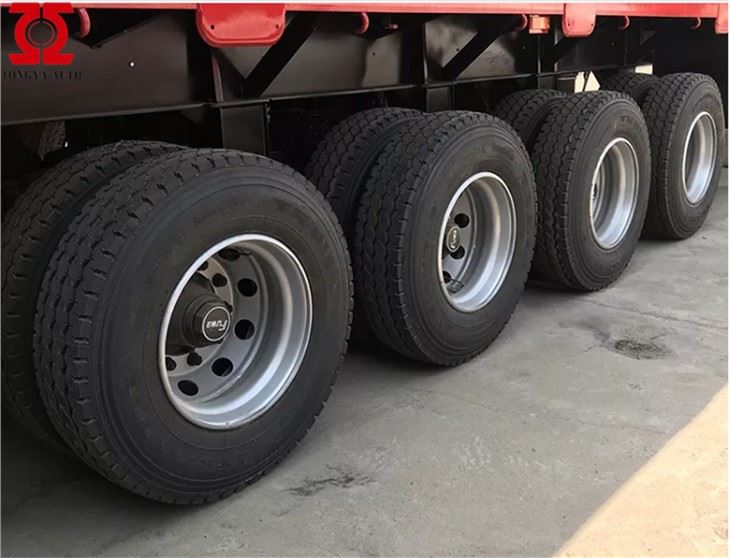

Tyre specs

12R22.5, Daim duab peb sab hom (Suav nto moo hom)

Rim

9.00-22.5,(Suav npe nrov)

Tus naj npawb ntawm lub log

17 pieces (nrog rau ib lub log spare)

Nres system

relay valve;
Plaub ob chav thiab ob chav nres tsheb;
Ib chav tsev ntawm kev ntseeg siab hauv zos hom 45L cua tank;
Ob chav nyob ntawm cov khoom lag luam txhim khu kev qha hauv zos tus qauv coppery air-connector.

ABS system

Txuj

Hluav taws xob:

Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb

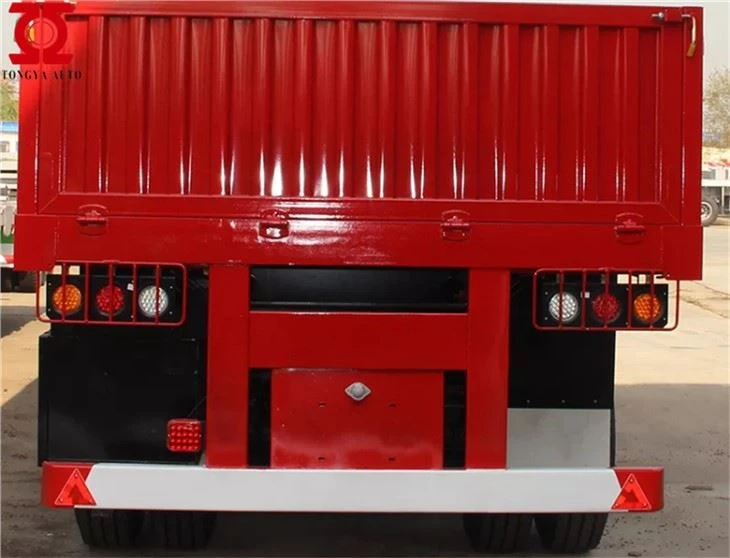

(standard rear teeb, tig lub teeb, rear reflector, sab teeb, sab reflector thiab lwm yam.)

Kev pleev xim

Xuab zeb blasting ua ntej pleev xim;
ib lub tsho tiv no ntawm primer, anti-corrosion;
ob lub tsho tiv no ntawm tiav painting;
xim qhia los ntawm cov neeg siv khoom

Kos npe

Txuj

Sab Guard

Txuj

spare log carrier

ib txheej ntawm lub luag haujlwm hnyav spare log nqa, nrog rau riser.

Cov cuab yeej lub thawv

Ib qho (1.5m)
(nrog 1 lub log tsheb spanner, 1 lub tes tsho gudgeon thiab 1 cranking bar)

Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsum ua raws li Suav cov cai
