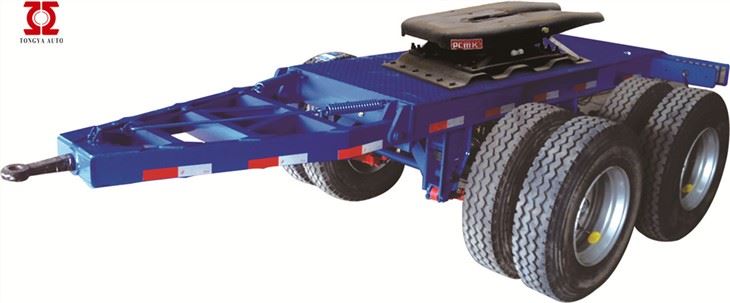

Dolly Trailer
Lub dolly trailer yog nyob rau hauv cov duab ntawm ib lub pallet los yog ib lub thoob, nws yog tsim los ntawm ib tug ncej, ib tug turntable mechanism thiab ib tug ncua kev kawm ntawv nuv, uas yuav nqa tau tag nrho cov loj ntawm cov khoom.
Khoom Taw qhia
Khoom taw qhia
Lub dolly trailer yog nyob rau hauv cov duab ntawm ib lub pallet los yog ib lub thoob, nws yog tsim los ntawm ib tug ncej, ib tug turntable mechanism thiab ib tug ncua kev kawm ntawv nuv, uas yuav nqa tau tag nrho cov loj ntawm cov khoom. Yooj yim muab tso, pem hauv ntej kawg ntawm lub semi trailer txuas nrog lub tsheb laij teb kawg ntawm lub tsheb laij teb, thiab lub tsheb laij teb tsuas yog muab lub zog rub thiab tsis hnyav.

Khoom piav qhia
Tuam Tshoj kub muag ob axles dolly trailer tongya hom siv nyob rau hauv ca txaj trailer
Dolly trailer yog siv nyob rau hauv pem hauv ntej ntawm lub semi trailer thiab kawg ntawm lub tsheb laij teb. Yog li tus dolly trailer tuaj yeem sawv ntsug ntawm nws tus kheej lub log tsheb, tab sis kom muaj kev nyab xeeb, peb nruab kev txhawb nqa tsaws ceg ntawm dolly trailer.
Cov qauv ntawm cov tsheb laij teb yog yooj yim heev, yog li lub sijhawm xa khoom sai heev, tsuas yog lub trailer luv heev, tab sis nws muaj cov qauv goosneck, yog li lub zog ntawm qhov taw tes no tseem ceeb heev. Hauv kev tsim khoom, peb yuav tsom mus rau qhov no, yog li peb tuaj yeem muab cov khoom lag luam zoo.
Dolly trailer siv 500mm lub ntsiab nqaj, thiab muaj plaub lub log tsheb, ob lub qag, yog tias koj muaj lub tswv yim zoo ntawm cov khoom no, thov hu rau kuv yam tsis muaj hesitation.
Ntau lawm specification
Tus neeg tsim khoom npe | Tongya Automobile Co., Ltd | |
Hom | Dolly trailer | |
Chaw thau khoom muaj peev xwm | 30T | |
Lub sij hawm tsim khoom | Hauv 8 hnub ua haujlwm tom qab them nyiaj them poob haujlwm | |
Tare luj | Txog 4 T | |
Specifications |
| |
Axle No./ nyhav | 2 daim, 13t FUWA hom, | |
Kev ncua | Common Mechanical Suspension | |
Qhov Loj (LxWxH) | 6500 * 2500 * 1420mm (Adjustable) | |
King Pin | JOST 50# | |
Txhawb ceg | Txheem hom JOST 28T | |
Traction Rooj | Hom qauv | |
Rim | 9. 0-22.5, 8 daim | |
Hlau Caij nplooj ntoos hlav | 10 pieces rau axle | |
Main beam (Q345 steel) | Qhov siab yog 500mm, sab sauv flange yog 14mm, down flange yog 16mm, nruab nrab phaj yog 8mm | |
Sab beam (channel steel) | 16 # channel steel | |
Lub log |
| |
Tyre specs | 235/75R17.5 | |
Number of Tyre | 9 qab | |
Nres: |
| |
Emergency Brake Valve | WABCO Brand | |
Nres Chamber | OB ob chav thiab ob chav chamber | |
ABS system | Tsis muaj (yuav xaiv tau dawb) | |
Hluav taws xob: |
| |
Qhov hluav taws xob | 24V | |
Txais | 7 txoj kev (7 hlau hlua) | |
Teeb | LED teeb | |
Kev pleev xim | Raws li cov neeg siv khoom | |


Cim npe nrov: dolly trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
