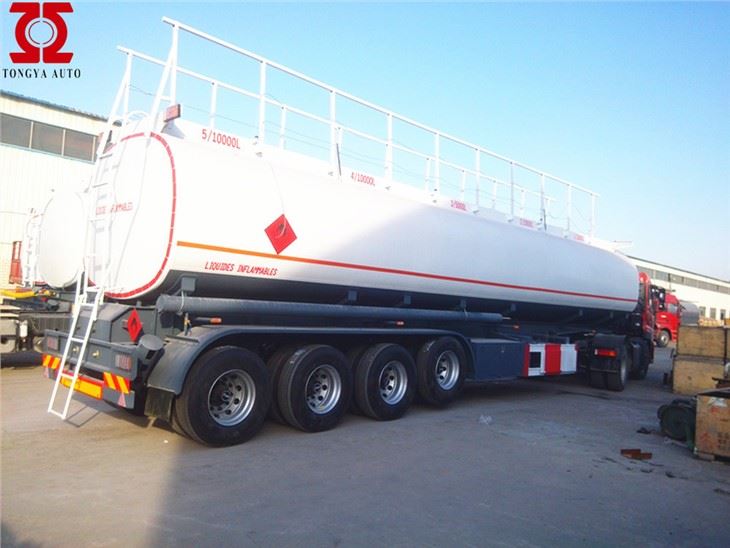

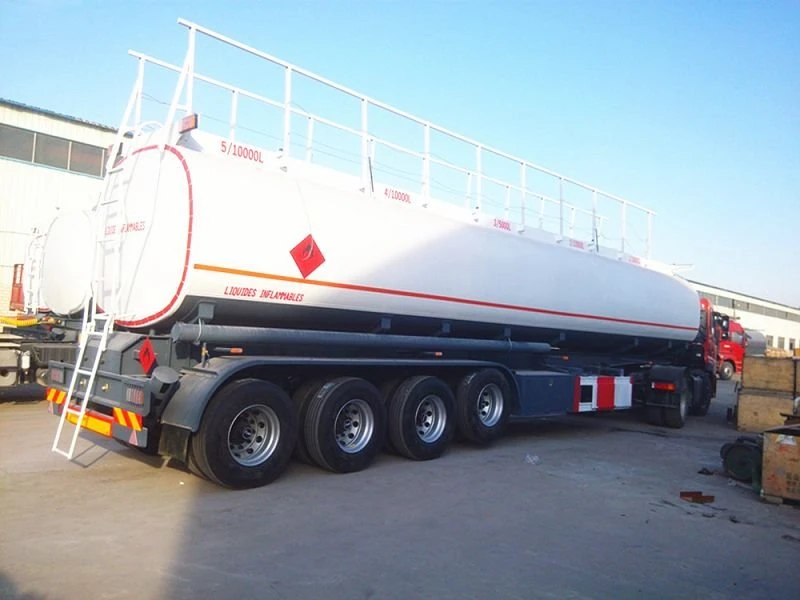

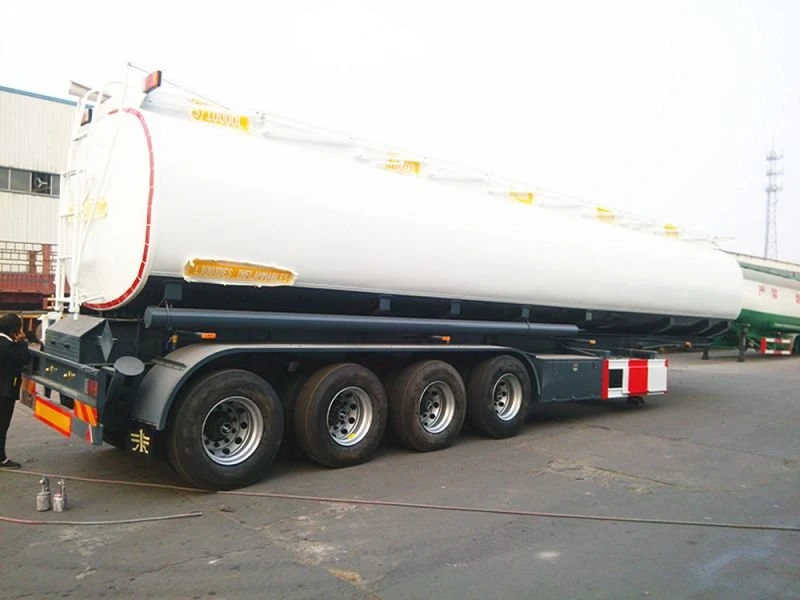

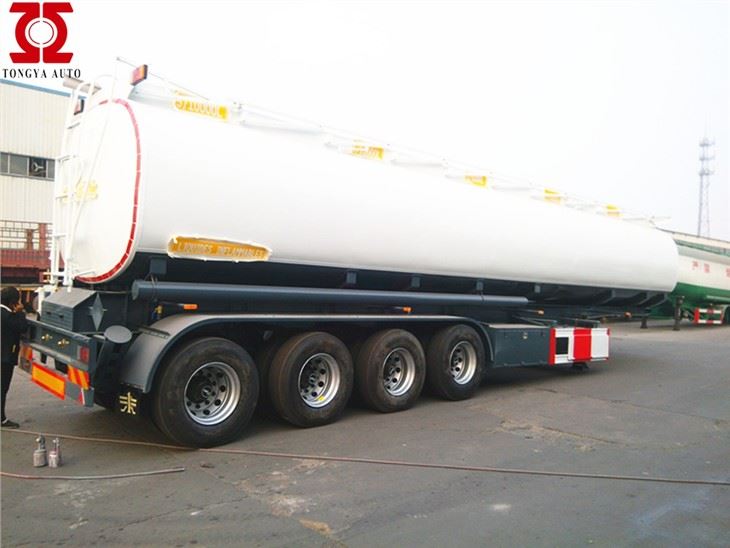

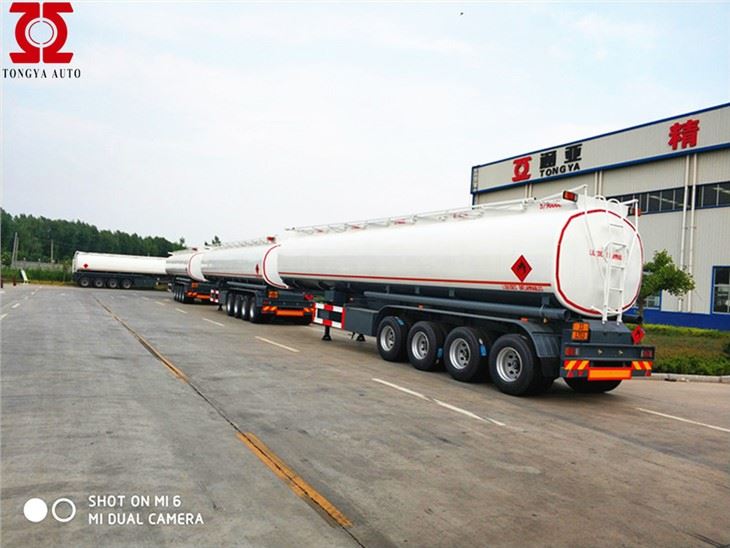

4 Axles Roj Tanker Trailer
Peb 4 axles roj tanker trailer txais kev tsim qauv siab heev. Peb cov roj tanker trailer xaiv Q345B cov khoom siv high-tensile steel, welded los ntawm cov txheej txheem tsis siv neeg Submerged-Arc.
Khoom Taw qhia
Khoom taw qhia
4 axles roj tanker trailer yog siv los thauj cov roj av, diesel, xibtes roj, thiab lwm yam.
Peb yog cov chaw tsim khoom hauv Suav teb los ntawm xyoo 1982, koj tuaj yeem kho koj tus kheej cov tsheb thauj khoom, peb tsim thiab tsim khoom raws li koj qhov kev xav tau.
Tanker lub cev welded los ntawm advanced loj-scale tshwj xeeb vuam tshuab txiav.
Kev ntsuas dej kom ntseeg tau tias lub tank siab kaw thiab tsis txhob muaj cov roj to.
Peb txais yuav cov khoom lag luam nto moo rau peb cov trailer, ua kom muaj tus cwj pwm zoo.
Khoom piav qhia
Peb 4 axles roj tanker trailer txais kev tsim qauv siab heev. Peb cov roj tanker trailer xaiv Q345B cov khoom siv high-tensile steel, welded los ntawm cov txheej txheem tsis siv neeg Submerged-Arc. Peb txais yuav ntiaj teb nto moo hom ntawm qhov chaw, xws li JOST, WABCO braking valve thiab lwm yam. Tsim los ntawm 1982, peb yog cov chaw tsim khoom ntawm semi trailers. Peb kuj tau txais daim ntawv pov thawj ISO, CCC daim ntawv pov thawj thiab lwm yam. Peb yog cov chaw tsim khoom, Raws li cov neeg siv khoom xav tau, peb tuaj yeem kho cov ntim sib txawv thiab cov khoom sib txawv. Nrog cov cuab yeej kev nyab xeeb: lub manhole yog qhov tawg-pov thawj loj npog. Lub qhov hluav taws xob hauv qab ntawm lub tank yog nruab nrog lub valve kaw thaum muaj xwm ceev. Peb lub cev tanker yog longitudinally welded. Xyuas kom muaj kev nyab xeeb ntawm lub tanker thiab ua kom lub neej ua haujlwm. Cov khoom siv ntsuas dej ntim dej: Txhawm rau kom lub siab ntim ntawm lub tank lub cev thiab zam cov roj xau. Lub rooj vag yoj txo qhov cuam tshuam ntawm cov kua ntawm lub tanker.
KhoomSpecification
| Specification | |
Qauv | 4 axles roj tanker trailer |
Cov duab | lub cev |
Tag nrho ntim | 45, 000 litre |
Tank Lub Cev Khoom | 5 hli Q235 steel |
Xaus Phaj | 6 hli Q235 steel |
Manhole Cover | Aluminium Alloy Manhole Npog |
Hauv qab Safety Valve | Aluminium Pneumatic Valve |

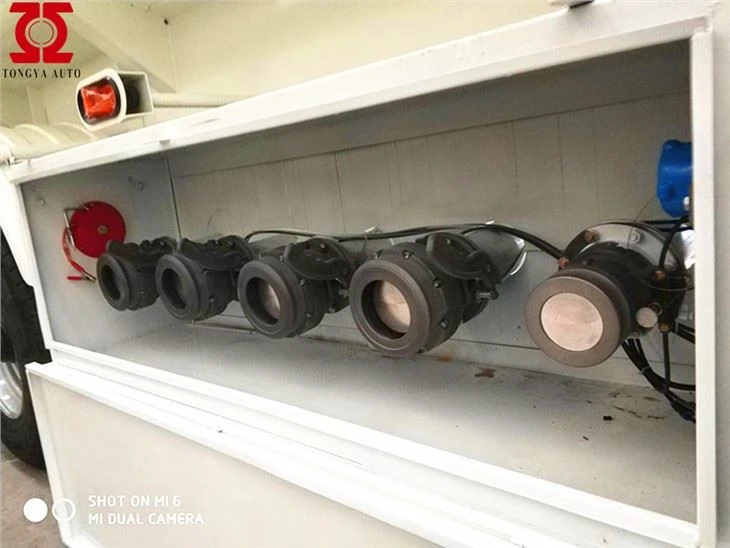

Tshem Tawm Valve | API Valve, Txoj kab uas hla 4 nti |
Cov chav tsev | 5 silo |
Main Beam | txuas nrog bolts thiab ceev |
Qag | FUWA hom |
Kev tsaws iav | JOST hom |
Kev ncua | Cua hom |
Kingpin | JOST hom, 2.0 nti |

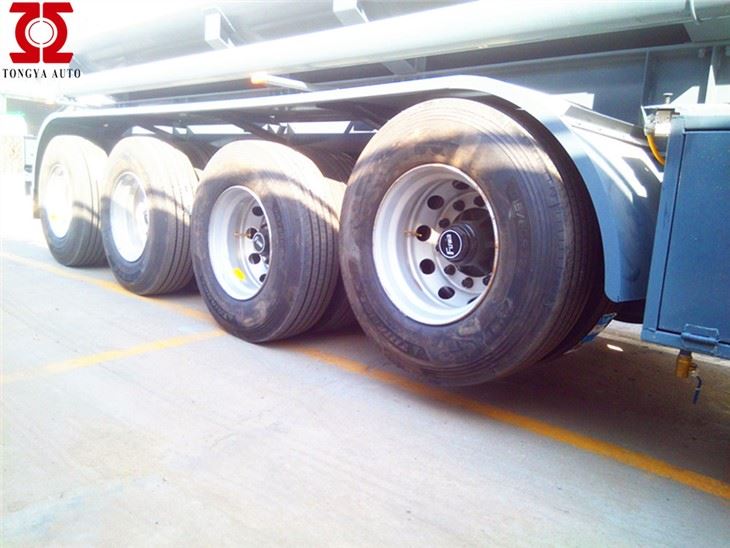

Lub log | 315/80R22.5 |
Rim | 9.0-22.5 |
Pneumatic nres | WABCO RE 6 relay valve; 2 daim ntawm 45L cua tso tsheb hlau luam |
ABS | Nrog |
Xim | Raws li cov neeg siv khoom xav tau |
Lub Sijhawm shipping | Los ntawm bulk cargo carrier lossis RORO |
Cim npe nrov: 4 axles roj tanker trailer, Suav teb, neeg muab khoom, manufacturers, customized, nqe
