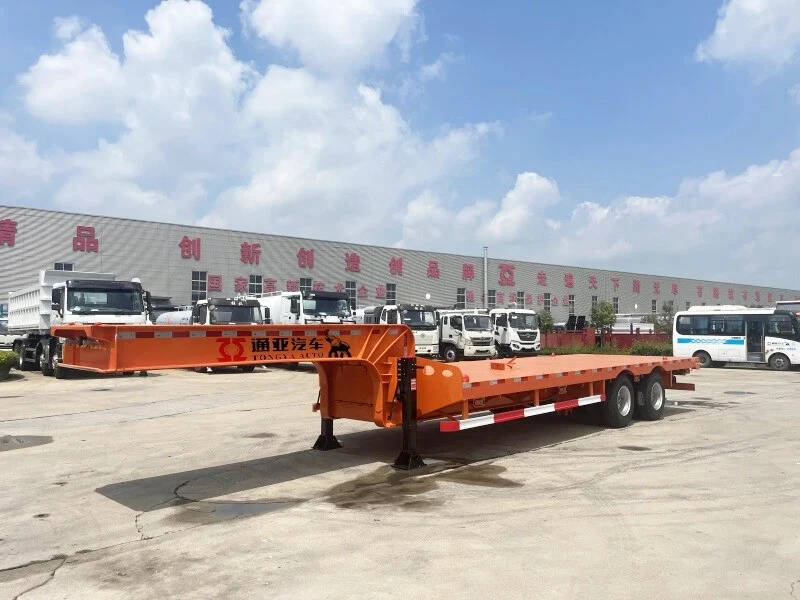

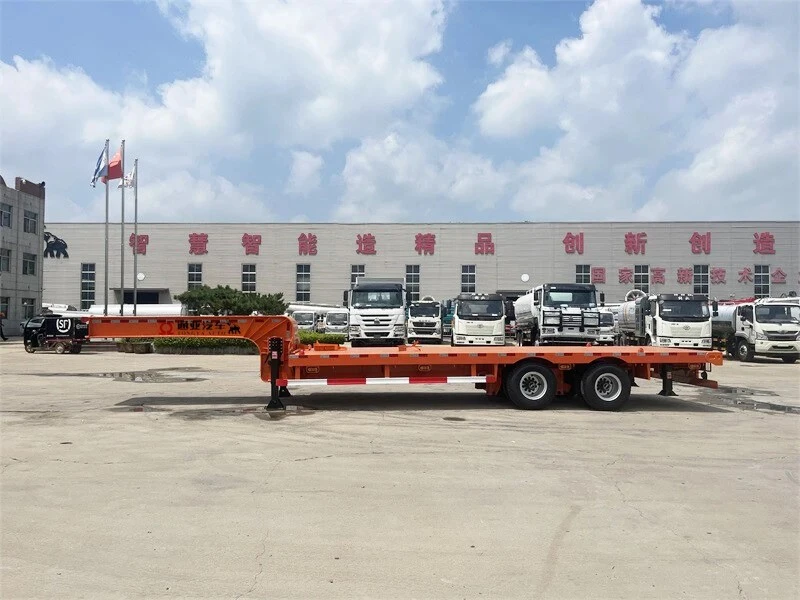

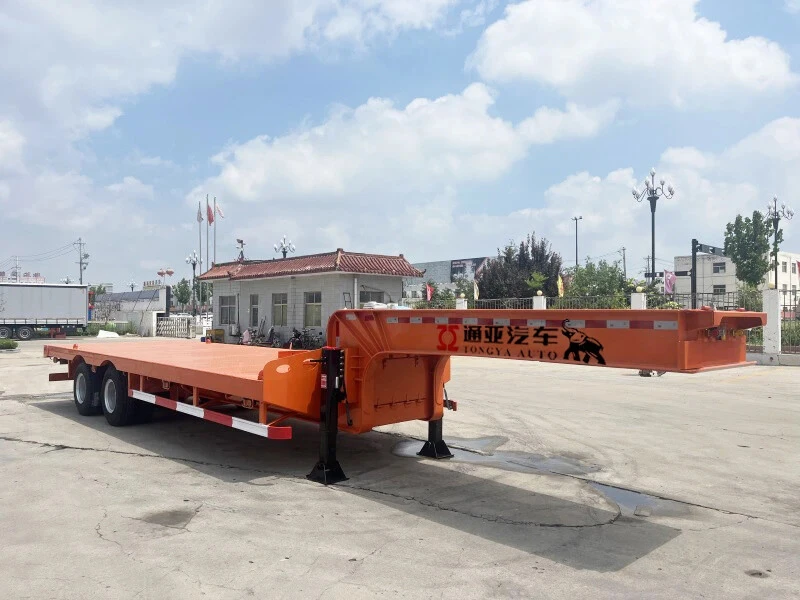

30T Tsawg txaj Semi Trailer

1, Truck trailer rau nqa excavator, loader, bulldozer thiab lwm yam hnyav machinery2, 30T loading muaj peev xwm, loj: 10 * 2.5m, 900mm loading lawj height3, Customization yog siv tau rau, loading peev, loj thiab style4, Tuam Tshoj ua semi trailer chaw tsim tshuaj paus txij li thaum 1982, export 650000000000000000000000000000000000000002

Xa kev nug

Khoom Taw qhia

Khoom Description

30T Tsawg txaj Semi Trailer ntawm Qhov Zoo:

1, Truck trailer rau nqa excavator, loader, bulldozer thiab lwm yam hnyav machinery
2, 30T loading peev, loj: 10 * 2.5m, 900mm loading lawj qhov siab
3, Customization yog txais tau rau, loading peev xwm, loj thiab style
4, Tuam Tshoj ua semi trailer chaw tsim tshuaj paus txij thaum 1982, export lag luam pib los ntawm 2006
5, Nrog ntau tshaj 400 welders kom paub tseeb tias xa khoom raws sijhawm

Khoom Specification

Qhov hnyav:	Tare luj	8T
	Chaw thau khoom muaj peev xwm	30 T
	Tag nrho qhov hnyav	61.5 T
Qhov ntev:	Sab nraud dimension	10000 * 2500 * 1550 hli (Qhov kawg qhov ntev nyob ntawm qhov kawg tsim kos duab)
Ncej:	Tsim / vuam tshuab	Lub luag haujlwm hnyav thiab ua kom muaj zog ntxiv tsim; vuam los ntawm tsis siv neeg Submerged-Arc txheej txheem.
	Main beam	Opting rau siab zog Q345B steel, 500mm sib sib zog nqus welded I-section lub ntsiab beams Sab saum toj Flange thickness 16mm, dav 140mm; Hauv qab Flange thickness 18mm, dav 140mm.Middle Flange thickness 10mm;
	Hla beam	Lub luag haujlwm hnyav tshwj xeeb U steel
	Sab beam	200mm siab kuv beam
	Pem teb	4mm thickness checker phaj
	Tsheb kauj vab (ramp)	Tsis muaj
OEMntu:	Qag	2 * 11.5T muaj peev xwm, FUWA hom (Suav hom zoo tshaj)
	King Pin	2.00 '' / 3.5 '' bolting huab tais tus pin, JOST hom
	Kev ncua	Heavy luag hauj lwm undermount ncua kev kawm ntawv nrog equalizers, American tsim (siab- hom zog)
	Hlau Caij nplooj ntoos hlav	10pcs nplooj hlav, 13mm thickness, 90mm dav
	tsaws ob txhais ceg	JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau
	Tyre specs	8.25R15, Daim duab peb sab hom (Suav nto moo hom)
	Rim	6.5 (Suav npe nrov)
	Tus naj npawb ntawm lub log	9pcs (nrog rau ib lub log spare)
	Nres system	WABCO relay valve; Plaub ob chav thiab ob chav nres tsheb; Ob chav ntawm ISO standard coppery air-connector.
	ABS system	Tsis muaj (yuav xaiv tau dawb, 450 USD / teeb)
	Hluav taws xob:	Ib chav tsev ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb
Lwm yam:	Kev pleev xim	xim qhia los ntawm tus neeg siv khoom
	Kos npe	Txuj
	Sab Guard	Txuj
	Spare Tyre Carriers	Ob txheej ntawm lub luag haujlwm hnyav spare log nqa
	Cov cuab yeej thawv	Ib thooj (1. 00. 50. 5m), nyob rau hauv lub caj dab goose (nrog 1 log tsheb spanner, 1 lub tes tsho gudgeon thiab 1 cranking bar)
Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsim raws li qhov kev pom zoo zaum kawg nrog tus neeg siv khoom

Xav paub ntau ntxiv txog cov khoom lag luam, thov hu rau peb. Peb yuav muab koj tus nqi sib tw tshaj plaws.

Khoom Description

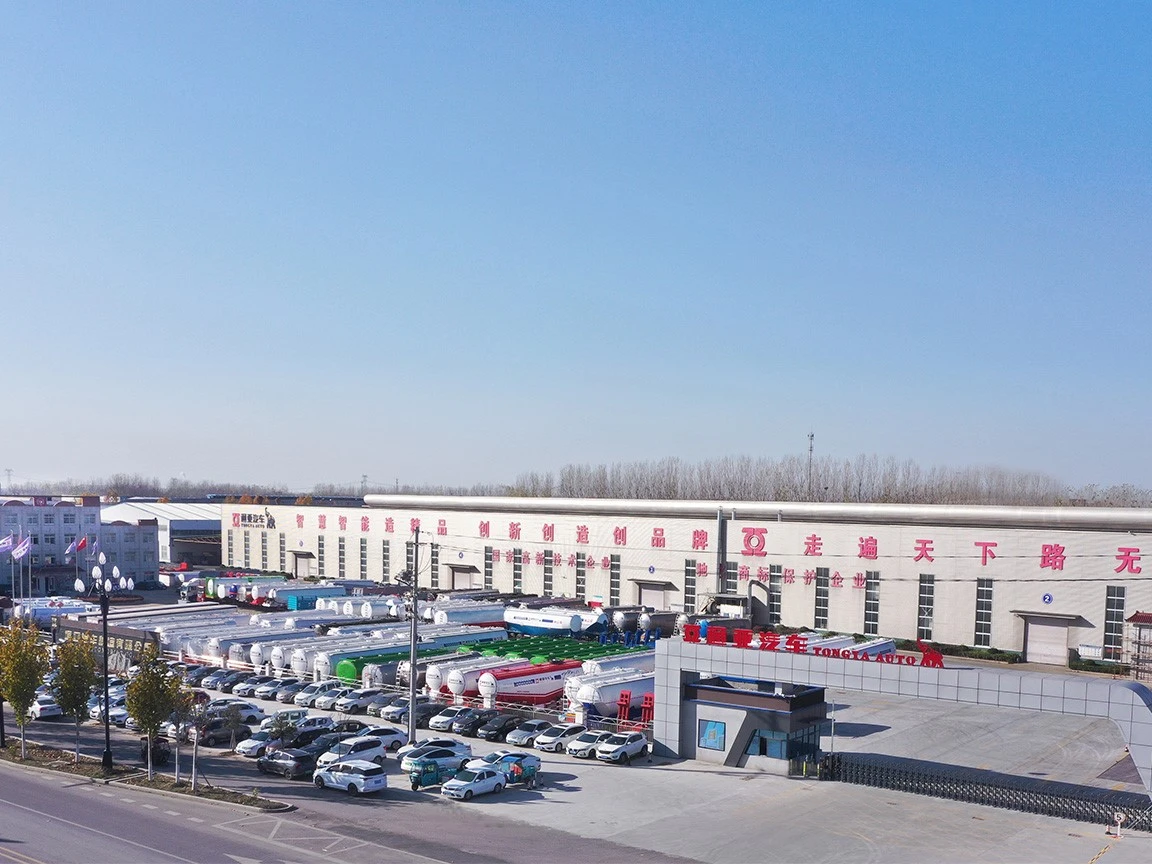

TONGYA AUTOMOBILE CO., LTD yog Tuam Tshoj ua semi trailer thiab tanker trailer chaw tsim tshuaj paus txij thaum 1982 ! Sib koom tsim, tsim khoom thiab muag khoom ntawm semi trailer thiab cov khoom seem ua ke.

Pib ua lag luam xa tawm txij li xyoo 2006, nrog kev ua tiav, kev tshaj lij thiab pab pawg xa tawm tau zoo. Peb pib xa cov kws tshaj lij, cov neeg saib xyuas kev tsim khoom hauv lub Hoobkas, tus neeg saib xyuas kev yuav khoom thiab kev muag khoom tuaj koom lub rooj sib tham thoob ntiaj teb txij li xyoo 2008, suav nrog IAA Tsheb Thauj Khoom Ncaj Ncees hauv Hanover Lub Tebchaws Yelemees, Mid-America trucking show in USA. Txhua Canton Fair thiab Bauma Tuam Tshoj.
