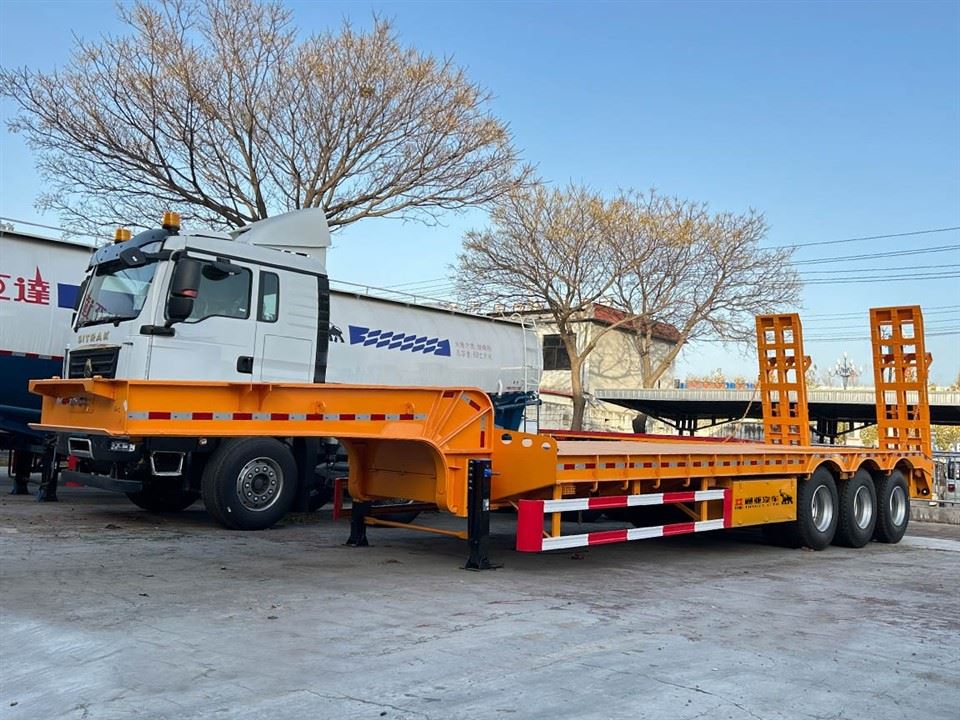

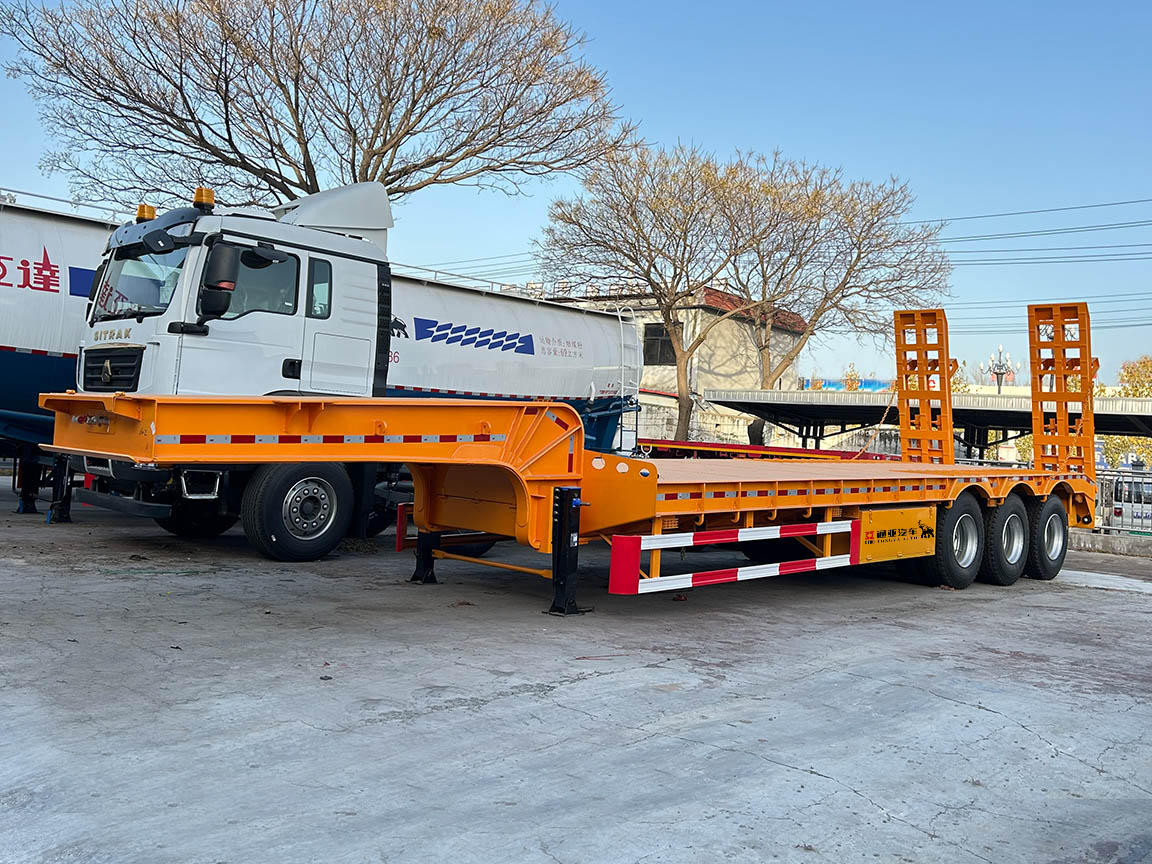

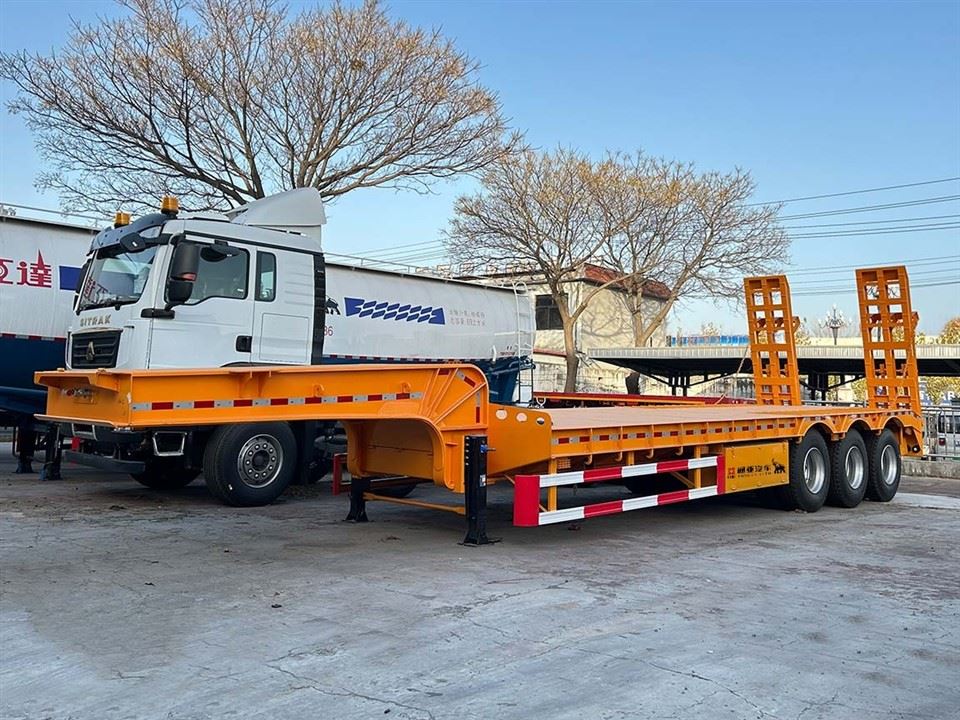

3 qag qis txaj Semi Trailer nrog ntaiv

Lowbed Semi Trailer raws li lub npe hu ua lowbed trailer, lowbed trailer, lowboy trailer. Muaj feem ntau yog siv los thauj cov tshuab tsim kho thiab cov khoom siv loj. Feem ntau, ntau qhov chaw raug txwv, tshwj xeeb tshaj yog nyob rau qee qhov txuas txuas. Kev siv cov tsheb thauj khoom tsis tuaj yeem thauj tau, yog li cov neeg siv lowbed semi trailers rau kev thauj mus los.

Xa kev nug

Khoom Taw qhia

Khoom Description

3 qag qis txaj Semi Trailer nrog ntaiv ntawm qhov zoo:

1, 60Tons chaw thau khoom muaj peev xwm, kev kho kom haum tau rau cov qauv, chaw thau khoom thiab qhov loj me;
2, Tuam Tshoj ua chaw tsim tshuaj paus txij thaum 1982;
3, Shipping ntawm RO-RO lossis ntau lub nkoj.

Khoom Specification

Qhov hnyav:

Tare luj

12.5T

Chaw thau khoom muaj peev xwm

60 T

Tag nrho qhov hnyav

72.5 T

Qhov Loj:

Sab nraud dimension

14800 * 3000 * 3380 mm (Qhov kawg qhov ntev nyob ntawm qhov kawg tsim kos duab)

Ncej:

Tsim / vuam tshuab

Lub luag haujlwm hnyav thiab ua kom muaj zog ntxiv tsim; vuam los ntawm tsis siv neeg Submerged-Arc txheej txheem.

Main beam

Opting rau siab zog Q345B steel, 520mm sib sib zog nqus welded I-section lub ntsiab beams Sab saum toj Flange thickness 20mm, dav 140mm; Hauv qab Flange thickness 25mm, dav 140mm.Middle Flange thickness 12mm;

Hla beam

Lub luag haujlwm hnyav tshwj xeeb U steel

Sab beam

250mm siab kuv beam

Pem teb

5mm thickness checker phaj

Tsheb kauj vab (ramp)

Ob daim caij nplooj ntoos hlav steel ntaiv, (Q345B steel)

OEM qhov chaw:

Qag

3 * 13T muaj peev xwm,

King Pin

2.00 '' / 3.5 '' bolting huab tais tus pin, JOST hom

Kev ncua

Heavy luag hauj lwm undermount ncua kev kawm ntawv nrog equalizers, American tsim (siab- hom zog)

Hlau Caij nplooj ntoos hlav

10pcs nplooj hlav, 13mm thickness, 90mm dav

tsaws ob txhais ceg

JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau

Tyre specs

8.25R20., Daim duab peb sab hom (Suav nto moo hom)

Tus naj npawb ntawm lub log

13 daim (nrog rau ib lub log spare)

Nres system

WABCO relay valve; Plaub ob chav thiab ob chav nres tsheb; Ob chav ntawm ISO standard coppery air-connector.

ABS system

Tsis muaj (yuav xaiv tau dawb, 450 USD / teeb)

Hluav taws xob:

Ib chav tsev ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb

Lwm yam:

Kev pleev xim

xim qhia los ntawm tus neeg siv khoom

Kos npe

Txuj

Sab Guard

Txuj

Spare Tyre Carriers

Ob txheej ntawm lub luag haujlwm hnyav spare log nqa

Cov cuab yeej thawv

Ib thooj (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose (nrog 1 log tsheb spanner, 1 lub tes tsho gudgeon thiab 1 cranking bar)

Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsim raws li qhov kev pom zoo zaum kawg nrog tus neeg siv khoom

Xav paub ntau ntxiv txog cov khoom lag luam, thov hu rau peb.Peb yuav muab koj cov nqi sib tw tshaj plaws.

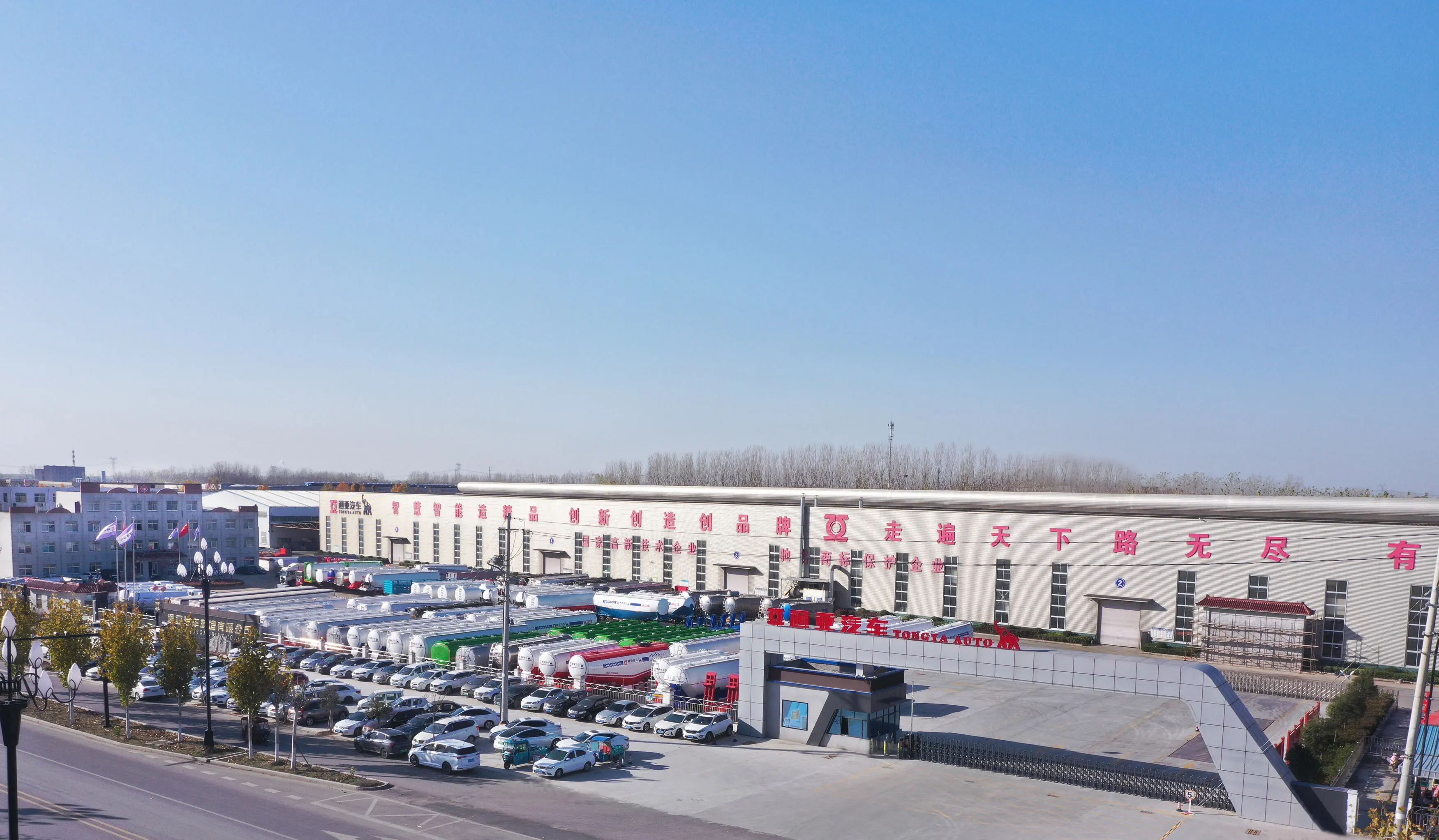

Tuam txhab Profile

TONGYA AUTOMOBILE CO., LTD yog Tuam Tshoj ua semi trailer thiab tanker trailer chaw tsim tshuaj paus txij thaum 1982 ! Koom nrog tsim, tsim khoom thiab muag khoom ntawm semi trailer thiab cov khoom seem ua ke.

Pib ua lag luam xa tawm txij li xyoo 2006, nrog kev ua tiav, kev tshaj lij thiab pab pawg xa tawm tau zoo. Peb pib xa cov kws tshaj lij, cov neeg saib xyuas kev tsim khoom hauv lub Hoobkas, tus neeg saib xyuas kev yuav khoom thiab kev muag khoom tuaj koom lub rooj sib tham thoob ntiaj teb txij li xyoo 2008, suav nrog IAA Tsheb Thauj Khoom Ncaj Ncees hauv Hanover Lub Tebchaws Yelemees, Mid-America trucking show in USA. Txhua Canton Fair thiab Bauma Tuam Tshoj.
