Tsheb thauj neeg khib nyiab

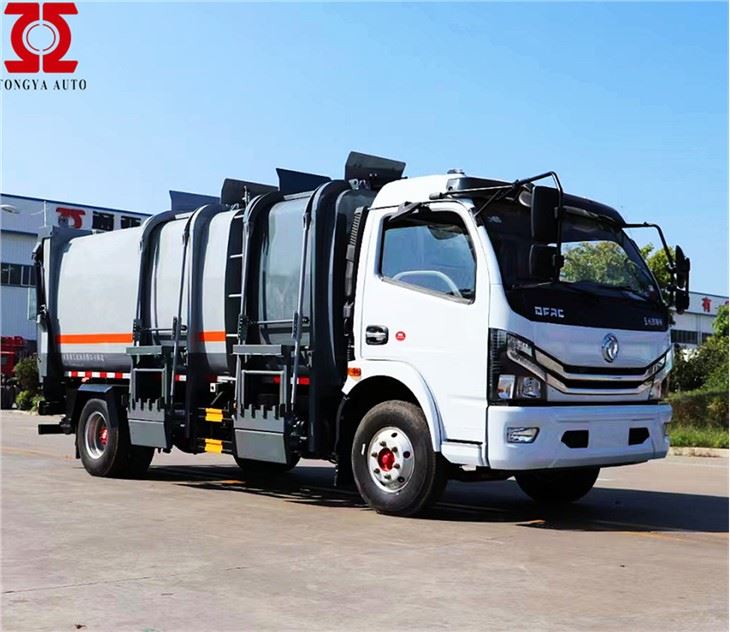

Lub tsheb thauj khoom khib nyiab yog lub tsheb thauj khoom khib nyiab tshwj xeeb tsim los ntawm Tongya Heavy Industry raws li Dongfeng Duolika National Sixth thiab Second Class chassis EQ1095SJ8CD2, uas yog tsim tshwj xeeb rau txoj cai cais cov khib nyiab, tshem tawm.
Khoom Taw qhia
Khoom taw qhia
Lub tsheb thauj khoom khib nyiab yog lub tsheb thauj khoom khib nyiab tshwj xeeb tsim los ntawm Tongya Heavy Industry raws li Dongfeng Duolika National Sixth thiab Second Class chassis EQ1095SJ8CD2, uas yog tsim tshwj xeeb rau txoj cai cais cov khib nyiab, tshem tawm.

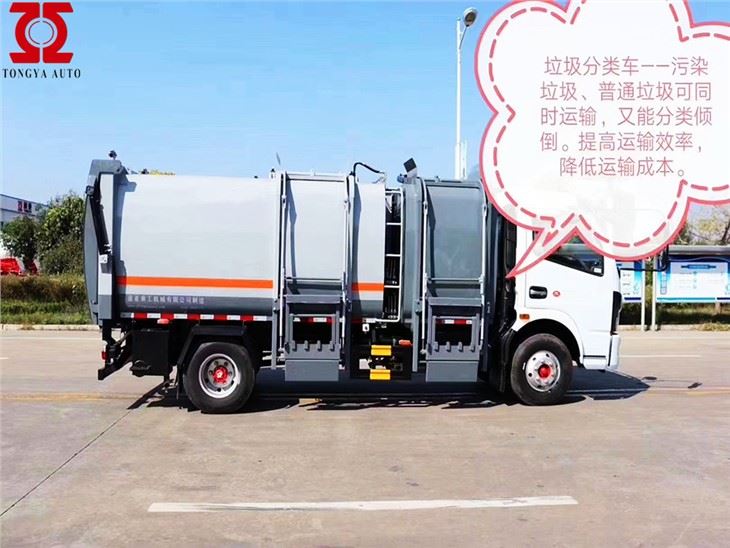

Lub thawv rau pem hauv ntej thiab nram qab ntawm lub tsheb thauj khoom khib nyiab yog sau los ntawm cov thoob khib nyiab rau sab. Lub thawv pem hauv ntej yog siv los sau thiab hloov cov khib nyiab qhuav, sab yog nqa thiab tshem tawm, lub thawv tom qab yog siv los khaws thiab hloov cov khib nyiab ntub, thiab lub laub phaj yog unloaded. Nyob rau tib lub sijhawm, lub thawv nram qab kuj tuaj yeem Compression nrog laub daim hlau ua kom muaj peev xwm thauj khoom. Lub qhov rooj ntawm lub thawv rear lub cev ntawm lub tsheb thauj khoom khib nyiab yog muab nrog cov dej phwj ntim khoom kom paub txog kev thauj mus los ntawm cov khib nyiab. Nyob rau tib lub sijhawm, lub tsheb thauj khoom khib nyiab tau nruab nrog cov khoom siv dej phwj rov qab los ua cov txheej txheem rov qab los ntawm cov dej phwj tuaj, tshem tawm qhov tshwm sim ntawm cov dej phwj tuaj thaum lub sijhawm sau thiab hloov cov txheej txheem.
Khoom piav qhia
Qhov zoo thiab kev ua haujlwm ntawm lub tsheb thauj khoom khib nyiab
Kev ua haujlwm ntawm tib neeg: Thaum cov khib nyiab hauv lub tsheb thauj khoom khib nyiab pov tseg, cov neeg ua haujlwm tuaj yeem ua tiav cov haujlwm hauv lub tsheb, thiab tsis tas yuav tsum tau tawm ntawm lub tsheb mus ua haujlwm, txuag sijhawm thiab siv zog.
Optimized tsim ntawm lub tsheb thauj khoom khib nyiab ntawm lub manipulator lifting ntaus ntawv, lub manipulator lifting device adopts linkage tsim ntawm lub sab sauv cover thiab lub manipulator, uas paub qhov tsis siv neeg nias ntawm lub thoob khib nyiab thiab qhov linkage qhib thiab kaw ntawm lub sab sauv cover thaum lub sij hawm lub lifting txheej txheem ntawm lub thoob khib nyiab.

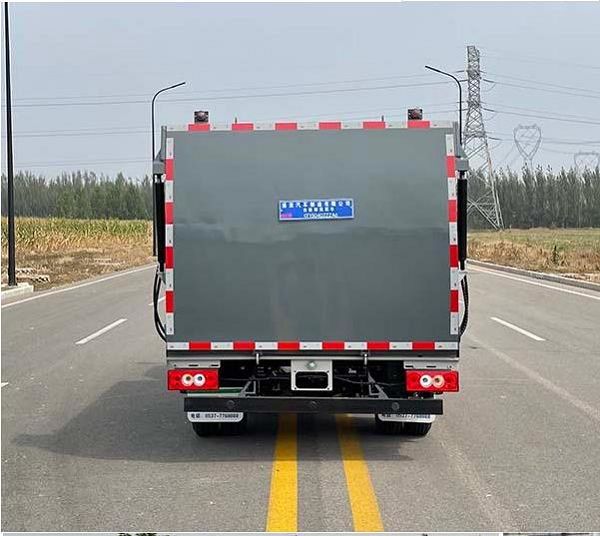

Hydraulic lub tog raj kheej nqa lub qhov rooj xauv lub qhov rooj, lub qhov rooj tom qab qhib thiab kaw los ntawm kev nqa ntawm lub tog raj kheej hydraulic, nruab nrog ob txoj kev hydraulic xauv, thiab lub qhov rooj nraub qaum yog kaw thiab kaw los ntawm kev kaw lub kaw lus, thiab lub nraub qaum. qhov rooj sealing nyhuv yog qhov zoo.
Cov khoom siv dej phwj thib ob rov qab, lub tsheb tau nruab nrog cov khoom siv dej phwj thib ob rov qab, uas tuaj yeem ua kom rov qab los ntawm cov dej phwj tuaj, thiab tshem tawm tag nrho cov tshwm sim ntawm cov dej phwj tuaj thaum lub sij hawm sau thiab hloov cov txheej txheem.

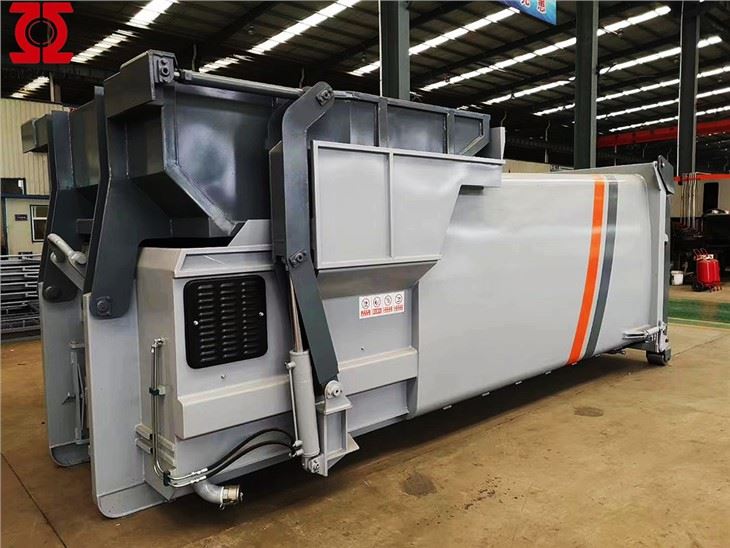

Lub optimized tsim ntawm lub thawv khib nyiab, lub thawv lub cev yog ua los ntawm high-strength steel phaj (T700), lub puab phab ntsa yog du, tsis muaj pob txha, corrosion kuj, tsis muaj khib nyiab, ntim loj, lub sij hawm ua haujlwm ntev.
Cov cuab yeej tswj chaw taws teeb (yeem): Tom qab txhim kho cov chaw taws teeb tswj, koj tuaj yeem rub lub thoob khib nyiab thaum thauj cov khib nyiab kom luv lub sijhawm ua haujlwm thiab txhim kho kev ua haujlwm.
Khoom Specification
Tsis muaj. | Hom Parameter | Yam khoom | Model thiab parameters |
1 | Chassis Parameters | Chassis qauv | EQ1095SJ8CD2 |
2 | 2 Cav qauv | YCY24140-60 | |
3 | Hom roj | Diesel | |
4 | Emission txheem | Tuam Tshoj tau tshaj tawm txoj xov zoo | |
5 | Lub cev muaj zog (kw) | 103 | |
6 | Log tsheb loj | 7.50R16 | |
7 | Qhov ceev tshaj plaws (km / h) | 103 | |
8 | Tus naj npawb ntawm cov neeg nyob hauv cab (tus neeg) | 3 | |
9 | Loj tsis muaj | Qhov hnyav tag nrho (kg) | 9100 |
10 | Qhov hnyav (kg) | 5600 | |
11 | Rated load hnyav (kg) | 3305 | |
12 | Dimensional parameters | Dimensions (ntev × dav × qhov siab) (mm) | 6480×2400×2685 |
13 | Wheelbase (mm) | 3800 | |
14 | Pem hauv ntej suspension / rear ncua kev kawm ntawv (mm) | 1130/1550 | |
15 | Nkag mus / Tawm mus (degree) | 21/14 | |
16 | Cov cuab yeej tshwj xeeb tsis muaj | Pem hauv ntej ntim ntim | 3 |
17 | Rov qab ntim ntim | 8 | |
18 | Cov thoob khib nyiab tuaj yeem tig lub kaum sab xis | Ntau dua lossis sib npaug li 45 | |
19 | Pem hauv ntej hopper tawm lub kaum sab xis (degree) | Ntau dua lossis sib npaug li 45 | |
20 | Cov dej khib nyiab ntim ntim (L) | 50 | |
21 | Txoj kev ua haujlwm | Cab Pneumatic & External phau ntawv |
