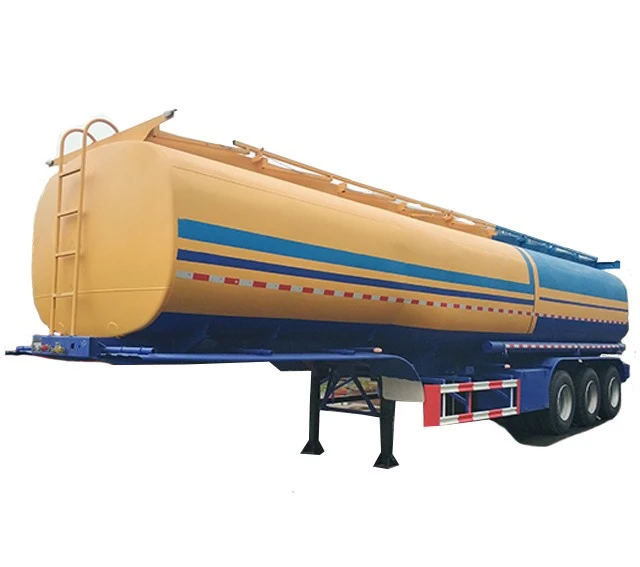

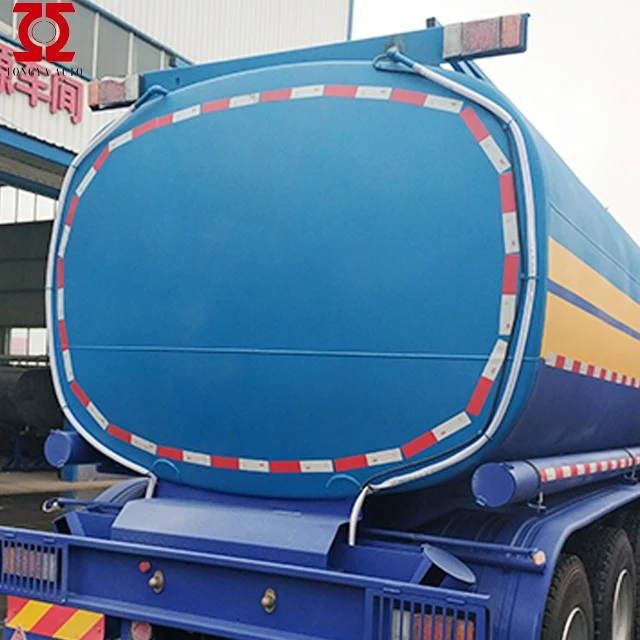

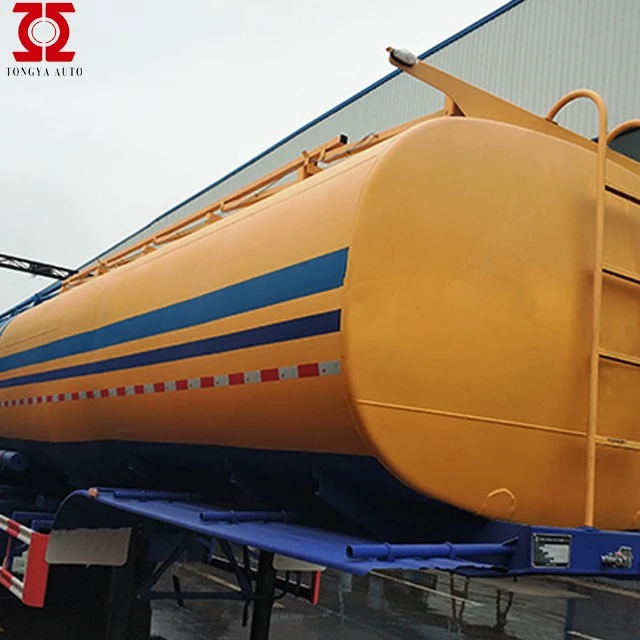

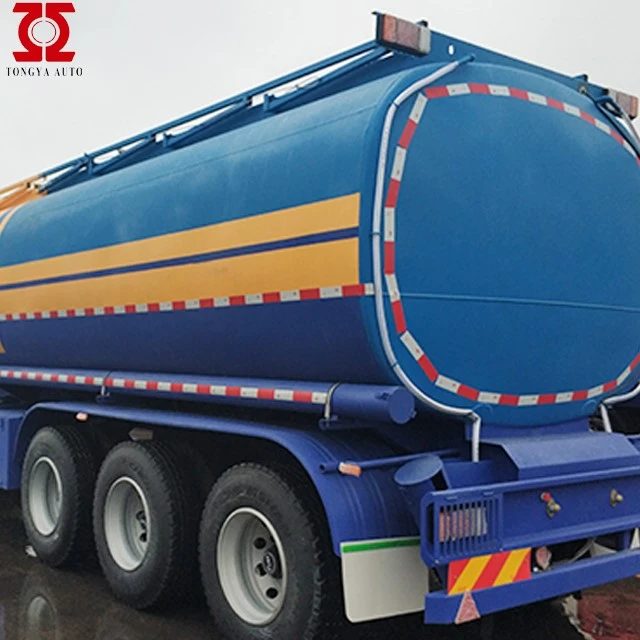

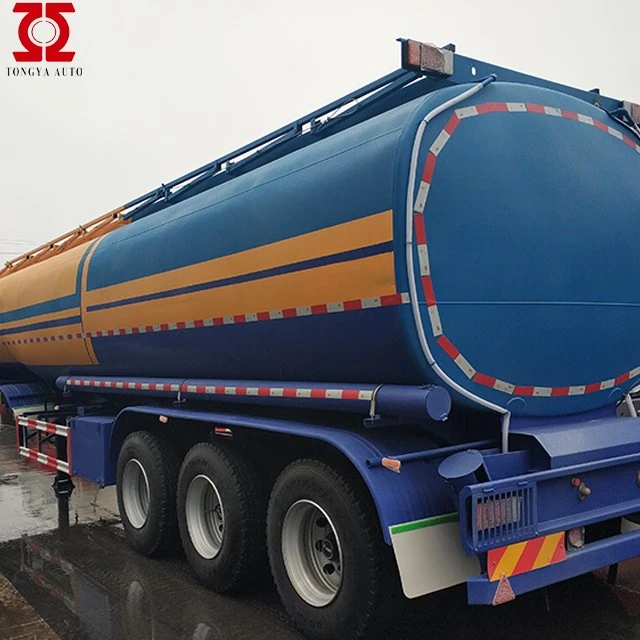

Eastern Africa Roj Tanker Semi Trailer
Siv kev lag luam automation technology, cov khoom tsim nyob rau hauv lub tank manufacturing txheej txheem, xws li CNC txiav tshuab, CNC milling tshuab, thauj thiab tig tshuab, loj jigsaw, CNC dov tshuab, loj expansion tshuab, template-tsawg hemming tshuab, profile Tank nplhaib seam plasma arc vuam tshuab thiab lwm yam khoom siv, nrog rau cov menyuam kis tau tus mob, vuam fais fab qhov chaw, workpiece displacement tshuab, conveying tshuab tag nrho paub cov kev tswj.
Khoom Taw qhia
Khoom Description

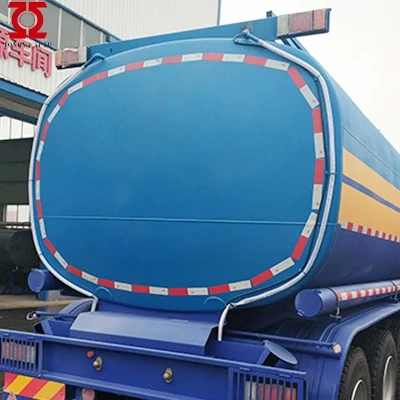

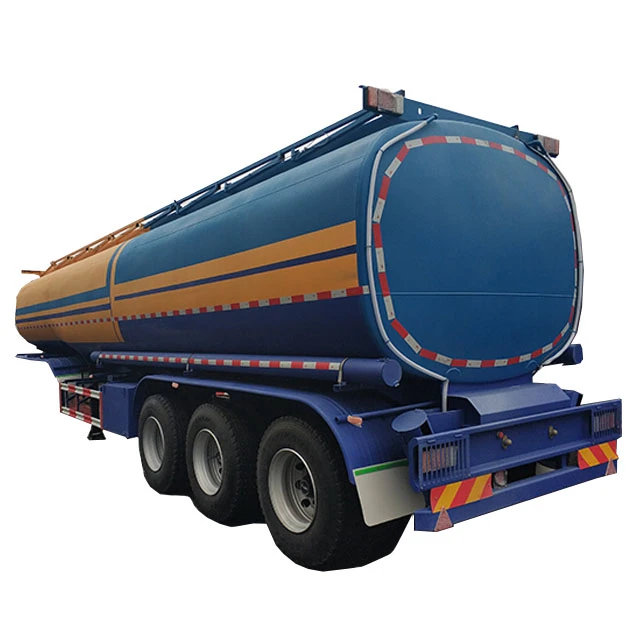

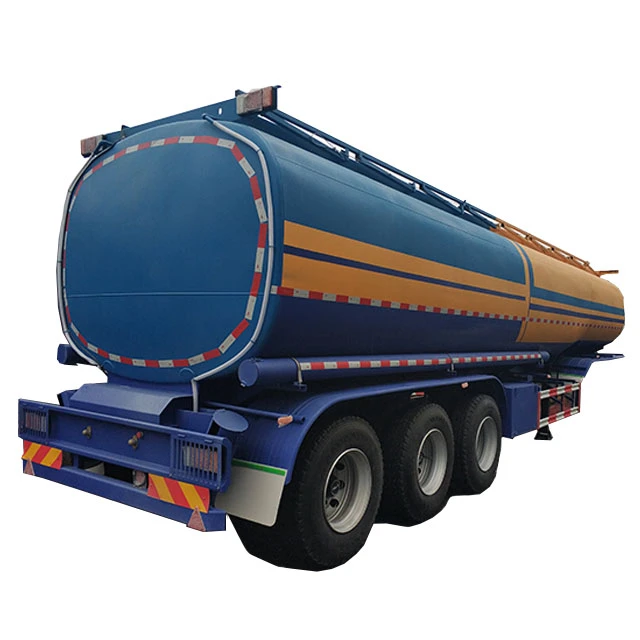

Eastern Africa Roj Tanker Semi Trailer
1. Nws muaj peev xwm loj, yog li txo cov nqi tsheb thauj mus los thiab nce kev ua haujlwm zoo.
2. Eastern Africa Fuel Tanker Semi Trailer cov txheej txheem kev nyab xeeb siab heev, uas suav nrog ntau qib kev tiv thaiv kev sib tsoo thiab nchuav.
3.Short ntau lawm voj voog, tuaj yeem xa mus rau cov neeg siv khoom sai.
4.Customized cov kev pabcuam, tsim thiab tsim raws li cov neeg siv khoom xav tau.
Siv kev lag luam automation technology, cov khoom tsim nyob rau hauv lub tank manufacturing txheej txheem, xws li CNC txiav tshuab, CNC milling tshuab, thauj thiab tig tshuab, loj jigsaw, CNC dov tshuab, loj expansion tshuab, template-tsawg hemming tshuab, profile Tank nplhaib seam plasma arc vuam tshuab thiab lwm yam khoom siv, nrog rau cov menyuam kis tau tus mob, vuam fais fab qhov chaw, workpiece displacement tshuab, conveying tshuab tag nrho paub cov kev tswj.
Cov khoom siv roj tank muaj xws li Euro tus qauv manhole npog, API adapter valve, Lub ntiajteb txawj nqus poob coupler, plua plav hau; hauv qab valve, Vapor vent valve; vapor adapter valve; vapor rov ua ke; optic sensor, optic socket, optic sensor tester; roj kwv yees.
Khoom Specification
Eastern Africa Roj Tanker Semi Trailer Specifications:
|
Lub cev tank
|
||||
|
Cov duab
|
Yeem (Round or Suare)
|
|||
|
Dimension
|
13500mm * 2490mm * 3800mm (Qhov loj me nyob ntawm qhov kawg tsim)
|
|||
|
Tare luj
|
Txog 12000KGS
|
|||
|
Tag nrho ntim (m3)
|
50m³
|
|||
|
Tanker Lub Cev Khoom
|
5mm lossis 6mm / Q235 carbon steel
|
|||
|
Xaus Phaj
|
5mm lossis 6mm / Q235 carbon steel
|
|||
|
Manhole Cover
|
Cabon steel los yog API manhole npog, ∮500mm
|
|||
|
Hauv qab Valve
|
Aluminium API Pneumatic Hauv qab Valve
|
|||
|
Discharge Valve
|
Txoj kab uas hla yog 3 lossis 4 nti
|
|||
|
Chav tsev
|
5
|
|||
|
Cov yeeb nkab tawm
|
4 "rubber hose, 2 pcs, 6m / txhua
|
|||
|
Cat Taug kev
|
Nrog (Cov qauv qauv lossis tsim tshwj xeeb)
|
|||
|
Chassis
|
||||
|
Main Beams
|
Vuam tsim, txuas nrog bolts thiab ceev
Q345 carbon steel khoom |
|||
|
Qag
|
3 qag, FUWA / BPW hom
|
|||
|
tsaws iav
|
JOAT A300C los yog TONGYA 28T
|
|||
|
King Pin
|
JOST 3.5 nti bolt-hauv huab tais tus pin
|
|||
|
Kev ncua
|
Mechanical suspension / Lub teb chaws Yelemees lossis Asmeskas hom / cua ncua kev kawm
|
|||
|
Nplooj Caij nplooj ntoos hlav
|
90 (W) hli * 13 (Thickness) hli * 10 Txheej los yog 100mm * 12mm * 12 / tsis muaj
|
|||
|
Pneumatic Braking System
|
WABCO RE 6 relay valve; Caij nplooj ntoos hlav nres chamber (TKL hom); ib daim ntawm 45L cua tso tsheb hlau luam.
|
|||
|
Rim
|
9.00-22.5/8.00-20/8.5-20 Tuam Tshoj Brand
|
|||
|
Lub log
|
12R22.5 tuaj yeem xaiv tau
|
|||
|
ABS
|
xaiv tau
|
|||
|
Kev pleev xim
|
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg
|
|||
|
Khoom siv
|
Ib tug standard toolbox
|
|||
|
Cov ntsiab lus shipping
|
Los ntawm Cov Thawv Loj, RORO lossis 40HQ Ntim
|
|||
Xa lus nug tiv tauj peb rau cov kev pabcuam tshwjxeeb thiab tus nqi tshwj xeeb.
Peb yog Hoobkas tsim, txais tos koj tuaj xyuas peb lub Hoobkas.
