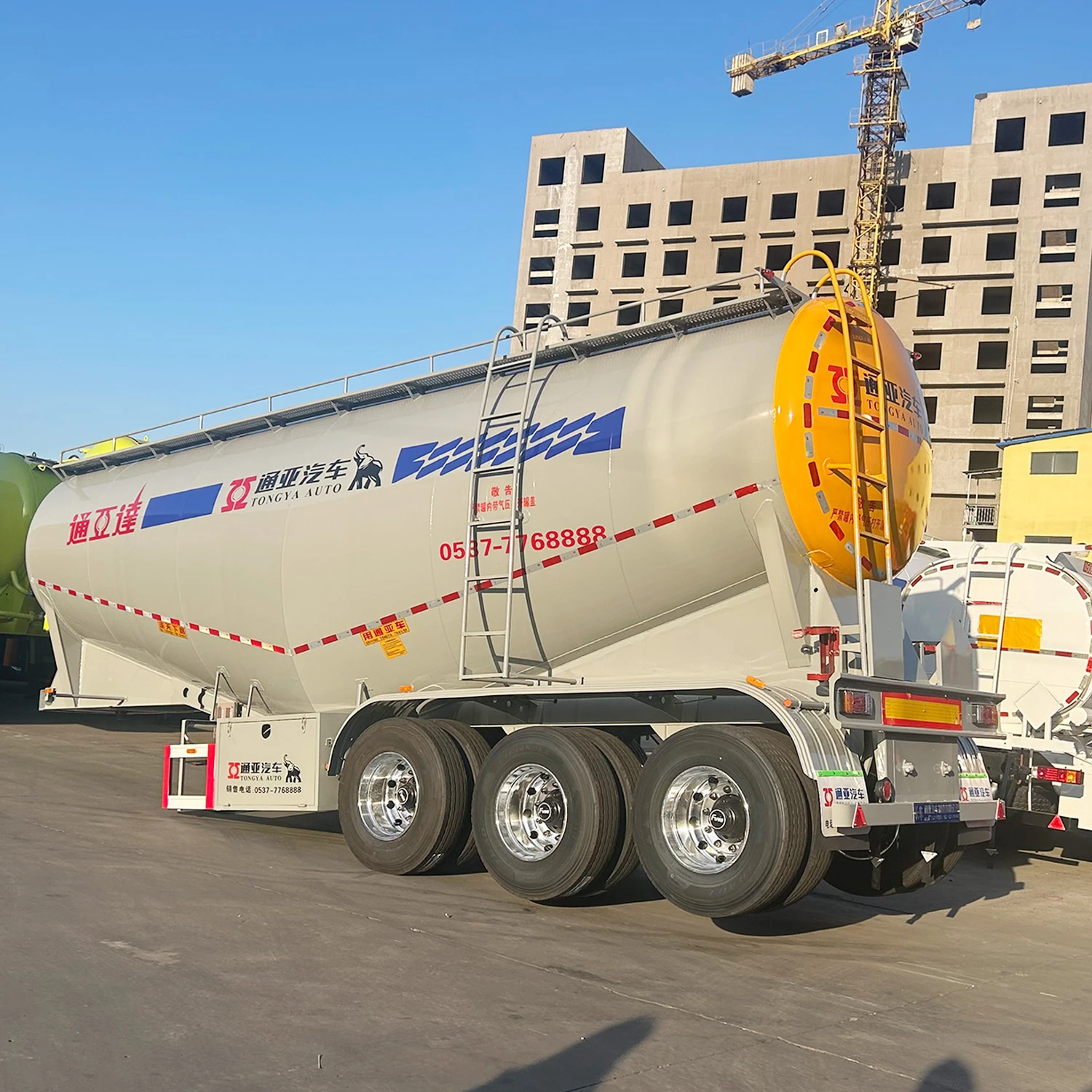

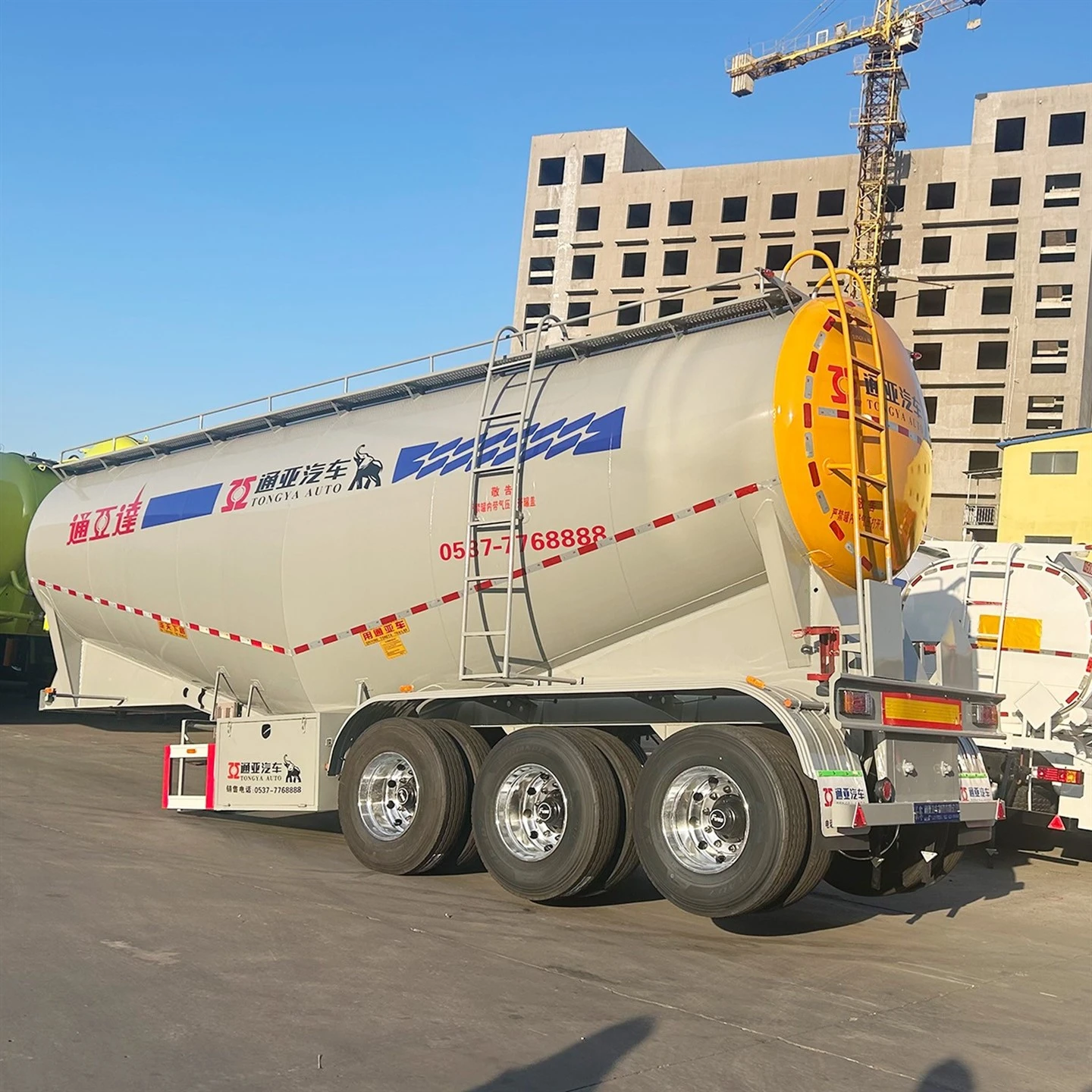

3 Axle Bulk Cement Tanker Semi Trailer
1, Customization yog txais tau rau tanker muaj peev xwm thiab style2, Tuam Tshoj ua chaw tsim tshuaj paus txij li thaum 1982, sab saum toj 1 muag nyob rau hauv Tuam Tshoj ua lag luam txij thaum 20123, Cav thiab compressor muaj, PTO ntawm tsheb laij teb optional4, ceev tso tawm,<0.3% retention volume, 18 days delivery time
Khoom Taw qhia
Specifications:
| Qhov hnyav: | Tare luj | 8T |
| Chaw thau khoom muaj peev xwm | 30 T | |
| Tag nrho qhov hnyav | 38 T | |
| Qhov Loj: | Dimension | 8500 × 2500 * 3700mm (Qhov kawg qhov ntev nyob ntawm qhov kawg tsim kos duab) |
| Tanker muaj peev xwm | 30m3 (30000L) | |
| Tanker lub cev: | Tsim / vuam tshuab | Lub luag haujlwm hnyav thiab muaj zog ntxiv tsim; vuam los ntawm cov txheej txheem Submerged-Arc tsis siv neeg. |
| Tanker lub cev | Lub tanker lub cev ua los ntawm 5 hli, tanker kawg ua los ntawm 6 hli thickness steel, Q235 steel | |
| Hauv qab chassis | Siab zog Q345B steel | |
| Tanker puab | "V" shape | |
| Silo | 1 silo | |
| Manhole: | 2 daim, (inch yog 500mm) | |
| Tshem lub qhov ncauj | 4 nti tawm qhov ncauj | |
| Kev nyab xeeb siab valve | Txuj | |
| Tshem tawm hose | 8m nrog Hose nqa, qhov ntev yog raws li cov neeg siv khoom xav tau | |
| Cua compressor | 12m3 ob-lub tog raj kheej cua compressor, Bohai hom | |
| Cav | Diesel Cav, Weichai 4102 cav | |
| Tsheb kauj vab thiab tes tuav | Txuj | |
| Khaws ntim ntim | <0.3% | |
| OEM qhov chaw: | Qag | 3 * 13 tons muaj peev xwm, FUWA hom (Suav zoo tshaj hom) |
| King Pin | 2.00 /3.5 nti, bolting huab tais tus pin, JOST hom | |
| Kev ncua | Heavy luag hauj lwm ncua kev kawm ntawv nrog equalizers, American tsim (high-strength hom) | |
| Hlau Caij nplooj ntoos hlav | Rau 10pcs nplooj hlav, 16mm thickness, 90mm dav | |
| tsaws ob txhais ceg | JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau | |
| Tyre specs | 12R22.5, lossis 315/80R22.5 Daim duab peb sab hom | |
| Rim | 9.0-22.5 | |
| Tus naj npawb ntawm lub log | 13 daim (nrog rau ib lub log spare) | |
| Nres system | WABCO relay valve; Plaub ob chav thiab ob chav nres tsheb; Ib chav tsev ntawm kev ntseeg siab hauv zos hom 45L cua tank; Ob chav nyob ntawm cov khoom lag luam txhim khu kev qha hauv zos tus qauv coppery air-connector. | |
| ABS system | Tsis muaj (yuav xaiv tau dawb, 450 USD / teeb) | |
| Hluav taws xob: | Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb (tus qauv teeb lub teeb, tig lub teeb, rear reflector, sab teeb, sab reflector thiab lwm yam) | |
| Lwm yam: | Kev pleev xim | xim qhia los ntawm tus neeg siv khoom |
| Kos npe | Txuj | |
| Sab Guard | Txuj | |
| spare log carrier | Ob txheej ntawm lub luag haujlwm hnyav lub log tsheb thauj khoom, suav nrog riser. | |
| Cov cuab yeej thawv | Ib thooj (1. 0*{2}}. 5*0. 5m)(nrog 1 lub log tsheb, 1 lub tes tsho gudgeon thiab 1 cranking bar) | |
| Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsim raws li qhov kev pom zoo zaum kawg nrog tus neeg siv khoom | ||
Bulk Cement Tanker Semi Trailer zoo:
Kev thauj mus los: Tsim tshwj xeeb rau kev thauj cov hmoov nplej ntau, xws li cov cement thiab hmoov nplej, kom ntseeg tau tias ceev thiab thauj khoom.
Tsim tshwj xeeb: Nruab nrog cov yam ntxwv zoo li pneumatic tso tawm tshuab, uas pab txhawb kom ceev thiab ua haujlwm tau zoo.
Muaj peev xwm: tuaj yeem nqa cov khoom siv hmoov ntau, txo cov kev mus ncig uas xav tau.
Kev nyab xeeb: Ua nrog cov ntaub ntawv muaj zog thiab muaj kev nyab xeeb zoo los tiv thaiv kev xau thiab nchuav, ua kom muaj kev nyab xeeb ntawm kev thauj cov hmoov hmoov.
Cim npe nrov: Tuam Tshoj 3 axles bulk cement tanker semi trailer manufacturers, lwm tus neeg
