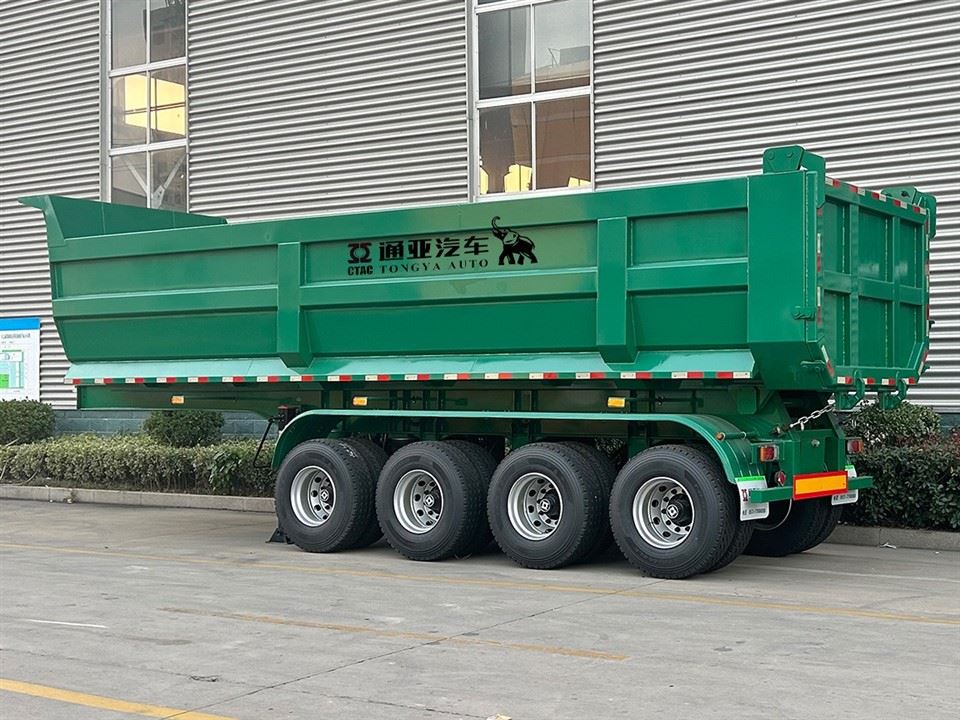

Plaub Axle Tsheb Pem Hauv Ntej Semi Trailer
4 Axle rear Dump Semi Trailer yog ib lub tsheb uas siv rau kev thauj mus los ntawm cov khoom loj thiab cov khoom tawg, xws li cov thee, ore, thiab cov khoom siv hauv tsev, thiab yog nqa los ntawm sab xub ntiag.
Khoom Taw qhia
Khoom Description
4 Axle Tsheb Pob Tseg Semi Trailer ntawm Qhov Zoo:
1. Kev ua haujlwm siab loading thiab unloading efficiency, tuaj yeem ua tiav qhov kev tshem tawm hauv lub sijhawm luv luv, txhim kho kev thauj khoom thiab tshem tawm kev ua haujlwm zoo;
2. Kev tshem tawm huv, tuaj yeem txo cov khoom hauv kev thauj mus los thiab kev thauj khoom thiab kev thauj mus los ntawm lub sijhawm nyob, txhim kho kev thauj mus los tus nqi;
3. Tus nqi tsheb thauj mus los tsawg, txo cov neeg ua haujlwm thauj khoom thiab thauj khoom sib txuas, txo cov nqi zog ua haujlwm.
Cov khoom specification
| Chaw tsim tshuaj paus: | TONGYA AUTOMOBILE.CO., LTD |
| Qhov Chaw Keeb Kwm: | Shandong, Suav teb |
| Hom: | Tsheb Pem Hauv Ntej Semi Trailer |
| Dimension: | 10500 * 2550 * 3700mm (tuaj yeem kho tau) |
| Tare Nyhav: | Txog 12-15T (12.62T) |
| Loading peev: | Tsawg dua lossis sib npaug li 60T |
| Sab Phab Ntsa Thickness (mm): | 5mm 450 Hnav-resistant steel |
| Hauv qab phaj Thickness (mm): | 6mm 450 Hnav-cov hlau tiv taus |
| Chassis | |
| Main Beam: | Khoom siv Q355D Steel |
| Qhov siab:: 500mm | |
| Upper phaj: 16mm | |
| Nruab nrab phaj: 10mm | |
| Pem hauv ntej: 18mm | |
| King Pin: | Jost hom 3.5 nti |
| Kev them nyiaj yug ceg: | Jost hom A300C |
| Qag: | 13T*4, Tongyada Brand (Suav nto moo hom) |
| Kev ncua: | Mechanical suspension |
| Nplooj nplooj: | 90 (dav) hli * 13 (thickness) hli * 10 txheej |
| Lifting System: | Georg hom GFC200-5-07200-K0486 |
| Log tsheb: | 12R22.5 * 17 Daim duab peb sab hom (ntau hom log tsheb muaj nyob) |
| Ntug: | 9.0-22.5*17 |
| ABS: | WABCO |
| Emergency Brake Valve: | WABCO |
| Spare Tyre: | 1 Daim |
| Kev kos duab: | Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |
| Accessories: | Ib tug standard toolbox |
Khoom Description
TONGYA AUTOMOBILE CO., LTD yog Tuam Tshoj ua semi trailer thiab tanker trailer chaw tsim tshuaj paus txij thaum 1982 ! Sib koom tsim, tsim khoom thiab muag khoom ntawm semi trailer thiab cov khoom seem ua ke.
Peb cov khoom xa tawm mus rau ntau tshaj 40 lub teb chaws, xws li Russia, East South Asia, Australia, South America, Africa, Central Asia thiab South Aisa .Txhua xyoo peb xa tawm cov semi trailer ntau tshaj 5000 units, tanker semi trailer 3500units.
FAQ
Q1, Vim li cas thiaj xaiv Tongya Automobile Co., Ltd?
1, Tuam Tshoj ua cov chaw tsim khoom ntawm semi trailer thiab tanker trailer txij li xyoo 1982, Tuam Tshoj nto moo hom, txhua xyoo tso zis ntawm 10,000 units sib txawv ntawm semi trailers
2, Ntau tshaj 19 xyoo kev xa tawm txij li xyoo 2005, Nkag siab txog qhov sib txawv hauv zos specs thiab tus qauv los ntawm ntau tshaj 50 lub teb chaws sib txawv
3, Customized khoom muaj, nrog niaj hnub thiab ua ntej ntau lawm kab nrog txhua yam ntawm cov khoom siv thiab cov txheej txheem ntau lawm
4, Pab pawg kws tshaj lij nrog 24 tus kws tshaj lij engineers
Q2, Koj tuaj yeem yuav dab tsi los ntawm Tongya Automobile Co., Ltd?
Bulk Cement Tanker Semi trailer, Roj Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Pob Tseg Trailer, dolly trailer, laj kab Semi-trailer, Sab Phab Ntsa Semi-trailer, tag nrho trailer, Flour tanker tanker, ISO bulk
Q3, Kuv puas tuaj yeem tuaj xyuas koj lub Hoobkas?
Tau kawg, txais tos tuaj xyuas peb lub hoobkas.peb nyob hauv Liangshan, xeev Shandong, lub ntsej muag -rau- ntsej muag sib tham tuaj yeem pab koj zoo dua.
Q4, Yuav ua li cas txog koj lub sijhawm xa khoom?
10-30 hnub tom qab tau txais qhov tso nyiaj, nyob ntawm qhov kev txiav txim kom muaj nuj nqis.
Q5, Cov nqe lus them nqi twg koj siv?
Kev them nyiaj T / T thiab L / C tau txais.
Q6, Qhov twg incoterms 2010 nqe lus peb tuaj yeem ua haujlwm?
Feem ntau peb txais FOB, CFR, CIF.
Q7, Puas yog nws muaj los luam peb tus kheej lub npe ntawm lub tsheb?
Yog lawm, peb lees txais ua OEM rau cov neeg muag khoom paub zoo thiab cov neeg muag khoom.
Q8, Cov ntaub ntawv dab tsi kuv yuav tsum qhia rau koj paub yog tias kuv xav tau cov lus hais?
Ua ntej, thov qhia rau peb paub seb hom trailers koj xav tau
Qhov thib ob, Thov qhia rau peb paub seb yam khoom thauj twg koj yuav thauj khoom nrog peb cov tsheb thauj khoom? Chaw thau khoom muaj peev xwm? txoj kev mob?
Thib peb, dab tsi trailer loj yog OK rau koj, thiab koj puas xav tau cov khoom customized
Plaub, koj lub tsheb specs, zoo li 2.0 lossis 3.5 nti tsib lub log? thib tsib lub log qhov siab? 6 * 4 lossis 4 * 2 tsheb yuav siv?
Tsib, txiav txim kom muaj nuj nqis, qhov chaw nres nkoj
Cov ntaub ntawv ntau dua koj yuav muab, qhov tseeb thiab tus nqi sib tw peb tuaj yeem muab tau.
Cim npe nrov: Tuam Tshoj 4 qag rear dump semi trailer manufacturers, lwm tus neeg
