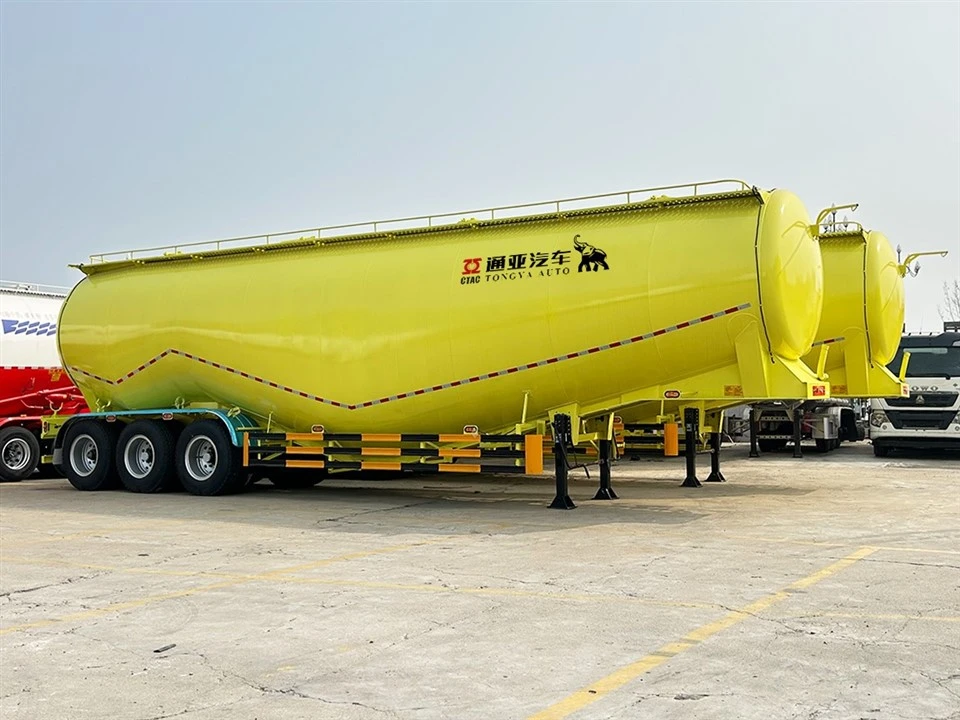

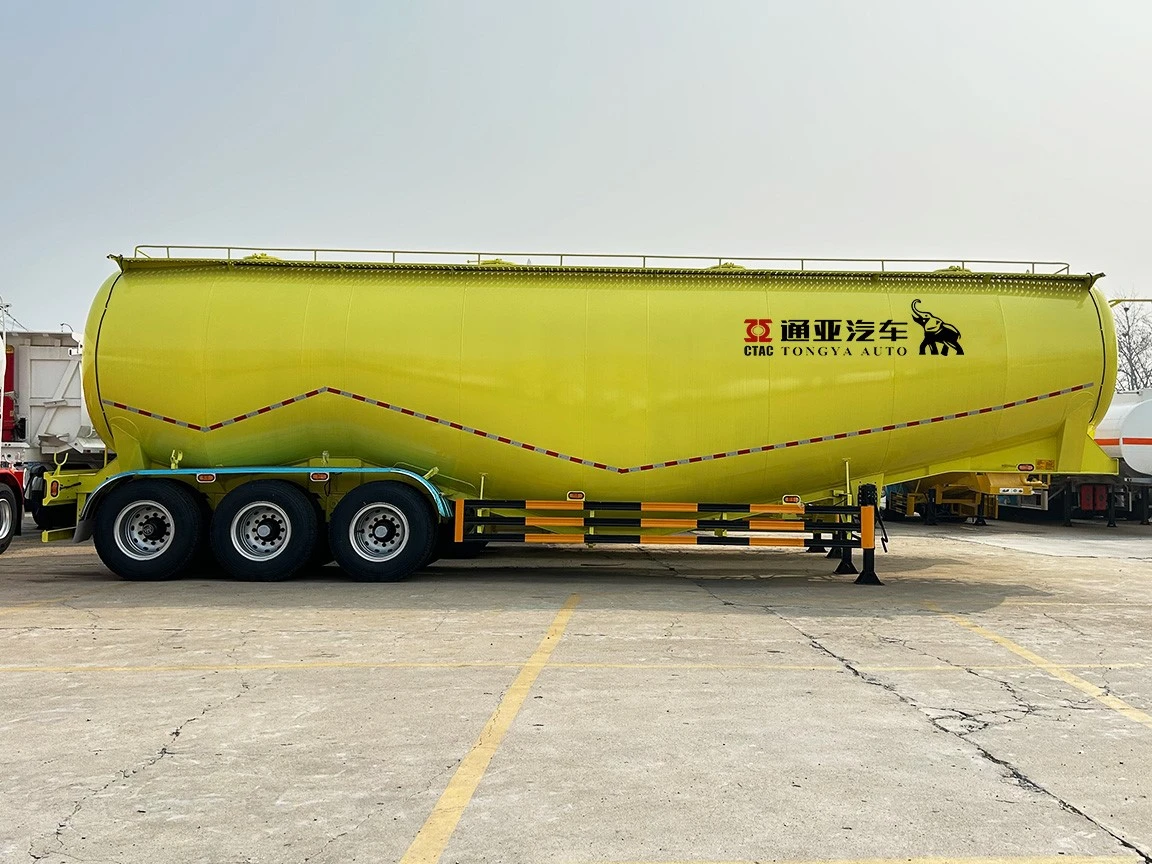

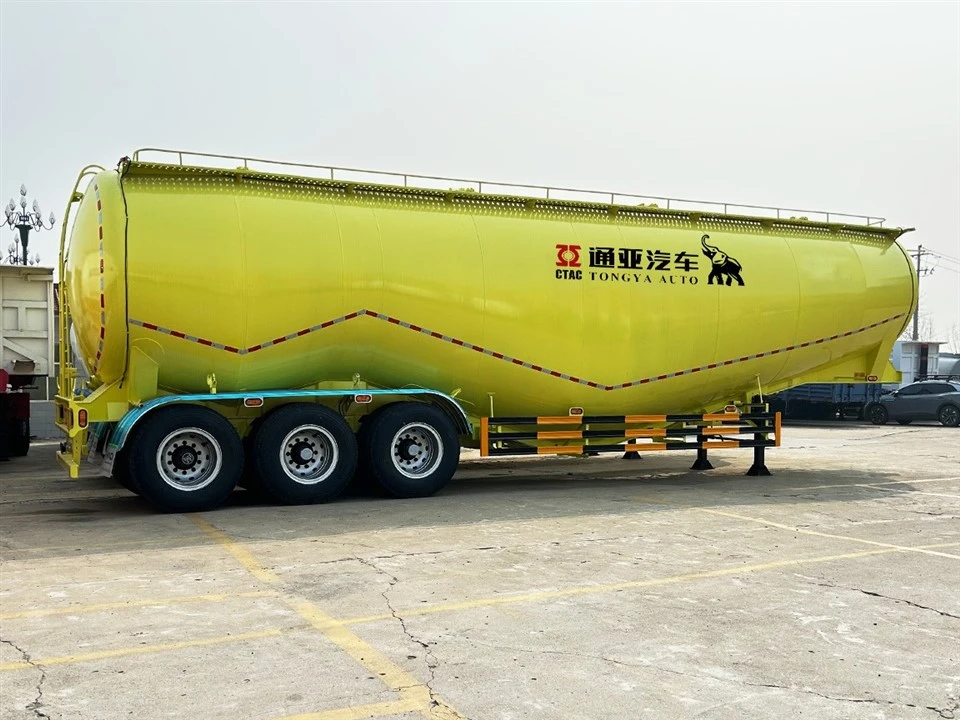

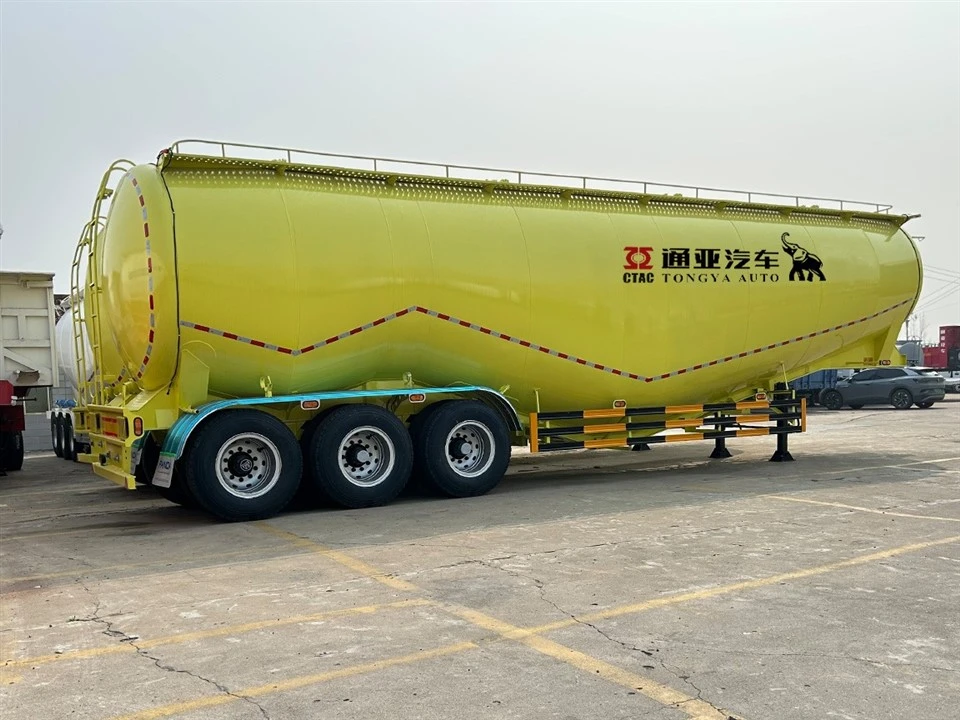

Powder Tanker Semi Trailer Nrog 2 Qhov Chaw
1, Customization yog txais tau rau tanker muaj peev xwm thiab style; 2, Tuam Tshoj ua chaw tsim tshuaj paus txij thaum 1982, sab saum toj 1 muag nyob rau hauv Tuam Tshoj ua lag luam txij li thaum 2012; 3, Cav thiab compressor muaj, PTO ntawm tsheb laij teb xaiv; 4, ceev tso tawm,<0.3% retention volume, 18 days delivery time.
Khoom Taw qhia
Khoom Description
Powder Tanker Semi Trailer Qhov Zoo:
1. Independent bin tsim: ob lub thawv tuaj yeem thauj khoom nrog ntau hom hmoov thiab granular cov ntaub ntawv lossis cov neeg siv khoom sib txawv, zam qhov teeb meem ntawm kev sib xyaw thiab kev thauj khoom, txhim kho qhov yooj yim thiab kev ua haujlwm ntawm kev thauj mus los, thiab ua tau raws li kev xav tau ntawm kev thauj mus los ntawm ntau tus neeg siv khoom lossis ntau yam khoom siv tib lub sijhawm.
2. Ceev ceev unloading ceev: feem ntau nruab nrog npaum unloading li, xws li pneumatic unloading system, yuav sai sai unloading hmoov thiab granular cov ntaub ntawv, shorten lub loading thiab unloading lub sij hawm, thiab txhim kho lub turnover efficiency ntawm lub tsheb.
Khoom Specification
| Qhov hnyav: | Tare luj | 12T |
| Chaw thau khoom muaj peev xwm | 60 T | |
| Tag nrho qhov hnyav | 72 T | |
| Qhov Loj: | Dimension | 13000 × 2500 * 3800mm (Qhov kawg qhov ntev nyob ntawm qhov kawg tsim kos duab) |
| Tanker muaj peev xwm | 50m3 (50000L) | |
| Tanker lub cev: | Tsim / vuam tshuab | Lub luag haujlwm hnyav thiab ua kom muaj zog ntxiv tsim; vuam los ntawm tsis siv neeg Submerged-Arc txheej txheem. |
| Tanker lub cev | Lub tanker lub cev ua los ntawm 5 hli, tanker kawg ua los ntawm 6 hli thickness steel, Q235 steel | |
| Hauv qab chassis | Siab zog Q345B steel | |
| Manhole: | Txuj | |
| Tshem lub qhov ncauj | 4 nti tawm qhov ncauj | |
| Kev nyab xeeb siab valve | Txuj | |
| Tshem tawm hose | 8m nrog Hose nqa, qhov ntev yog raws li cov neeg siv khoom xav tau | |
| Tsheb kauj vab thiab tes tuav | Txuj | |
| Khaws ntim ntim | <0.3% | |
| OEM qhov chaw: | Qag | BPW |
| King Pin | 2.00 / 3.5 nti, bolting huab tais tus pin, JOST hom | |
| Kev ncua | Hnyav luag hauj lwm ncua nrog sib npaug, American tsim (siab- hom zog) | |
| Hlau Caij nplooj ntoos hlav | Plaub txheej ntawm 10pcs nplooj hlav, 13mm thickness, 90mm dav | |
| tsaws ob txhais ceg | JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau | |
| Tyre specs | 12.00R24 Daim duab peb sab hom | |
| Tus naj npawb ntawm lub log | 9pcs (nrog rau ib lub log spare) | |
| Nres system | WABCO relay valve; Plaub ob chav nres tsheb; Ib chav tsev ntawm kev ntseeg siab hauv zos hom 45L cua tank; Ob chav nyob ntawm cov khoom lag luam txhim khu kev qha hauv zos tus qauv coppery cua- txuas. | |
| ABS system | (Yuav xaiv tau dawb, 450 USD / teeb) | |
| Hluav taws xob: | Ib chav tsev ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb (tus qauv teeb lub teeb, tig lub teeb, rear reflector, sab teeb, sab reflector thiab lwm yam) | |
| Lwm yam: | Kev pleev xim | xim qhia los ntawm cov neeg siv khoom |
| Kos npe | Txuj | |
| Sab Guard | Txuj | |
| spare log carrier | Ob txheej ntawm lub luag haujlwm hnyav lub log tsheb thauj khoom, suav nrog riser. | |
| Cov cuab yeej thawv | Ib thooj (1. 0*0. 5*0. 5m)(nrog 1 lub log tsheb, 1 lub tes tsho gudgeon thiab 1 cranking bar) | |
| Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsim raws li qhov kev pom zoo zaum kawg nrog tus neeg siv khoom | ||
Yog xav paub ntxiv, thov hu rau peb.Peb yuav muab koj cov nqi sib tw zoo tshaj plaws.
Tuam txhab Profile
Peb lub tuam txhab npog thaj tsam ntawm 400,000 square meters, tag nrho cov cuab tam 7million US duas. Muaj 156 tus neeg uas muaj lub luag haujlwm tseem ceeb. Peb muaj 1200 txheej ntawm thawj chav kawm tag nrho tsis siv neeg laser txiav tshuab, Tsis siv neeg lub taub qab vuam tshuab, Laser qhov chaw vuam tshuab, siab tsis siv neeg vuam neeg hlau, tanker lub cev inter thiab pebter tsis siv neeg vuam tshuab, hmoov tshuaj tsuag thiab baking varnish chav, Switzerland plaub-log ATD-GPS thiab cov cuab yeej siv siab tshaj {{8}GPS thiab TEST. Ib puas hom tsheb thauj khoom semi trailers thiab tanker trailers tau dhau los ntawm peb Lub Tebchaws Kev Tshawb Fawb Kev Tshawb Fawb thiab mus txog qib siab tshaj plaws hauv Suav teb, Peb tau dhau ntau daim ntawv pov thawj, xws li ISO9001: 2015, CCC, CCS, Saber, CQC, BV, SGS, CNCA, COTECNA, ECTN, SONCAP, OTTC thiab lwm yam.

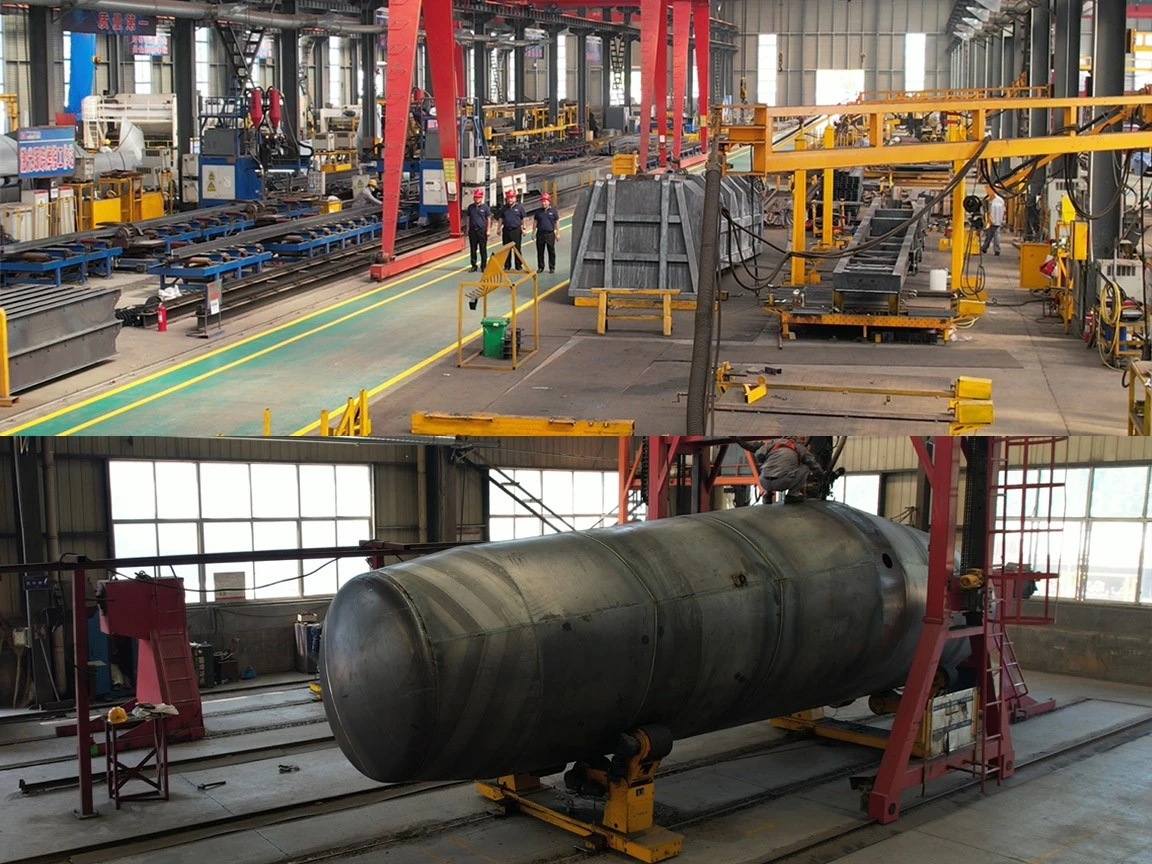

Rhiav
Exhibition

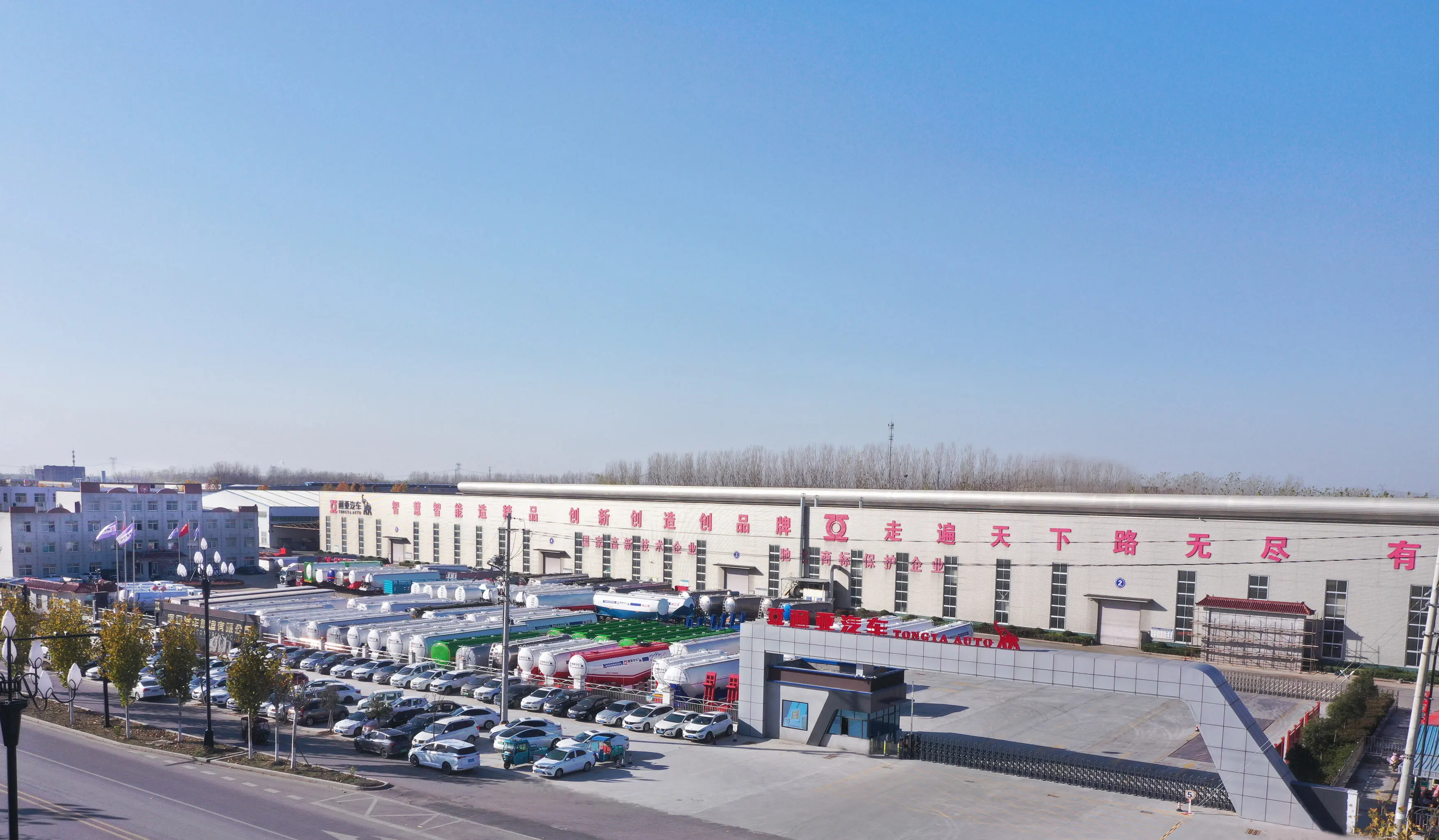

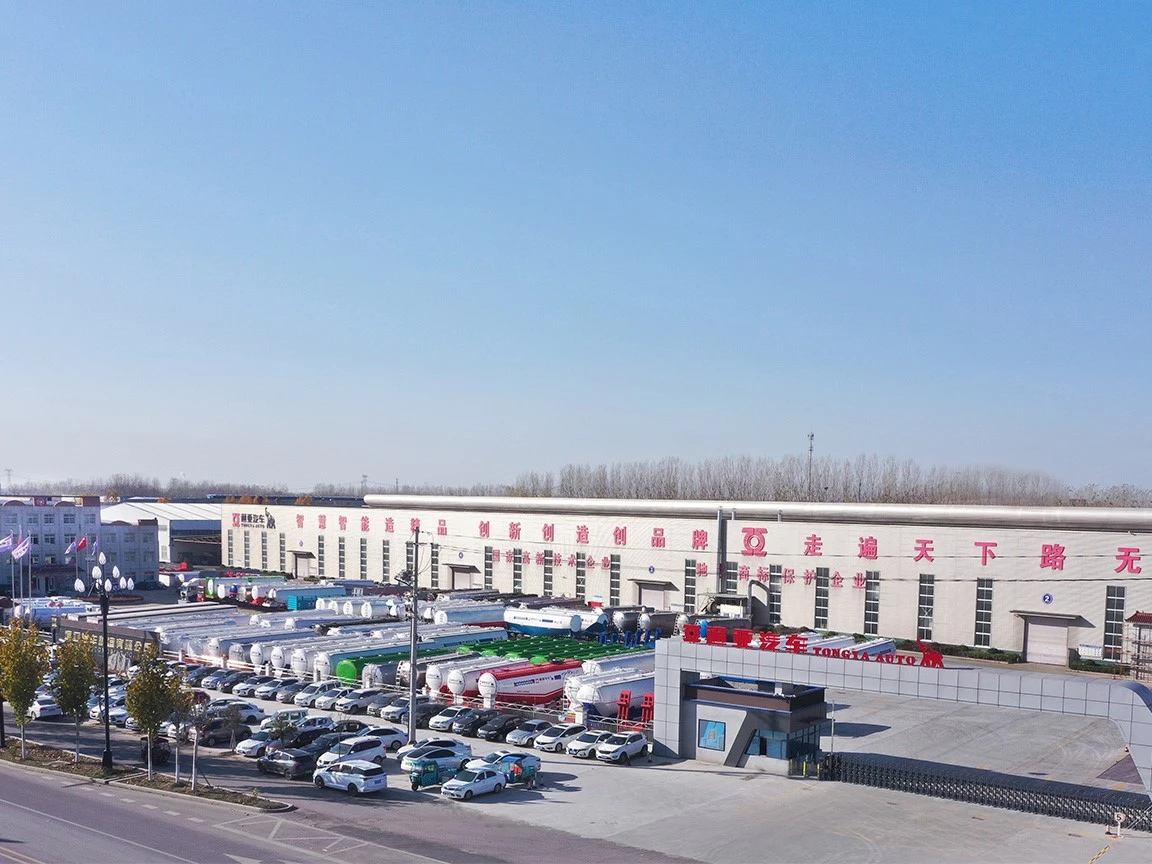

Hoobkas
Cim npe nrov: hmoov tanker semi trailer nrog 2 compartment, Tuam Tshoj hmoov tanker semi trailer nrog 2 compartment manufacturers, lwm tus neeg
