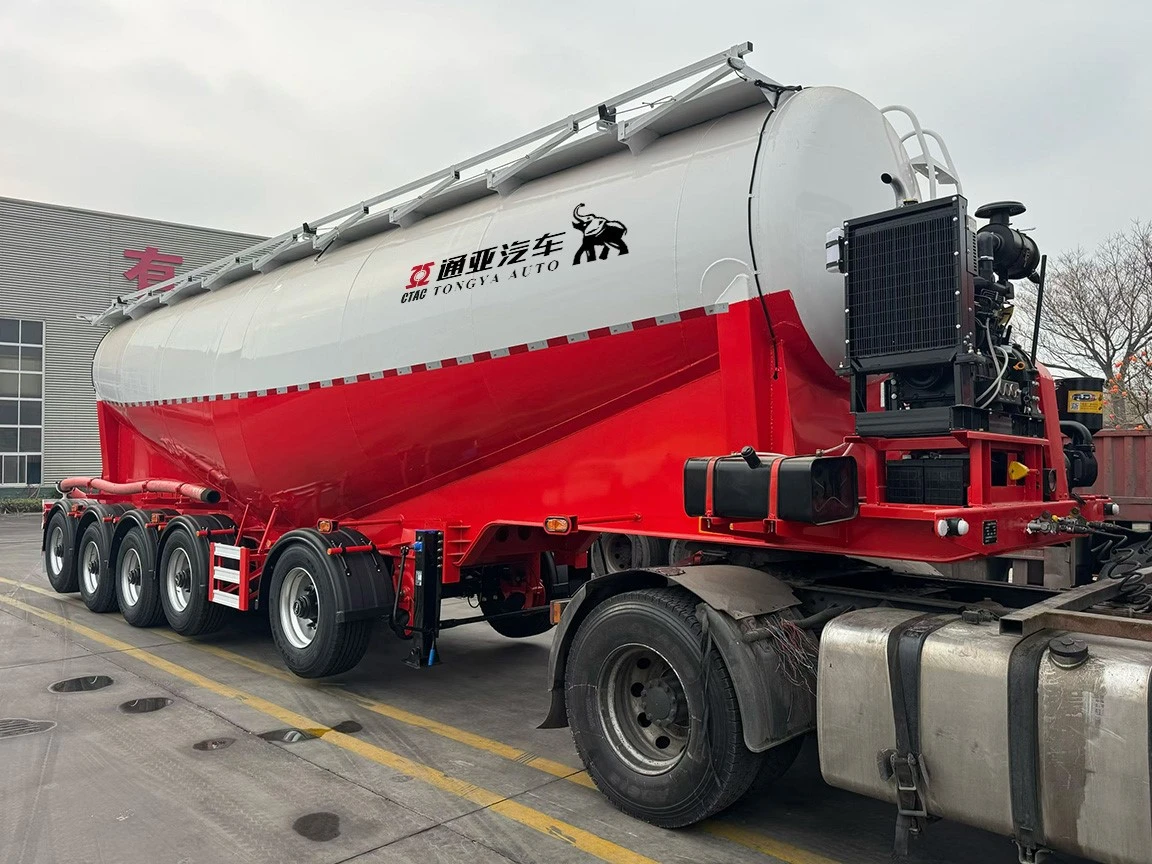

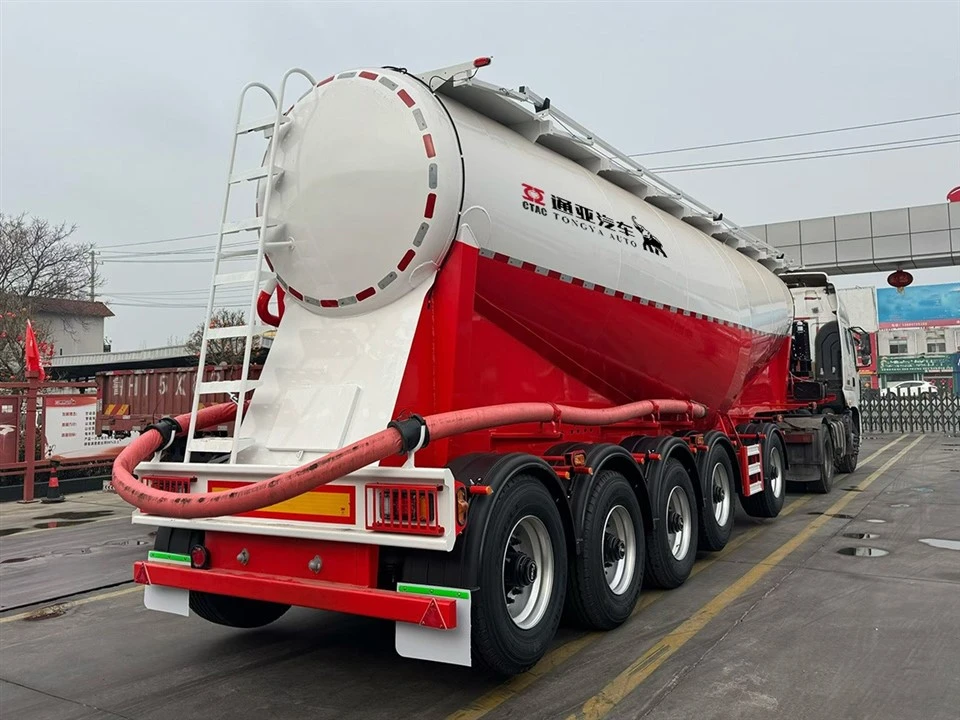

5 Axle 66 Liter Bulk Cement Tanker Semi Trailer
1, Customization yog txais tau rau tanker muaj peev xwm thiab style; 2, Tuam Tshoj ua chaw tsim tshuaj paus txij thaum 1982, sab saum toj 1 muag nyob rau hauv Tuam Tshoj ua lag luam txij li thaum 2012; 3, Cav thiab compressor muaj, PTO ntawm tsheb laij teb xaiv; 4, ceev tso tawm,<0.3% retention volume.
Khoom Taw qhia
Khoom Description
5 Axle 66 Liter Bulk Cement Tanker Semi Trailer ntawm Qhov Zoo:
1.Bulk Cement Tanker Semi Trailer tsis yog tsuas yog thauj cov cement ntau, thee tshauv, txiv qaub hmoov, hmoov ntxhia, ect kuj muaj;
2.Customization yog txais tau rau tanker muaj peev xwm thiab style, cav thiab compessor muaj, PTO ntawm tsheb laij teb xaiv;
3. Ceev tso tawm,<0.3% retention volume;
4.Shipping ntawm bulk cargo carrier.
Khoom Specification
| Qhov hnyav: | Tare luj | 14.5 t |
| Qhov Loj: | Dimension | 13500 × 2500 * 4000mm (Qhov kawg qhov ntev nyob ntawm qhov kawg tsim kos duab) |
| Tanker muaj peev xwm | 66m3 (66000L) | |
| Tanker lub cev: | Tsim / vuam tshuab | Lub luag haujlwm hnyav thiab ua kom muaj zog ntxiv tsim; vuam los ntawm tsis siv neeg Submerged-Arc txheej txheem. |
| Tanker lub cev | Lub tanker lub cev ua los ntawm 5 hli, tanker kawg ua los ntawm 6 hli thickness steel, Q235 steel | |
| Hauv qab chassis | Siab zog Q345B steel | |
| Tanker puab | "V" shape | |
| Silo | 1 silo | |
| Tshem lub qhov ncauj | 4 nti tawm qhov ncauj | |
| Kev nyab xeeb siab valve | Txuj | |
| Tshem tawm hose | 8m nrog Hose nqa, qhov ntev yog raws li cov neeg siv khoom xav tau | |
| Cua compressor | 12m3 ob -lub tog raj kheej cua compressor Bohai hom | |
| Cav | 4105 Weifang Tianhe | |
| Tsheb kauj vab thiab tes tuav | Txuj | |
| Khaws ntim ntim | <0.3% | |
| OEM qhov chaw: | Qag | 5 * 13 tons muaj peev xwm, FUWA hom (Suav zoo tshaj hom) |
| King Pin | 2.00inch, bolting huab tais tus pin, JOST hom | |
| tsaws ob txhais ceg | JOST A300C | |
| Tus naj npawb ntawm lub log | 10 daim | |
| Nres system | WABCO relay valve; Yim ob thiab ob lub nres chamber; Ob chav ntawm kev ntseeg siab hauv zos hom 45L cua tank; Ob chav nyob ntawm cov khoom lag luam txhim khu kev qha hauv zos tus qauv coppery cua- txuas. | |
| ABS system | Tsis muaj (yuav xaiv tau dawb) | |
| Hluav taws xob: | Ib chav tsev ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb (tus qauv teeb lub teeb, tig lub teeb, rear reflector, sab teeb, sab reflector thiab lwm yam) | |
| Lwm yam: | Kev pleev xim | xim qhia los ntawm tus neeg siv khoom |
| Kos npe | Txuj | |
| Sab Guard | Txuj | |
| spare log carrier | Tsis muaj | |
| Cov cuab yeej thawv | Ib thooj (1. 0*0. 5*0. 5m)(nrog 1 lub log tsheb, 1 lub tes tsho gudgeon thiab 1 cranking bar) | |
| Nco tseg: Tag nrho cov ntsiab lus tsis tau hais yuav tsum ua raws li Tuam Tshoj txoj cai. | ||
Xav paub ntau ntxiv txog cov khoom lag luam, thov hu rau peb.Peb yuav muab koj cov nqi sib tw tshaj plaws.

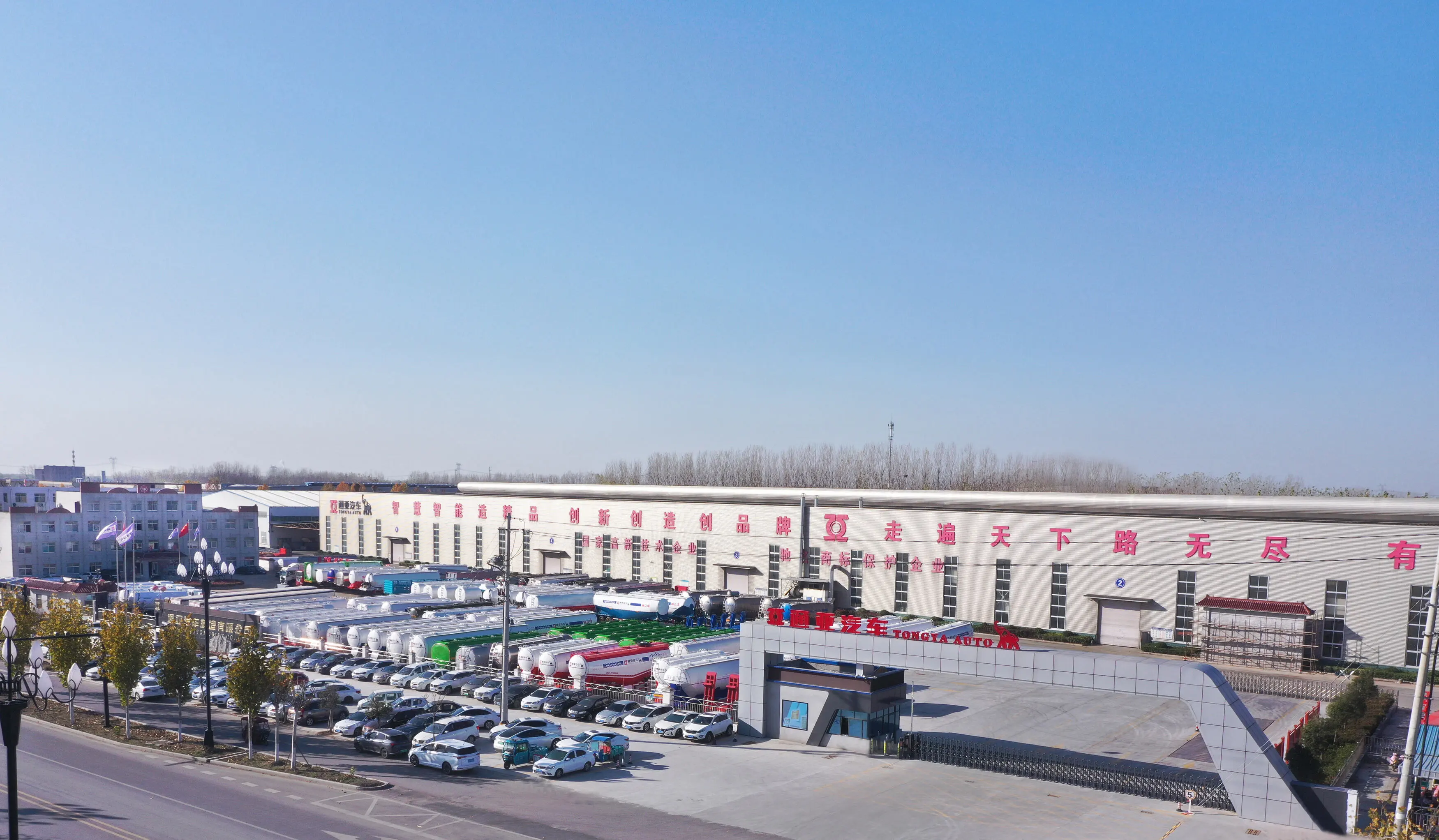

Tuam txhab Peofile
TONGYA AUTOMOBILE CO., LTD yog Tuam Tshoj ua semi trailer thiab tanker trailer chaw tsim tshuaj paus txij thaum 1982 ! Koom nrog tsim, tsim khoom thiab muag khoom ntawm semi trailer thiab cov khoom seem ua ke.
Peb cov khoom xa tawm mus rau ntau tshaj 40 lub teb chaws, xws li Russia, East South Asia, Australia, South America, Africa, Central Asia thiab South Aisa .Txhua xyoo peb xa tawm cov semi trailer ntau tshaj 5000 units, tanker semi trailer 3500units.
Peb ntseeg tias lub ntiaj teb yuav paub ntau dua ntawm Tuam Tshoj vim peb Tongyada semi trailers!
