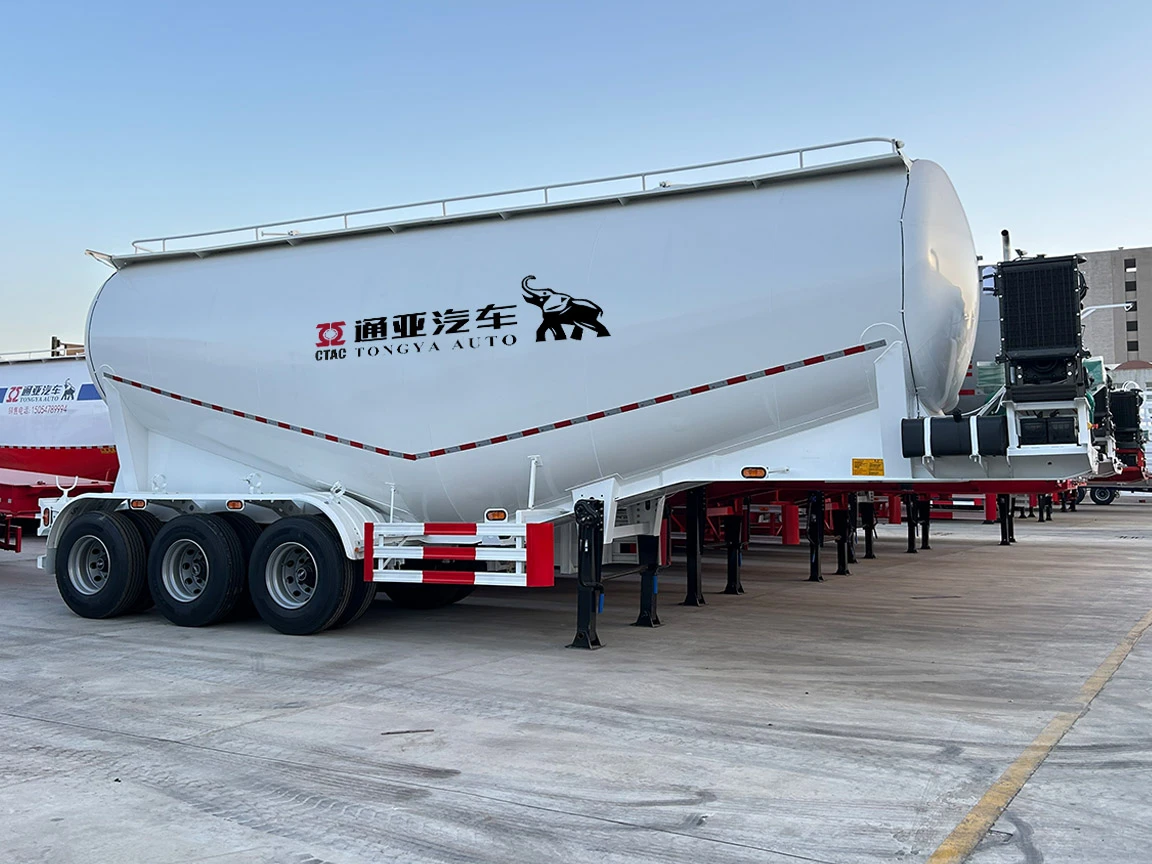

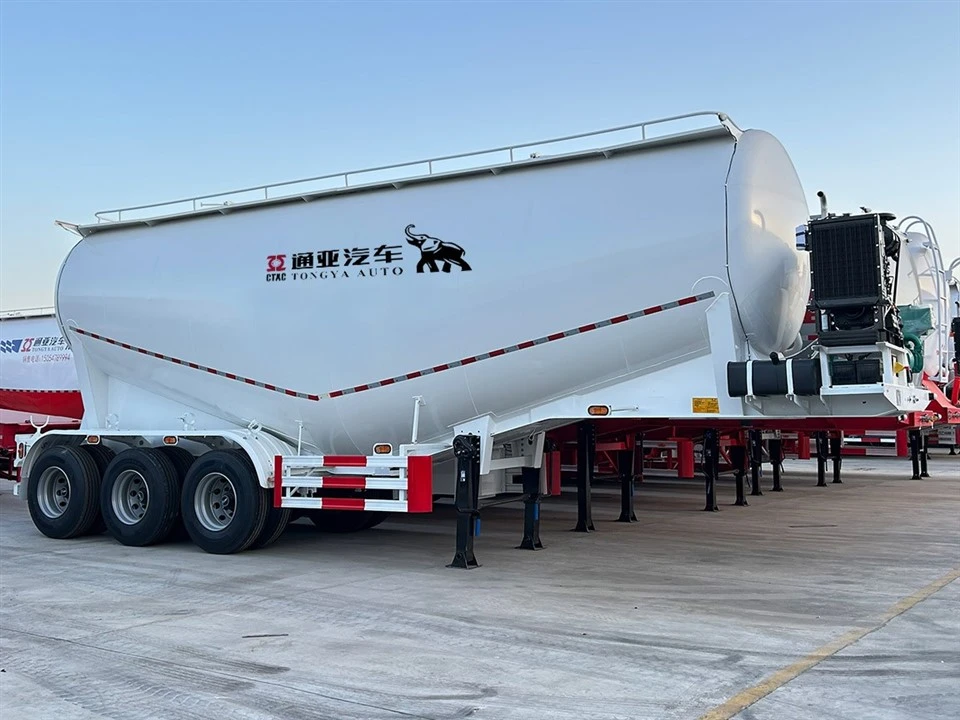

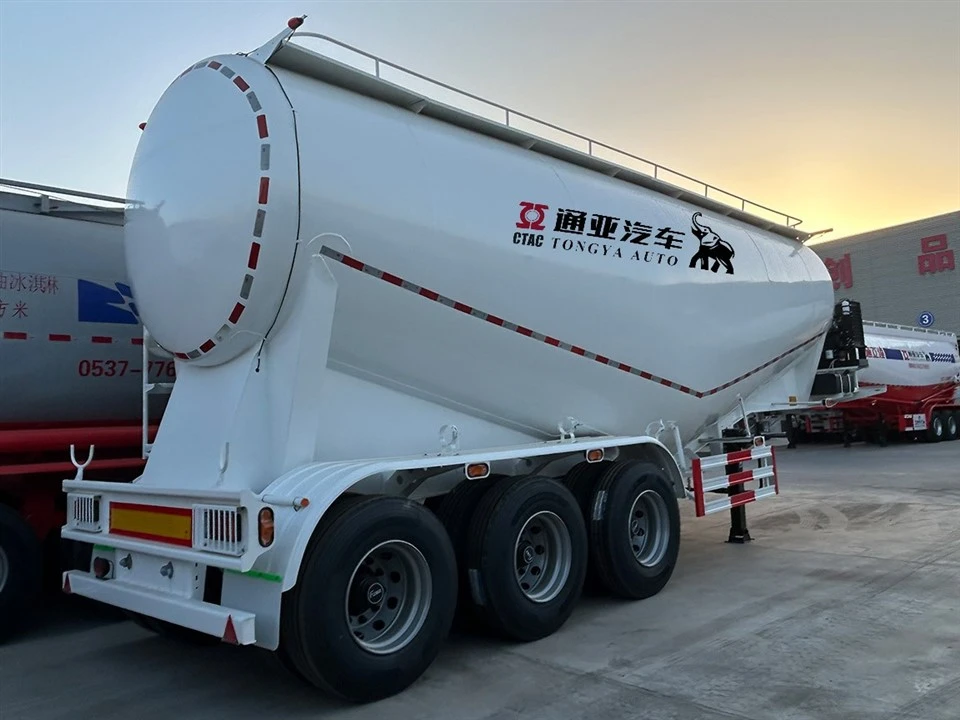

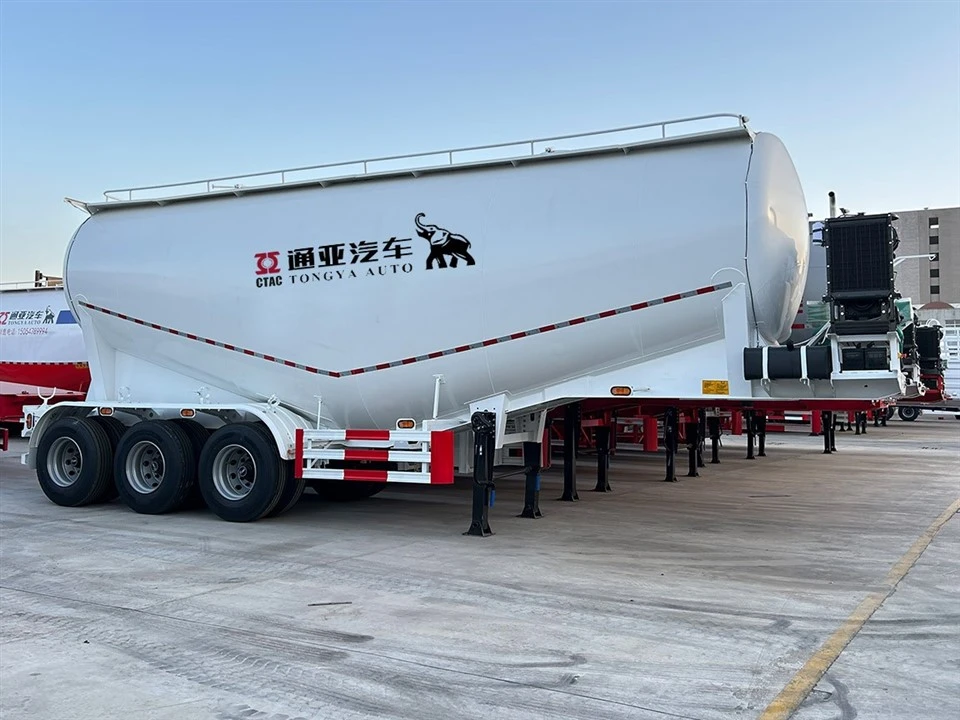

3 Axle Bulk Cement Tanker Semi Trailer Nrog Mechanical Suspension
40m3 Bulk Cement Tanker Semi Trailer thauj cov cement feem ntau thiab lwm cov khoom siv hmoov av, cov khoom siv cement qhuav yuav tau nruab nrog cua compressor kom thauj khoom thiab tshem cov cement yooj yim, vim tias thaum tshem tawm, nws yog qhov tsim nyog los ntxiv siab rau lub tank, kom lub airtightness ntawm cement bulker tseem ceeb heev.
Khoom Taw qhia
Khoom Description
3 Axle Bulk Cement Tanker Semi Trailer Qhov Zoo:
1. Advanced technology manufacturing, qhov tseeb tsim, ruaj. Ceev unloading ceev, tsawg seem seem, zoo tank rigidity, zoo siab bearing thiab kev ua tau zoo.
2. Feem ntau nws yuav siv lub npe nrov BPW lossis FUWA qag.
3. Bulker silo trailer yog ua los ntawm cov khoom siv zog steel, uas tuaj yeem ua haujlwm ntev dua thiab muaj peev xwm ua haujlwm.
Khoom Specification
|
Main Dimension |
|
|
Chaw tsim tshuaj paus: |
TONGYA AUTOMOBILE.CO., LTD |
|
Qhov Chaw Keeb Kwm: |
Shandong, Suav teb |
| Hom: | Bulk Cement Tanker Semi Trailer |
| Dimension: | 9600 * 2500 * 4000mm |
| Tare Nyhav: | ib 809t |
| Loading peev: | Tsawg dua lossis sib npaug li 40T |
| Tanker Peev Xwm: | 40m3 (40000L) |
| Tanker lub cev Thickness (mm): | 5mm ib |
| Pem hauv ntej thiab nram qab phaj Thickness (mm): | 6mm ib |
| Chassis | |
| Hauv qab chassis | Siab zog Q355B steel |
| Tanker puab | "V" shape |
| Manhole: | 2 daim, (inch yog 500mm) |
| Tshem lub qhov ncauj | 4 nti tawm qhov ncauj |
| King Pin: | Jost hom 2.0 nti |
| Kev them nyiaj yug ceg: | Jost hom A300C |
| Qag: | 13T*3, FUWA UAS |

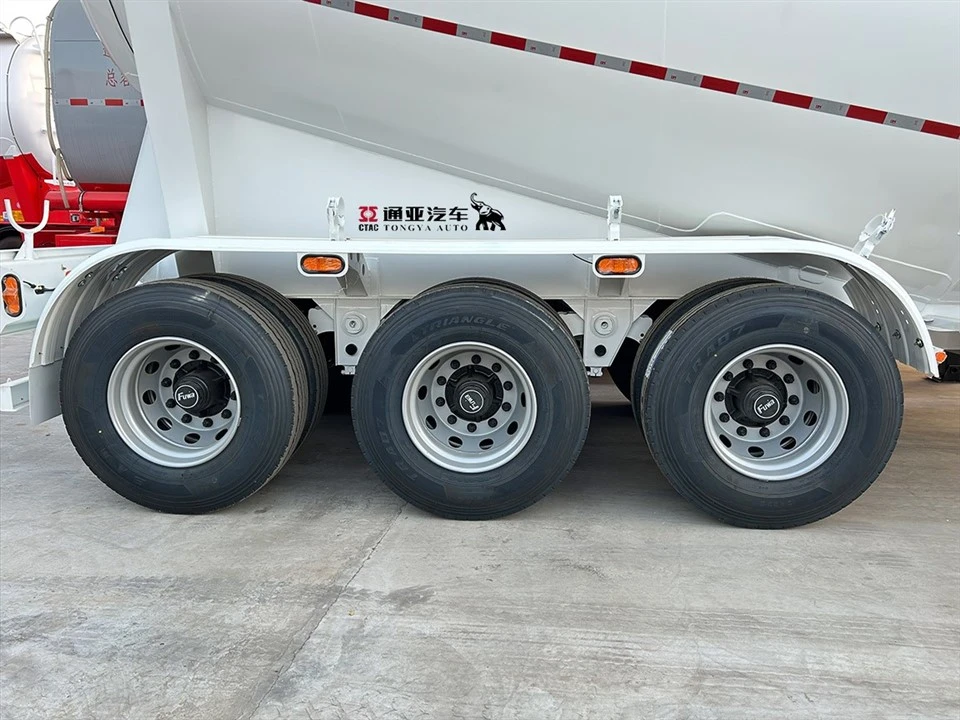

| Kev ncua: | Mechanical suspension |
| Nplooj nplooj: | 90 (dav) hli * 13 (thickness) hli * 10 txheej |
| Log tsheb: | 12R22.5 Daim duab peb sab hom (ntau hom log tsheb muaj) |
| Ntug: | 9.0-22.5 |
| Cua compressor | 12m3 ob -lub tog raj kheej cua compressor, Bohai hom (Suav npe nrov) |
| Cav | Diesel Cav, Weifang Tianhe hom 4105 cav (Suav npe nrov) |
| Emergency Brake Valve: | WABCO |
| Spare Tyre: | 1 Daim |
| Kev kos duab: | Advanced hmoov txau nrog cov txheej txheem ci enamels |
| Accessories: | Ib tug standard toolbox |
Yog xav paub ntxiv txog cov khoom, thov hu rau kuv.Peb yuav muab koj tus nqi sib tw tshaj plaws.

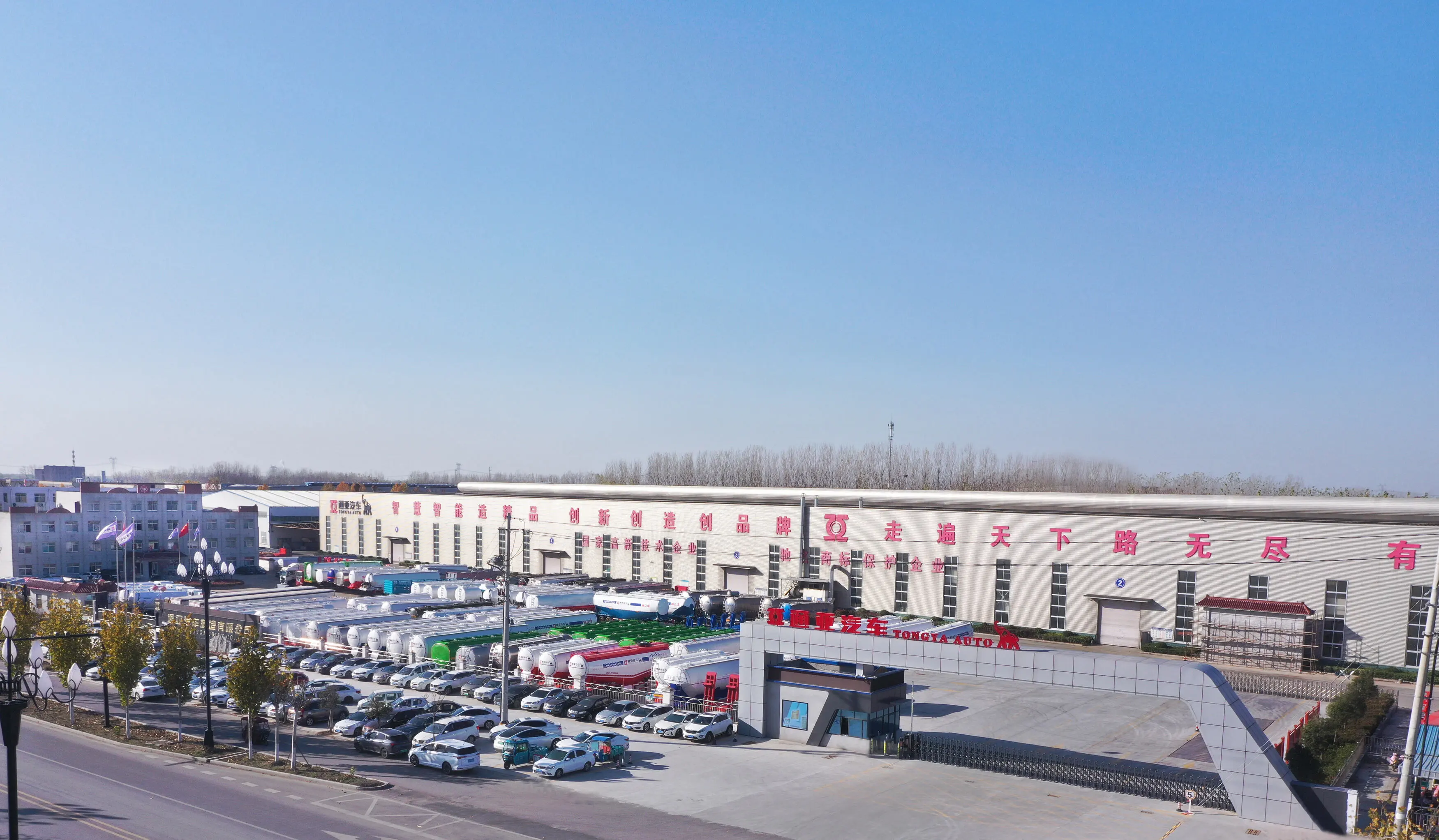

Tuam txhab Profile
TONGYA AUTOMOBILE CO., LTD yog Tuam Tshoj ua semi trailer thiab tanker trailer chaw tsim tshuaj paus txij thaum 1982 ! Sib koom tsim, tsim khoom thiab muag khoom ntawm semi trailer thiab cov khoom seem ua ke.
Peb cov khoom xa tawm mus rau ntau tshaj 40 lub teb chaws, xws li Russia, East South Asia, Australia, South America, Africa, Central Asia thiab South Aisa .Txhua xyoo peb xa tawm cov semi trailer ntau tshaj 5000 units, tanker semi trailer 3500units.
Cim npe nrov: Tuam Tshoj 3 qag bulk cement tanker semi trailer nrog txhua yam raug ncua, Tuam Tshoj 3 qag bulk cement tanker semi trailer nrog mechanical ncua kev kawm ntawv manufacturers, lwm tus neeg
