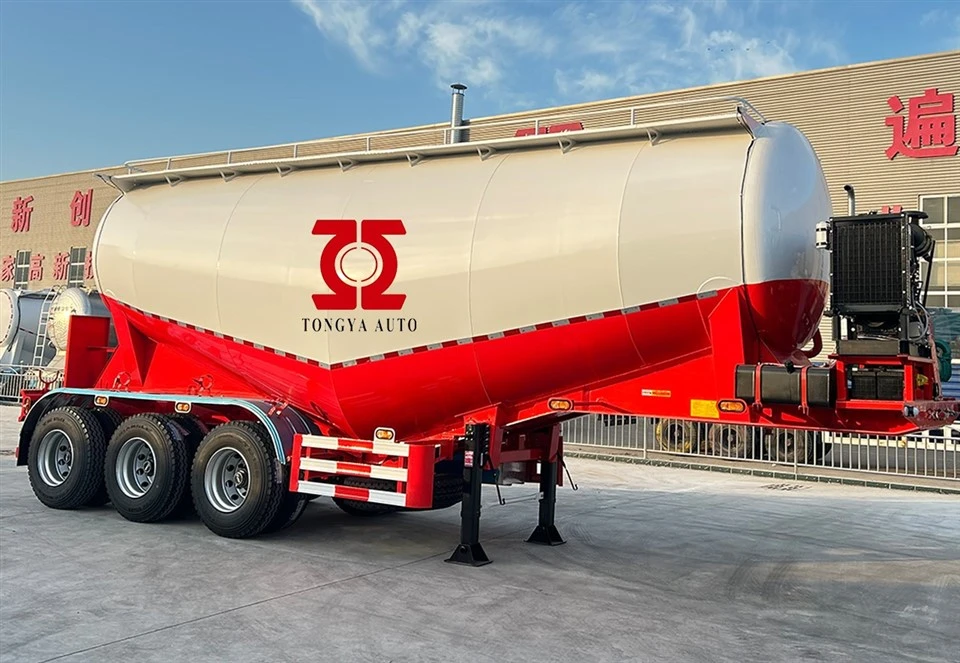

40t bulk cenemnt tanker semi trailer nrog diesel

Nyhav:

Tare hnyav

10T

Chaw thau khoom muaj peev xwm

40 T

Tag Nrho Qhov hnyav

50 T

Qhov loj me:

Qho loj dav

8500 × 2500 * 3700mm (Qhov kawg ntawm qhov kawg yog nyob ntawm cov kos duab zaum kawg)

Peev Tanker Muaj Peev Xwm

40m3 (30000L)

Lub Cev Tanker:

Tsim / Vuam Tshuab

Hnyav plaub hau thiab ntxiv Durability tsim;

Vuam los ntawm tsis siv neeg submerged - arc cov txheej txheem.

Lub Cev Tanker

Lub cev tanker ua los ntawm 5 hli, tanker xaus ua 6 hli thickness steel, q235 steel

Hauv qab chassis

Lub Zog Loj Q345B Hlau

TANKER HNAB

"V" duab

Nyob hoom

1 Txhab

Manhole:

2 pieces, (lub taub yog 500 hli)

Lauj dej

4 nti tawm qhov ncauj

Kev Nyab Xeeb Kev Ruaj Ntseg Valve

Lub hom phiaj

Kev Tso Tawm Hose

8m nrog lub wose nqa, qhov ntev yog raws li cov neeg siv khoom

Cua Compressor

12m3 ob npaug - lub tog raj kheej cua compressor, Bohaai hom

Lub cav

Diesel cav, Weichai 4102 lub cav

TSHEB TXUAS TXUAS THIAB COV KHAI

Lub hom phiaj

Khaws cia ntim

<0.3%

OEM Ntu:

Tus pa log

3 * 13 tons muaj peev xwm, Fuwa Hom (Suav Hom Khoom Zoo)

King Pin

2.00 /3.5 nti, bolting huab tais pin, jost hom

Kev tso tseg

Kev Ncua Rog Hnyav Nrog Cov Txiaj Ntsig Nrog Cov Vaj Huam Sib Luag, Neeg Asmeskas Tsim (Siab- lub zog hom)

Hlau Caij Nplooj Hlav

Rau teev ntawm 10pcs nplooj hlav, 16 hli thickness, 90 hli dav

Tsaws Ceg

Jost hom, kev ua haujlwm ntawm phau ntawv tsaws ceg nrog cov khau xuab zeb

Lub log tsheb specs

12R22.5, lossis 315 / 80r22.5 Pebtog Duab Hom

Ntug

9.0-22.5

Tus naj npawb ntawm lub log

13 daim (suav nrog ib lub log spare)

Cav Nres

Wabco relay valve;

Plaub ob thiab ob qho chaw nres tsheb;

Ib teev ntawm kev txhim khu kev qha hauv cheeb tsam 45L cua tshuab hluav taws xob;

Ob chav ntawm kev txhim khu kev qha cov hom phiaj tooj coppency cua - Connector.

Abs System

Tsis muaj (tuaj yeem xaiv qhov dawb, 450 USD / teeb)

Hluav taws xob:

Ib chav ntawm 24V 7-tus lej ISO 1185 ntsaws; LED Teeb

(Txheem lub teeb ci, tig lub teeb, hloov kho lub teeb, sab teeb, sab refee refleactor thiab lwm yam)

Lwm Yam:

Daim duab

Cov xim qhia los ntawm cov neeg siv khoom

Kev cim

Lub hom phiaj

Sab ntawm tus zov

Lub hom phiaj

SPAROG TSAV

Ob pawg ntawm cov dej num hnyav cov tsheb thauj khoom, suav cov riser.

Cuab Yeej Cuab Yeej Cuab Yeej

Ib thooj ({1. 0} * 0. 5}}0. 5 m)

(nruab nrog 1 lub log tsheb elev, 1 gudorge lub tes tsho thiab 1 cranking bar)

Nco tseg: Txhua cov ntsiab lus tsis tau hais yuav tsim qauv raws li qhov kawg pom tseeb nrog cov qhua tuaj noj mov
