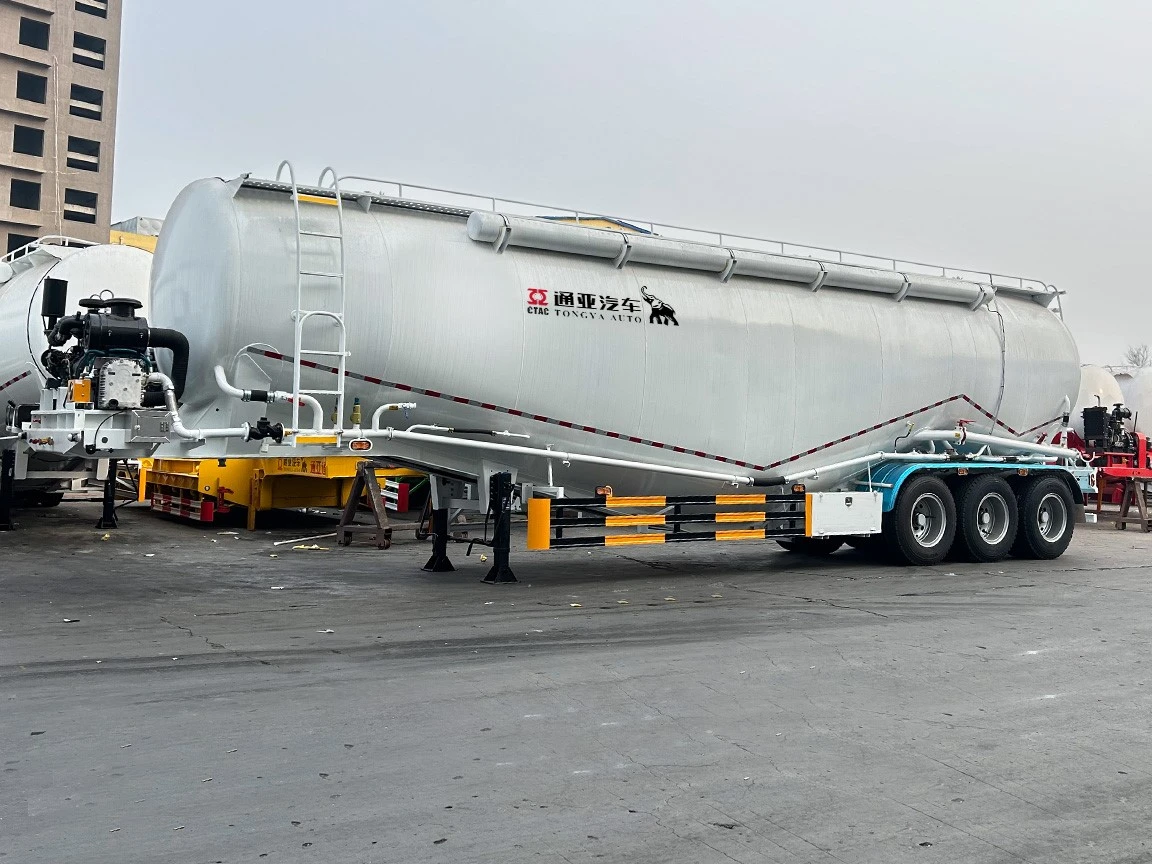

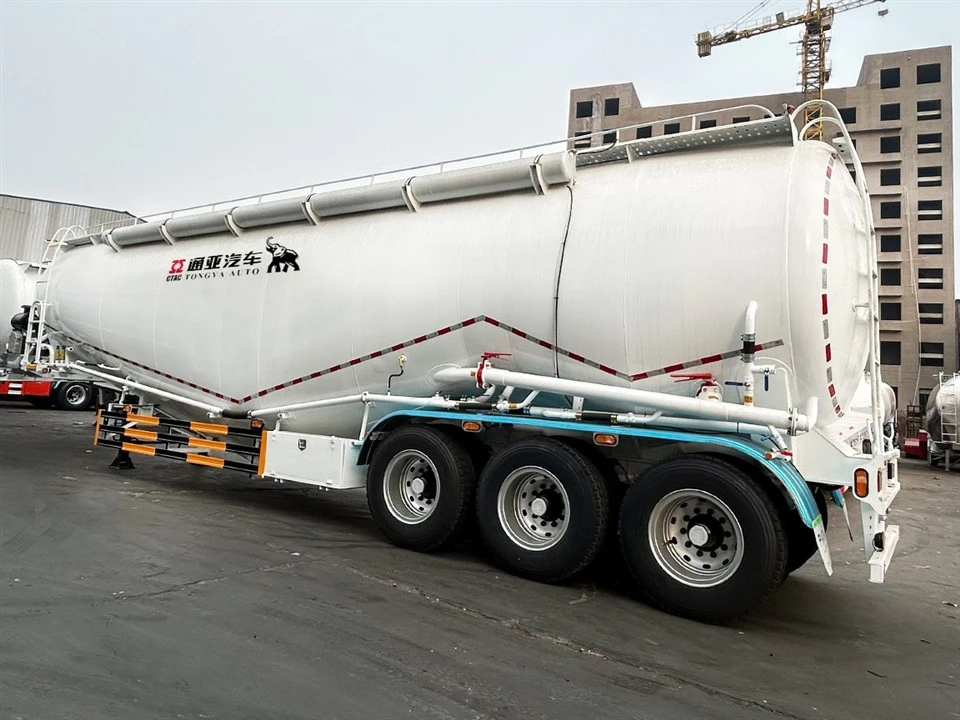

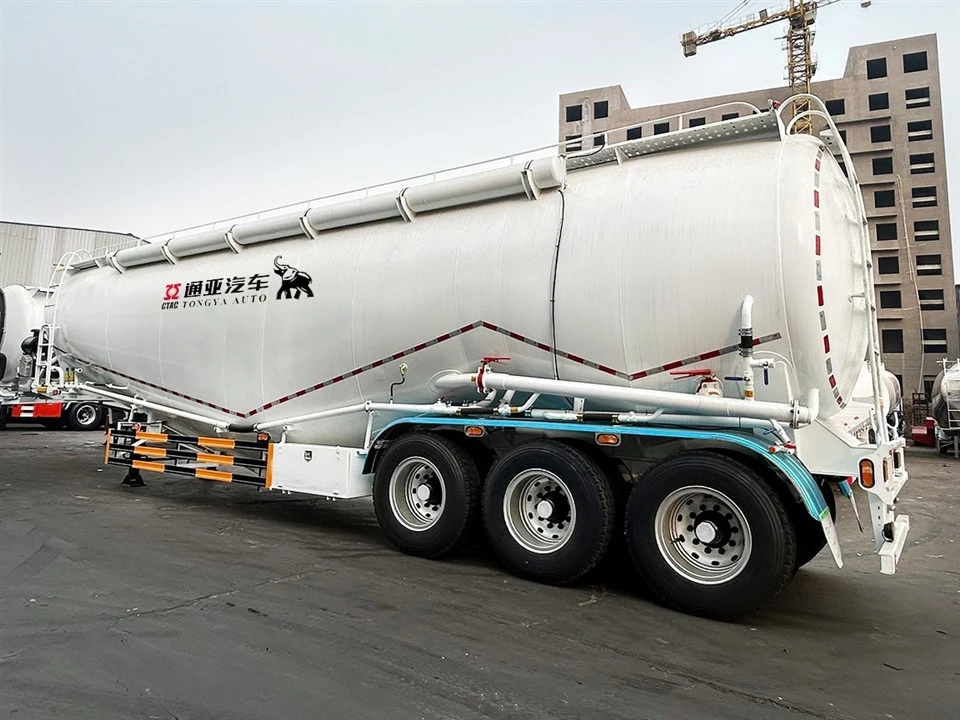

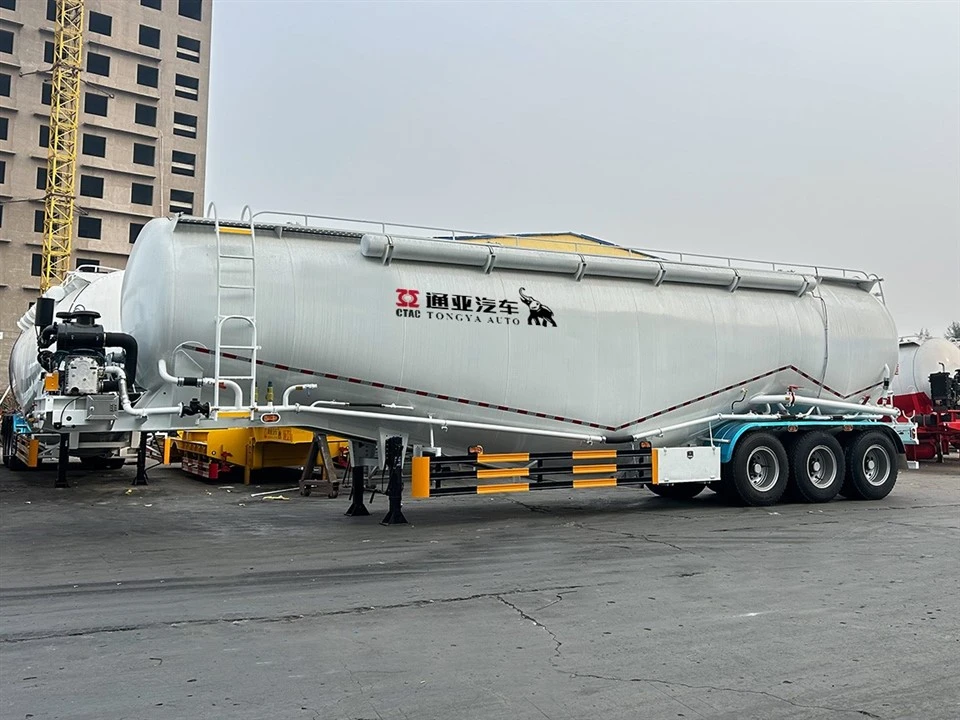

60T Powde Tanker Semi Trailer Nrog BPW qag
1. Independent bin tsim: ob lub thawv tuaj yeem thauj khoom sib txawv ntawm cov hmoov nplej thiab cov khoom siv sib txawv lossis cov neeg siv khoom sib txawv, zam qhov teeb meem ntawm kev sib xyaw thiab kev thauj khoom, txhim kho qhov yooj yim thiab kev ua haujlwm ntawm kev thauj mus los, thiab ua tau raws li kev xav tau ntawm kev thauj mus los ntawm ntau tus neeg siv khoom lossis ntau yam khoom siv tib lub sijhawm.2. Kev nrawm nrawm nrawm: feem ntau nruab nrog cov khoom siv thauj khoom zoo, xws li pneumatic unloading system, tuaj yeem tshem tawm cov hmoov thiab cov ntaub ntawv sai sai, txo lub sijhawm thauj khoom thiab tshem tawm lub sijhawm, thiab txhim kho kev ua haujlwm ntawm lub tsheb.
Khoom Taw qhia
Khoom Description
60T Powde Tanker Semi Trailer Qhov Zoo:
1, Customization yog txais tau rau tanker muaj peev xwm thiab style;
2, Tuam Tshoj ua chaw tsim tshuaj paus txij li thaum 1982, sab saum toj 1 muag nyob rau hauv Tuam Tshoj ua lag luam txij li thaum 2012;
3, Lub cav thiab compressor muaj, PTO ntawm lub tsheb laij teb xaiv tau;
4, ceev tso tawm,<0.3% retention volume, 18 days delivery time.
Khoom Specification
| Qhov hnyav: | Tare luj | 12T |
| Chaw thau khoom muaj peev xwm | 60 T | |
| Tag nrho qhov hnyav | 72 T | |
| Qhov Loj: | Dimension | 13000 × 2500 * 3800mm (Qhov kawg qhov ntev nyob ntawm qhov kawg tsim kos duab) |
| Tanker muaj peev xwm | 50m3 (50000L) | |
| Tanker lub cev: | Tsim / vuam tshuab | Lub luag haujlwm hnyav thiab ua kom muaj zog ntxiv tsim; vuam los ntawm tsis siv neeg Submerged-Arc txheej txheem. |
| Tanker lub cev | Lub tanker lub cev ua los ntawm 5 hli, tanker kawg ua los ntawm 6 hli thickness steel, Q235 steel | |
| Hauv qab chassis | Siab zog Q345B steel | |
| Manhole: | Txuj | |
| Tshem lub qhov ncauj | 4 nti tawm qhov ncauj | |
| Kev nyab xeeb siab valve | Txuj | |
| Tshem tawm hose | 8m nrog Hose nqa, qhov ntev yog raws li cov neeg siv khoom xav tau | |
| Cua compressor | 12m3 ob lub tog raj kheej Bohai hom (xaiv) | |
| Cav | 4102 Weichai cav (xaiv) | |
| Tsheb kauj vab thiab tes tuav | Txuj | |
| Khaws ntim ntim | <0.3% | |
| OEM qhov chaw: | Qag | BPW |
| King Pin | 2.00 / 3.5 nti, bolting huab tais tus pin, JOST hom | |

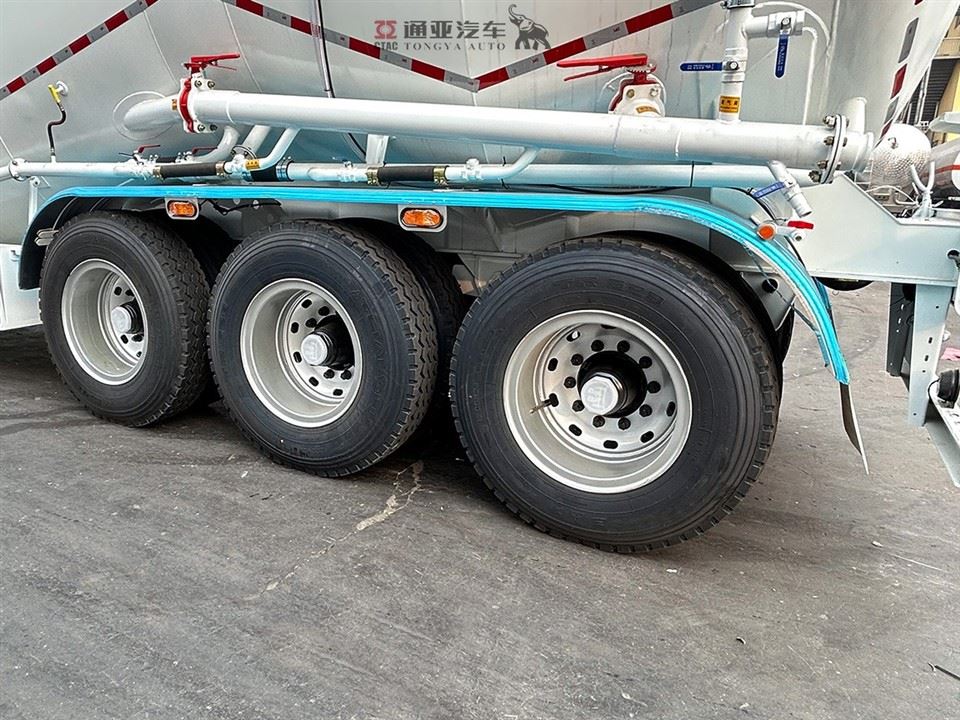

| Kev ncua | Hnyav luag hauj lwm ncua nrog sib npaug, American tsim (siab- hom zog) | |
| Hlau Caij nplooj ntoos hlav | Plaub txheej ntawm 10pcs nplooj hlav, 13mm thickness, 90mm dav | |
| tsaws ob txhais ceg | JOST hom, kev tuav haujlwm tsaws ceg nrog xuab zeb khau | |
| Tyre specs | 12.00R24 Daim duab peb sab hom | |
| Tus naj npawb ntawm lub log | 9pcs (nrog rau ib lub log spare) | |
| Nres system | WABCO relay valve; Plaub ob chav nres tsheb; Ib chav tsev ntawm kev ntseeg siab hauv zos hom 45L cua tank; Ob chav nyob ntawm cov khoom lag luam txhim khu kev qha hauv zos tus qauv coppery cua- txuas. | |
| ABS system | (Yuav xaiv tau dawb, 450 USD / teeb) | |
| Hluav taws xob: | Ib chav tsev ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb (tus qauv teeb lub teeb, tig lub teeb, rear reflector, sab teeb, sab reflector thiab lwm yam) | |
| Lwm yam: | Kev pleev xim | xim qhia los ntawm cov neeg siv khoom |
| Kos npe | Txuj | |
| Sab Guard | Txuj | |
| spare log carrier | Ob txheej ntawm lub luag haujlwm hnyav lub log tsheb thauj khoom, suav nrog riser. | |
| Cov cuab yeej thawv | Ib thooj (1. 0*0. 5*0. 5m)(nrog 1 lub log tsheb, 1 lub tes tsho gudgeon thiab 1 cranking bar) | |
| Nco tseg: Tag nrho cov ntsiab lus tsis hais yuav tsim raws li qhov kev pom zoo zaum kawg nrog tus neeg siv khoom | ||
Yog xav paub ntxiv, thov hu rau peb.Peb yuav muab koj cov nqi sib tw zoo tshaj plaws.
Tuam txhab Profile
Peb cov khoom xa tawm mus rau ntau tshaj 40 lub teb chaws, xws li Russia, East South Asia, Australia, South America, Africa, Central Asia thiab South Aisa .Txhua xyoo peb xa tawm cov semi trailer ntau tshaj 5000 units, tanker semi trailer 3500units.
Persisting nyob rau hauv "qhov zoo yuav cam khwb cia rau lub hom, txoj kev ntseeg zoo nyob rau hauv lub neej yav tom ntej" raws li lub enterprise lub hom phiaj, Lub tuam txhab cov neeg ua hauj lwm mob siab rau lub nce qib enterprise core kev sib tw hwj chim, nrhiav kev txhim kho sustainable, ua kom muaj zog qauv hom, thiaj li yuav pab tau rau tag nrho cov neeg.

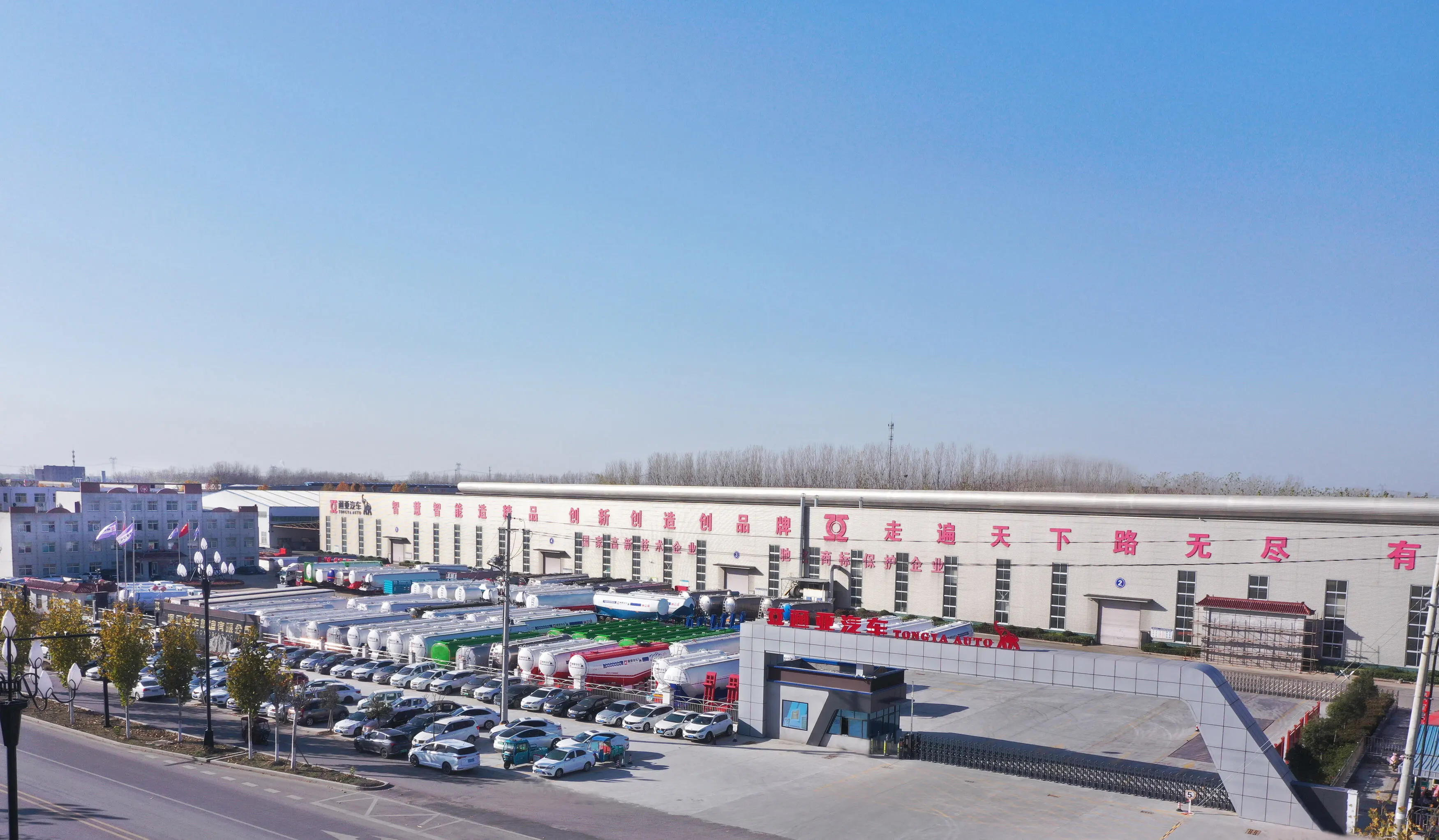

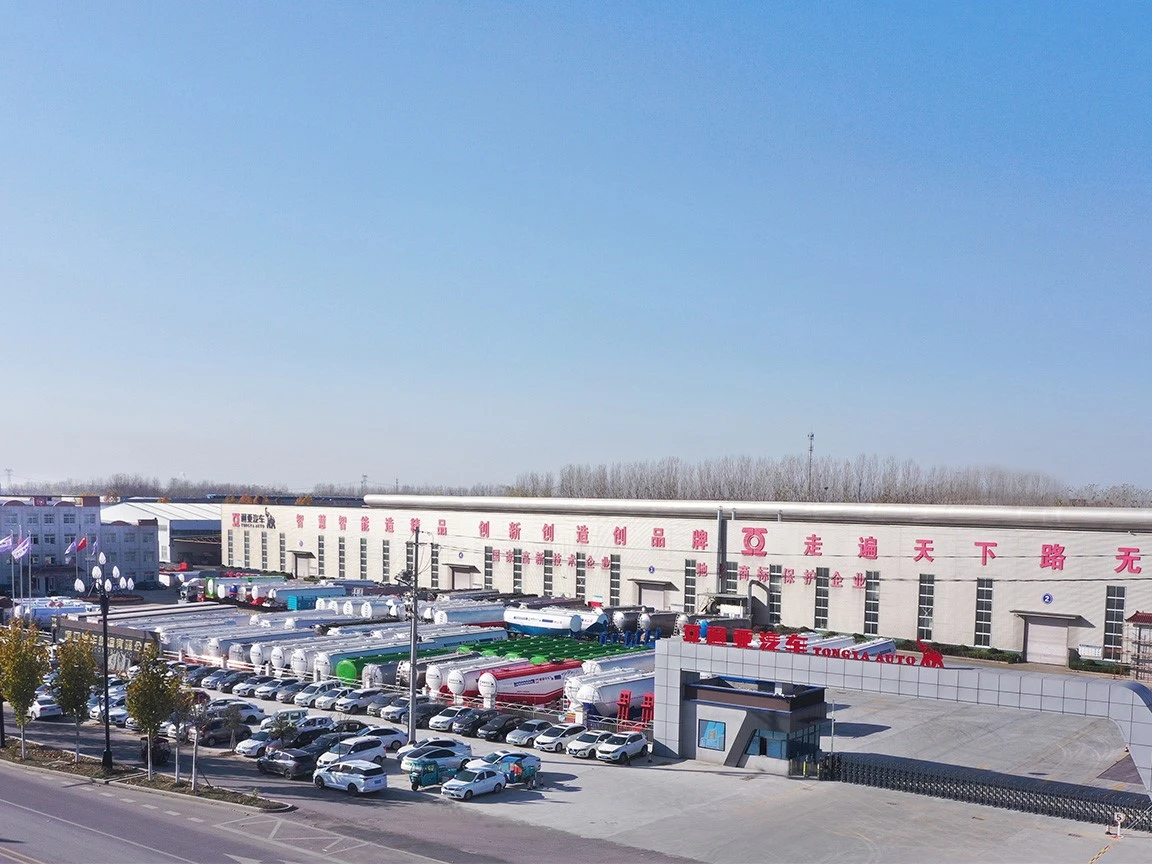

Hoobkas
Exhibition

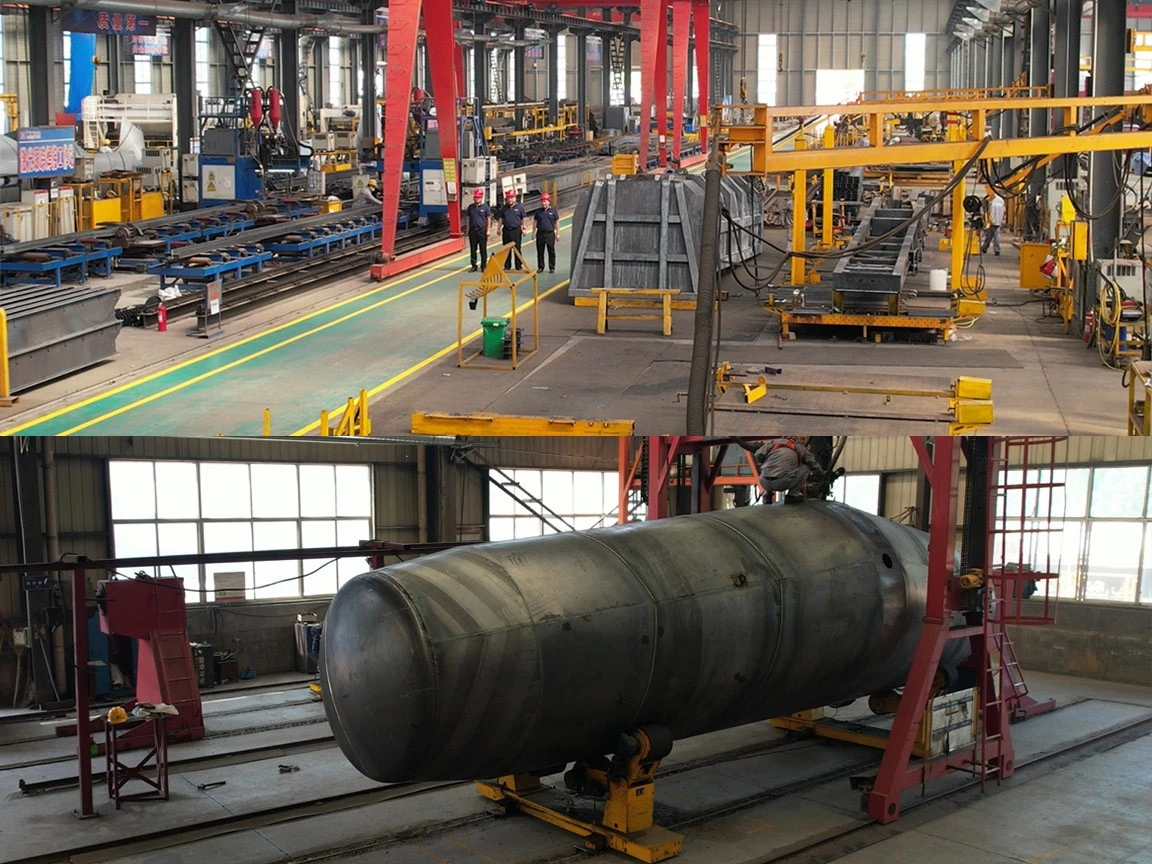

Rhiav
