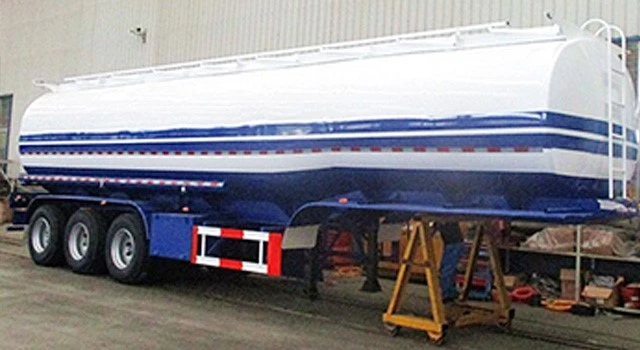

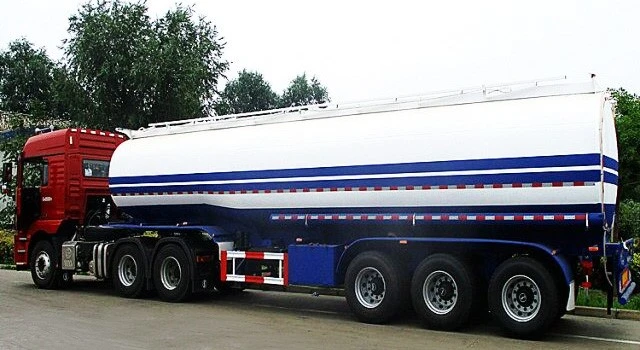

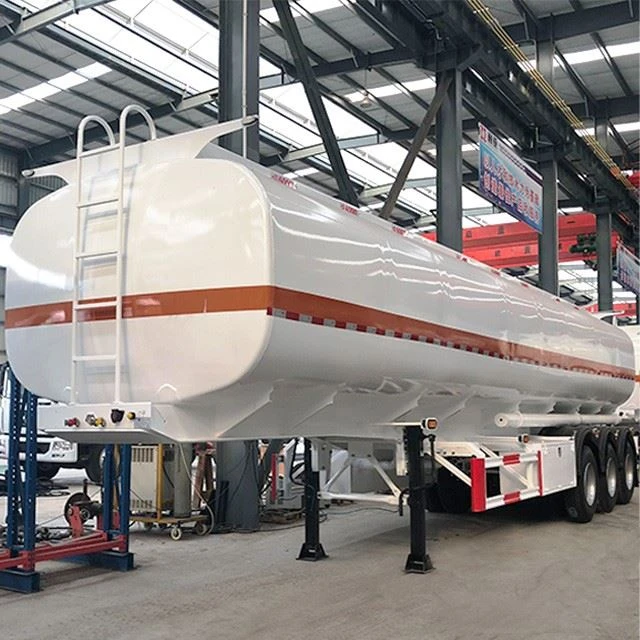

Crude Roj Tanker Trailer
1. Kev Siv: Tsheb thauj mus los rau roj, Diesel, Petrol, Bitumen, Sulfuric Acid, Methyl Cawv lossis bitumen thiab lwm yam .2. Npuag Txheej Txheem: Lub Cev Lub Cev: Q235 lossis Q345 steel 4mm{5}}mm, SS 316L stainless 304, Aluminium Alloys5454/5254/5154/5086.Kub kuj tuaj yeem sib phim nrog cov cua sov txheej ntawm lub tanker .Compartment / silo: 1 mus rau 6 los yog 8 pcs .3 axles Suspension: huab cua ncua kev kawm ntawv lossis lub luag hauj lwm hnyav mechanical suspension3.Outer Shape: Square Tv duab, Elliptic lossis lub tog raj kheej; Chav Muaj Peev Xwm: 30 m³ txog 70 m³;
Khoom Taw qhia
crude roj tanker trailer
Xa lus nug Hu rau tus neeg muag khoom Rau Cov Kev Pabcuam Tshwj Xeeb Thiab Tus Nqi Zoo Tshaj.
Peb yog Hoobkas tsim, txais tos koj tuaj xyuas peb lub Hoobkas.
Specifications:
|
Main Dimensions |
|
|
Lub cev tank |
|
|
Cov duab |
Yeem (Round or Square) |
|
Dimension |
12000mm * 2490mm * 3700mm (Qhov loj me nyob ntawm qhov kawg tsim) |
|
Tare luj |
Txog 10000KGS |
|
Total Volume (m3) |
54 m³ |
|
Tanker Lub Cev Khoom |
5mm lossis 6mm / Q235 carbon steel |
|
Xaus Phaj |
5mm lossis 6mm / Q235 carbon steel |
|
Manhole Cover |
Cov pa roj carbon steel lossis Aluminium alloy API manhole npog, ∮500mm |
|
Hauv qab Valve |
Aluminium API Pneumatic Hauv qab Valve |
|
Discharge Valve |
Txoj kab uas hla yog 3 lossis 4 nti |
|
Chav tsev |
xaiv tau |
|
Cov yeeb nkab tawm |
4" roj hmab hose, 2 pcs, 6m / txhua |
|
Cat Taug kev |
Nrog (Cov qauv qauv lossis tsim tshwj xeeb) |
|
Chassis |
|
|
Main Beams |
Vuam tsim los yog tsim tshwj xeebI beam, txuas nrog bolts thiab ceev Q345 carbon steel khoom |
|
Qag |
2 lossis 3 qag, BPW / FUWA / GV hom |
|
tsaws iav |
JOST (D200T) lossis CHINA BRAND 28T |
|
King Pin |
JOST 2.00 los yog 3.5 nti bolt-hauv huab tais tus pin |
|
Kev ncua |
Mechanical suspension / Lub teb chaws Yelemees lossis Asmeskas hom / cua ncua |
|
Nplooj Caij nplooj ntoos hlav |
90 (W) hli * 13 (Thickness) hli * 10 Txheej los yog 100mm * 12mm * 12 / tsis muaj |
|
Pneumatic Braking System |
6 relay li qub; Caij nplooj ntoos hlav nres chamber; ib daim ntawm 45L cua tso tsheb hlau luam. |
|
Rim |
9.00-22.5/8.00-20/8.5-20 Tuam Tshoj Brand |
|
Lub log |
/12.00R22.5/315 80R22.5/11. |
|
ABS |
xaiv tau |
|
Kev pleev xim |
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |
|
Khoom siv |
Ib tug standard toolbox |
|
Cov ntsiab lus shipping |
Los ntawm Cov Thawv Loj, RORO lossis 40HQ Thawv |

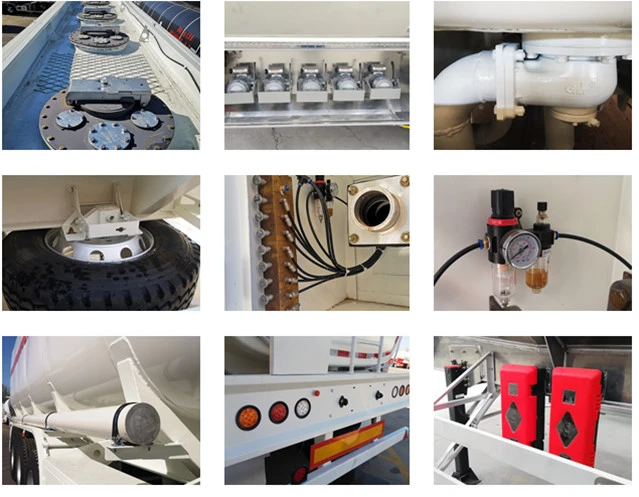

crude roj tanker trailer qhov chaw:
Manhole npog:Lub manhole npog yog tsim tshwj xeeb, nws muaj ntau lub zog, uas tuaj yeem lav qhov kev nyab xeeb ntawm tri-axle roj semi tanker trailer rau qee yam.
Kev nyab xeeb valve:Ib qho tseem ceeb ntawm lub manhole npog yog qhov kev nyab xeeb valve. Lub valve yog siv los tswj lub siab sab hauv ntawm lub tank kom muaj kev ruaj ntseg ntawm tri-axle roj semi tanker trailer thiab kuj txo cov suab nrov ntawm cov roj.
Valves:ADR standard Valves, dav siv tau rau cov tuam txhab roj loj, ua haujlwm zoo ua kom lub neej ntev dua.
Roj thiab roj rov qab valve:Thaum thauj khoom thiab tshem tawm, peb yuav twv yuav raug hu siv cov roj thiab roj rov qab valve, uas tuaj yeem rov qab tau cov roj thiab roj ntau dhau, tsis yog tsuas yog txo cov khib nyiab xwb tab sis kuj ua kom muaj kev nyab xeeb.
Roj qhov hluav taws xob valve:Peb muaj cov qauv tsim tshwj xeeb rau cov roj qhov hluav taws xob valve, uas tuaj yeem lav zoo dua tias thaum peb rhuav tshem qhov sib koom ua ke, yuav tsis muaj roj to. Cov qauv sab hauv yog ntau dua nyob rau hauv txoj kab nrog cov tshuab ua kua, thiab thaum muaj cov khoom loj ntws tawm, lub siab sab hauv tuaj yeem sib npaug.
Hauv qabvalve:Lub hauv qab valve feem ntau yog ntsia rau hauv qab ntawm lub tank, feem ntau, nws lub luag hauj lwm yog nyob rau hauv lub tri qag roj semi tanker trailer tom qab muaj kev huam yuaj, thiaj li yuav tiv thaiv kom txhob muaj kev thauj mus los ntawm cov kua roj leakage, ua rau muaj kev lag luam poob ntau dua, thaum muaj xwm txheej. , lub valve hauv qab yuav txiav tawm cov raj xa dej tsis pub dhau 3 vib nas this kom ntseeg tau tias muaj kev nyab xeeb ntawm cov khoom thauj.
Anti-spill Sensor:Thaum thauj khoom hauv cov roj ua kua, Tsis tuaj yeem kuaj pom ntau npaum li cas tau ntxiv txhua lub sijhawm, lub sijhawm no, peb yuav tsum siv lub ntsuas ntsuas dej ntws tawm, thaum nws ncav cuag qhov siab, lub tswb yuav nrov.
Kev Lag Luam & Kev Pabcuam:
Peb CRUDE OIL TANKER TRAILER / roj tanker semi-trailer raug xa tawm mus rau Saudi Arabia, Algeria, Senegal,
Ghana, Burkina faso, Ivory Coast, Mali, Nigeria, Chad, Namibia, Sudan, Egypt, Kenya, Zimbabwe,
Botswana, Mozambique, Zambia, Malawi, Uganda, Tanzania, Malaysia, Philippines, Nyab Laj, Myanmar,
Russia, Uzbekistan thiab Pakistan hauv 15 xyoo dhau los.
Shipping yam khoom:
1. Los ntawm 40HQ thawv: Lub tanker cubic meters tsawg dua 42 m³ tuaj yeem tsim lub cev loj pob rau hauv
40HQ thawv, lub tanker lub ntsiab beam chassis pob rau hauv lwm lub thawv, yog li cov neeg siv khoom yuav tsum muaj peev xwm los ua ke lub tanker lub cev thiab chassis ua ke.
2. Los ntawm roro nkoj lossis bulk cargo nkoj: Tag nrho cov tsheb thauj khoom lossis cov tsheb thauj khoom tuaj yeem xa tuaj rau ntawm lub nkoj ncaj qha.
Cim npe nrov: Tuam Tshoj crude roj tanker trailer manufacturers, lwm tus neeg
