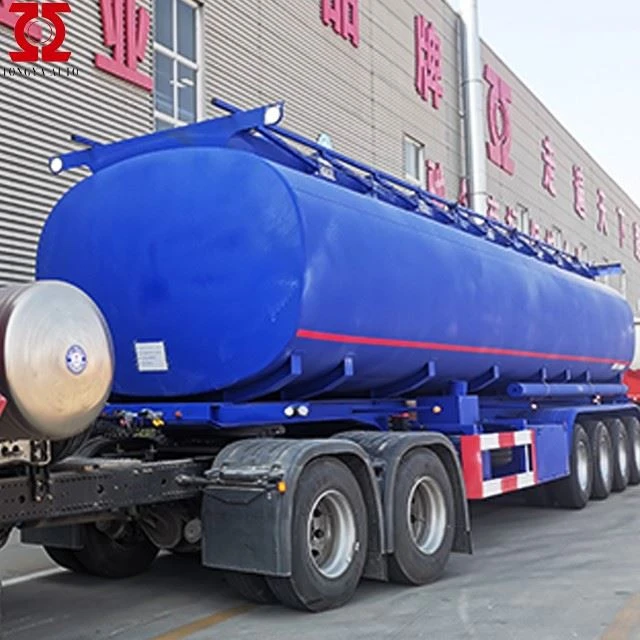

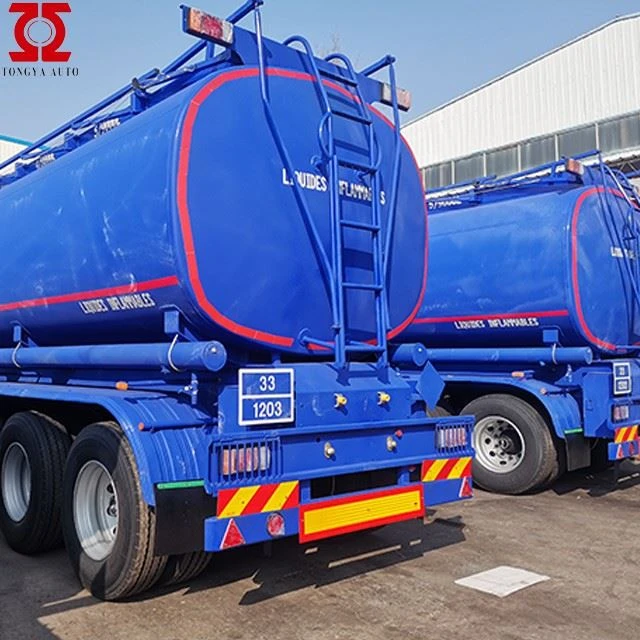

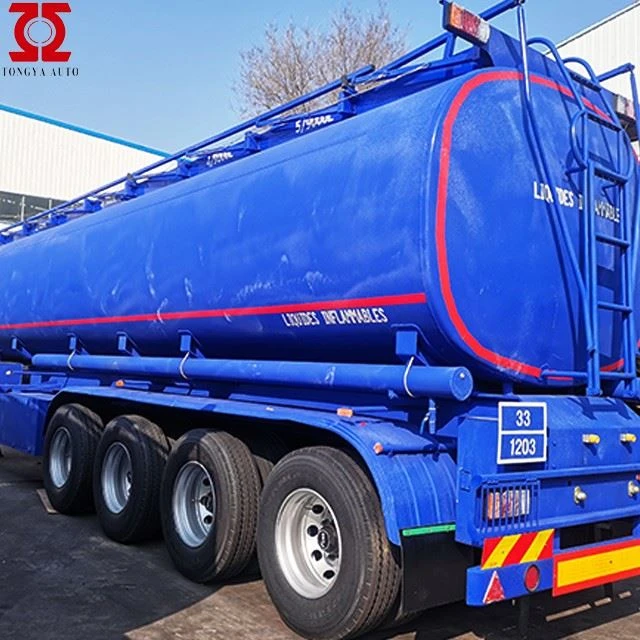

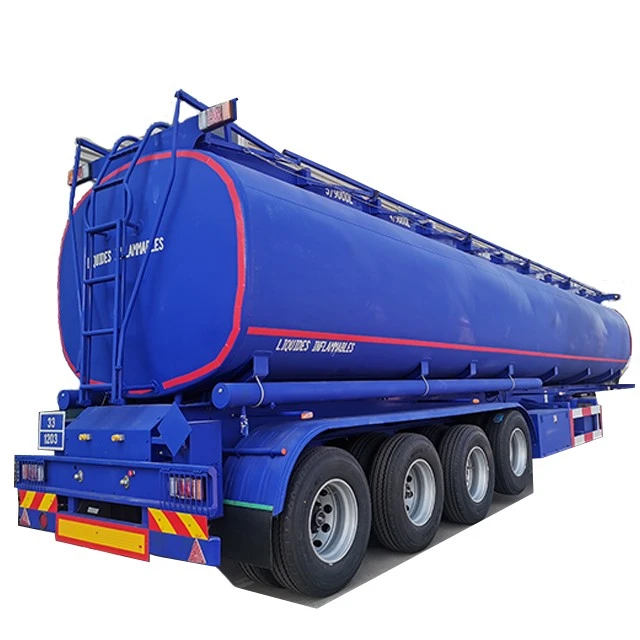

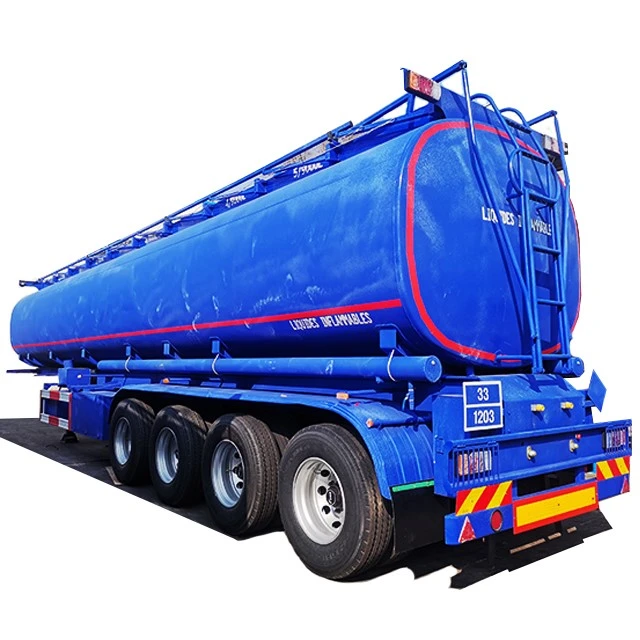

TONGYA Kub Muag 4 Qag Roj Ua Kua Roj Tanker Trailers Tank Semi Trailer
Roj tanker semi trailer yog siv los hloov cov roj diesel, roj av, roj av, roj noj, thiab cov roj xibtes. ib txwm siv rau kev thauj cov roj av, lub teeb diesel roj, roj av thiab lwm yam khoom siv roj tsis zoo, dav siv hauv ntau lub tsheb thauj mus los, chaw nres tsheb roj thiab lwm yam kev lag luam logistic.
Khoom Taw qhia
TONGYA Kub Muag 4 Qag Roj Ua Kua Roj Tanker Trailers Tank Semi Trailer
Specifications:
|
Lub cev tank
|
||||
|
Cov duab
|
Optional (Square)
|
|||
|
Dimension
|
7500mm * 2500mm * 3500mm (Qhov loj me nyob ntawm qhov kawg tsim)
|
|||
|
Tare luj
|
Txog 6500KGS
|
|||
|
Tag nrho ntim (m3)
|
50m³
|
|||
|
Tanker Lub Cev Khoom
|
5 hli Q235 carbon steel
|
|||
|
Xaus Phaj
|
5 hli Q235 carbon steel
|
|||
|
Manhole Cover
|
Carbon steel ∮500mm
|
|||
|
Hauv qab valve
|
Nrog
|
|||
|
Tshem Tawm Valve
|
Txoj kab uas hla yog 3 lossis 4 nti
|
|||
|
Chav tsev
|
1 los yog ntau dua
|
|||
|
Cov yeeb nkab tawm
|
4 "rubber hose, 2 pcs, 6m / txhua
|
|||
|
Cat Taug kev
|
Nrog (Cov qauv qauv lossis tsim tshwj xeeb)
|
|||
|
Chassis
|
||||
|
Main Beams
|
Vuam tsim, Q345 carbon steel khoom
|
|||
|
Qag
|
4 qag, FUWA brand, BPW
|
|||
|
Tig lub rooj
|
Nrog
|
|||
|
Kos bar
|
1.4m
|
|||
|
Kev ncua
|
Mechanical suspension
|
|||
|
Nplooj Caij nplooj ntoos hlav
|
90 (W) hli * 13 (Thickness) hli * 10 Txheej
|
|||
|
Pneumatic Braking System
|
WABCO RE 6 relay valve; Caij nplooj ntoos hlav nres chamber; ib daim ntawm 45L cua tso tsheb hlau luam.
|
|||
|
Rim
|
9.00-22.5 Tuam Tshoj Hom
|
|||
|
Lub log
|
12R22.5 Hom tuaj yeem xaiv tau
|
|||
|
ABS
|
Xaiv tau
|
|||
|
Kev pleev xim
|
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg
|
|||
|
Khoom siv
|
Ib tug standard toolbox
|
|||
|
Cov ntsiab lus shipping
|
Los ntawm Bulk Cargo, RORO
|
|||
Xa lus nug Hu rau peb Rau Cov Kev Pabcuam Tshwj Xeeb Thiab Tus Nqi Zoo Tshaj.
Peb yog Hoobkas tsim, txais tos koj tuaj xyuas peb lub Hoobkas.
