40ft Thawv Flatbed Truck Trailer
Peb yog cov chaw tsim khoom hauv Suav teb los ntawm 1982, koj tuaj yeem kho koj tus kheej cov tsheb thauj khoom, peb tsim thiab tsim khoom raws li koj qhov kev xav tau.
Khoom Taw qhia
Khoom taw qhia

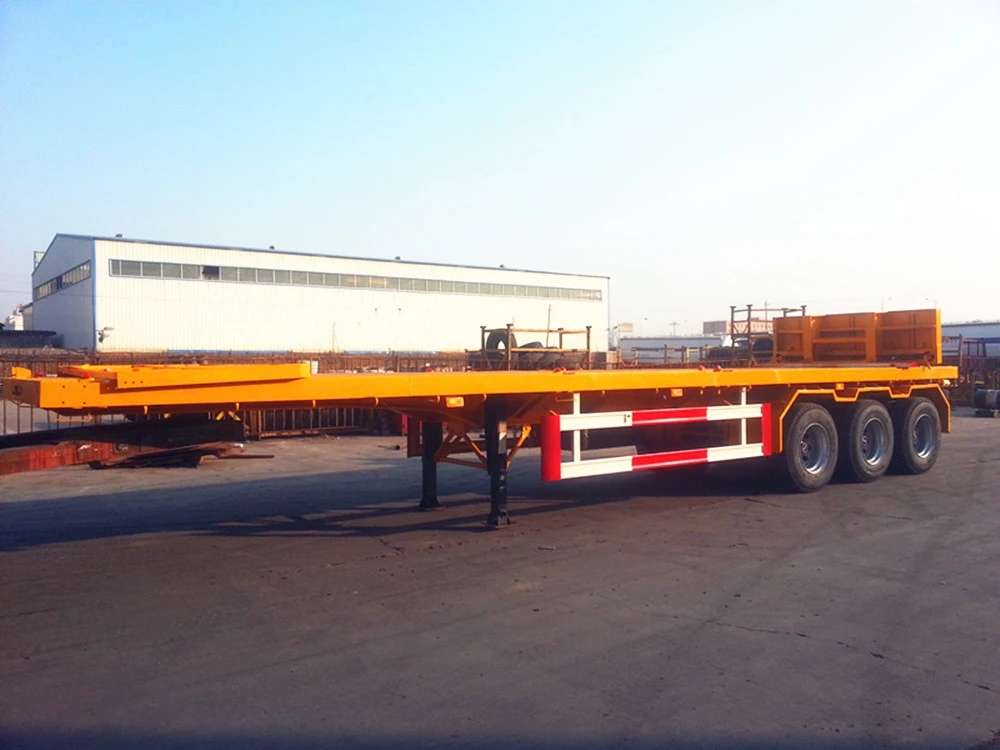

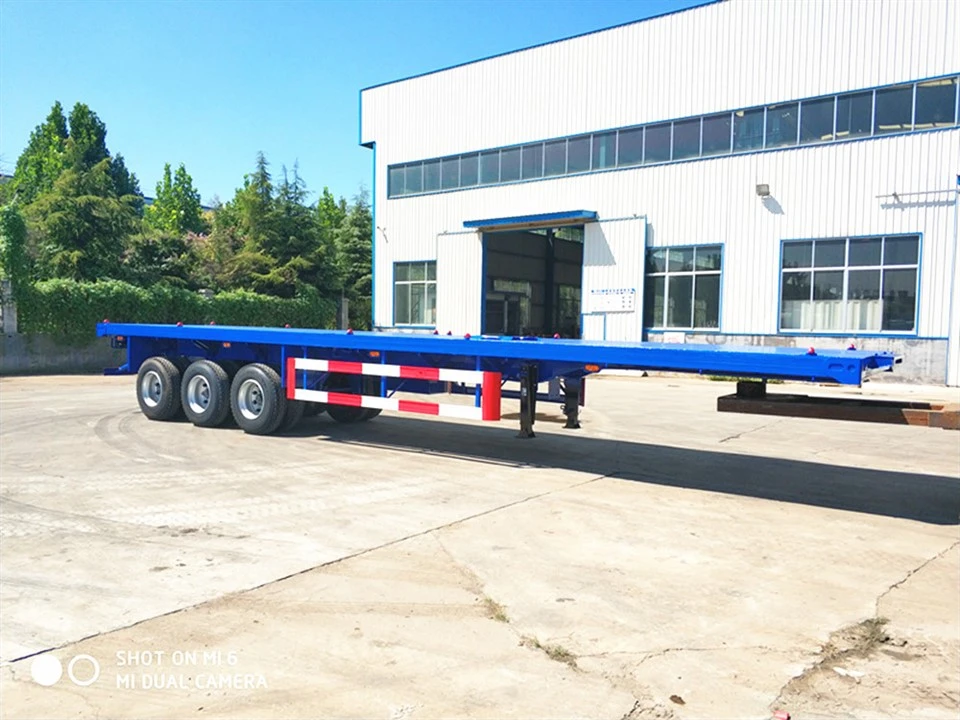

40ft thawv flatbed tsheb trailer yog siv los thauj cov thawv lossis cov khoom thauj khoom qhuav.
Main beams welded los ntawm advanced loj-scale tshwj xeeb vuam tshuab txiav.
Tongyada hom thiab CCC / ISO9001 daim ntawv pov thawj pom zoo.
Peb txais yuav cov khoom lag luam nto moo rau peb cov trailer, ua kom cov cim zoo.
Peb yog cov chaw tsim khoom hauv Suav teb los ntawm 1982, koj tuaj yeem kho koj tus kheej cov tsheb thauj khoom, peb tsim thiab tsim khoom raws li koj qhov kev xav tau.
Khoom piav qhia
Peb 40ft thawv flatbed tsheb thauj khoom trailer: Pab pawg muag khoom thiab pab pawg neeg xa khoom: pab pawg muag khoom muaj txiaj ntsig nyob ntawm koj qhov kev pabcuam txhua lub sijhawm thiab muab kev pabcuam zoo, pab pawg kws tshaj lij ua haujlwm nrog lub tuam txhab xa khoom thoob ntiaj teb xws li MSK & Hyundai xa koj cov tsheb thauj khoom kom nyab xeeb thiab raug nqi. TONGYA yog ib lub tuam txhab loj tshaj plaws hnyav trailer nyob rau hauv Suav teb, kuj yog tus thawj coj rau exporting, tshwj xeeb hauv kev tshawb nrhiav, tsim thiab tsim ntau yam trailer. thawv flatbed semi trailer, 40ft yog cov qauv nrov tshaj plaws. Nws yog tsim los nqa 40ft thawv, 20ft thawv thiab lwm yam khoom thauj khoom qhuav. Nyob rau hauv dav dav, lub flatbed trailer nplua rau nqa loads 40 tuj ~ 60 tons hnyav. Raws li qhov ntev, peb tuaj yeem muab 45ft 48ft 52ft, 2axles / 3axles / 4axles, xim kuj tuaj yeem kho. Tuam Tshoj Kub-muag trailer nrog ruaj zoo. 12 teeb lub thawv xauv rau nqa 1 unit 20ft, 40ft, thawv thiab 2 units 20ft thawv. hlua hooks pab ceev cargo, haum rau ntau cargo thauj.
KhoomSpecification
|
Qauv |
40ft thawv flatbed tsheb trailer |
|
Zuag qhia tag nrho |
12,500mm * 2,500mm * 1,550mm |
|
Tare luj |
7, 200 Kg |
|
Them nyiaj |
45,000kgs, peb tuaj yeem tsim raws li koj xav tau |
|
Kuv Beam & Chassis |
Heavy luag hauj lwm thiab ntxiv durability tsim kuv beam; Kev xaiv rau siab tensile steel Q345B, welded los ntawm cov txheej txheem tsis siv neeg Submerged-Arc. Sab saum toj Flange 16mm, dav 140mm; Middle Flange 8mm, Qhov siab 500mm, Hauv qab Flange 16mm, dav 140mm |
|
Qag |
Tongya hom, 13T / qag |
|
Tus naj npawb ntawm axles |
3ax ua |
|
Kev ncua |
Heavy duty mechanical suspension |
|
Pem teb |
3mm pob zeb diamond steel phaj |
|
King Pin |
JOST hom 2" Bolt-hauv King Pin |
|
tsaws iav |
JOST hom Ob-ceev, phau ntawv khiav hauj lwm, hnyav tsaws iav |
|
Log Rim |
9. 0-22.5, 13 daim |
|
Lub log |
12 R22.5, 13 pcs |
|
Spare Tyre |
2 units |
|
Twist Lock |
12 units |
|
Braking System |
WABCO RE 6 relay valve; T30/30 ntxiv rau T30 Caij nplooj ntoos hlav braking chambers; ob daim ntawm 45L cua tso tsheb hlau luam |
|
Kev pleev xim |
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |
|
Tool lub thawv |
Ib lub thawv khoom txheem (Qhov Loj tuaj yeem xaiv tau dawb) (nrog 1 lub log tsheb spanner, 1 unit gudgeon lub tes tsho thiab 1 unit cranking bar) |
Cim npe nrov: 40ft thawv flatbed tsheb trailer, Tuam Tshoj 40ft thawv flatbed tsheb trailer manufacturers, lwm tus neeg
