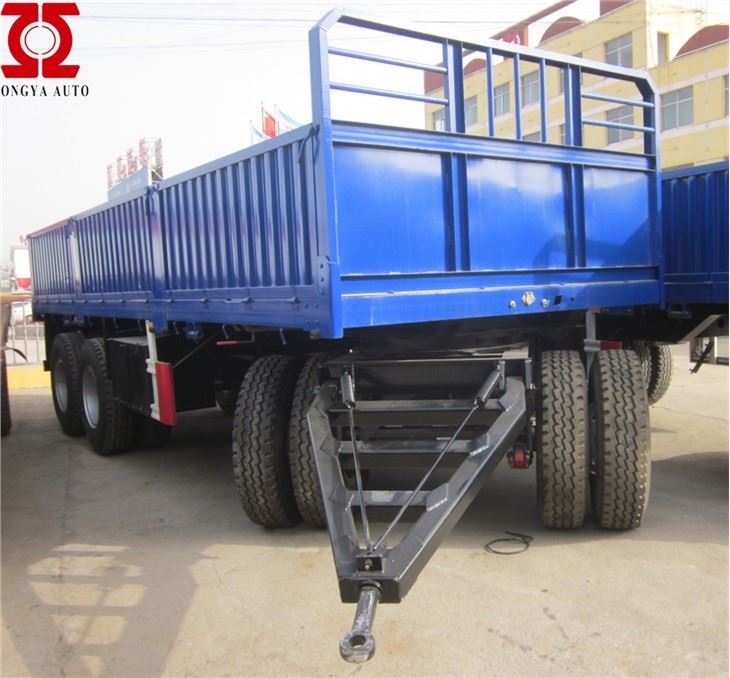

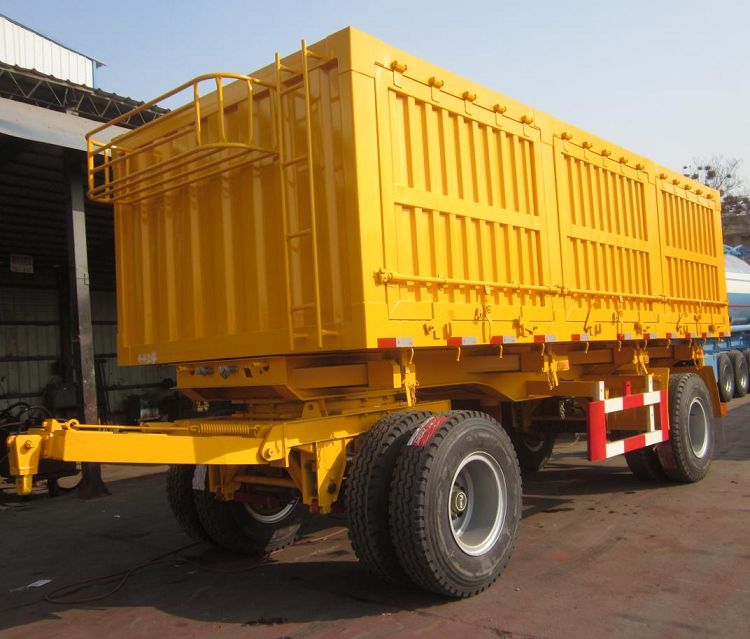

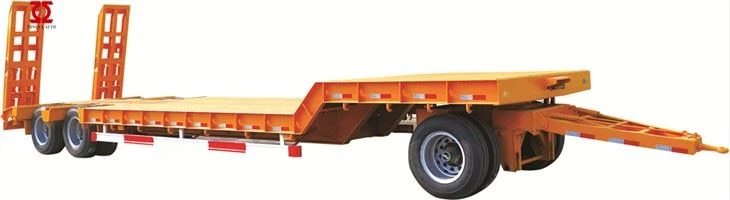

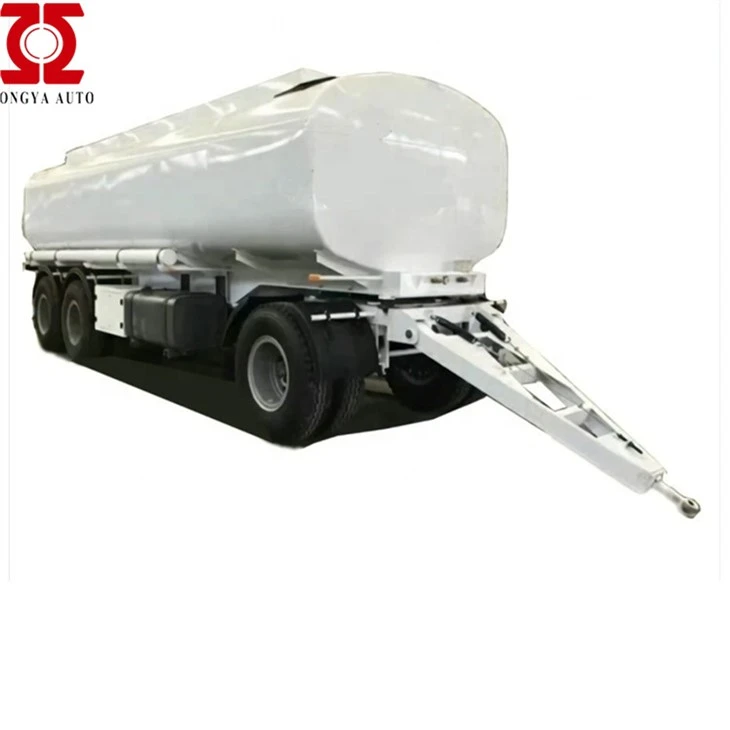

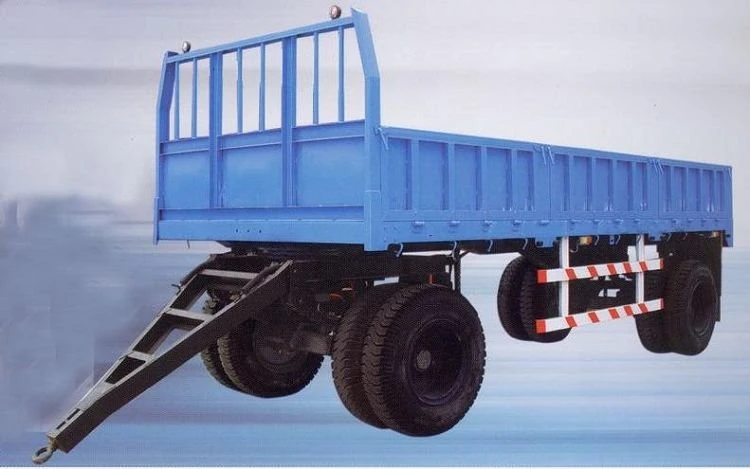

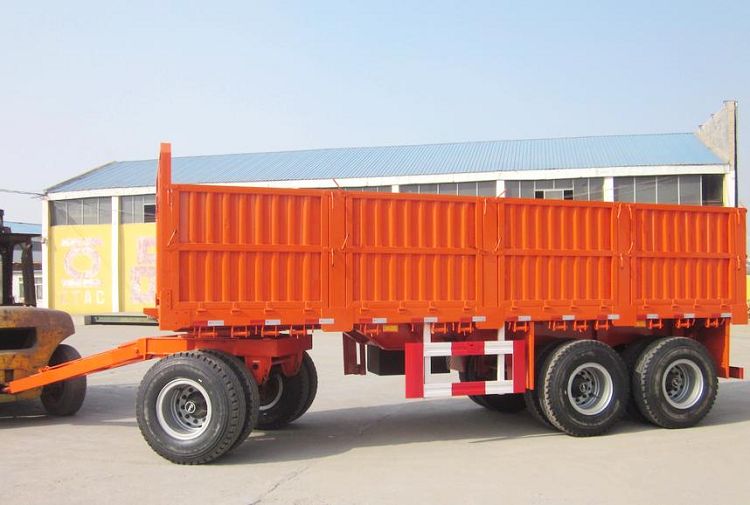

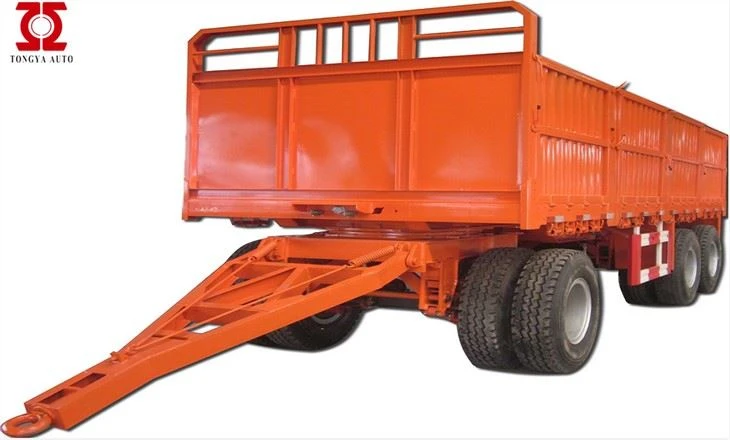

Tsheb laij teb Trailer
Muaj ntau ntau hom tsheb laij teb trailer, thiab lawv cov ncej, lub cev, thiab kev taug kev yog qhov pib zoo ib yam li cov tsheb thauj khoom.
Khoom Taw qhia
Khoom taw qhia
Lub tsheb laij teb trailer yog tag nrho los ntawm nws tus kheej, thiab tsuas yog txuas nrog lub locomotive los ntawm hooks.
Lub locomotive tsis tas yuav dais lub trailer load, tab sis tsuas yog muab lub zog los pab lub tsheb laij teb trailer kov yeej kev sib txhuam ntawm txoj kev nto.
Cov tsheb laij teb tsheb laij teb feem ntau yog siv rau kev thauj mus los hauv docks, factories, chaw nres nkoj thiab lwm qhov chaw.
Khoom piav qhia
Muaj ntau ntau hom tsheb laij teb trailer, thiab lawv cov ncej, lub cev, thiab kev taug kev yog qhov pib zoo ib yam li cov tsheb thauj khoom.
Sab phab ntsa ntawm tsheb laij teb trailer feem ntau yog ua los ntawm cov hlau nyias nyias. Longitudinal concave prisms yog xuas nrig ntaus tawm ntawm phab ntsa lub balustrades, thiab tsa tav tav yog welded tom qab los ua kom cov tawv nqaij ntawm lub carriage thiab txo qhov zoo ntawm phab ntsa. Hauv pem teb ntawm lub tsheb thauj neeg feem ntau yog ua los ntawm cov ntoo thiab npog nrog nyias steel daim hlau, los yog siv cov hlau-ntoo sib xyaw qauv hauv qab phaj; tus ncej feem ntau yog ua los ntawm 16Mn steel phaj, welded los yog spliced los ntawm nias thiab tsim cov ntaub ntawv.
Lub longitudinal thiab transverse beams ntawm lub thav duab feem ntau txais cov zawj interface qauv, thiab ob longitudinal kab teeb yog teem nyob rau hauv tib lub dav ntawm pem hauv ntej thiab nram qab, yog li ntawd tus ncej muaj zoo bending kuj.
Lub ntsiab nqaj, kev txhawb nqa nqaj thiab sab nqaj ntawm tus ncej yog welded qhov chaw nrog lub thawv-zoo li seem thiab muaj qhov loj torsional rigidity.
Lub beam txuas lub ntsiab nqaj txuas mus rau ob sab thiab yog ib qho I-shaped welded qauv nrog kev sib txawv ntawm cross-section, uas muaj siab transverse dabtsi yog khoov zog.
Lub turntable mechanism rau kev txhim kho qhov kev ncua sij hawm yog teem nyob rau hauv txhua qhov kev txhawb nqa beam kom paub txhua lub log ntawm tsheb laij teb trailer steering.
Khoom Specification
Tus neeg tsim khoom npe | Tongya Automobile Co., Ltd | |
Hom | Tsheb laij teb trailer | |
Chaw thau khoom muaj peev xwm | 45T | |
Lub sij hawm tsim khoom | Hauv 30 hnub ua haujlwm tom qab them nyiaj them poob haujlwm | |
Tare luj | Txog 8T | |
Specifications |
| |
Axle No./ nyhav | 3 daim, 13t FUWA hom, | |
Kev ncua | Common Mechanical Suspension | |
Qhov Loj (LxWxH) | 10500 * 2500 * 2400mm (Adjustable) | |
Traction Rooj | Hom qauv | |
Rim | 9. 0-22.5, 12 daim | |
Hlau Caij nplooj ntoos hlav | 10 pieces rau axle | |
Main beam (Q345 steel) | Qhov siab yog 500mm, sab sauv flange yog 14mm, down flange yog 16mm, nruab nrab phaj yog 8mm | |
Sab beam (channel steel) | 16 # channel steel | |
Lub log |
| |
Tyre specs | 12R22.5 | |
Number of Tyre | 12 qab | |
Nres: |
| |
Emergency Brake Valve | WABCO Brand | |
Nres Chamber | Plaub ob chav thiab ob chav chamber | |
ABS system | Tsis muaj (yuav xaiv tau dawb) | |
Hluav taws xob: |
| |
Qhov hluav taws xob | 24V | |
Txais | 7 txoj kev (7 hlau hlua) | |
Teeb | LED teeb | |
