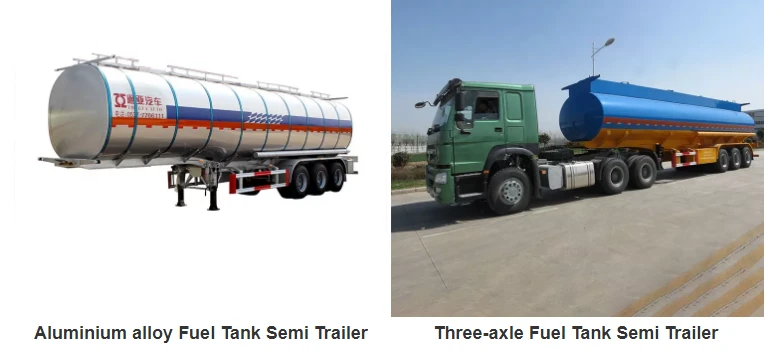

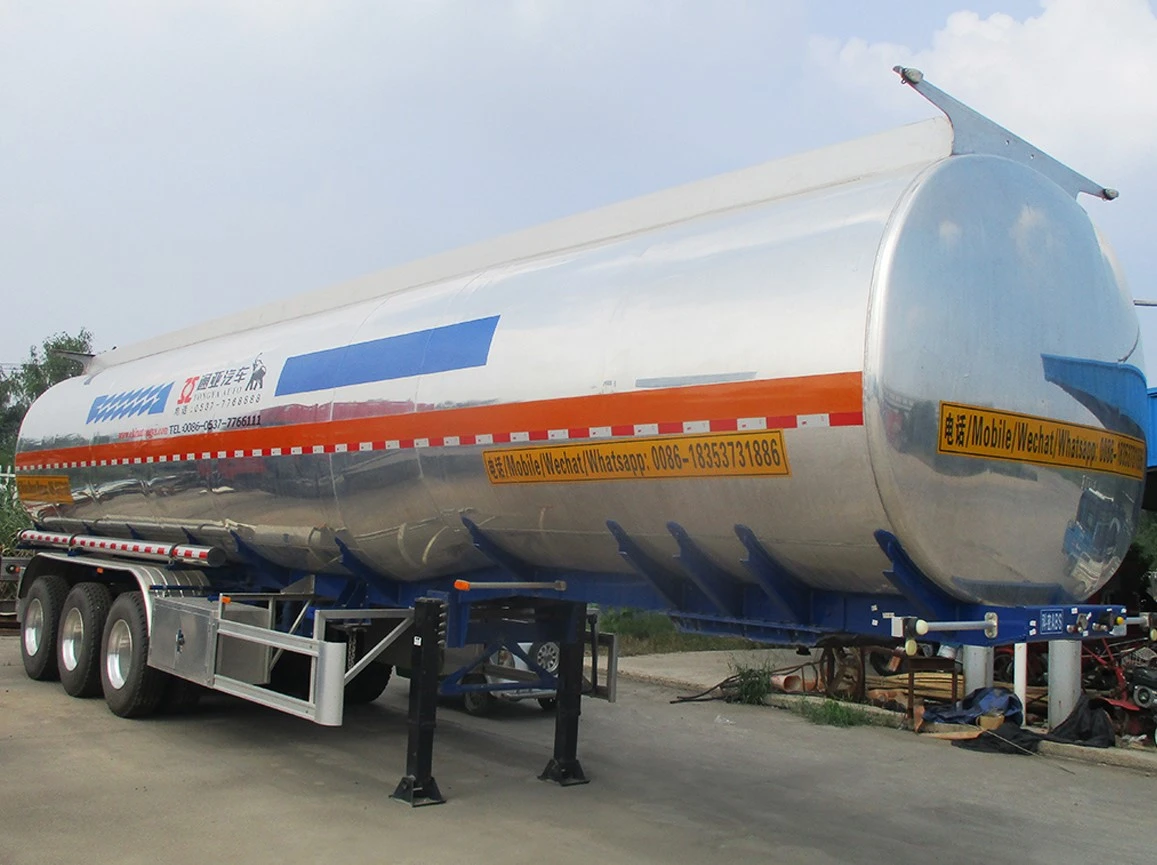

Tuam Tshoj 50000litres Aluminium Roj Tanker Trailer Chaw tsim tshuaj paus
1.Peb yog cov chaw tsim khoom, Raws li cov neeg siv khoom xav tau, peb tuaj yeem kho cov ntim sib txawv thiab cov khoom sib txawv.2. Peb lub cev tanker yog longitudinally welded. Ua kom muaj kev nyab xeeb ntawm lub tanker thiab ua kom cov kev pab cuam life.3.Peb txais yuav cov khoom lag luam nto moo rau peb lub tank trailer, nws txuag nqi & xyuas kom muaj kev pabcuam ntev.
Khoom Taw qhia
Tuam Tshoj 50000litres Aluminium roj tanker trailer chaw tsim tshuaj paus
Thov rau thauj roj, JET A -1, Dej, kua tshuaj, Crude roj, Khoom noj khoom haus roj thiab lwm yam yog dav siv nyob rau hauv roj depot, petrol chaw nres tsheb, roj teb, chemical Hoobkas, zaub mov roj Hoobkas, bitumen Hoobkas thiab lwm yam.
Chaw thau khoom muaj peev xwm nruab nrab ntawm 20.000 ltr txog 57.000 ltr rau 3 qag roj tanker semi-trailer. Cov khoom ntim tuaj yeem npaj tau raws li cov neeg siv khoom thov ntawm 3 qag roj tanker semi-trailer.
Tank seem style: Lub voj voog zoo meej; oval; Rectangular voj voog
Tank lub cev style: Ncaj style; Goose-caj dab style; tag nrho trailer style; V-hom tsis muaj stringer style thiab lwm yam.
Peb yog Hoobkas tsim, txais tos koj tuaj xyuas peb lub Hoobkas.
Xa lus nug Hu rau tus neeg muag khoom Rau Cov Kev Pabcuam Tshwj Xeeb Thiab Tus Nqi Zoo Tshaj.
Specifications:
|
Cov ntaub ntawv yooj yim |
||
|
Qhov loj me |
12500x2500x(3600-3780)mm (Hloov tau) |
|
|
Design Capacity (tag nrho) |
50000L |
|
|
Qhov hnyav (± 3%) |
7500 KG |
|
|
Hom |
Tri-axle semi-trailer |
|
|
Tank sib dhos |
||
|
Chav tsev |
2-6 teev |
|
|
Pem hauv ntej / rear kawg phaj |
Khoom siv |
aluminium alloy / stainless hlau |
|
Pem hauv ntej / rear kawg phaj |
tuab |
6mm ib |
|
Tank lub cev (nrog insulating txheej) |
Khoom siv |
aluminium alloy / stainless hlau |
|
|
Thickness |
5mm ua |
|
Wave-proof phaj thickness |
4mm ib |
|
|
Manhole cover |
Txoj kab uas hla |
500 hli |
|
|
Khoom siv |
Aluminium Alloy |
|
|
Tus lej |
2-6pcs |
|
Tshem tawm valve |
Txoj kab uas hla |
3 nti |
|
|
Khoom siv |
Aluminium Alloy API Valve |
|
|
Tus lej |
2-6 pcs |
|
Hauv qab kev nyab xeeb valve |
Aluminium Alloy4 nti |
|
|
Cov yeeb nkab tawm |
Txoj kab uas hla |
3 nti |
|
|
Hom |
Roj hmab hose, 2pcs |
|
Cat taug kev |
Txuj |
|
|
CHASSIS
|
||
|

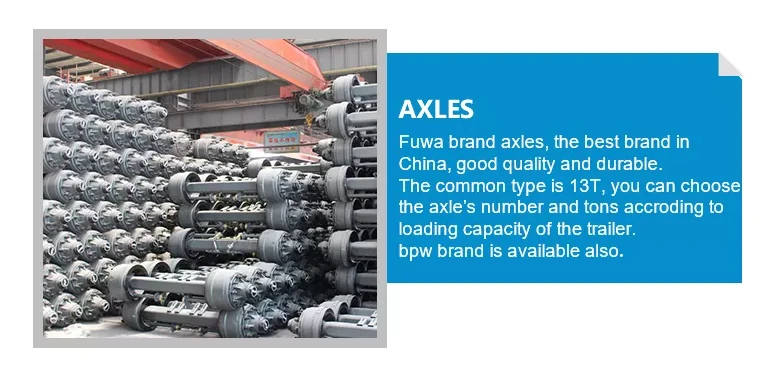

Qag |
Hom |
Fuwa |
|
|
Hom |
13t |
|
|
Tus lej |
3 pcs |
|
Rim |
Hom |
11.5-22.5/9.0-22.5 |
|
|
Tus lej |
6/12 pcs |
|
Lub log |
Hom |
Daim duab peb sab hom |
|
|
Hom |
12R22.5 |
|
|
Tus lej |
6/12 pcs |
|

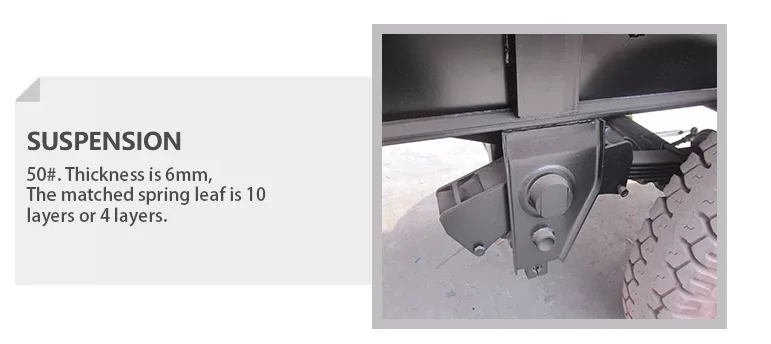

Kev ncua |
Mechaniacal suspension / cua ncua kev kawm ntawv |
|
|
Nplooj nplooj |
Nplooj dav |
90mm ua |
|
|
Nplooj tuab |
13 hli |
|
|
Txheej / txheej |
10 Txheej |
|
King pin |
Hom |
Bolts hom |
|
|
Txoj kab uas hla |
2 nti |
|
Nres system |
Cua tank |
45L cua tso tsheb hlau luam |
|
|
Nres chamber |
WABCO RE6 relay valve; T30/30+T30 Caij nplooj ntoos hlav nres chamber |
|
|
ABS |
xaiv tau |
|

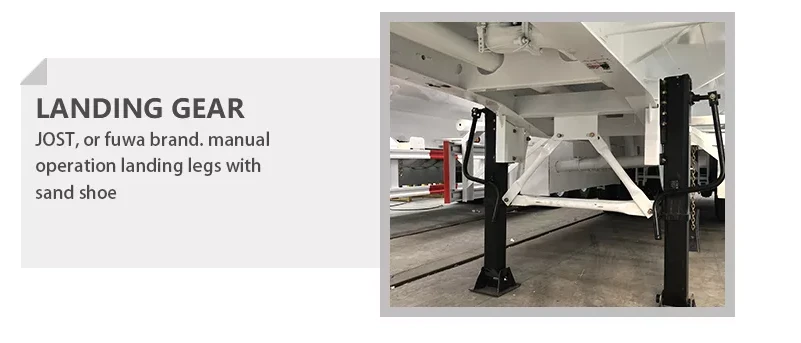

tsaws iav |
Hom |
JOST |
|
|
Hom |
E100 ob ceev |

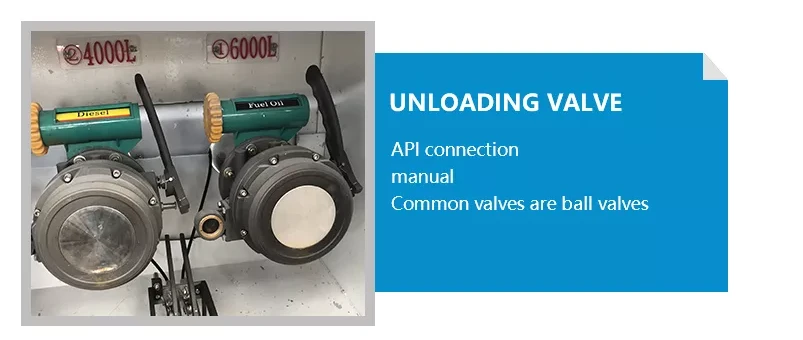

50000litres Aluminium roj tanker trailer: Lub tanker accessories suav nrog Euro tus qauv manhole npog, API adapter valve, Lub ntiajteb txawj nqus poob coupler, plua plav hau; hauv qab valve, Vapor vent valve; vapor adapter valve; vapor rov ua ke; optic sensor, optic socket, optic sensor tester ; roj kwv yees.Lub cev tank sab hauv ntawm lub tank trailer yog haum nrog cov corrugated reinforced yoj tus neeg zov txhua 2m. Thaum cov brakes tau thov thaum lub tank ntim cov roj tag nrho, cov yoj tiv thaiv tuaj yeem txo qhov cuam tshuam ntawm cov roj ntawm lub tank lub cev thiab ua lub luag haujlwm tiv thaiv kev nyab xeeb. Tag nrho lub cev lub cev yog tag nrho tsis siv neeg thiab seamlessly welded, 100% dhau qhov kev soj ntsuam nruj xws li kev nkag mus rau cov kua, kev ntsuas huab cua thiab qhov tsis zoo, lub tanker semi-trailer muaj kev nyab xeeb dua rau kev khiav thiab qhov zoo yog lav.

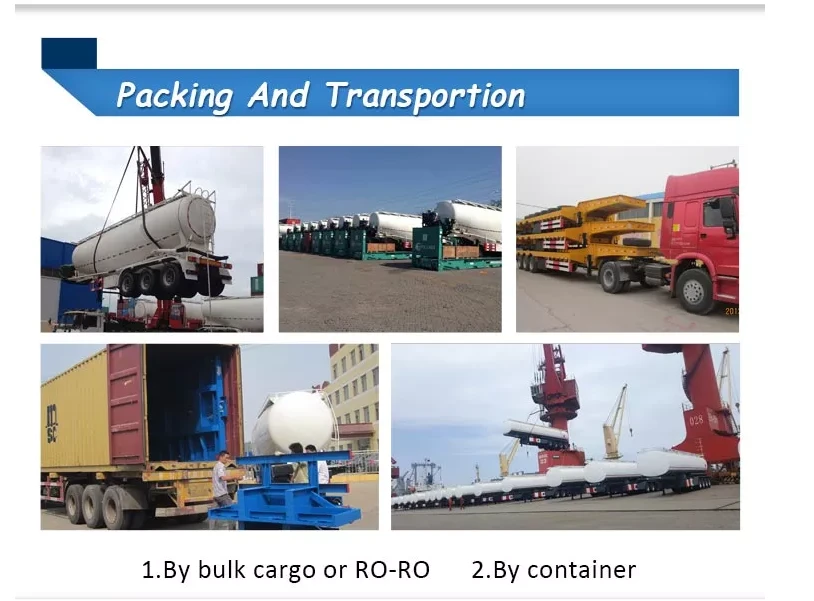

Thawv Thauj Khoom(hauv qab 41 cbm tuaj yeem thauj khoom hauv 40hq, ntau dua 42 cbm xav tau lub thawv loj thiab lub thawv me me.)
Kev xa khoom loj. Qhov no yog feem ntau txoj kev, nws tuaj yeem ua kom tiav ntawm qhov trailer.
Ro-Ro khoom xa tuaj. Tus nqi ntawm Ro-Ro khoom xa tuaj yog qhov kim tshaj plaws ntawm txhua txoj kev. Nws tuaj yeem tiv thaiv lub trailer zoo thiab ua kom tiav ntawm lub trailer.
Flat Rack. Nws yog ib qho ntawm cov thawv tab sis nws muaj qhov ntev txwv uas yog li 11.7 meters.
Peb ua haujlwm nrog ntau tus neeg muag khoom thauj khoom thiab peb yuav xaiv qhov tsim nyog tshaj plaws, pheej yig tshaj thiab nyab xeeb tshaj plaws rau koj raws li qhov ntau ntawm cov tsheb thauj khoom thiab koj qhov kev thov.
