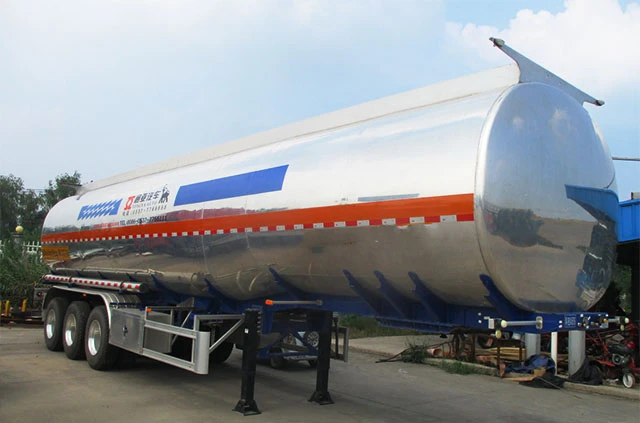

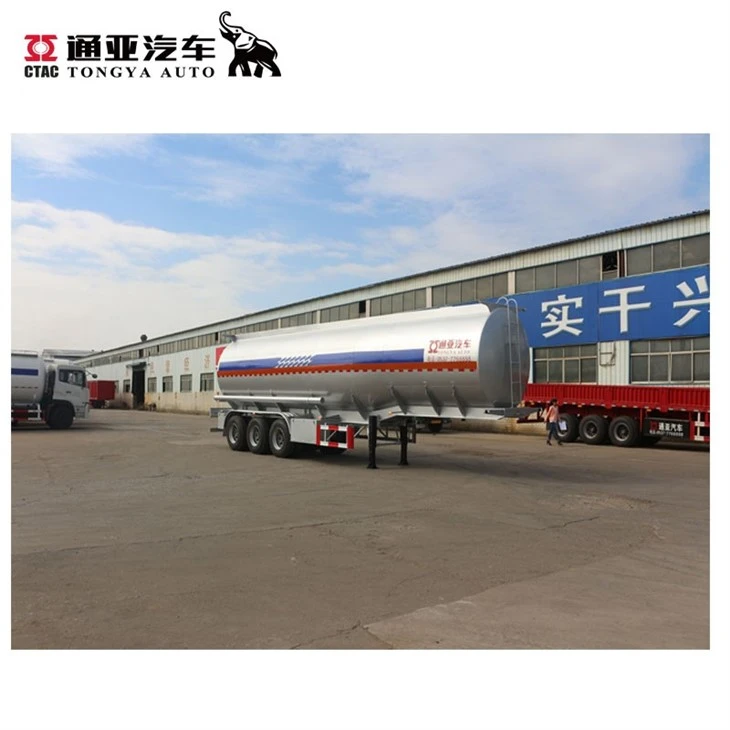

50000L Tri qag Stainless hlau Petrol Roj Tanker Trailer
50000L Tri Axle Stainless Steel Petrol Roj Tanker Trailer siv lub tswv yim tsim siab heev. Txhawm rau npuag lub tankers ruaj khov tshaj plaws, tshwj xeeb tshaj yog rau Africa Kev Lag Luam, xav txog txoj kev mob. Qhov no distortion tsis kam, av qeeg tsis kam thiab pob, ua rau koj kev nyab xeeb kev thauj mus los, kuj muaj txiaj ntsig zoo.
Khoom Taw qhia
50000L Tri qag Stainless hlau Petrol Roj Tanker Trailer
Tongya Automobile Co., LTD muaj cov pa roj carbon steel, stainless hlau lossis txhuas cov khoom siv tanker trailer. Lub ntim ntawm cov roj tankers thauj semi-trailer tuaj yeem hloov kho, kom ncav cuag 40, 000 liters, 45, 000 liters, 54, 000 liters thiab lwm yam. Nrog rau qhov sib txawv compartments, los ntawm ib tug mus rau cuaj, los yog ntau tshaj compartments, mus thauj cov kua sib txawv.
50000L Tri Axle Stainless Steel Petrol Roj Tanker Trailer siv rau nqa cov kua sib txawv xws li roj, roj av, dej, xibtes roj, bitumen asphalt, thiab lwm yam.
Specifications:
|
Qauv Lub Npe |
50000L Tri qag Stainless hlau Petrol Roj Tanker Trailer
|
|
Muaj nuj nqi |
Thauj roj thiab roj |
|
Zuag qhia tag nrho Dimension |
(L * W * H) 11500 * 2500 * 3800mm |
|
Ntim |
40000 L |
|
Tare luj |
11 500 KG |
|
Tank lub cev |
stainless hlau 305 |
|
Xaus phaj |
stainless hlau 305 |
|
Qag |
3 qag 13T Fuwa Brand |
|
Kev kaw lus kaw lus |
Mechanical Suspension |
|
Hlau Caij nplooj ntoos hlav |
10/10/10 nplooj caij nplooj ntoos hlav ncua kev kawm ntawv |
|
Manhole cover |
500mm manhole npog 8 teeb |
|
Lub log |
12.00R20 12pcs, Daim duab peb sab, Ob npaug npib hom |
|
Rims |
9 0, 12 daim |
|
Tshem tawm valve |
4 '' disc valve, 8pcs |
|
Tshem tawm lub cev |
4 '' seamless steel raj, 8pcs |
|
Spare Wheel Bracket |
2 '' bolt-hauv huab tais tus pin |
|
tsaws iav |
Fuwa hom ob-ceev, phau ntawv khiav haujlwm, hnyav tsaws iav 28t |
|
Tool lub thawv |
ib pc |
|
Chav tsev |
8 |
|
Braking system |
RE6 relay valve; T30/30 caij nplooj ntoos hlav nres chamber; 40L cua tso tsheb hlau luam |
|
Hluav taws xob qhov system |
Voltage: 24V 2.Receptacle: 7 txoj kev (7wire hlua) |
|
Tail teeb nrog tig teeb liab, nres teeb & reflector, sab teeb thiab lwm yam. |
|
|
Ib txheej 6-core standard Cable |
|
|
Khoom siv |
Ib lub thawv txheem txheem.Tsev tua hluav taws 2 pcs |
|
Kev pleev xim |
Ua kom tiav chassis xuab zeb blasting los ntxuav xeb, 1coat ntawm anticorrosive prime, 2coats ntawm zaum kawg xim |
|
Main kab teeb |
Kev xaiv rau siab tensile steel Q345B welded los ntawm tsis siv neeg submerged-arc txheej txheem |
|
Ntim |
Polish nrog wax ua ntej shipping |
Xa lus nug Hu rau tus neeg muag khoom Rau Cov Kev Pabcuam Tshwj Xeeb Thiab Tus Nqi Zoo Tshaj.
Peb yog Hoobkas tsim, txais tos koj tuaj xyuas peb lub Hoobkas.
Thawv Thauj Khoom(hauv qab 41 cbm tuaj yeem thauj khoom hauv 40hq, ntau dua 42 cbm xav tau lub thawv loj thiab lub thawv me me.)
Kev xa khoom loj. Qhov no yog feem ntau txoj kev, nws tuaj yeem ua kom tiav ntawm qhov trailer.
Ro-Ro khoom xa tuaj. Tus nqi ntawm Ro-Ro khoom xa tuaj yog qhov kim tshaj plaws ntawm txhua txoj kev. Nws tuaj yeem tiv thaiv lub trailer zoo thiab ua kom tiav ntawm lub trailer.
Flat Rack. Nws yog ib qho ntawm cov thawv tab sis nws muaj qhov ntev txwv uas yog li 11.7 meters.
