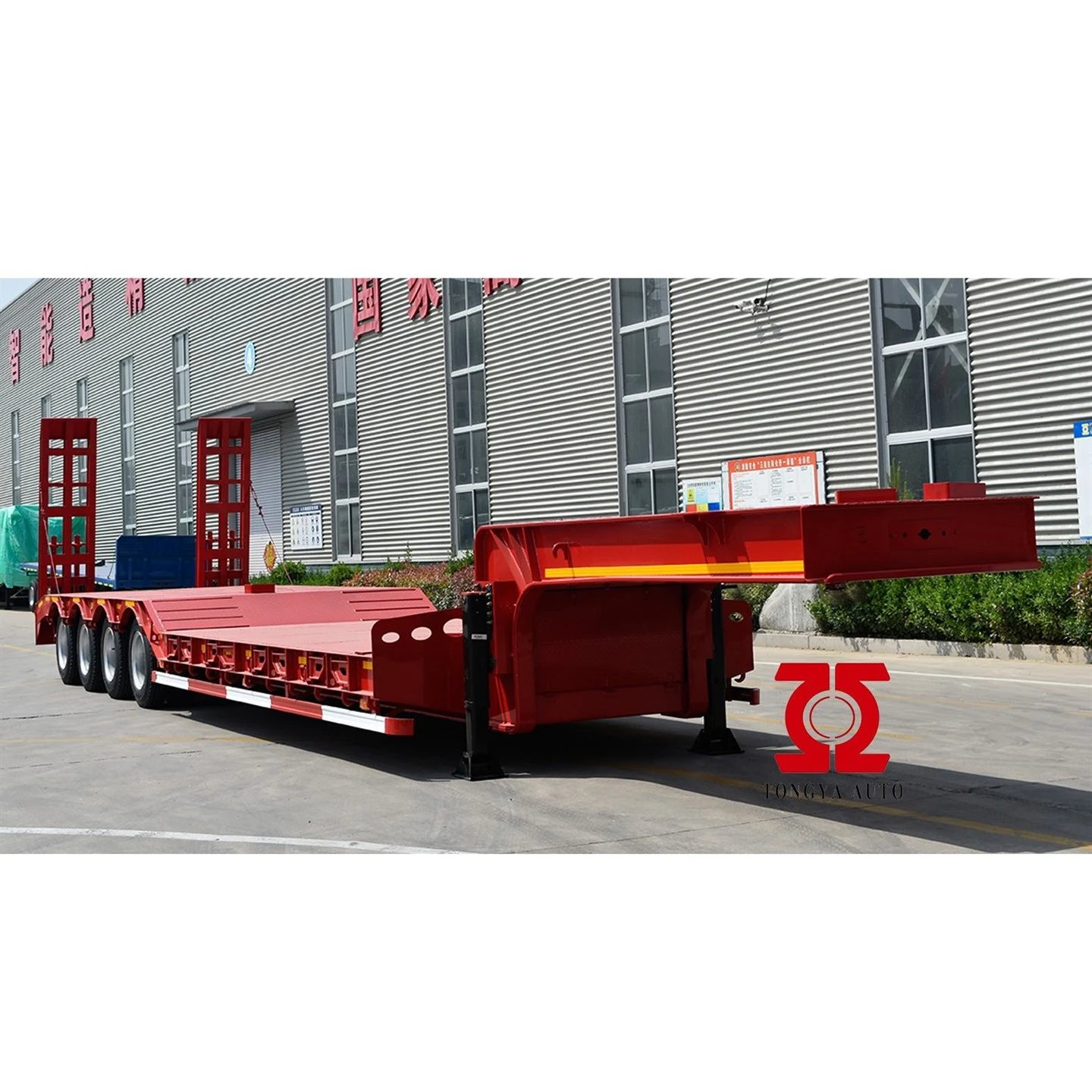

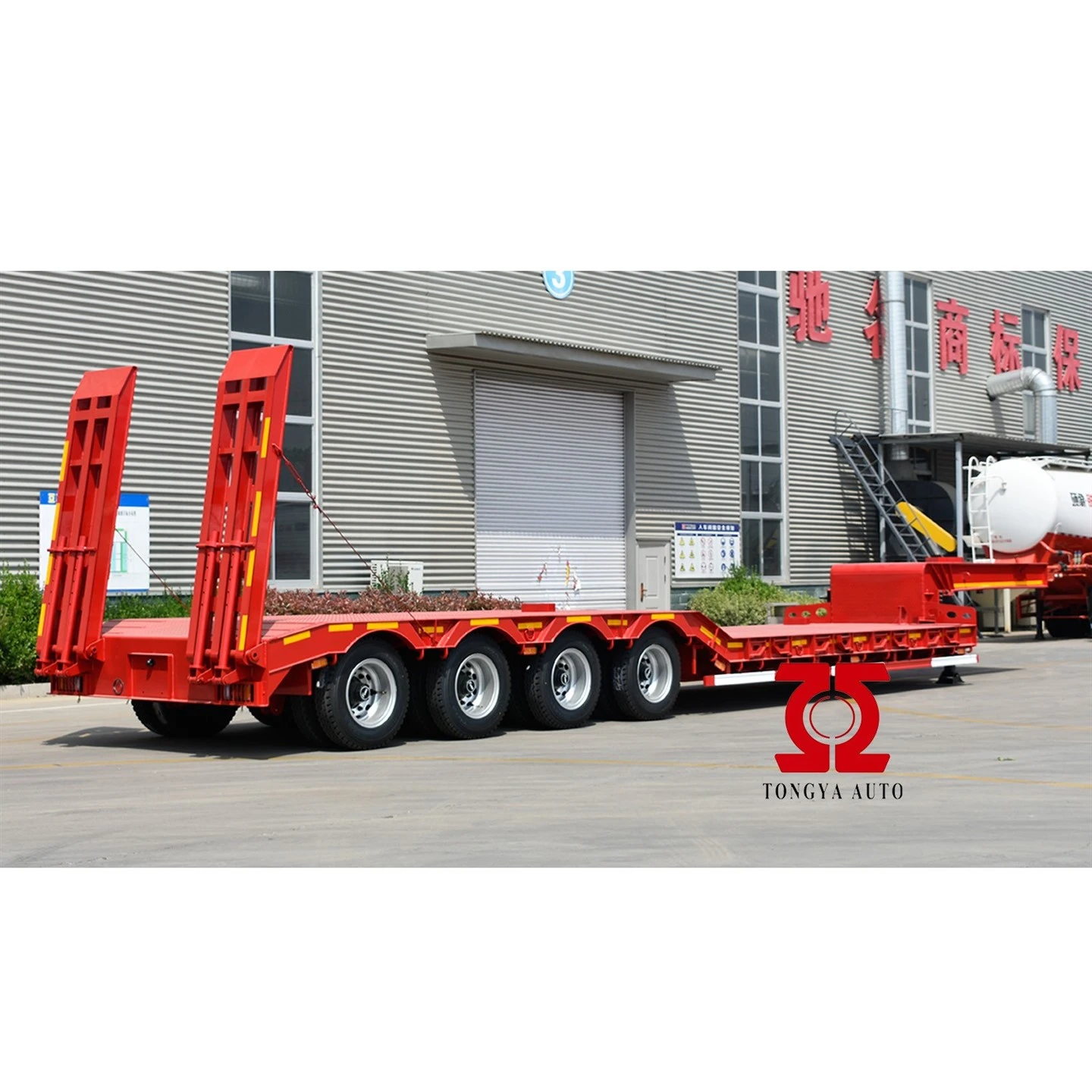

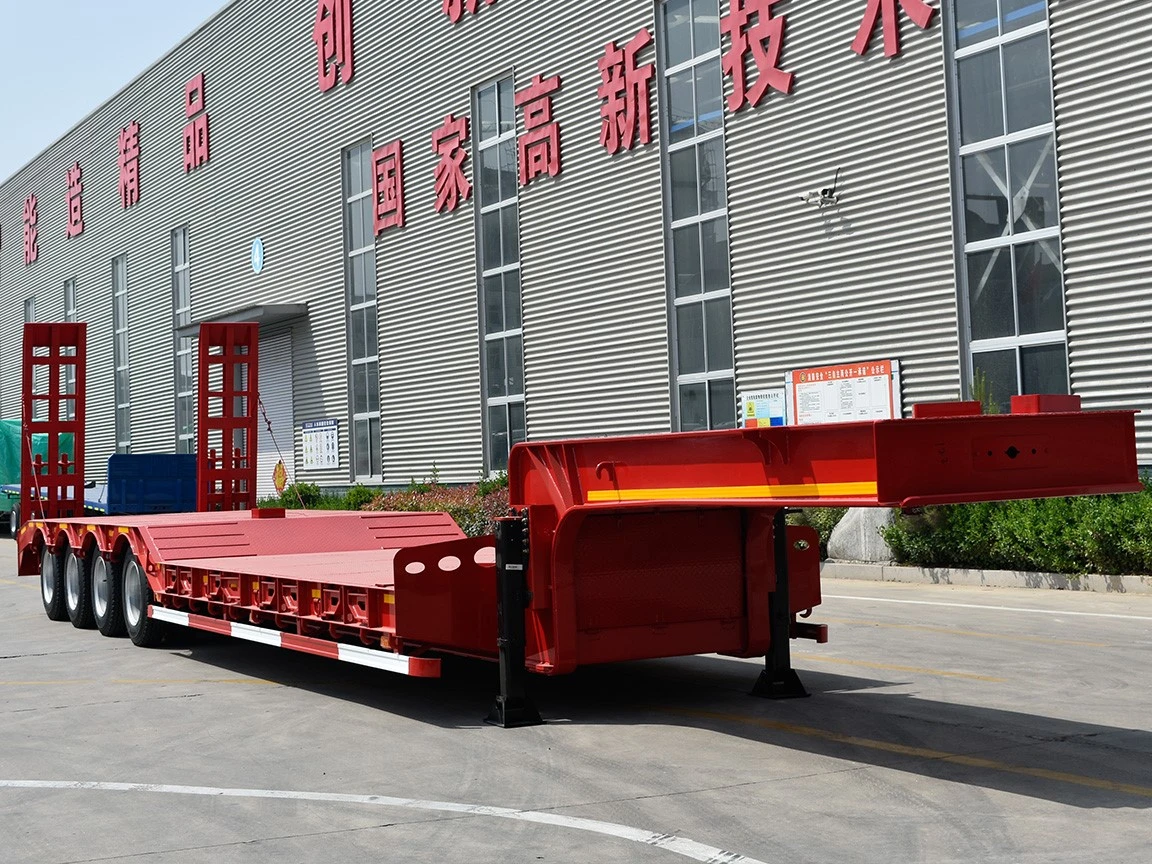

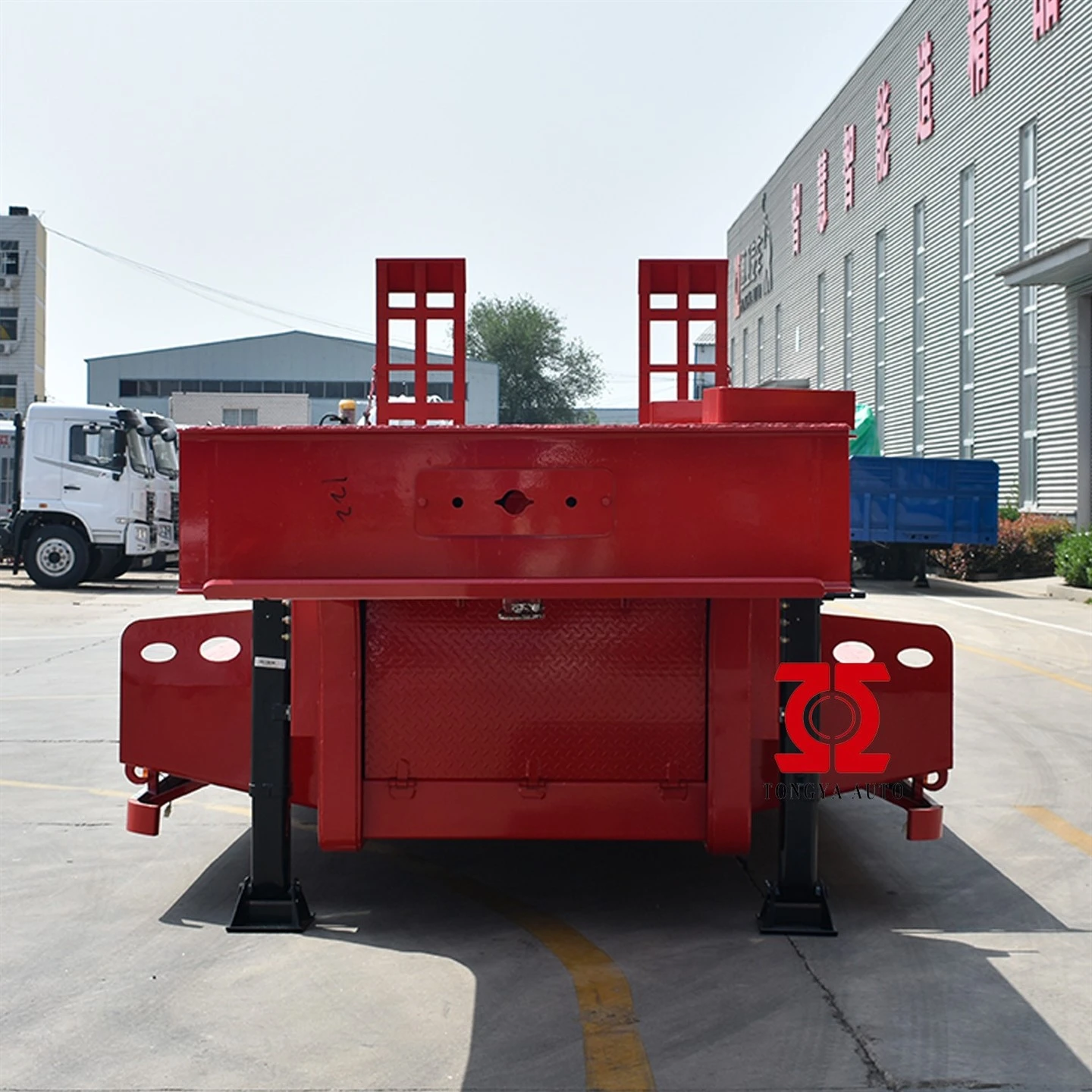

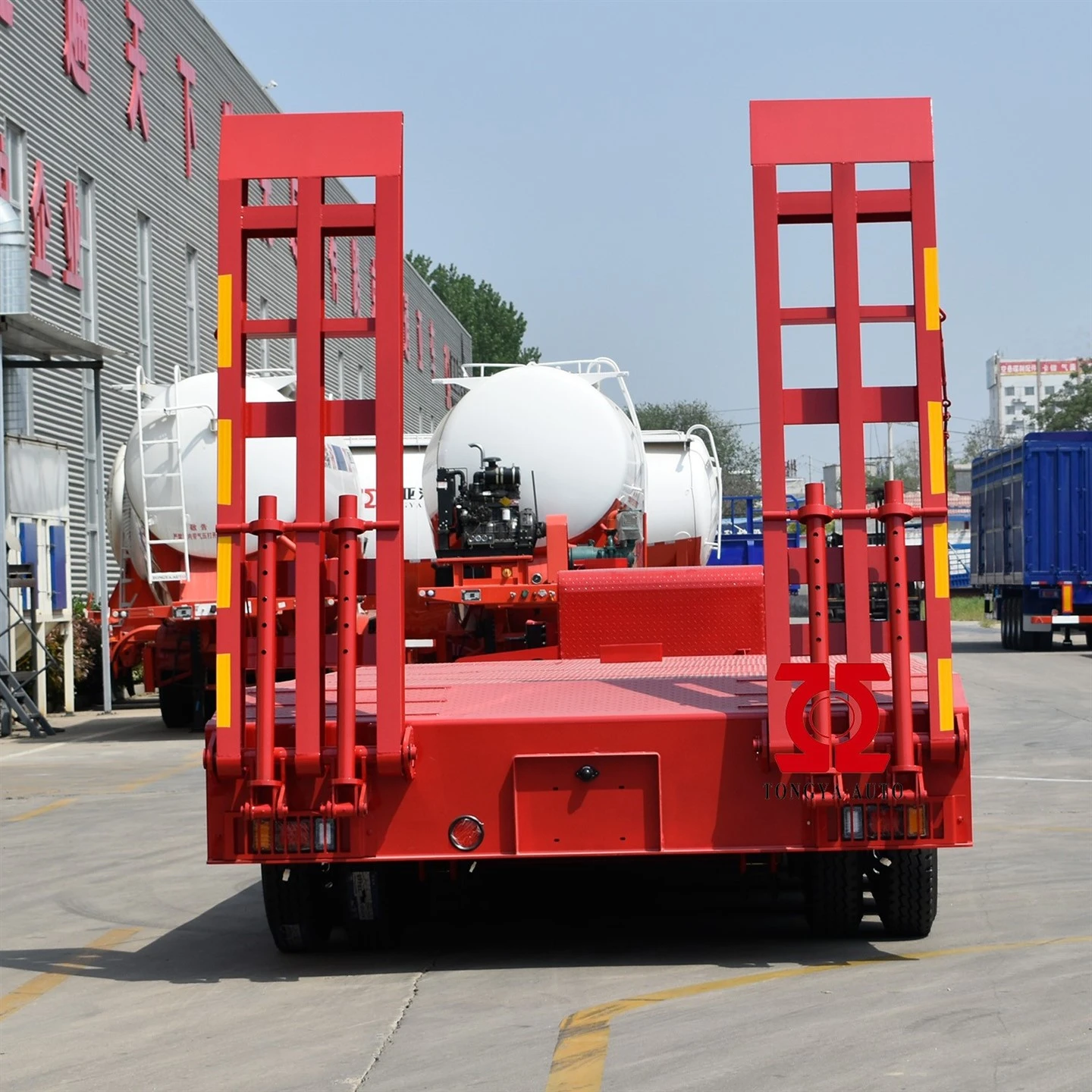

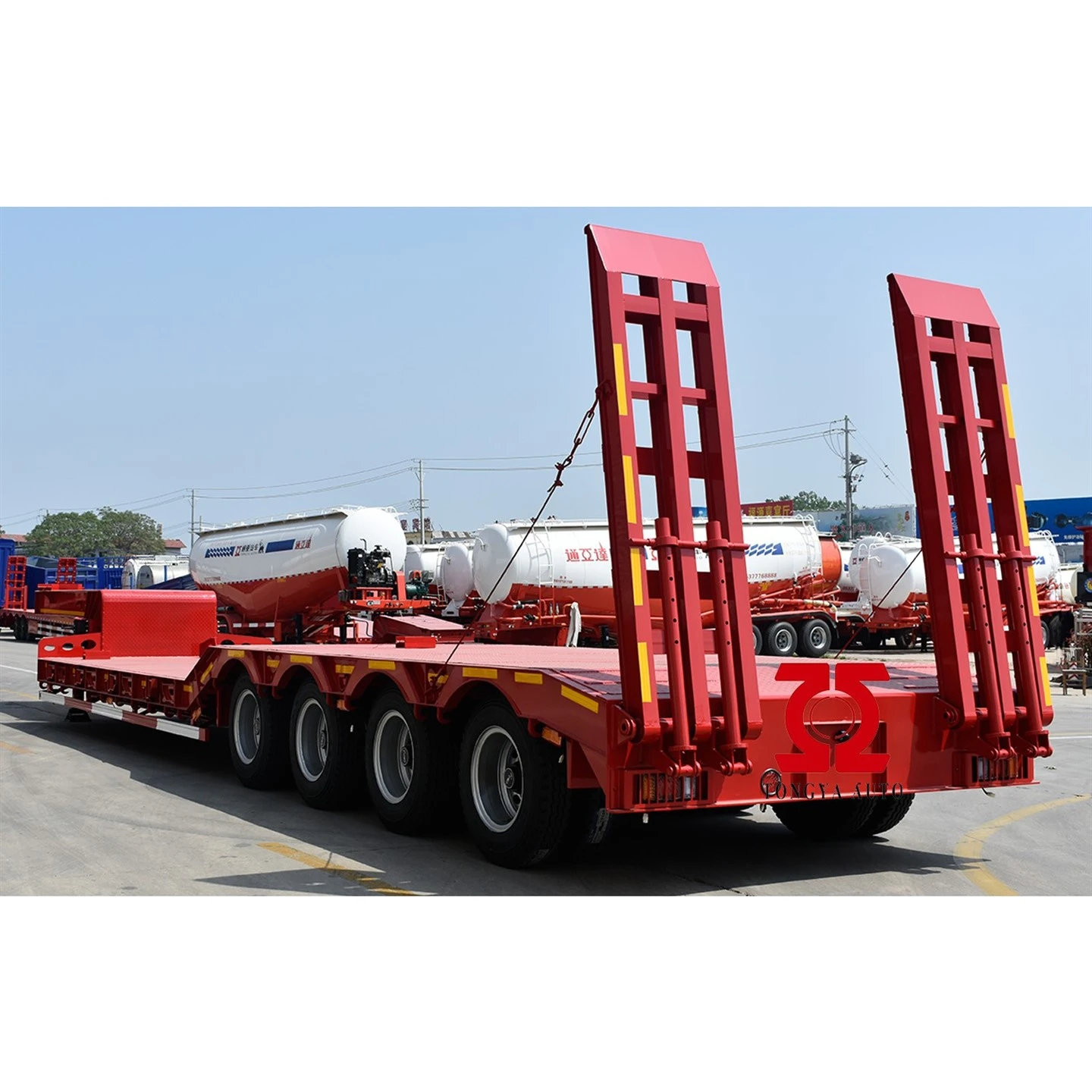

Low Loading Low txaj Semi Trailer
1.Low loading nto rau zoo dua tsheb thauj mus los ntawm loj machinery thiab khoom; 2.60Tons loading muaj peev xwm, customization yog haum rau style, loading peev xwm thiab loj; 3.Tuam Tshoj ua chaw tsim tshuaj paus txij li thaum 1982.
Khoom Taw qhia
|
Khoom npe |
Tsawg txaj semi trailer |
|
|
Qhov hnyav: |
Tare luj |
12T |
|
|
Chaw thau khoom muaj peev xwm |
60 T |
|
|
Tag nrho qhov hnyav |
72 T |
|
Qhov ntev: |
Sab nraud dimension |
13000 * 3000 * 850 hli (Qhov kawg qhov ntev nyob ntawm qhov kawg tsim cov duab kos) |
|
Ncej: |

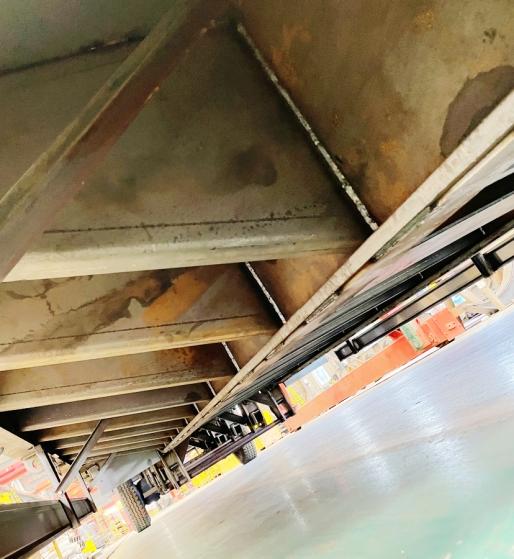

Main beam |
Opting rau siab zog Q345B steel, 520mm sib sib zog nqus welded I-section lub ntsiab kab teeb Sab saum toj Flange thickness 20mm, dav 140mm; Hauv qab Flange thickness 25mm, dav 140mm. Middle Flange thickness 12 hli; |
|
|
Hla beam |
Lub luag haujlwm hnyav tshwj xeeb U steel |
|
|
Sab beam |
25 # siab kuv beam |
|
|
Pem teb |
5mm thickness checker phaj |
|
|
Tsheb kauj vab (ramp) |
Ob daim caij nplooj ntoos hlav steel ntaiv, (Q345B steel) |
|
OEM qhov chaw |
Qag |
4 * 13T muaj peev xwm, FUWA hom (Suav hom zoo tshaj) |
|
|
King Pin |
90 # / 50 #, JOST hom |
|
|

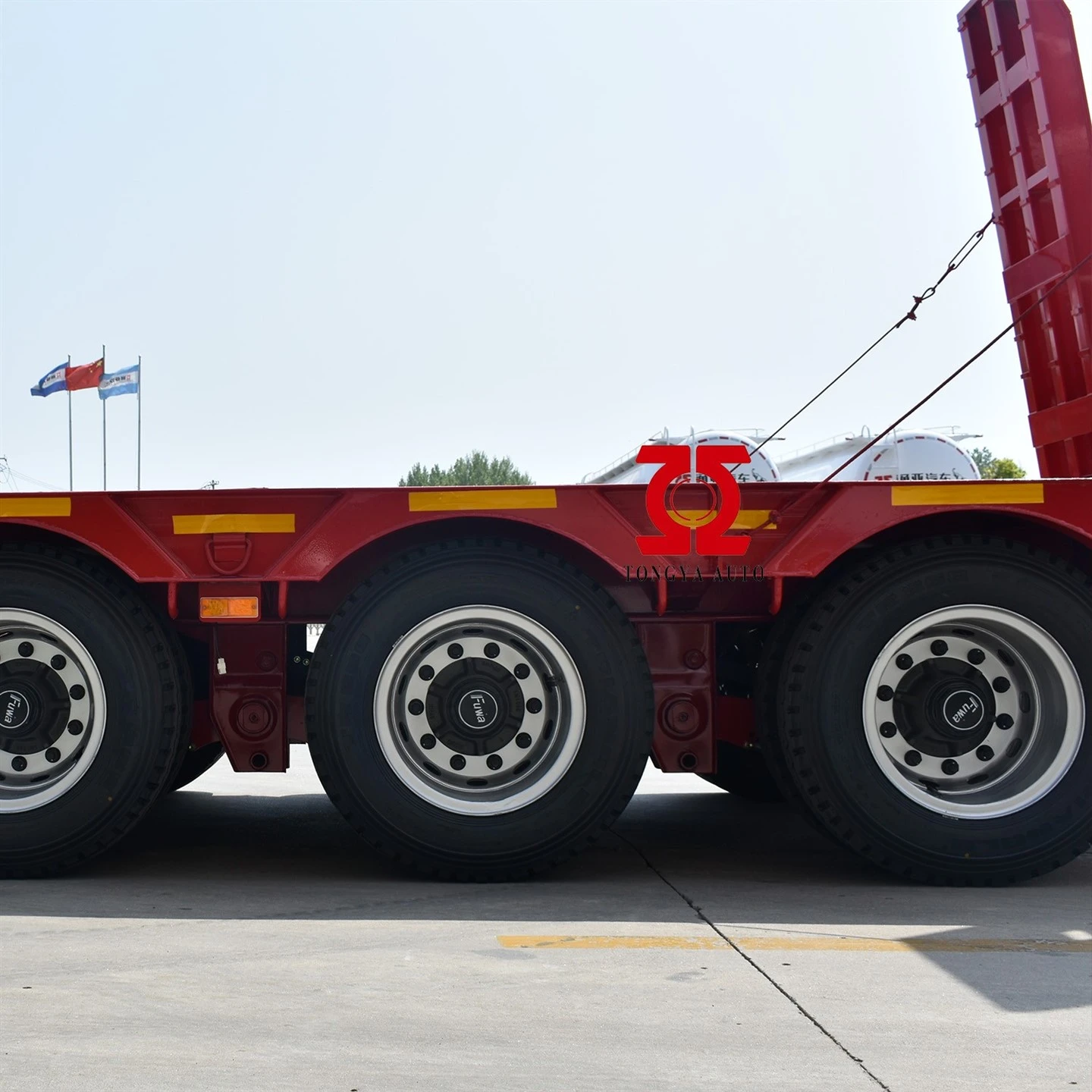

Kev ncua |
Rov qab mounting plaub-qag suspension nrog equalizers, Asmeskas tsim |
|
|
Hlau Caij nplooj ntoos hlav |
Yim teev ntawm cov khoom lag luam txhim khu kev qha hauv zos, 10pcs nplooj hlav, 13mm thickness, 90mm dav |
|
|
tsaws ob txhais ceg |
JOST A300C |
|
|
Tyre specs |
8.25R20-14 Daim duab peb sab hom |
|
|
Rim |
6.5*20-14 |
|
|
Tus lejntawmlub log |
17 daim (nrog rau ib lub log spare) |
|
|
Extendable |
Yog los yog xaiv raws li koj xav tau |
|
|
Nres system |
WABCO relay valve; Rau ob chav thiab ob chav nres tsheb; Ob chav ntawm ISO standard coppery air-connector. |
|
|
Hluav taws xob |
Ib chav ntawm 24V 7-pin ISO 1185 qhov (socket); LED teeb |
|
Lwm yam: |
Kev pleev xim |
xim qhia los ntawm tus neeg siv khoom |
|
|
Kos npe |
Txuj |
|
|
Sab Guard |
Txuj |
|
|
Cov cuab yeej thawv |
Ib daim (1. 0*0. 5*0. 5m), nyob rau hauv lub caj dab goose (nrog 1 lub log tsheb, 1 lub tes tsho gudgeon thiab 1 cranking bar) |
|
Nco tseg: Tag nrho cov ntsiab lus tsis tau haisyuav tsim raws li qhov kawg kev pom zoo nrog tus neeg siv khoom |
||
Qhov chaw thau khoom qis muab qhov muaj txiaj ntsig zoo thaum thauj qee lub tshuab loj thiab cov khoom siv.Peb yog cov khoom lag luam customized, peb tuaj yeem ua tau raws li koj cov kev xav tau ntau yam.

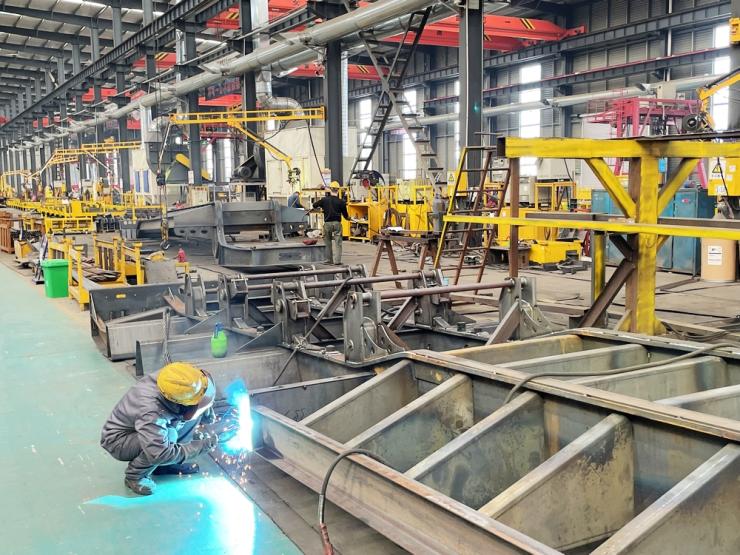

Peb cov engineers yuav tsim cov nqaj hlau loj rau peb qhov qis qis qis qis semi trailer nyob ntawm qhov muaj peev xwm thauj khoom uas muab los ntawm cov neeg siv khoom kawg, peb xaiv Q345B siab tensile steel nyob rau hauv cov tuab tuab, nrog cov txheej txheem tsis siv neeg Submerged-Arc vuam, kom paub meej. qhov rau peb cov chaw thau khoom uas tsis muaj txaj semi trailer nrog muaj zog loading lawj.
Peb Siv 100% nto moo hom khoom seem rau peb cov khoom, xws li JOST, WABCO, BPW, FUWA, Ob lub npib rau peb rau peb cov khoom qis qis qis semi trailer ! Cov khoom ua raws li cov qauv hauv tebchaws GB1589, GB / T6420 ! tib lub sij hawm kom tau raws li tus kheej xav tau ntawm cov neeg siv khoom.

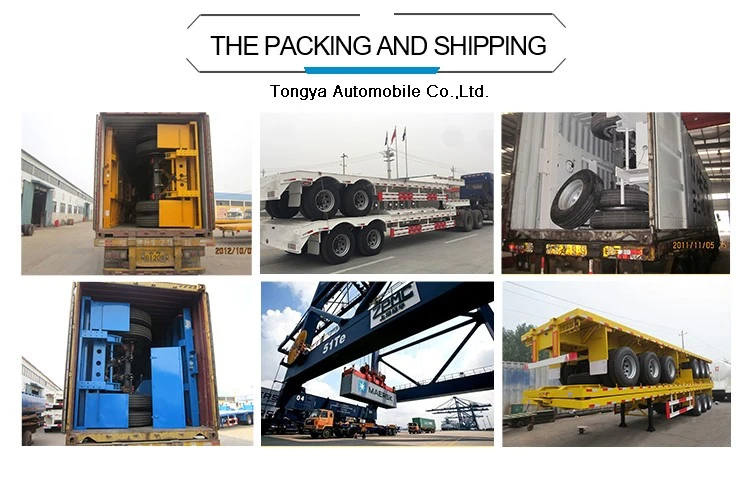

Shipping los ntawm bulk cargo nkoj los yog yob-on-roll-off nkoj, ob los yog peb lub loading qis txaj semi trailer pawg ua ke kom txo tau tag nrho cov loj, txiav down shipping freight.
