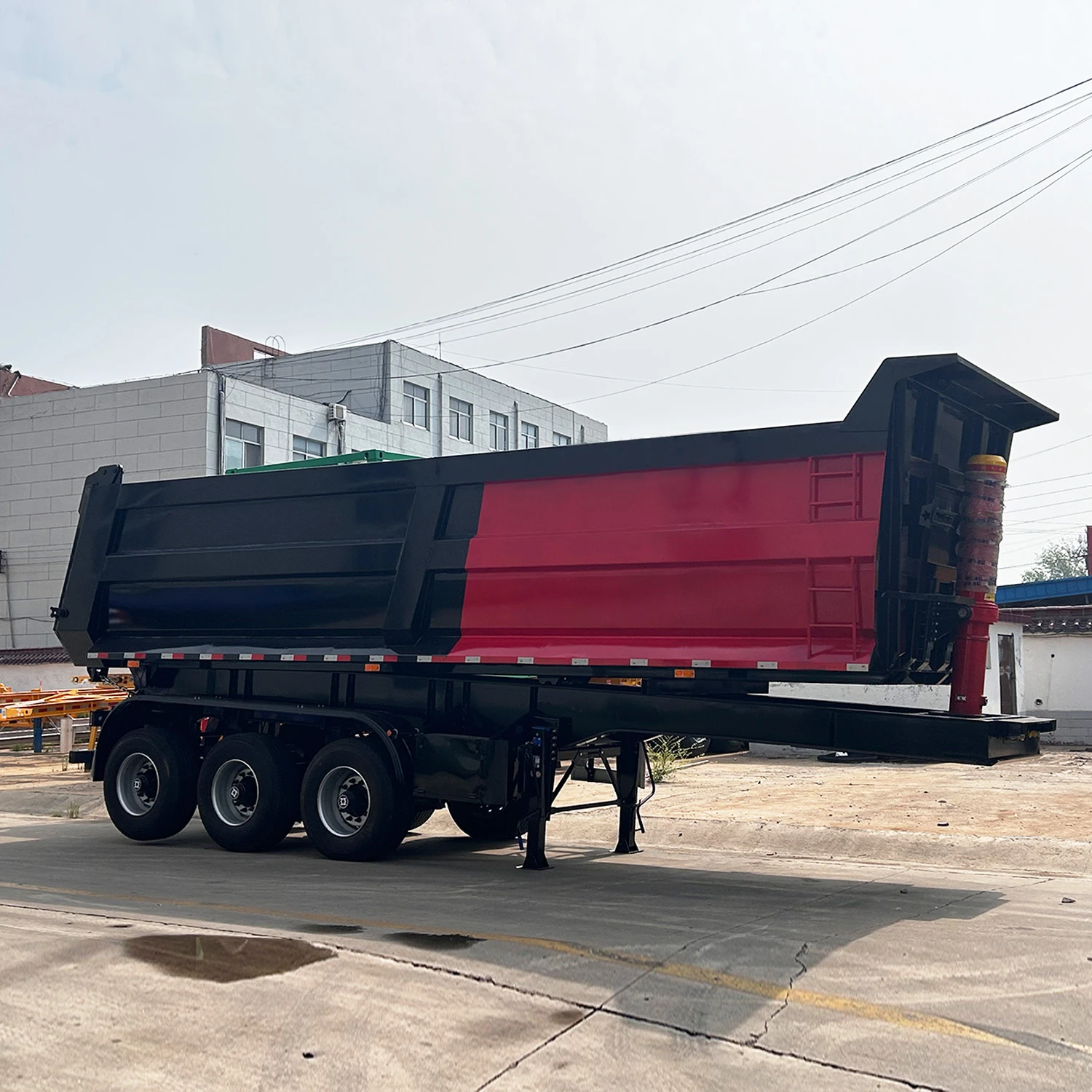

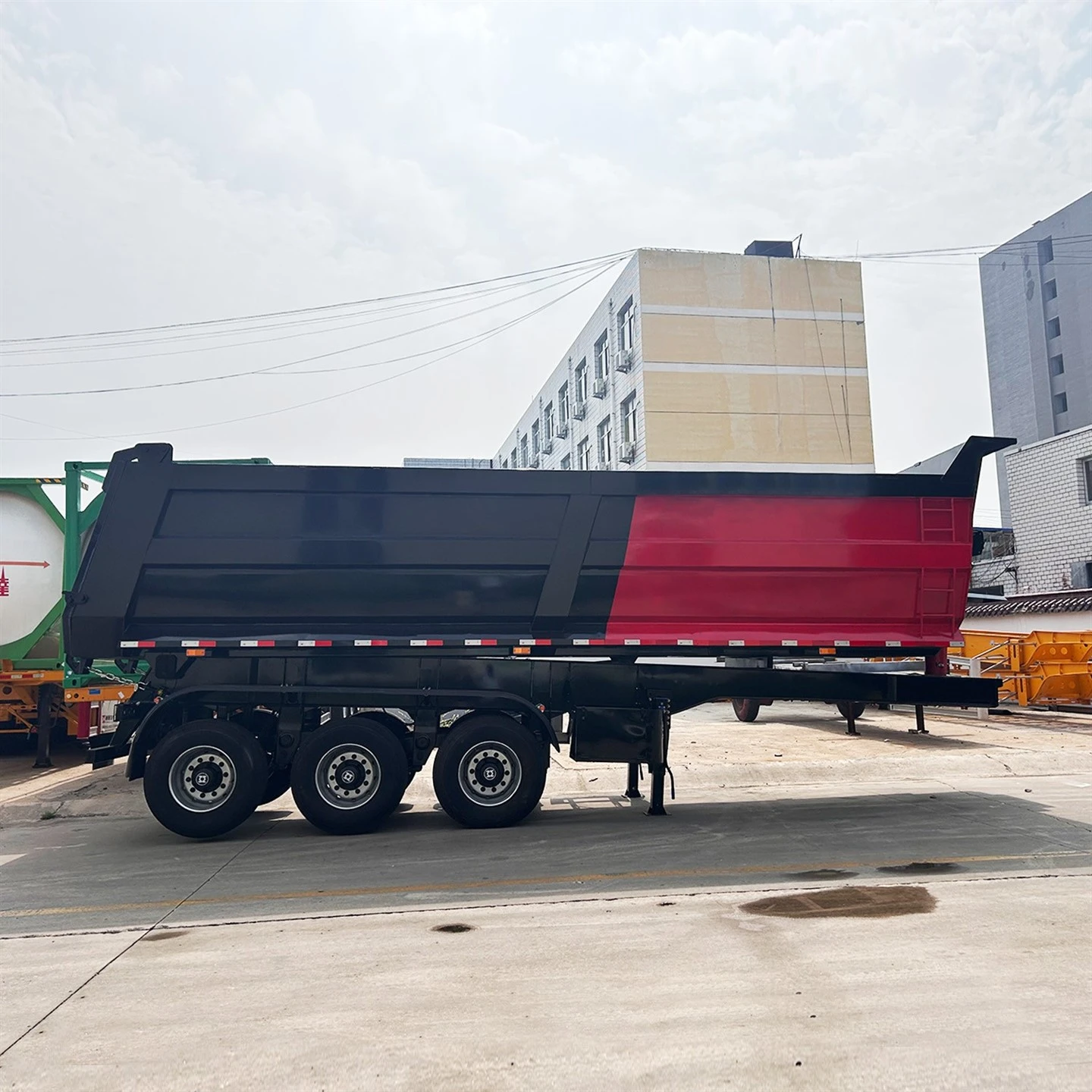

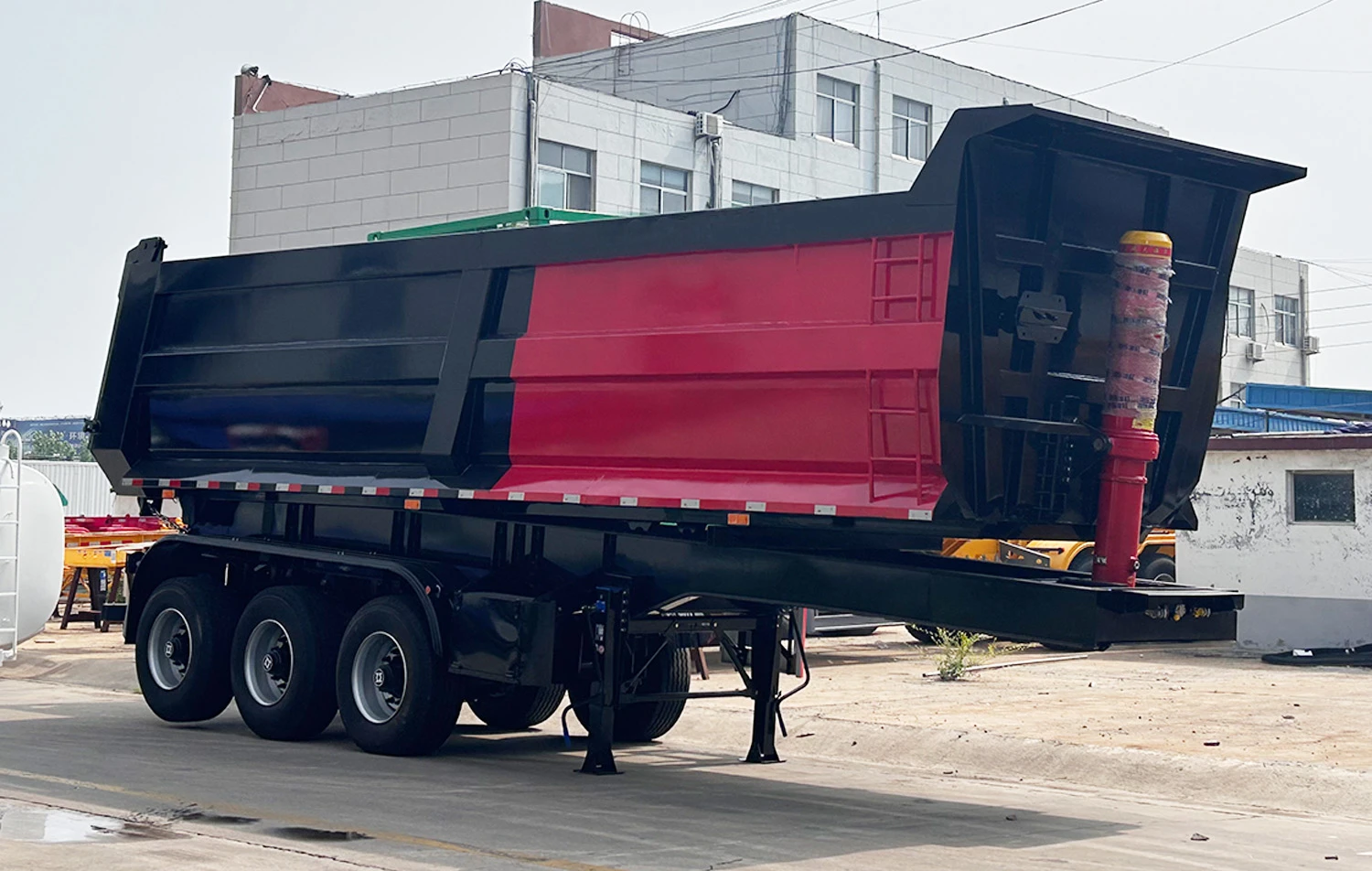

Hnyav Hnyav U Hom Tipping Tuck Trailer Rau Thauj Pob Zeb Sands Tsawg Nqe
Qhov no hnyav sab phab ntsa rear tipper semi trailer yog tsim los rau kev thauj khoom loj. qhov siab ntawm sab phab ntsa yog mormally 1500mm, thiab peb tuaj yeem ua raws li koj xav tau.
Khoom Taw qhia
Hnyav luag hauj lwm U hom tipping tuck trailer rau thauj pob zeb sands uas tsis muaj nqi
Specifications:
|
Tare luj |
Txog 8T |
|
Dimension |
12500mm * 2500mm * 1550mm |
|
Loading peev (T) |
50 T |
|
Qag |
3 qag / 4axles, 13 T / 16T / 20T BPW / FUWA |
|
Rim |
9.00-22.5 (tshwj xeeb rau kev lag luam xa tawm) |
|
Lub log |
12R22.5 Deshenglong hom 13pieces / 9 daim |
|
Kev ncua |
Mechanical America Hom yeem / bogie ncua kev kawm ntawv |
|
Nplooj nplooj |
90 (W) hli * 13 (Thick) hli * 10 Txheej |
|
King pin |
hom JOST yeem |
|
Txhawb ceg |
Jost A300C los yog TONGYA 28T |
|
Main beam |
Qhov siab: 500mm, sab phaj yog 16mm, nruab nrab phaj yog 8mm, Down phaj yog 16mm; Khoom siv yog Q345B Steel |
|
Sab beam |
Q235 16# channel steel |
|
Nres chamber |
WABCO RE 6 relay valve; T30/30+T30 Caij nplooj ntoos hlav nres chamber (TKL hom); Ib daim ntawm 45L cua tso tsheb hlau luam |
|
ABS |
Tsis muaj (yeem) |
|
Valve |
WABCO valve |
|
Teeb |
LED teeb |
|
Qhov hluav taws xob |
24V |
|
Txais |
7 txoj kev (7 hlau hlua) |
|
Tool lub thawv |
1 thooj: nruab nrog 1 unit Tyre spanner, 1 unit gudgeon tes tsho thiab 1 unit cranking bar |
|
Kev pleev xim |
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive primer, 2 lub tsho tiv no ntawm cov xim kawg |
|
Cov ntsiab lus shipping: |
Los ntawm cov neeg nqa khoom loj, RORO lossis 40HQ thawv |
Xa lus nug Hu rau tus neeg muag khoom Rau Cov Kev Pabcuam Tshwj Xeeb Thiab Tus Nqi Zoo Tshaj.
Peb yog Hoobkas tsim, txais tos koj tuaj xyuas peb lub Hoobkas.
