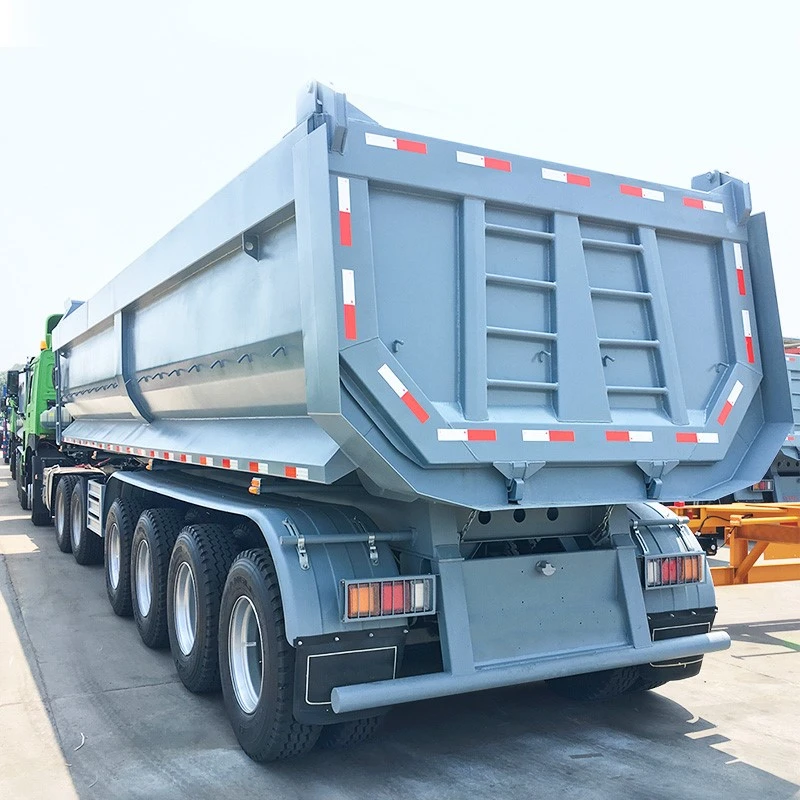

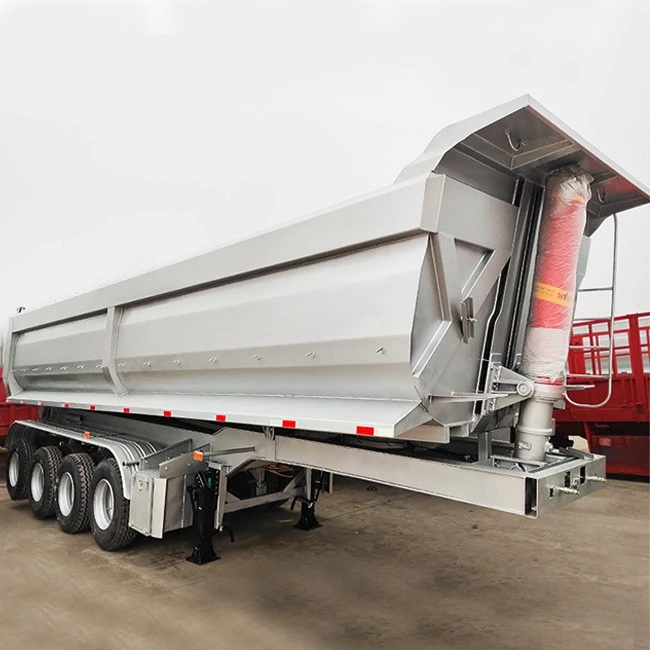

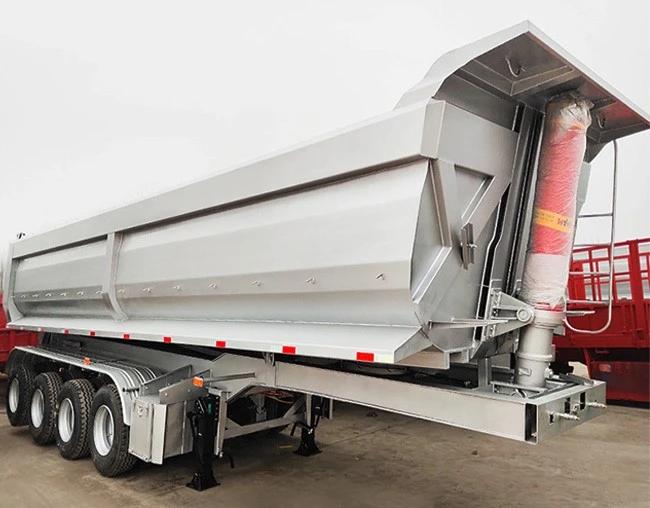

Tuam Tshoj Hoobkas TONGYA Hom U Shape Hyva Lub tog raj kheej pov tseg trailer Kev muag khoom
Lub hyva cylinder dump trailer yog ib lub tsheb siv rau kev thauj mus los ntawm cov khoom loj thiab cov khoom tawg tawg xws li cov thee, ore, thiab cov khoom siv tsim kho, thiab yog nqa los ntawm sab xub ntiag. Thaum siv rau kev tsheb thauj mus los, nws tsuas yog ua cov haujlwm thauj mus los xws li cov mines loj thiab cov haujlwm, thiab feem ntau yog siv ua ke nrog excavators. Thaum siv hauv kev thauj mus los, hyva lub tog raj kheej khib nyiab trailer feem ntau ua haujlwm thauj khoom xoob xws li xuab zeb, av, thiab thee, thiab feem ntau yog siv nrog cov khoom thauj. Lub hyva lub tog raj kheej pov tseg trailer tsim los ntawm tongya Tops Intelligent Equipment muaj sophisticated technology, durability, siab zog, muaj zog lifting quab yuam, zoo txhav, toughness, muaj zog bearing muaj peev xwm, thiab tsis muaj deformation mus tas li.
Khoom Taw qhia
Tuam Tshoj Hoobkas TONGYA Hom U Shape hyva Lub tog raj kheej pov tseg trailer Kev muag khoom
Xa lus nug Hu rau tus neeg muag khoom Rau Cov Kev Pabcuam Tshwj Xeeb Thiab Tus Nqi Zoo Tshaj.
Peb yog Hoobkas tsim, txais tos koj tuaj xyuas peb lub Hoobkas.
Tuam Tshoj Hoobkas Tongya hom U zoo HYVA lub tog raj kheej pov tseg trailer kev muag khoom
1. Cov hlau rau lub hyva lub tog raj kheej khib nyiab trailer txais lub zog siab steel customized los ntawm cov hlau loj hauv tsev, nrog kev ruaj ntseg zoo;
2. Cov khoom tseem ceeb yog xaiv cov khoom lag luam zoo hauv tsev, thiab tau dhau CCC ntawv pov thawj, thiab qhov zoo yog txhim khu kev qha;
3. Cov kev tiv thaiv sab, cov log tsheb spare, fenders, thiab lwm yam yog ua modular, uas yog yooj yim dua thiab siv tau; Txhaj peening, tshem tawm vuam kev nyuaj siab, tshem tawm xeb ntau dua, thiab muaj zog xim adhesion;
4. Lub hydraulic system ntawm hyva lub tog raj kheej khib nyiab trailer xaiv lub hom loj, qhov nqa tau ruaj khov dua thiab qhov zoo yog txhim khu kev qha;
5. Lub auxiliary longitudinal beam yog tsim los ntawm kev khoov zuag qhia tag nrho ntawm lub tshuab khoov loj, thiab lub zog ntawm cov auxiliary ncej yog siab dua;
6. Qhov tshwj xeeb 77- hom sub-longitudinal beam yog zoo kawg nkaus ua ke nrog lub thav duab, uas ua rau qhov nruab nrab ntawm lub ntiajteb txawj nqus ntawm tag nrho lub tsheb qis dua, thiab kev sib raug zoo ntawm ob qho tib si ua rau qhov xwm txheej ruaj khov;
Yog li cia siab rau peb, peb lub tog raj kheej hyva khib nyiab trailer muaj lub ntiaj teb zoo hauv chav kawm, yog li txais tos koj thiab koj cov phooj ywg tuaj xyuas peb lub Hoobkas.
KhoomSpecifications:
|
DIMENSION |
||
|
Tare luj |
11 500 Kg |
|
|
Them nyiaj |
70 000 kgs |
|
|
Zuag qhia tag nrho ntev |
12500 hli |
|
|
Dav dav |
2500 hli |
|
|
DUMPER lub cev |
||
|
Ntim |
40 cbm |
|
|
Sab phab ntsa |
6 hli thickness |
|
|
Pem hauv ntej phab ntsa thiab pem teb |
8mm thickness |
|
|
SPECIFICATION |
||
|
Chassis |
Heavy luag hauj lwm thiab ntxiv durability tsim kuv beam; Kev xaiv rau siab tensile steel Q345B, Sab saum toj Flange 16mm, dav 140mm; Ob Chav Nruab Nrab Flange 6mm thiab 8mm; Hauv qab Flange 18mm, dav 140mm. |
|
|
Qag |
3/4 axles |
|
|
PEB 16 Ton |
||
|
Hydraulic System |
Ib txheej ntawm HYVA lub tog raj kheej |
|
|
Kev ncua |
German hom heavy duty mechanical ncua kev kawm ntawv |
|
|
Nplooj Caij nplooj ntoos hlav |
13-daim nplooj nplooj hlav. |
|
|
King Pin |
JOST hom King Pin, 90 # (3.5 nti) |
|
|
tsaws iav |
JOST A300C los yog TONGYA 28T |
|
|
Log Rim |
9. 00-20 log rim rau rear 3 qag |
|
|
Lub log |
12R20 tubeless log rau rear 3 qag |
|
|
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Caij nplooj ntoos hlav nres chamber; 40L cua tso tsheb hlau luam |
|
|
Kev pleev xim |
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |
|
|
Teeb & Reflectors |
Tsheb teeb, rear reflector, tig taw qhia lub teeb, sab reflector, pos huab teeb, tooj phaj teeb |
|
|
Cua/Elec. Txuas |
ISO txheem cua txuas, 24V 7 tus pin plug socket |
|
|
Khoom siv |
Ib tug standard toolbox |
|
Cim npe nrov: Tuam Tshoj Hoobkas Tongya hom u zoo hyva lub tog raj kheej dump trailer rau muag, Tuam Tshoj Hoobkas Tongya hom u zoo hyva lub tog raj kheej dump trailer rau muag manufacturers, lwm tus neeg
