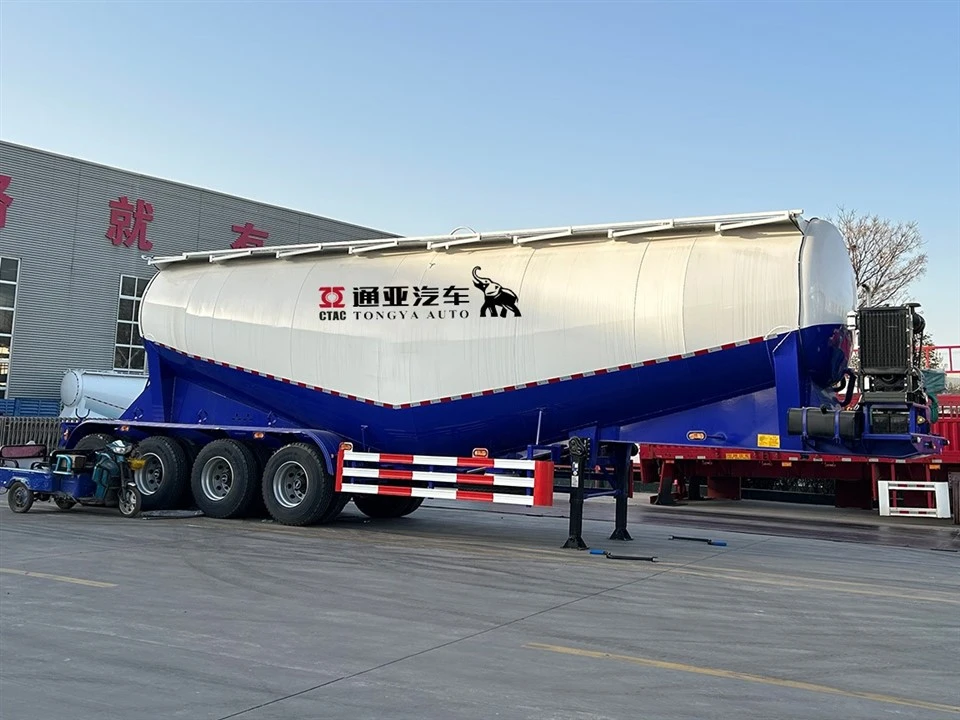

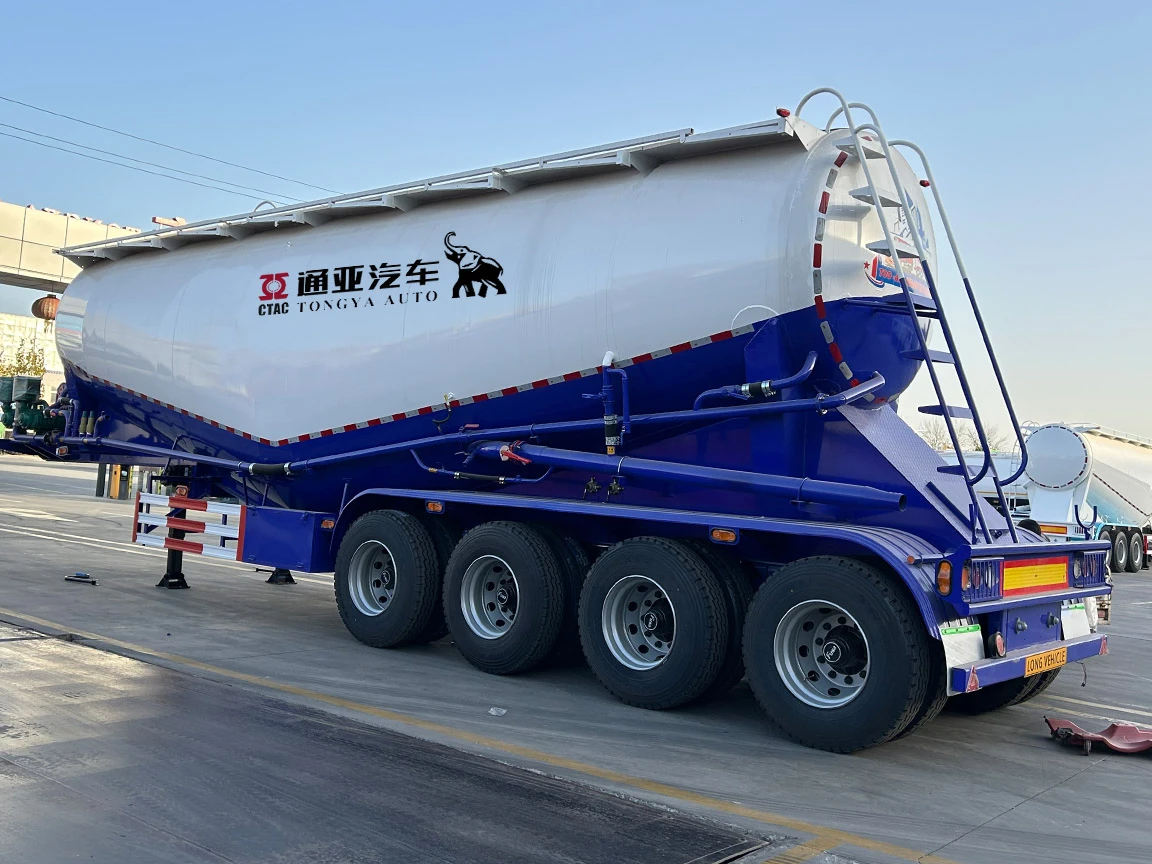

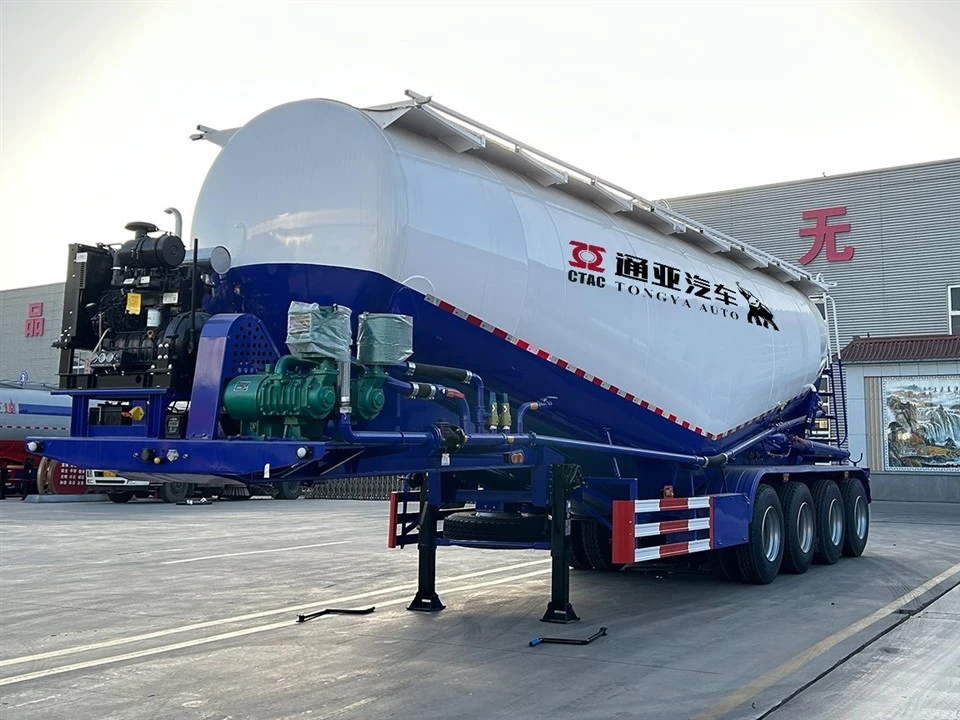

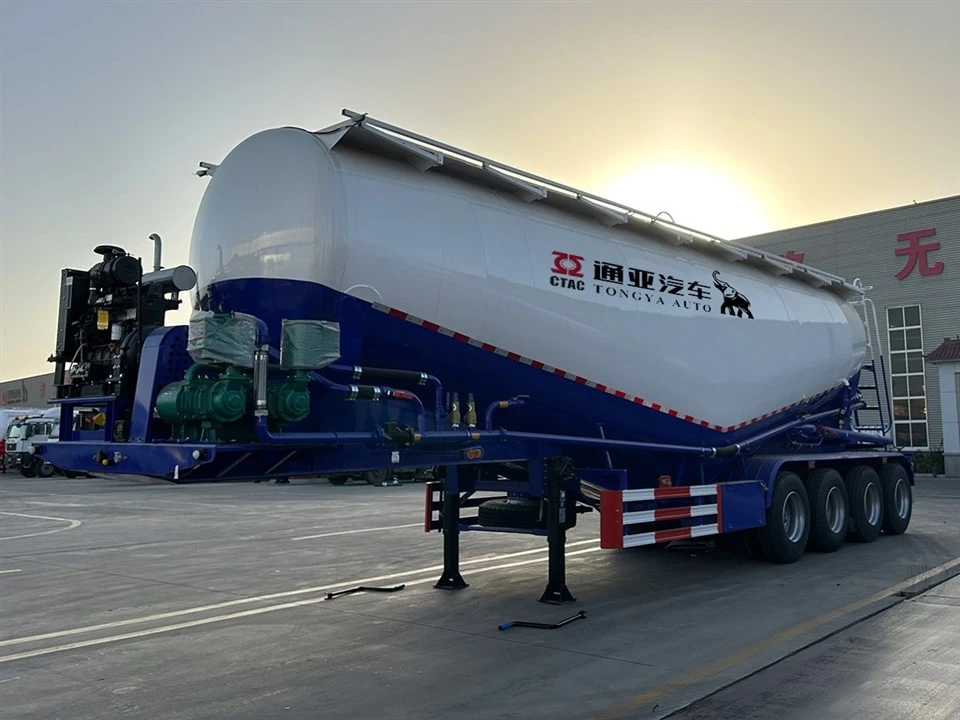

4 Axle Bulk Cement Tanker Semi Trailer Nrog Cua Ncua Sijhawm
Cement bulk trailers yog siv los nqa cov cement. Peb muab cov cement tanker trailer nrog lub tshuab hluav taws xob lossis compressor thiab muaj qhov yooj yim ntawm cov kev qhia tshwj xeeb ntawm cov cement bulkers qhuav. Tongya Auto tuaj yeem muab tus nqi sib tw thiab qhov zoo tshaj plaws cement silo trailer.
Khoom Taw qhia
Khoom Description
4 Axle Bulk Cement Tanker Semi Trailer ntawm Qhov Zoo:
1. Tag nrho cov vuam yog zoo meej rau kev ua kom muaj kev nyab xeeb siab thiab tsis muaj cua xau: tshwj xeeb vuam tshuab los vuam lub tank lub cev los ntawm ib sab tab sis cov ntaub ntawv du, ruaj khov, thiab cov welds tsis sib xws ntawm ob sab.
2. High-lub zog hnav- cov hlau tsis muaj zog: lub tank lub cev yog ua los ntawm siab - lub zog thiab hnav- cov hlau resistant, uas tuaj yeem ua kom nws lub neej ua haujlwm ntev dua li cov khoom siv zoo tib yam.
3. Qhov tseeb ntws qauv ua kom muaj peev xwm thauj khoom, txo qis lub ntiajteb txawj nqus, tshem tawm sai, thiab cov khoom seem me me, thiab tawm sai sai,<0.3% retention volume.
Khoom Specification
| Main Dimension | |
| Chaw tsim tshuaj paus: | TONGYA AUTOMOBILE.CO., LTD |
| Qhov Chaw Keeb Kwm: | Shandong, Suav teb |
| Hom: | Bulk Cement Tanker Semi Trailer |
| Dimension: | 11900 * 2500 * 3900mm (tuaj yeem kho tau) |
| Tare Nyhav: | Txog 11T |
| Loading peev: | Tsawg dua lossis sib npaug li 50T |
| Tanker Peev Xwm: | 50m3 (50000L) |
| Tanker lub cev Thickness (mm): | 5mm ib |
| Pem hauv ntej thiab nram qab phaj Thickness (mm): | 6mm ib |
| Chassis | |
| Hauv qab chassis | Siab zog Q355B steel |
| Tanker puab | "V" shape |
| Manhole: | 2 daim, (inch yog 500mm) |
| Tshem lub qhov ncauj | 4 nti tawm qhov ncauj |
| King Pin: | Jost hom 2.0 nti |
| Kev them nyiaj yug ceg: | Jost hom A300C |
| Qag: | 13T*4, ZY Brand |
| Kev ncua: | Air Suspension thiab Mechanical Suspension |
| Nplooj nplooj: | 90 (dav) hli * 13 (thickness) hli * 10 txheej |
| Log tsheb: | 12R22.5 Daim duab peb sab hom (ntau hom log tsheb muaj) |
| Ntug: | 9.0-22.5 |
| Cua compressor | 12m3 ob -lub tog raj kheej cua compressor, Bohai hom (Suav npe nrov) |
| Cav | Diesel Cav, Weifang Tianhe hom ZH 4105P cav (Suav npe nrov) |
| Spare Tyre: | 1 Daim |
| Kev kos duab: | Advanced hmoov txau nrog cov txheej txheem ci enamels |
| Accessories: | Ib tug standard toolbox |
Yog xav paub ntxiv txog cov khoom lag luam, thov hu rau peb.Peb yuav muab koj cov nqi sib tw tshaj plaws.
Tuam txhab Profile

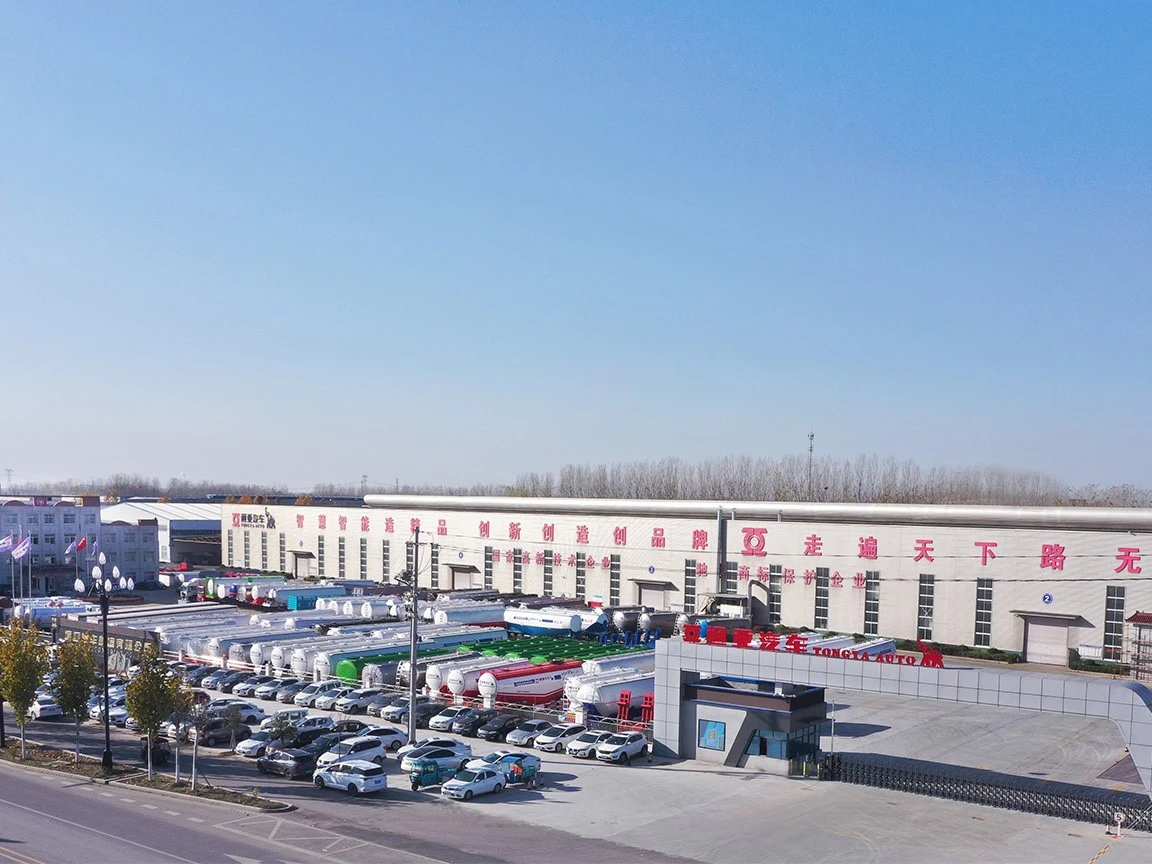

TONGYA AUTOMOBILE CO., LTD yog Tuam Tshoj ua semi trailer thiab tanker trailer chaw tsim tshuaj paus txij thaum 1982 ! Sib koom tsim, tsim khoom thiab muag khoom ntawm semi trailer thiab cov khoom seem ua ke.
Our tuam txhab npog thaj tsam ntawm 400,000 square meters, tag nrho cov cuab tam 7million US duas. Muaj 156 tus neeg uas muaj lub luag haujlwm tseem ceeb.
Peb cov khoom xa tawm mus rau ntau tshaj 40 lub teb chaws, xws li Russia, East South Asia, Australia, South America, Africa, Central Asia thiab South Aisa .Txhua xyoo peb xa tawm cov semi trailer ntau tshaj 5000 units, tanker semi trailer 3500units.
FAQ
Q1, Vim li cas thiaj xaiv Tongya Automobile Co., Ltd?
1, Tuam Tshoj ua cov chaw tsim khoom ntawm semi trailer thiab tanker trailer txij li xyoo 1982, Tuam Tshoj nto moo hom, txhua xyoo tso zis ntawm 10,000 units sib txawv ntawm semi trailers
2, Ntau tshaj 19 xyoo kev xa tawm txij li xyoo 2005, Nkag siab txog qhov sib txawv hauv zos specs thiab tus qauv los ntawm ntau tshaj 50 lub teb chaws sib txawv
3, Customized khoom muaj, nrog niaj hnub thiab ua ntej ntau lawm kab nrog txhua yam ntawm cov khoom siv thiab cov txheej txheem ntau lawm
4, Pab pawg kws tshaj lij nrog 24 tus kws tshaj lij engineers
Q2, Koj tuaj yeem yuav dab tsi los ntawm Tongya Automobile Co., Ltd?
Bulk Cement Tanker Semi trailer, Roj Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Pob Tseg Trailer, dolly trailer, laj kab Semi-trailer, Sab Phab Ntsa Semi-trailer, tag nrho trailer, Flour tanker tanker, ISO bulk
Q3, Kuv puas tuaj yeem tuaj xyuas koj lub Hoobkas?
Tau kawg, txais tos tuaj xyuas peb lub hoobkas.peb nyob hauv Liangshan, xeev Shandong, lub ntsej muag -rau- ntsej muag sib tham tuaj yeem pab koj zoo dua.
Q4, Yuav ua li cas txog koj lub sijhawm xa khoom?
10-30 hnub tom qab tau txais qhov tso nyiaj, nyob ntawm qhov kev txiav txim kom muaj nuj nqis.
Q5, Cov nqe lus them nqi twg koj siv?
Kev them nyiaj T / T thiab L / C tau txais.
Q6, Qhov twg incoterms 2010 nqe lus peb tuaj yeem ua haujlwm?
Feem ntau peb txais FOB, CFR, CIF.
Q7, Puas yog nws muaj los luam peb tus kheej lub npe ntawm lub tsheb?
Yog lawm, peb lees txais ua OEM rau cov neeg muag khoom paub zoo thiab cov neeg muag khoom.
Q8, Cov ntaub ntawv dab tsi kuv yuav tsum qhia rau koj paub yog tias kuv xav tau cov lus hais?
Ua ntej, thov qhia rau peb paub seb hom trailers koj xav tau
Qhov thib ob, Thov qhia rau peb paub seb yam khoom thauj twg koj yuav thauj khoom nrog peb cov tsheb thauj khoom? Chaw thau khoom muaj peev xwm? txoj kev mob?
Thib peb, dab tsi trailer loj yog OK rau koj, thiab koj puas xav tau cov khoom customized
Plaub, koj lub tsheb specs, zoo li 2.0 lossis 3.5 nti tsib lub log? thib tsib lub log qhov siab? 6 * 4 lossis 4 * 2 tsheb yuav siv?
Tsib, txiav txim kom muaj nuj nqis, qhov chaw nres nkoj
Cov ntaub ntawv ntau dua koj yuav muab, qhov tseeb thiab tus nqi sib tw peb tuaj yeem muab tau.
