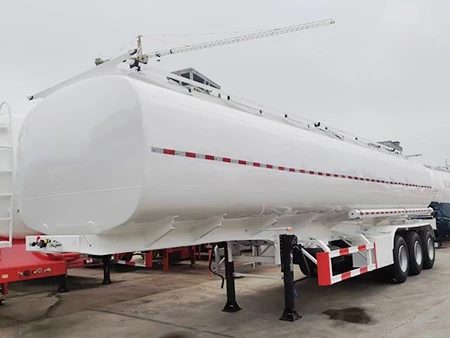

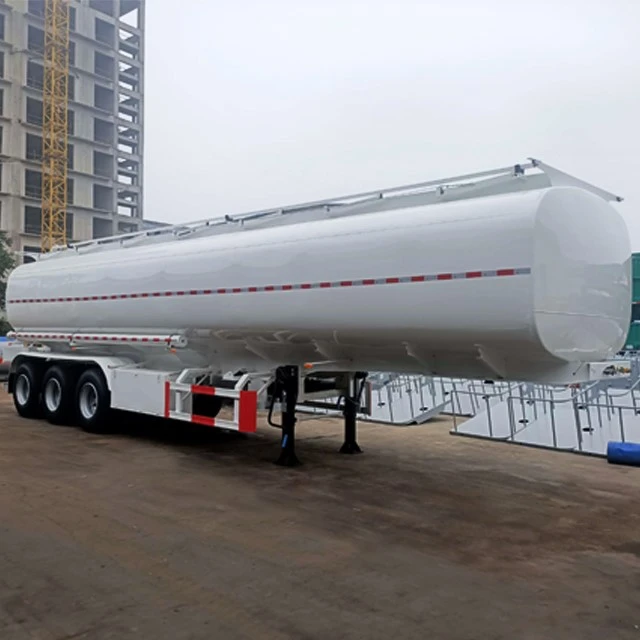

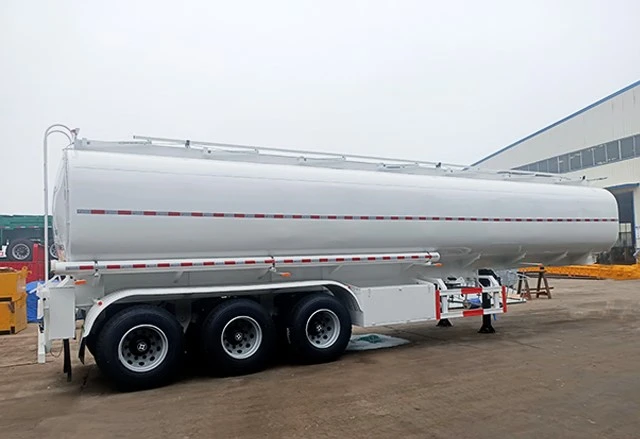

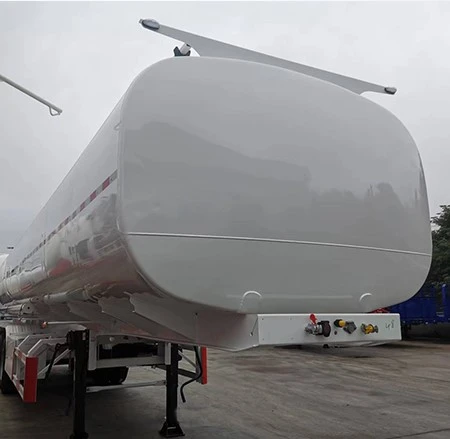

3 Axles 45000litres Roj Tanker Trailer Supplier
1. Tsim los ntawm 1982, peb yog cov chaw tsim khoom ntawm semi trailer. Peb kuj tau txais daim ntawv pov thawj ASME, daim ntawv pov thawj ADR, daim ntawv pov thawj ISO, CCC daim ntawv pov thawj thiab lwm yam. Peb txais yuav cov khoom lag luam nto moo rau peb lub tank trailer, nws txuag nqi & xyuas kom muaj kev pabcuam ntev.
Khoom Taw qhia
3 qag 45000litres roj tanker trailer tsum
Txhua yam khoom siv roj tuaj yeem nqa nrog 3 qag 45000litres roj tanker trailer. Petroleum, Diesel, Roj Roj, JET A1 thiab ntau lwm yam khoom siv roj tsheb thauj mus los haum nrog peb lub qag tanker semi-trailer.
Chaw thau khoom muaj peev xwm nruab nrab ntawm 20.000 ltr txog 57.000 ltr rau 3 qag 45000litres roj tanker trailer. Cov khoom ntim tuaj yeem npaj tau raws li cov neeg siv khoom thov ntawm 3 qag roj tanker semi-trailer.
Xa ib qho kev nug thiab peb yuav muab cov nqi luv nqi rau koj.
Specifications:
|
Cov ntaub ntawv yooj yim |
||
|
Qhov loj me |
12000x2500x3780mm |
|
|
Design Capacity (tag nrho) |
45000L |
|
|
Qhov hnyav (± 3%) |
13000KG |
|
|
Hom |
Tri-axle semi-trailer |
|
|
Coupling qhov siab |
Qhov siab 1320mm |
|
|
Tank sib dhos |
||
|
Chav tsev |
xaiv tau |
|
|
Pem hauv ntej / rear kawg phaj |
Khoom siv |
Cov pa roj carbon steel |
|
Pem hauv ntej / rear kawg phaj |
tuab |
6mm ib |
|
Tank lub cev (nrog insulating txheej) |
Khoom siv |
Cov pa roj carbon steel |
|
Thickness |
5mm ua |
|
|
Wave-proof phaj thickness |
4mm ib |
|
|
Manhole cover |
Txoj kab uas hla |
500 hli |
|
Khoom siv |
Hoobkas txheem |
|
|
Tus lej |
2-6pcs (yeem) |
|
|
Tshem tawm valve |
Txoj kab uas hla |
3 nti |
|
Khoom siv |
Aluminium Alloy API Valve |
|
|
Tus lej |
2-6 pcs (yeem) |
|
|
Hauv qab kev nyab xeeb valve |
Aluminium Alloy4 nti |
|
|
Cov yeeb nkab tawm |
Txoj kab uas hla |
3 nti |
|
Hom |
Roj hmab hose, 2pcs |
|
|
Cat taug kev |
Txuj |
|
|
Chasis |
||
|
Qag |
Hom |
Fuwa |
|
Hom |
13t |
|
|
Tus lej |
3 pcs |
|
|
Rim |
Hom |
9.0-22.5 |
|
Tus lej |
/ 12 pcs |
|
|
Lub log |
Hom |
Daim duab peb sab hom |
|
Hom |
12R22.5 |
|
|
Tus lej |
12 pcs |
|
|
Kev ncua |
Mechaniacal suspension / cua ncua kev kawm ntawvtuaj yeem xaiv tau |
|
|
Nplooj nplooj |
Nplooj dav |
90mm ua |
|
Nplooj tuab |
13 hli |
|
|
Txheej / txheej |
10 Txheej |
|
|
King pin |
Hom |
Bolts hom |
|
Txoj kab uas hla |
2 nti |
|
|
Nres system |
Cua tank |
45L cua tso tsheb hlau luam |
|
Nres chamber |
WABCO RE6 relay valve; T30/30+T30 Caij nplooj ntoos hlav nres chamber |
|
|
ABS |
xaiv tau |
|
|
tsaws iav |
Hom |
JOST |
|
Hom |
E100 |
|
Cov duab nthuav dav:
Koj yuav tsum paub 3 axles 45000litres roj tanker trailer tsum Main qhov chaw:
1. Nrog cov khoom siv kev nyab xeeb: lub manhole yog qhov tawg-pov thawj loj npog. Lub qhov hluav taws xob hauv qab ntawm lub tank yog nruab nrog lub valve kaw thaum muaj xwm ceev.
2. Lub tank lub cev yog cia li welded los ntawm ib tug advanced loj-scale tshwj xeeb vuam tshuab.
3. Peb lub cev tanker yog longitudinally welded. Xyuas kom muaj kev nyab xeeb ntawm lub tanker thiab ua kom lub neej ua haujlwm.
4. Cov khoom siv ntsuas dej ntim dej tank: txhawm rau xyuas kom lub siab ntim ntawm lub tank lub cev thiab zam cov roj xau.
5. Lub rooj tsav xwm waved yuav txo qhov cuam tshuam ntawm cov kua hauv lub tanker.
Thawv Thauj Khoom(hauv qab 41 cbm tuaj yeem thauj khoom hauv 40hq, ntau dua 42 cbm xav tau lub thawv loj thiab lub thawv me me.)
Kev xa khoom loj. Qhov no yog feem ntau txoj kev, nws tuaj yeem ua kom tiav ntawm qhov trailer.
Ro-Ro khoom xa tuaj. Tus nqi ntawm Ro-Ro khoom xa tuaj yog qhov kim tshaj plaws ntawm txhua txoj kev. Nws tuaj yeem tiv thaiv lub trailer zoo thiab ua kom tiav ntawm lub trailer.
Flat Rack. Nws yog ib qho ntawm cov thawv tab sis nws muaj qhov ntev txwv uas yog li 11.7 meters.
Cim npe nrov: Tuam Tshoj 3 qag 45000litres roj tanker trailer tsum, Tuam Tshoj 3 qag 45000litres roj tanker trailer manufacturers, lwm tus neeg
