Lub Hydraulic Detachable Goose-caj dab Tsawg txaj Semi Trailer

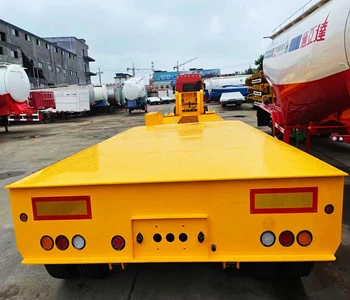

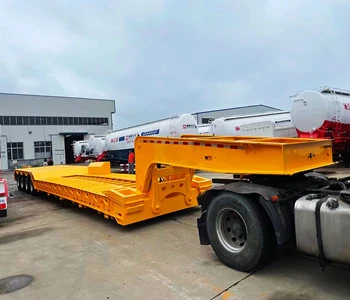

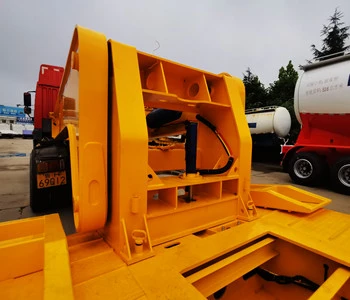

Khoom duab
Khoom specification
Qhov ntev | 18500x3000x1170MM |
Axle specifications. | 4AXLE, Fuwa hom, 13tons. |
Kev ncua | Mechanical Suspension (Air suspension) |
King Pin | JOST 2" traction pin |
Txhawb ob txhais ceg | JOST hom 28T |
Wheelbase | 1310 |
Hlau Caij nplooj ntoos hlav | Heavy Duty Leaf Spring |
Kev ncua | Mechanical anti-install ncua kev kawm ntawv |
Hluav taws xob qhov system | 24V, 7 tus pin socket, Ib txheej 7-core standard Cable |
Lub log | 275/80R22.5,16pcs |
Cov khoom siv ntawm Main beam | Sab saum toj phaj thickness yog 20 hli, nruab nrab phaj thickness yog 20 hli, nqes phaj thickness yog 12 hli; Khoom siv yog Q345 Carbon Steel. |
Sab beam | 25mm channel steel (Cov khoom yog Q235 carbon steel) |
Platform phaj | 5mm Pob Zeb Diamond Phaj |
ntaiv | Mechanical ntaiv |
Nres | Kemi Brand Tuam Tshoj |
Nres Chamber | WABCO RE 6 relay valve; T30/30 ntxiv rau T30 Caij nplooj ntoos hlav nres chamber (TAIYUE hom); Ib daim ntawm 45L cua tso tsheb hlau luam |
ABS system | xaiv tau |
Teeb | Tail teeb nrog tig teeb liab, nres teeb & reflector, sab teeb thiab lwm yam |
Tool lub thawv | 1sets (waterproof hom) |
Spare log tsheb | 1sets (Patent hom) |
Kev pleev xim | Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 2 lub tsho tiv no ntawm anticorrosive primer, 2 lub tsho tiv no ntawm cov xim kawg |
Ntim | Polish nrog wax ua ntej shipping |
Khoom nthuav dav
Khoom kom zoo dua:
1. Advanced manufacturing technology Laser txiav, neeg hlau tsis siv neeg vuam, txhim khu kev qha zoo 2. Advanced painting techniques KTL electrophoresis ntxiv hmoov txau, es tsis txhob ntawm cov tsoos painting txheej txheem, muaj ib tug zoo anti-corrosion nyhuv, ntev kev pab cuam lub neej. 3. Cov qauv sib dhos Cov ncej ncej txais cov qauv sib dhos, uas yooj yim los hloov thiab tswj, thiab txo tus nqi tu. 4. Kev tsim qauv muaj ntau hom qis chassis semitrailers muaj: unloaded, exposed log tsim, ib lub log, twin log, rov qab los yog pem hauv ntej ramp kom tau raws li qhov sib txawv ntawm cov neeg siv khoom. 5. Warranty Main beam: 2 xyoo 6. Ntiaj teb no semi-trailer accessories hom xws li BPW, WABCO, JOST thiab Micheli
